Sida 1/48
To reduce risk of serious injury, thoroughly read and comply with all warnings and instructions in this manual and on product.
KEEP THIS MANUAL NEAR YOUR GRINDER FOR EASY REFERENCE AND TO INSTRUCT OTHERS.

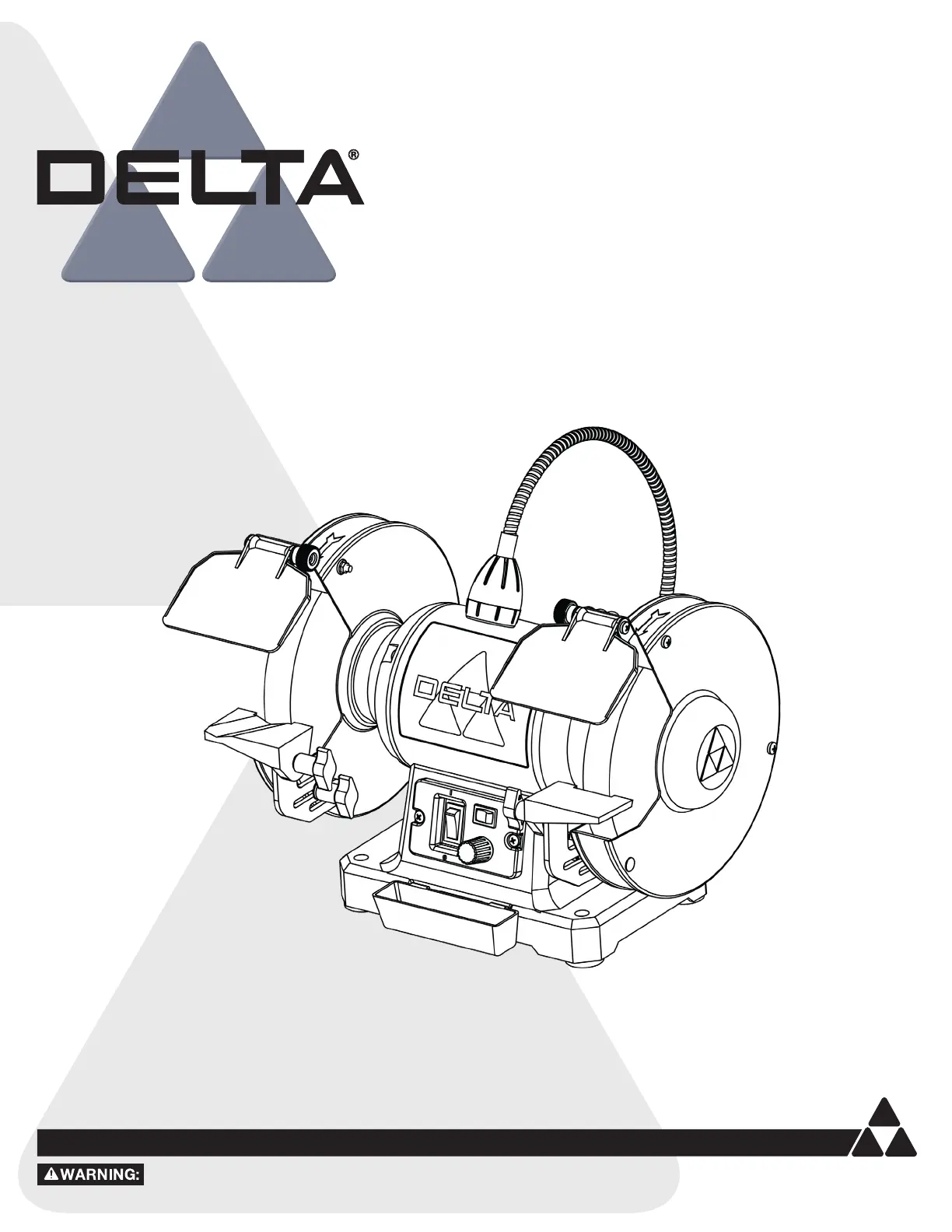

Variable Speed Grinder
Meuleuse/Aûteuse à vitesse variable
Recticadora de velocidad variable
www.DeltaMachinery.com
23-206
23-207
Instruction Manual
Manuel d’utilisation
Manual de instrucciones
2
TABLE OF CONTENTS
FEATURES ......................................................................2
SPECIFICATIONS .......................................................... 2
IMPORTANT SAFETY INSTRUCTIONS ........................... 4
SAFETY SYMBOLS - DEFINITIONS ................................ 4
GENERAL SAFETY RULES ............................................... 5
GRINDER SAFETY RULES ............................................... 6
PROPOSITION 65 WARNING: ....................................... 7
POWER CONNECTIONS ................................................. 7
POWER SOURCE ........................................................... 7
GROUNDING INSTRUCTIONS ........................................ 7
ELECTRICAL CONNECTION ............................................ 7
EXTENSION CORDS ...................................................... 8
UNPACKING ...................................................................8
PACKAGE CONTENTS .................................................... 8
HARDWARE PACKAGE ................................................... 9
ASSEMBLY ...................................................................10
ATTACH SPARK SHIELD AND EYE SHIELD ..................... 10
ATTACH TOOL REST .................................................... 10
ATTACH COOLANT TRAY .............................................. 10
TOOL STORAGE .......................................................... 11
CONFIRM TIGHTNESS OF ARBOR NUTS ....................... 11
OPERATION ................................................................12
STARTING AND STOPPING .......................................... 12
LOCKING THE MACHINE .............................................. 12
USING THE VARIABLE SPEED CONTROL ....................... 12
USING THE FLEXIBLE LAMP ......................................... 12
MAINTENANCE ............................................................13
GRINDING WHEELS .................................................... 13
DRESSING THE WHEELS ............................................. 13
REPLACING OR CHANGING GRINDING WHEELS ............ 14
OTHER RECOMMENDED MAINTENANCE ..................... 14
TROUBLE SHOOTING ...................................................15
ACCESSORIES ..............................................................16
PARTS, SERVICE OR WARRANTY ASSISTANCE ........... 16
REPLACEMENT PARTS .................................................16
FREE WARNING LABEL REPLACEMENT ....................... 16
SERVICE AND REPAIRS ............................................... 16
FEATURES
SPECIFICATIONS
The DELTA
®
23-206 is a 6 inch Variable Speed Grinder and the DELTA
®
23-207 is an 8 inch Variable Speed Grinder. They oer superior
performance in grinding and sharpening operations and with the proper accessories, allows the user to remove rust and bu or polish
metal. This model comes with a exible lamp, adjustable tool rests, quick release arbor nut system, and two large eye shields for
added safety.
NOTE: The manual cover illustrates the current production model. All other illustrations contained in the manual are representative
ONLY and may not be exact depictions of the actual labeling or accessories included. They are intended for illustrative purposes
ONLY.
MODEL 23-206 MODEL 23-207
Motor: 2.5 amp, 120V, 1 phase 5 amp, 120V, 1 phase
Wheel Speed: 2,000 to 3,400 rpm 2,000 to 3,400 rpm
Wheel Grit: 36 (coarse), 60 (medium) 36 (coarse), 60 (medium)
Wheel (diameter x thickness): 6 inch x 3/4 inch 8 inch x 1 inch
Dimensions (LxWxH) (excludes lamp): 15 5/8 inch x 10 inch x 11 3/4 inch 16 1/2 inch x 10 3/4 inch x 13 1/4 inch
Base Footprint (LxW): 8 3/4 inch x 6 1/4 inch 9 3/4 inch x 6 1/2 inch
Shaft Diameter: 1/2 inch 5/8 inch
Tool Weight: 27lbs 41lbs
