Delta 26-2312 Bruksanvisning
Läs gratis den bruksanvisning för Delta 26-2312 (34 sidor) i kategorin såg. Guiden har ansetts hjälpsam av 4 personer och har ett genomsnittsbetyg på 5.0 stjärnor baserat på 2.5 recensioner. Har du en fråga om Delta 26-2312 eller vill du ställa frågor till andra användare av produkten? Ställ en fråga
Sida 1/34
26-2312
To reduce the risk of serious injury, thoroughly read and comply with all warnings and instructions in this manual and on product
KEEP THIS MANUAL NEAR YOUR PRODUCT FOR EASY REFERENCE AND TO INSTRUCT OTHERS

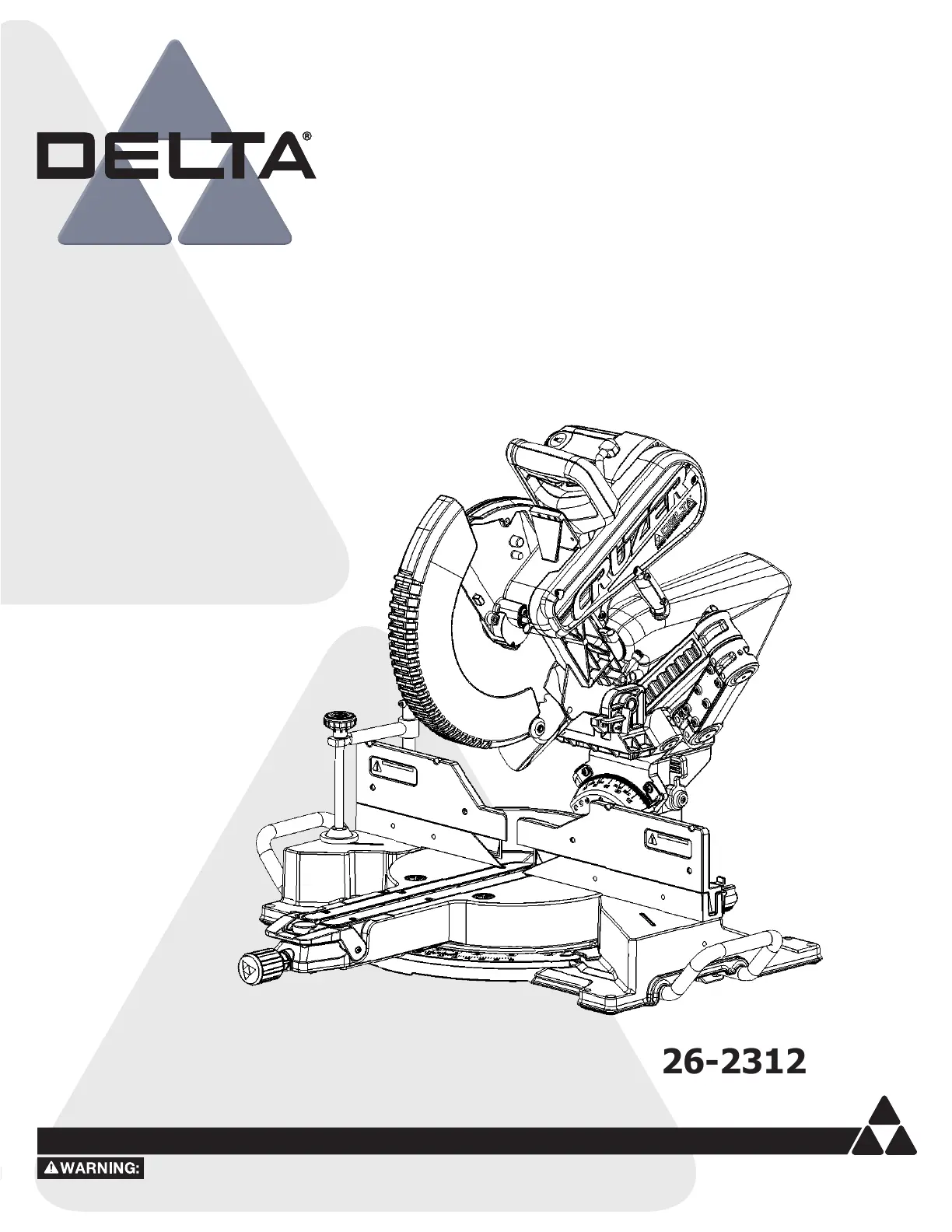

12-inch Sliding Compound Miter Saw
www.DeltaMachinery.com
Instruction Manual
2
TABLE OF CONTENTS
NOTE: The manual cover illustrates the current production model. All other illustrations contained in the manual are representative
only and may not be exact depictions of the actual labeling or accessories included. They are intended for illustrative purposes only.
FEATURES ...................................................................... 2
PRODUCT SPECIFICATIONS ........................................... 2
KNOW YOUR COMPOUND MITER SAW ........................... 5
IMPORTANT SAFETY INSTRUCTIONS ...................... 6
SAFETY LOGOS .............................................................. 6
GENERAL POWER TOOL SAFETY WARNINGS ......... 7
SAFETY INSTRUCTIONS FOR MITER SAWS............ 8
PROPOSITION 65 WARNING ..................................... 9
POWER CONNECTIONS ............................................. 10
DOUBLE INSULATION .................................................. 10
ELECTRICAL CONNECTION .......................................... 10
POLARIZED PLUGS ...................................................... 10
EXTENSION CORDS .................................................... 10
UNPACKING ................................................................. 11
REMOVING CONTENTS FROM PACKING ........................ 11
PACKAGED CONTENTS LIST ........................................ 11
ASSEMBLY .................................................................... 12
TOOLS NEEDED .......................................................... 12
WORK CLAMP ............................................................. 13
DUST BAG .................................................................. 13
DUST PORT ATTACHMENT ........................................... 13
INSTALL/REMOVE THE BLADE ..................................... 14
INSTALLING WORKPIECE SUPPORT EXTENSIONS ......... 15
ADJUSTMENTS ............................................................ 15
BEVEL ALIGNMENT ..................................................... 15
MITER ALIGNMENT ..................................................... 16
DEPTH STOP ADJUSTMENT ......................................... 17
FENCE EXTENSION ..................................................... 17
BEVEL LOCK TENSION ADJUSTMENT ........................... 17
SLIDE RESISTANCE ..................................................... 18
MITER LOCK ADJUSTMENT .......................................... 18
THROAT PLATE ........................................................... 19
MOUNTING AND TRANSPORTATION ..................... 20
PREPARATIONS FOR TRANSPORTATION ....................... 20
MOUNTING SAW TO STABLE SURFACE ......................... 21
OPERATION ................................................................. 22
CUTTING WARPED MATERIAL ...................................... 22
CLAMPING WIDE WORKPIECES ................................... 23
SUPPORTING LONG WORKPIECES ............................... 23
POWER SWITCH LOCK ................................................ 24
SHADOW LINE ............................................................ 24
NON-SLIDING CUTS .................................................... 25
FOR MITER CUTS ........................................................ 25
FOR BEVEL CUTS ........................................................ 26
FOR COMPOUND MITER CUTS ..................................... 26
SLIDE CUTS ................................................................ 27
TIPS FOR CUTTING CROWN MOLDING ......................... 28
AUXILIARY FENCE ....................................................... 29
EXPAND WORKTABLE AREA ......................................... 30
MAINTENANCE ............................................................ 31
KEEP MACHINE CLEAN ................................................ 31
GENERAL MAINTENANCE............................................. 31
BRUSH REPLACEMENT ................................................ 31
LUBRICATION ............................................................. 31
TROUBLE SHOOTING ................................................. 31
FAILURE TO START ..................................................... 31
ACCESSORIES ............................................................. 32
PARTS, SERVICES OR WARRANTY ASSISTANCE .. 33
FEATURES
BLADE DESCRIPTIONS
APPLICATION DIAMETER TEETH
Construction Saw Blades
(thin kerf with anti-stick rim)
General Purpose 12 inch (305mm) 40
Fine Crosscuts 12 inch (305mm) 60
Woodworking Saw Blades
(provide smooth, clean cuts)
Fine Crosscuts 12 inch (305mm) 80
PRODUCT SPECIFICATIONS
Cutting Capacity
(Maximum nominal
lumber sizes)
0° Miter/0° L/R Bevel: 2 inch x 14 inch
(Extended Capacity 2 x 18 inch)
45° Miter/0° L/R Bevel: 2 inch x 10 inch
0° Miter/45° L/R Bevel: 2 inch x 14 inch
45° Miter/45° L/R Bevel: 2 inch x 10 inch
Baseboard (Vertical) 6.5 inch
Crown (Vertically
Nested)
7.5 inch
Net Weight 57 lbs
Input 120 V~, 60hz, 15 Amps
Blade Arbor Hole 1 inch (with 5/8 inch reducing spacer)
Blade Diameter 12 inch
No Load Speed 4,000 r/min (RPM)
Blade Max Speed
Rating
5,500 r/min (RPM)
Number of Teeth 60
Blade Thickness 0.07 inch (1.8mm)
Blade Kerf 0.1 inch (2.6mm)
NOTE: ONLY use blades that are marked for speeds
of 4,000 r/min (RPM) or higher. A 12 inch Blade is the
required blade size for the Saw. Larger blades will come
into contact with the Blade Guards and smaller blades will
not be adequately guarded. Use crosscut blades only. DO
NOT use blades designed for ripping, combination blades
or blades with hook angles in excess of 7°.
