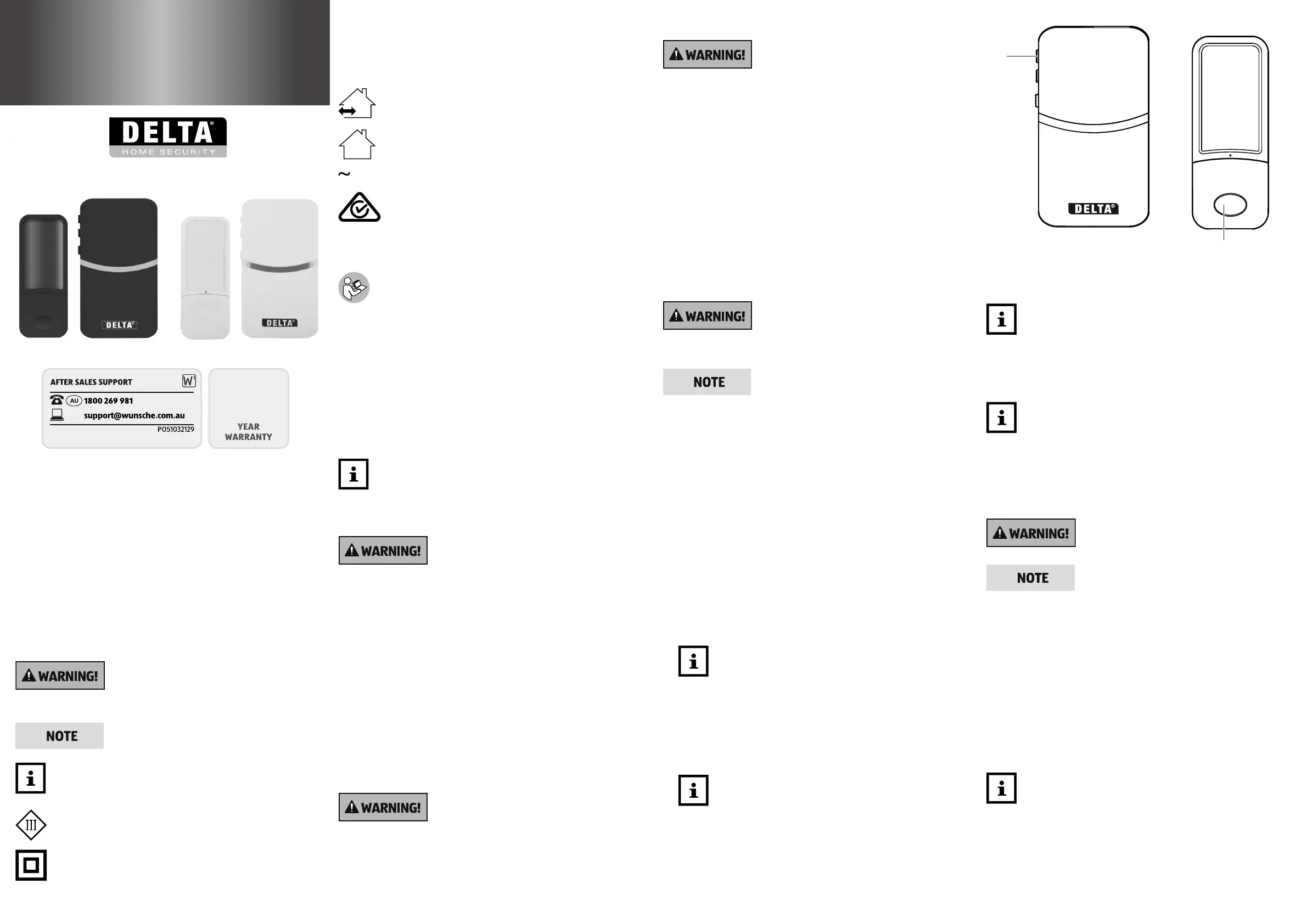

Sida 1/2

Model

GT-DB-02w / GT-DB-02b

In the box

• Transmitter (doorbell, inscribable), incl. mounting

plate, 2 wall plugs, 2 screws and double-sided ad-

hesive foam.

• Receiver (mains connection plug)

• Operating instructions incl. warranty

Explanation of symbols

This symbol/signal word indicates a

hazard with a moderate risk which,

if it is not avoided, can result in fatal or serious injury.

This signal symbol/word warns of

possible material damage.

This symbol gives you additional useful informa-

tion on the layout or operation of the product.

Class III: appliances in this class are operated

with safety extra-low voltage (SELV).

Class II: increased or double insulation be-

tween active and touchable parts. Mostly

without connection to the protective conductor.

IPX4 Protection against splashing water.

IP20:

Protected against penetration by solid objects

with a diameter >12.5 mm. No protection against water.

Transmitter: suitable for indoor and outdoor

use.

Receiver: only for use indoors

Alternating current

RCM (Regulatory Compliance Mark)

The product complies with the requirements

of the applicable Australian standards.

Application notes and warnings

Before starting up the product, please read

and follow the instructions, particularly

the safety and installation instructions.

Keep the instructions for reference later and pass

them on to any subsequent owner.

The Transmitter (doorbell) is suitable for indoor and

outdoor use.

The Receiver (mains connection plug) is only suita-

ble for indoor use.

The product is designed for private use.

Metal objects can have a negative effect on

the range between the Transmitter and Re-

ceiver. Do not position the Transmitter and Receiver

on or near metal objects.

Risk of suffocation! Children play-

ing with the packaging ﬁ lm can

become entangled in it and choke.

This electrically operated product is not a toy. Do not let

children play with the product or the packaging ﬁ lm.

Keep the product out of reach of children.

This product can be used by children from age 8 and

by persons with reduced physical, sensory, or men-

tal skills or lack of experience and/or knowledge, if

they are supervised or have been instructed in safe

use of the product and have understood the result-

ing dangers.

Cleaning and maintenance may not be carried out

by unsupervised children.

Risk of electric shock! Do not op-

erate the Receiver (mains connec-

tion plug) with wet hands.

Keep the Receiver away from contact with mois-

ture/water or any other liquid.

Checking the package contents

Risk of electric shock! Do not make

any technical changes to the

Transmitter and Receiver. Do not open the hous-

ing and do not insert any objects into the inside of

the housing

If parts are visibly damaged, stop using the prod-

uct to prevent hazards.

Remove all parts from the packaging and check that

the contents are complete and undamaged. Contact

the service address given on the guarantee card if

necessary.

Dispose of the packaging material in an environ-

mentally friendly way.

Starting up

Fire risk!

Do not cover the connected Receiver (mains con-

nection plug), e.g. with fabric, paper or plastic.

Risk of damage!

Only connect the Receiver (mains connection plug)

if the mains voltage of the power socket matches the

data on the nameplate.

Connect the Receiver only to an easily accessible

socket, so that you can disconnect it from the mains

quickly in the event of a fault.

Installation

Before you install the Transmitter in the planned

place, make sure that it functions properly. The

Transmitter and Receiver must be connected ﬁ rst if

necessary (radio connection).

- Connect the Receiver to the planned power socket.

- Press the Bell button on the Transmitter:

No signal at the receiver? –> Keep Melody

button 1 pressed for approx. 3 seconds until

2 short sounds can be heard.

Press the Bell button 2 brieﬂ y within 30 seconds.

- Position the Transmitter in the planned place and

press the Bell button to make sure that the Re-

ceiver receives the signal from the transmitter.

The distance may be too large, or the signal

is disrupted by metal objects. In this case,

you can remove the reception by moving the

Transmitter or Receiver.

Disconnecting the connection between the Re-

ceiver and Transmitter

If you want to disconnect the Transmitter (door-

bell) from the Receiver, press the Melody but-

ton 1 for approx. 10 seconds. After 2 short sounds can

be heard for the second time, the radio connection no

longer exists.

Attaching the Transmitter with the adhesive foam

With the help of the foam, the Transmitter

(doorbell) can be connected horizontally or

vertically to a smooth surface. It can then be removed

from the mounting plate, if necessary, by pushing in

the direction of the labelling ﬁ eld.

Attaching the Transmitter with wall plugs and

screws

Risk of electric shock! Before install-

ing, make sure that there are no wa-

ter pipes or power cables in the area of the drillholes!

Risk of damage!

DIY skills and tools are required for the permanent in-

stallation. Contact an experienced ﬁ tter if necessary.

Push the mounting plate in the direction of the Bell

button to remove it from the back of the Transmitter.

- Use a screwdriver, for example, to clear the screw

holes provided.

- Position the mounting plate in the planned place

and mark the drilling points.

- Use a 6 mm drill bit to drill holes 35 mm deep.

- Insert the wall plugs and screw on the mounting

plate.

Use the elongated screw retainer of the mount-

ing plate to align the plate horizontally or verti-

cally before tightening the screw if the drilled holes

are not exactly horizontal or vertical.

- Position the Transmitter on the mounting plate

and push it in the direction of the Bell button.

Kinetic wireless doorbell

GT-DB-02wGT-DB-02b

User Manual

MODEL:

GT-DB-02w, GT-DB-02b

831615

02/2024
