OWNER'S MANUAL

CAR AUDIO SYSTEM

PLEASE READ CAREFULLY BEFORE INSTALLING OR OPERATING THIS UNIT.

CAP-4320

WARNING

Make sure you choose a suitable place to mount the unit. The position should be completely

dry with a good circulation of air, and from a mechanical point of view very stable.

System Planning

Proper system planning is the best way to maximize your amplifier performance. By planning

your installation carefully you can avoid situations where the performance of the reliability of

your system is compromised. Your authorized dealer has been trained to maximize your

system's sonic potential. Your dealer is a valuable resource in helping you with your system

design and installation.

Speaker Requirements

Each channel of your amplifier can easily drive

4Ω speaker loads when used in the stereo

mode. When a channel-pair is bridged, the

recommended minimum load impedance is 3Ω

for subwoofer use, and 4Ω for full range

operation. Although operation with lower

impedances is not likely to cause immediate

damage to the internal circuitry, the unit will

most likely overheat, causing the thermal

protection circuitry to shut down the amplifier.

When the chassis cools down, normal operation

will resume. Continuing to operate the amplifier

under these conditions is not recommended and

will reduce its life expectancy.

Most speakers designed for car audio operation

are 4Ω impedance. Connecting two such

speakers in parallel will result in a 2Ω

impedance load as seen by the amplifier. Some

subwoofer models feature a dual 4Ω voice coil

design. Connecting these voice coils in parallel

will result in a 2Ω nominal impedance, which is

not recommended for use with bridged channels

of your amplifier.

EN EN

8Ω 8Ω

4Ω 4Ω

Series wiring Series wiring

Parallel wiring Parallel wiring

Series/parallel wiring Series/parallel wiring

• 2 •

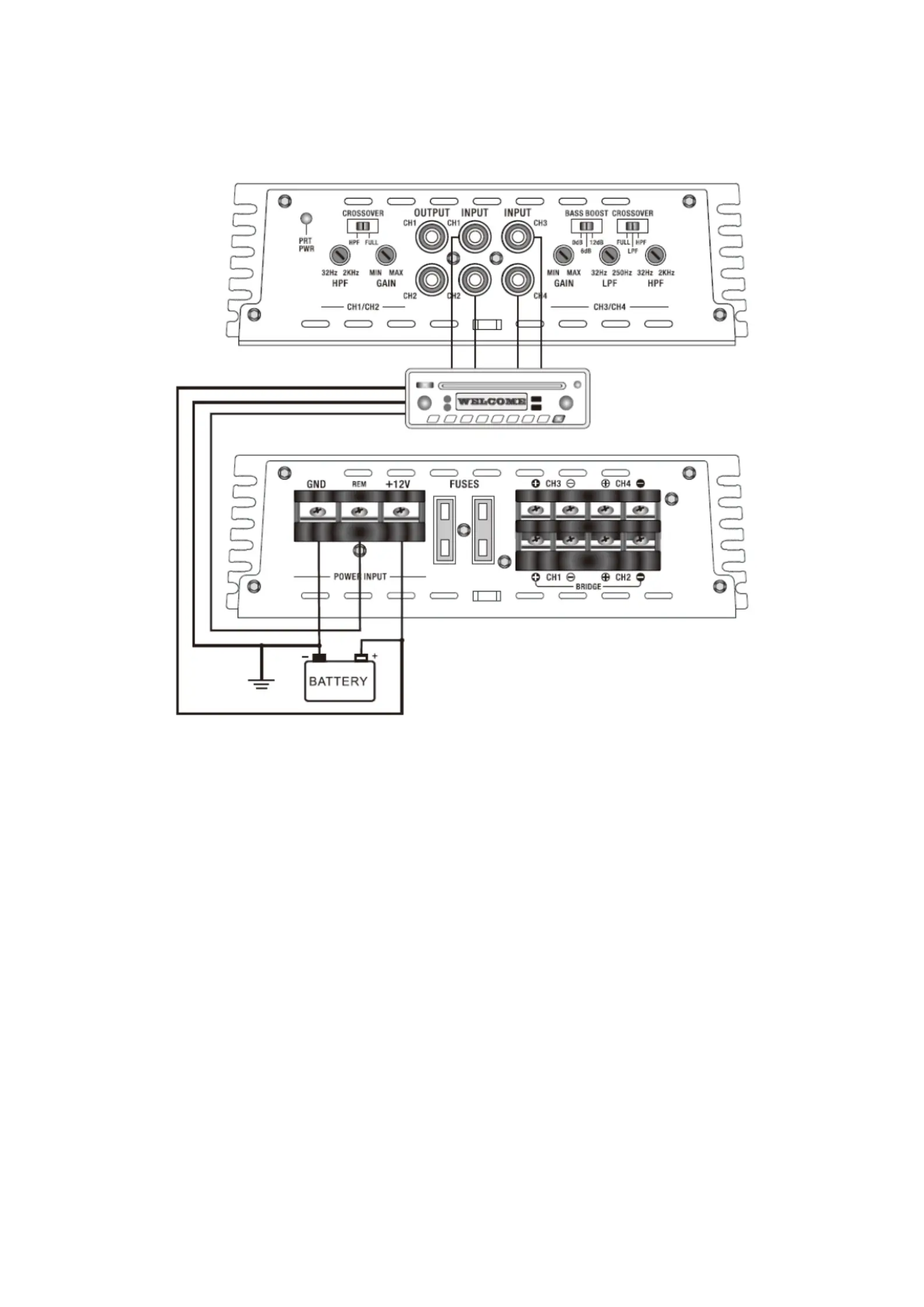

Power Connection Leads

Notes on the power supply

Connect the + 12V power input lead only after all other leads have been connected.

Be sure to connect the ground wire of the unit securely to a metal part of the car.

A lose connection may cause a malfunction of the amplifier.

REMOTE: The unit is turned on by applying + 12Volts to this terminal. This terminal dose not

draw heavy current like the two power terminal so a thinner connecting wire is acceptable.

Standard 18 GAUGE is fine and the standard colour is yellow. If the radio is equipped with a

power antenna control wire, it can drive this terminal. If the power antenna wire is already in

use, you can still splice into it. With this method, the unit will turn on automatically with the

radio. Use the power supply lead with a fuse attached whose value is the same as original

fuse.

Place the fuse in the power supply lead as close as possible to the car battery.

During a full power operation. Maximum current will run through the system. Therefore, Make

sure the that the leads to be connected to the + 12v and GND terminals of the unit

respectively must be larger than 10-Gauge (AWG. 10).

• 3 •

Produktspecifikationer

Varumärke:	Denver
Kategori:	mottagare
Modell:	CAP-4320
Bredd:	280 mm
Djup:	50 mm
Höjd:	189 mm
Förpackningens bredd:	370 mm
Produkter per intermodal container (20 fot):	3460 styck
Antal förstärkarkanaler:	4 kanaler
RMS uteffekt per kanal (4 Ohm):	240 W
RMS uteffekt per kanal (2 Ohm):	360 W
Produktens färg:	Svart
Produkter per intermodal container (40 fot, HC):	8400 styck
Låddjup:	760 mm
Produkter per ytterförpackning:	4 styck
Material, hölje:	Gjuten aluminium
Frekvensområde:	20 - 20000 hz
RCA-ljudingångar:	2
Signal/brusförhållande (SNR):	90 dB
Högsta uteffekt (RMS):	1000 W
Bryggad uteffekt (max):	360 W
