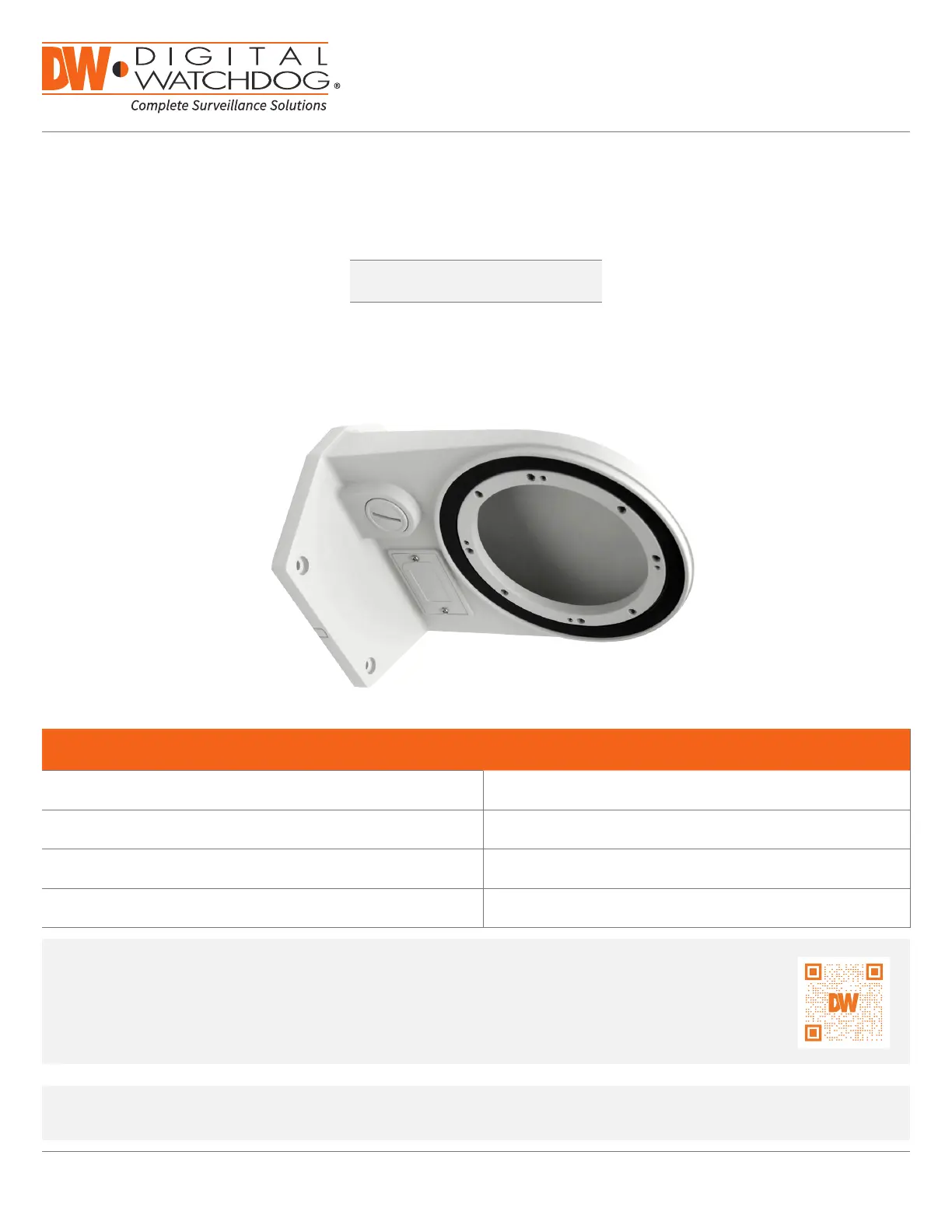

DWC-P220WMW
Wall mount bracket for white analog PTZ cameras
Quick Start Guide
Attention: This document is intended to serve as a quick reference for initial set-up. It is recommended that the
user read the entire instruction manual for complete and proper installation and usage.
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours: 9:00AM – 8:00PM EST, Monday thru Friday
digital-watchdog.com
NOTE: Download all your support materials and tools in one place.
1. Go to: http://www.digital-watchdog.com/resources
2. Search your product by entering the part number in the search bar. Results ‘Search by Product’
for applicable part numbers will populate automatically based on the part number you enter.
3. Click ‘Search’. All supported materials, including manuals
and quick start guide (QSGs) will appear in the results.
WHAT’S IN THE BOX
4x plastic anchors (6pi) 4x machine screws, PH O-ring (M6x16)
4x tapping screws, PH (6x40) 4x machine screws, torque (M6x16)
4x machine screws, BH O-ring (M6x9) 1x quick setup guide
4x machine screws, PH O-ring (M4x16)
1. Using the mounting accessory, mark and drill the necessary
holes in the mounting surface. The wall mount bracket must
be attached to a structure such as hardwood, wall stud,
concrete or a suitable material capable of supporting the
final mount assembly.
2. Attach the wall mount bracket to the structure using the
plastic anchors and tapping screws (PTS1 M6x40L) as
illustrated in the figure.
3. Pass wires through the mounting accessory’s access window,
located on the bottom of the bracket.
4. Secure the camera to the wall mount using the safety wires
and make the necessary connections to the camera. See the
camera’s manual for more information.
5. Use the machine screws included with the camera to attach
the camera to the mounting bracket.
6. Once the camera is mounted securely to the mounting
accessory, complete the installation by securing the camera’s
dome cover back on.
INSTALLING THE MOUNTING ACCESSORY
Quick Start Guide
Rev Date: 02/20
Copyright © Digital Watchdog. All rights reserved.
Specifications and pricing are subject to change without notice.
Plastic anchors
Machine screws
Access
window
Tapping screws
