1
NETWORK VIDEO RECORDER
DIGITUS® PLUG&VIEW NVR
Manual
DN-16150
2
Contents
SAFETY INSTRUCTION ..................................................................................... 4
CHAPTER 1 OVERVIEW OF NVR ..................................................................... 1
1.1FRONT PANEL ............................................................................................... 1
NVR Front Panel ........................................................................................... 1
1.2 REAR PANEL ................................................................................................ 1
NVR Rear Panel ........................................................................................... 1
1.3 REMOTE CONTROLLER ................................................................................. 2
CHAPTER 2 NVR CONNECTION ...................................................................... 2
2.1HDD INSTALLATION ....................................................................................... 2
2.2 SETUP ........................................................................................................ 3
CHAPTER 3 NVR BOOT UP .............................................................................. 4
3.1 SYSTEM INITIALIZATION ................................................................................. 4
3.2 STARTUP WIZARD ........................................................................................ 4
CHAPTER 4 NVR MENU .................................................................................... 6
P MOPUP ENU .................................................................................................... 6
4.1 MAIN MENU GUIDE ....................................................................................... 7
4.2MAIN MENU .................................................................................................. 8
4.2.1 Parameter ............................................................................................ 8
4.2.1.2 Record ............................................................................................ 10
4.2.1.3 Network ........................................................................................... 12
4.2.3 Device ................................................................................................ 19
4.2.4.4 Log .................................................................................................. 22
4.2.5 Advanced ........................................................................................... 22
4.2.6 SHUTDOWN ............................................................................................ 23
4.3MENU LOCK ............................................................................................... 24
4.4SPLIT MODE ............................................................................................... 24
THERE ARE MANY DISPLAY MODES IN VIDEO CHANNEL, INCLUDING SINGLE CHANNEL
DISPLAY, SEQ DISPLAY AND SPLIT MODE. ........................................................... 24
4.5 RECORD SEARCH ...................................................................................... 24
4.6 MUTE ........................................................................................................ 24
4.7 START SEQUENCE ...................................................................................... 24
CHAPTER 5 WEB APPLICATION MANAGER ................................................ 25
5.1 A XCTIVE CONTROL DOWNLOAD AND INSTALLATION ........................................ 25
5.2 WEB APPLICATION MANAGER LOGIN ............................................................ 26
5.3 LIVE INTERFACE ......................................................................................... 26
5.3.1Menu Bar ............................................................................................ 27
5.3.2 Playback ............................................................................................ 28
5.3.3Parameter Setting ............................................................................... 30
2

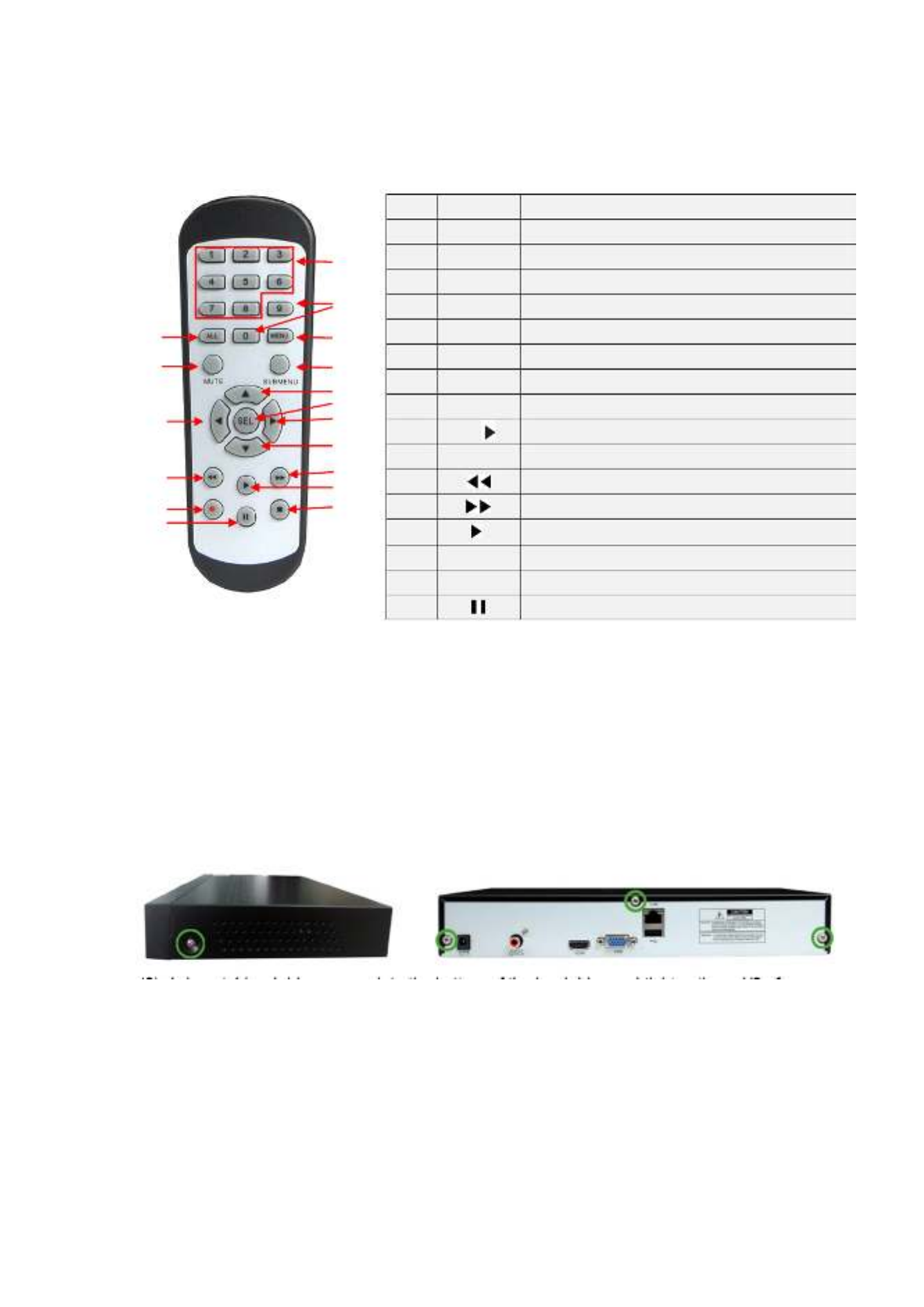

1.3 Remote Controller
Table 2-3 Key functions of the remote controller
Chapter 2 NVR Connection

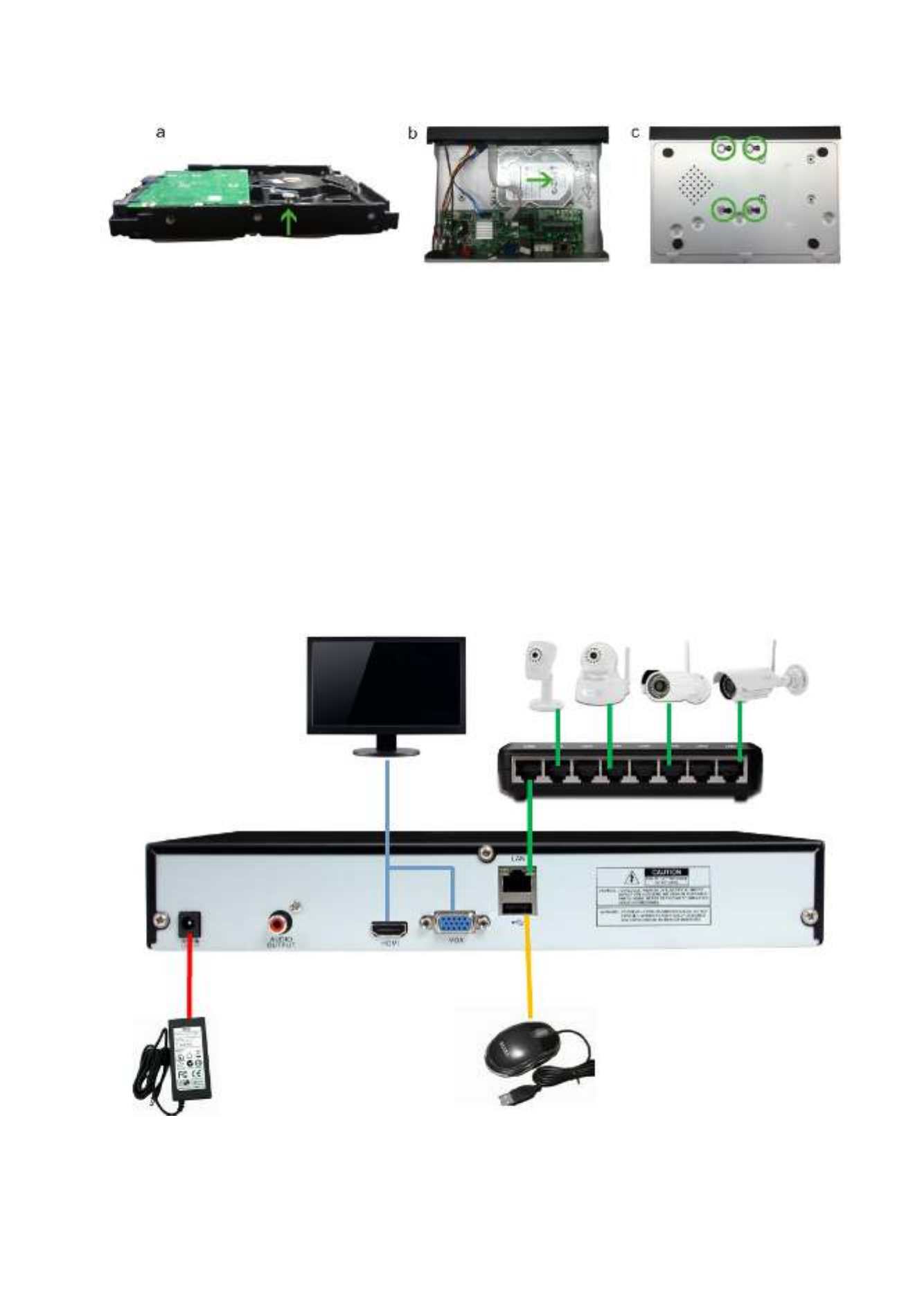

2.1 HDD Installation
Caution: Please do not take out hard drive when NVR is running!
HDD Installation:
(1) Cut power firstly, and then remove screws on both sides and rear panel and open
NVR upper cover.
(2) 1. Insert 4 hard drive screws into the bottom of the hard drive and tighten them 1/2 of
the way.
2. Place the hard drive in the screw slots with the power and data connectors facing
left (if looking at the NVR from the front), and slide the hard drive into place.
3. Tighten the hard drive screws to secure the hard drive in place.
Item Key title Key function
1 1-8 Channel select 1-8; Numeric key
2 9、0 Numeric key
3 ALL Multiple display mode
4 Menu Enter into Main menu/Exit
5 Mute Mute On/off
6
Submenu
Go to submenu
7 ▲ Up arrow key, volume increase
8 SEL Select key/Edit key
9 ◄/ Left/Right key; Decrease/increase parameter value of control bar.
10 ▼ Down arrow key, Volume decrease
11 Rewind key
12 Forward key
13 Enter into record search menu / Play key
14 ● Record key
15 ■ Stop manual record; stop playing
16 Pause/Sequence key
Table 1-3
1
2
3 4
5 6
7
8
9
10
9
11 12
13
14 15
16
3
(3) Connect HDD data cable and power cable to the main board. Install the HDD and fix it
on the bracket and then connect the HDD power cable and data cable.
2.2 Setup
After Hard-disk installation, please connect the NVR to the router or Ethernet switch using
an Ethernet cable to the LAN port on the NVR. Then please connect either a VGA or
HDMI monitor to the NVR as local display. Please also insert the USB mouse to the USB
port on the NVR to setup configuration. Then power on the NVR with the DC12V power
adapter.
In parallel, please install up to 4pcs of DIGITUS Plug&View cameras under the same
network as the NVR via a router or Ethernet switch in between.
Local Display with
HDMI or VGA
monitor
DC12V input
power supply
USB mouse for local
control and configuration
4
Chapter 3 NVR Boot up

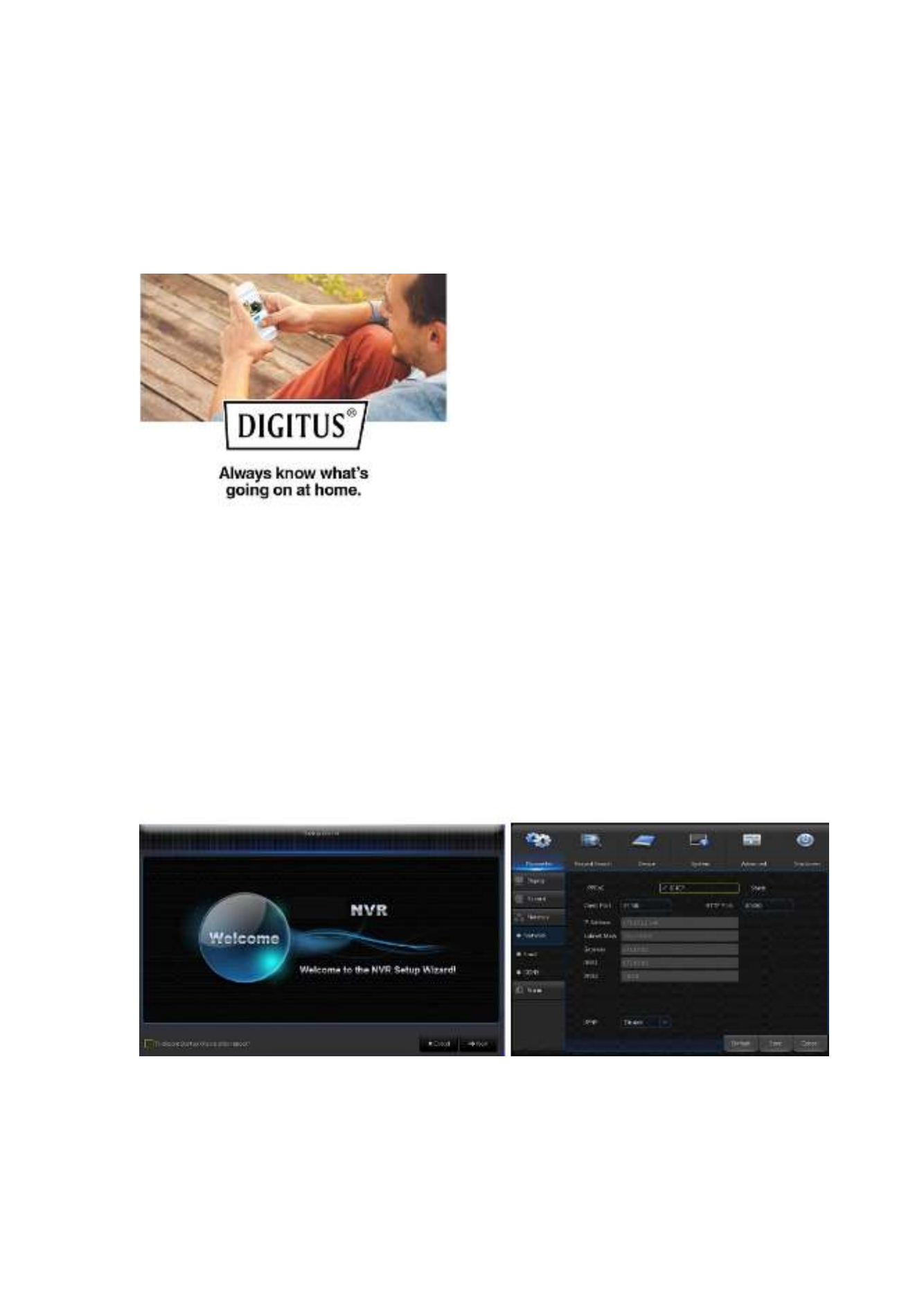

3.1 System Initialization
On the local display with the VGA or HDMI monitor, after connecting the power cable of
NVR to wall outlet and pressing the power button, you will see on the screen that the NVR
system initializing shown below.
3.2 Startup Wizard
After NVR startup is completed, please enter “admin” for both the login and password to
login. Then the startup wizard “ ” will be displayed. Please follow the “startup wizard” to
guide you through the first time installation.
Wizard setting menu includes Homepage, Network setup, IPC setup, Record Schedule ：
and hard disk maintenance.
1．Homepage and network setup. In network setup page, please keep the default “DHCP”
setting as the NVR will be assigned with an IP address automatically when it is connected
to the router or access point.
Note ：The illustration in the user
manual may not be the same as the
menu interface in your monitor. All
the illustrations are for users’
reference.
5

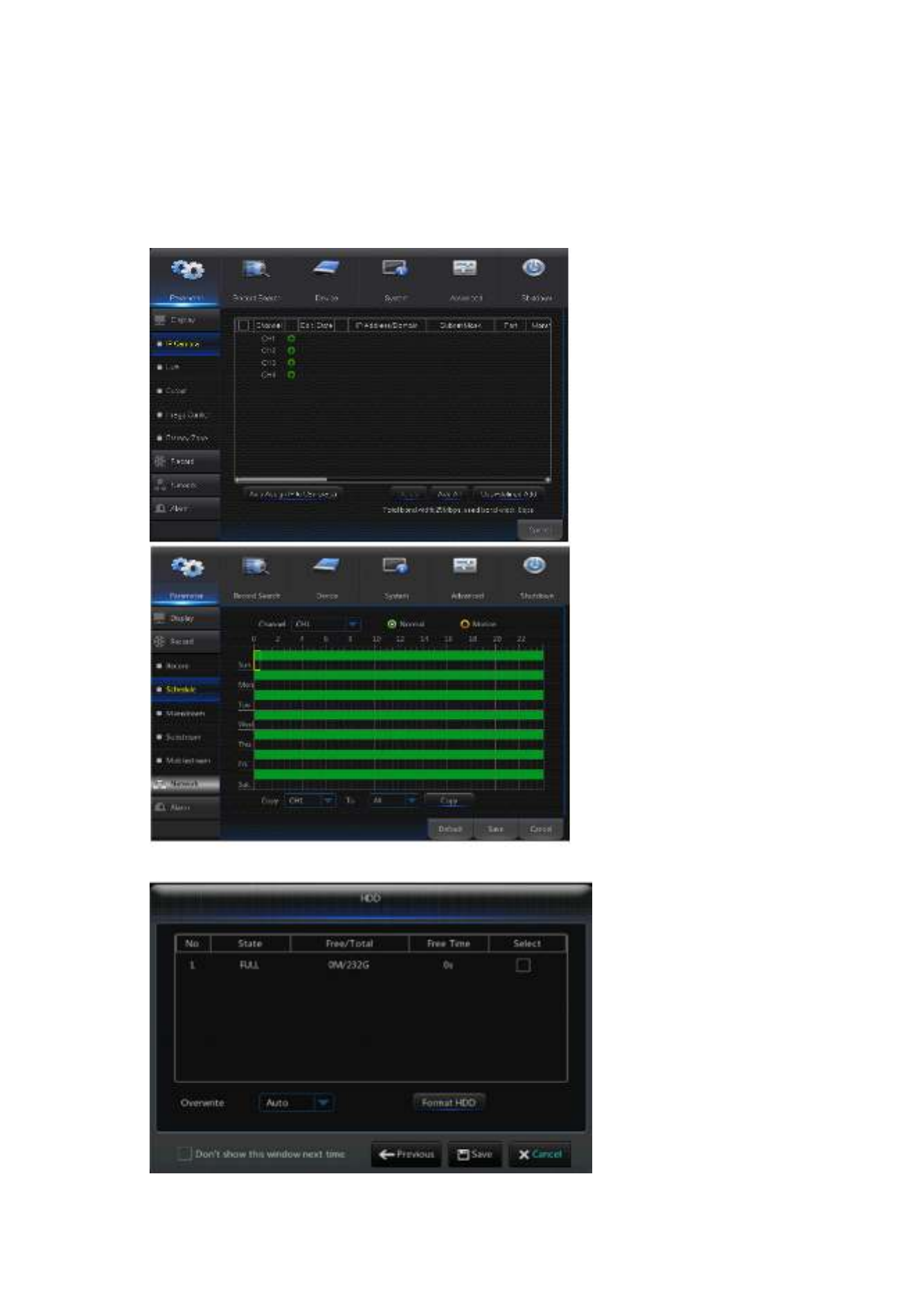

2．IPC Setup: In this page, user may add and delete IP camera. It would automatically
search all the DIGITUS Plug&View IP cameras installed under the same network as the
NVR. Then you select the desired cameras for recording into NVR by enabling the
channels.
Record Schedule: In this page, user may set recording time and scheduled recording of
NVR.
3. HDD: It supports HDD formatting and overwriting setting.
6
Chapter 4 NVR Menu

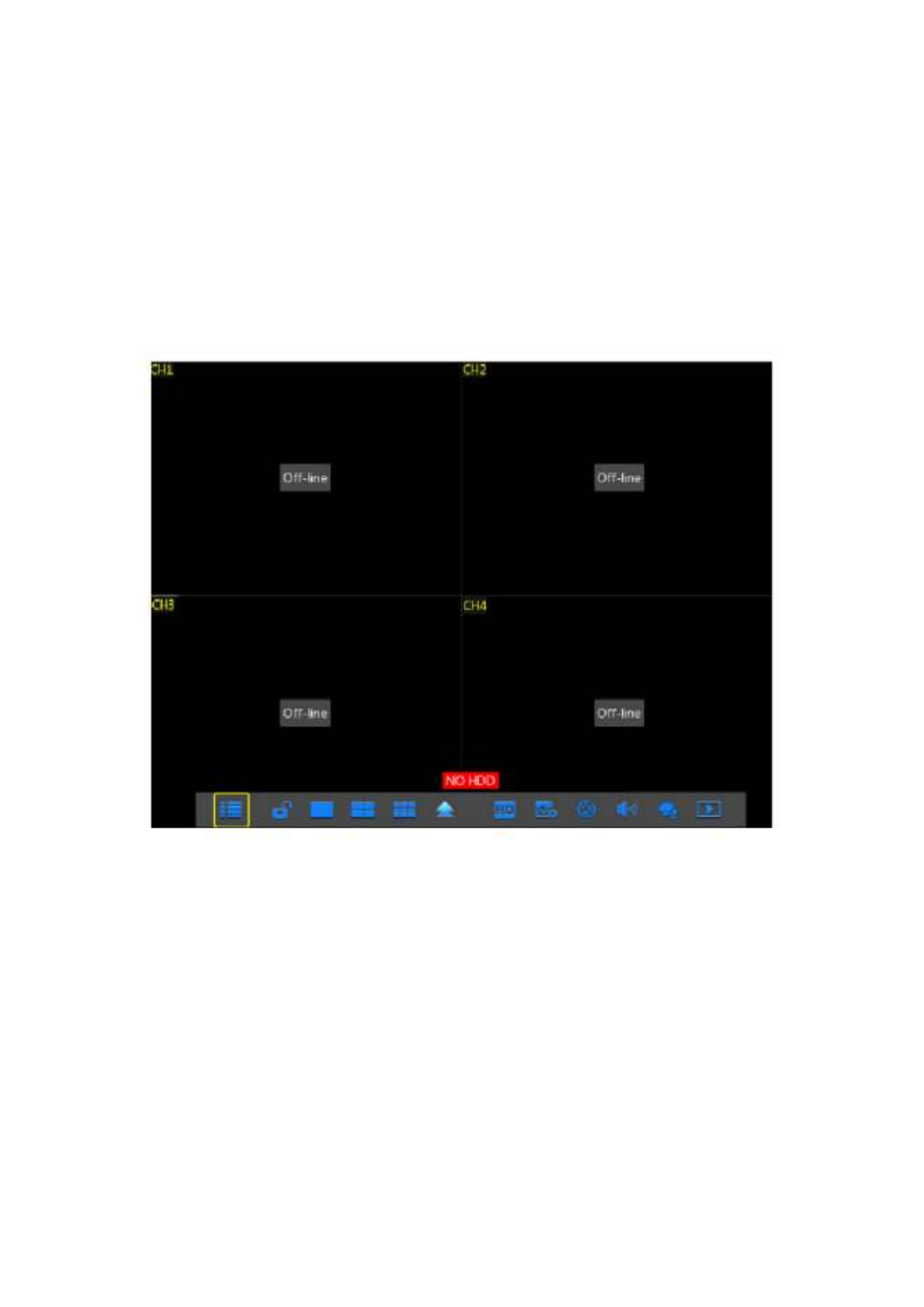

Popup Menu
Picture4-1
After finishing system initialization, click right key of mouse on preview interface or
slide the mouse to the bottom of screen to enter into Pop-up Menu. Now you could
perform parameter setting and operate on Main Menu, Multi-Pics, Auto Cruise, Record
Search, Sequence, Volume setting and Stream switching, shown as Picture 4-1.
The options in the pop-up menu may be varied slightly according to different parameter
settings. The options in the menu will be explained in detail in the following chapters.
