AVS RACK WITH

CASTORS

Quick Installaon Guide

DN- -48001 DN- 48000 DN 48002

1. Introducon

AVS RACK WITH CASTORS are constructed of heavy-duty steel with fully

enclosed side panels, as well as both front and rear rack rails. Their side

panels also feature perforaons for passive venlaon and handles for easy

maneuvering. The racks are set upon four 3" (75 mm) castors with locking

fronts that can handle a weight capacity of up to 136 kg (204 kg without

casters). Each rack comes with a blank, single-space panel. Lastly, their unique

steel support bar design allows these racks to be compable with either the

U.S. or European screw thread sizes, with both sets of screws included.

2. Features

1. 19 -inch Equipment Rack

2. 8U (DN-48000), 16U (DN-48001), 21U (DN-48002) rack spaces

3. Heavy duty steel construcon with fully enclosed sides

4. Front and rear rack rails

5. 3-inch (75 mm) locking castors

6. Can be assembled to accept either U.S. or European thread sizes

7. Black textured painted nish

8. A single rack space blank panel included

9. U.S. and European rack screws included

3. Package Contents

 1 AVS rack with castors x

 1 x QIG

 1 x set of screws

 1 x screwdriver

4. Notes on Installaon and Use

1. Determine if you are setng up the rack for U.S. or European threads.

Each of the pillars has the U.S. thread on one side and the European

thread on the other. The U.S. threads are indicated by the knockout hole.

To congure the rack for US threads be sure that all the knockout holes

are facing outward. If you want to congure the rack for European

threads, be sure that all the knockout holes are facing inward.

2. With the Base Plate (#5) at on the ground, using the small black screws,

screw (3 screws) on one of the Side Plates (#2) in so that the inner ridge

is sing at on the base plate.

3. On either side of the Side Plate (#2), screw (2 screws per pillar) into the 2

pillars (#3 & #4) with the inner ridge sitng at on the base plate, for U.S.

thread the side with the knockout should be facing out.

4. Repeat for the other side of the rack.

5. Place the Top Plate (#1) over the sides of the rack, so that the 4 Pillars

and Side Plate t inside the Top Plate and fasten the 18 screws.

6. Screw the Back Plate (#7) in with either the U.S. 10/32 silver screws, or

the Euro M6 black chrome screws.

7. Install the Handle (#8).

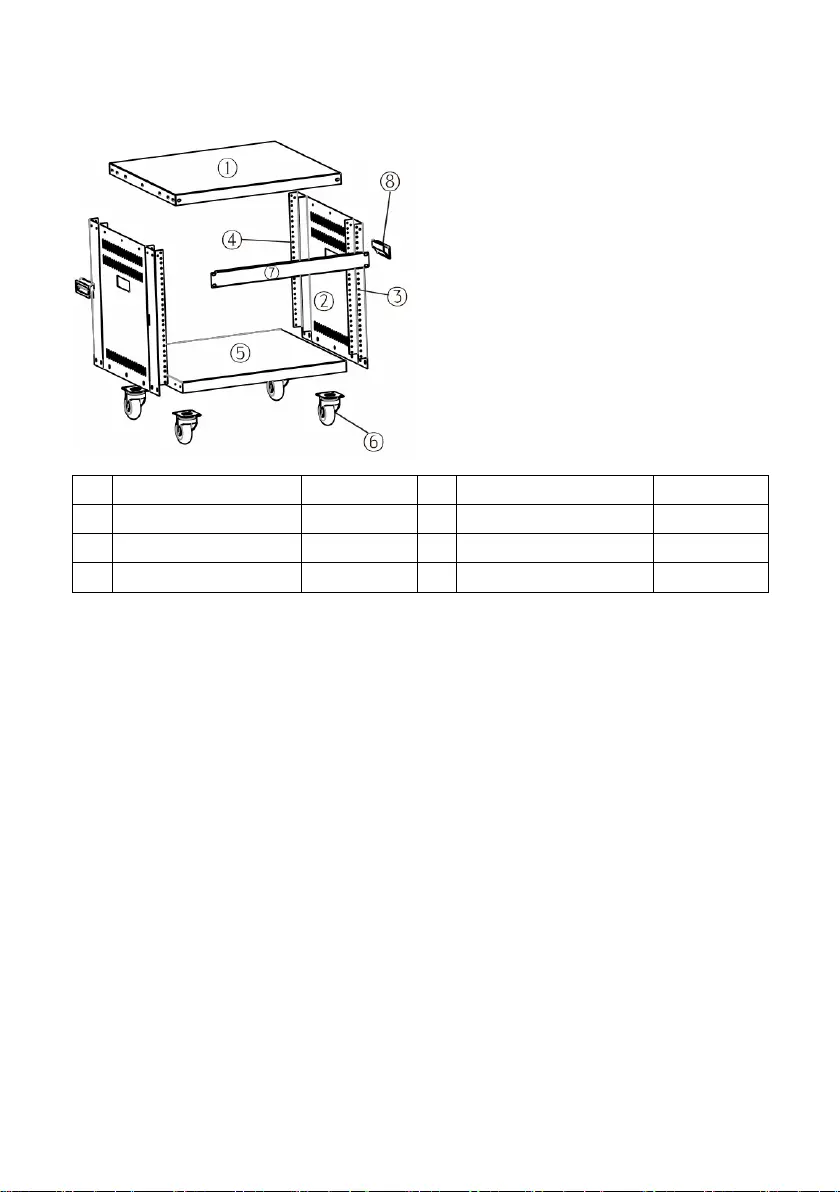

TOP PLATE

1 pcs

SIDE PLATE

2 pcs

FRONT PILLAR

2 pcs

BACK PILLAR

2 pcs

BASE PLATE

1 pcs

WHEEL

4 pcs

BACK PLATE

1 pcs

HANDLE

2 pcs
