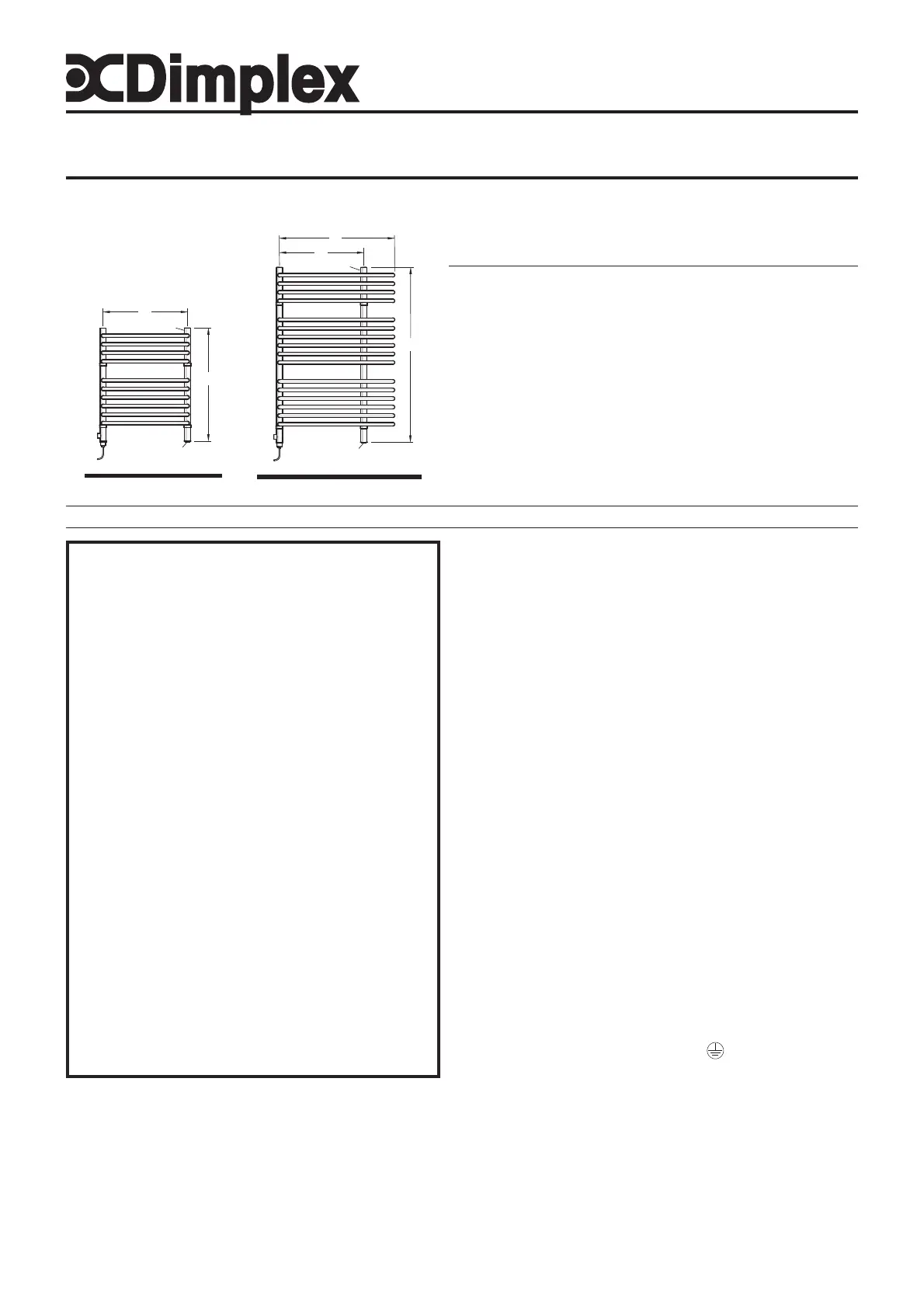

Dimensions

(millimetres)

Installation and Operating Instructions

BR Towel Rails

Models : BR150C, BR150W, BR350C & BR400W

08/17311/7 Issue 7

Important Safety advice

WARNING - THE SURFACE OF THIS RADIATOR CAN BE

HOT.

In order to be effective the towel rail will get hot,

however momentary contact with any part of it should not

cause injury.

CAUTION - This appliance is not intended for use by

chidren or other persons without assistance or

supervision if their physical, sensory or mental

capabilities prevent them from using it safely.

Children should be supervised to ensure that they do

not play with the appliance.

Precautions should be taken to ensure that prolonged

contact with the towel rail cannot occur. Particular care

should be taken in confined areas where accidental

prolonged contact with the rail could be more likely to

occur.

This appliance should only be used to dry fabrics washed

in water using commonly available detergents.

If the supply cord is damaged it must be replaced by the

manufacturer or service agent or a similarly qualified

person in order to avoid a hazard.

IMPORTANT - If the towel rail is to be installed in a place

used by the public, a warning notice should be placed

adjacent to the rail advising that the surface can be hot.

WARNING - In order to avoid a hazard for very young

children, this appliance should be installed so that the

lowest heated rail is at least 600mm above the floor.

General

The BR towel rail is designed to provide an all year round

service for airing towels and articles of clothing. It will also

provide heat for bathrooms and other small rooms. The

towel rail is permanently filled with a special water based

liquid for years of trouble free service. No routine

maintenance is necessary apart from occasional

cleaning.

The towel rail has a sealed electrical element controlled by a

pre-set thermostat which will switch off the rail should it

overheat for any reason. It is splashproof to IPX5 standard.

The BR towel rail also has the facility for connection to a

water radiator system and can be operated as part of a

central heating system. (See section ‘Use on a water

radiator system’).

Electrical

The electrical installation of this towel rail must be carried

out by a competent electrician in accordance with the current

I.E.E Regulations for Electrical Equipment. The towel rail is

suitable for use on an A.C.~ electrical supply. Before

installation check that the supply voltage corresponds with

that marked on the rail.

WARNING - THIS APPLIANCE MUST BE EARTHED.

IMPORTANT - The wires in the mains lead are coloured in

accordance with the following code:

GREEN and YELLOW - EARTH

BLUE - NEUTRAL

BROWN - LIVE

As the colours of the wires in the mains lead of this

appliance may not correspond with the coloured markings

identifying the terminals in your plug, proceed as follows:

The wire which is coloured GREEN and YELLOW must be

connected to the terminal in the plug which is marked with

the letter E or by the earth symbol

or coloured green or

green and yellow.

The wire which is coloured BLUE must be connected to the

terminal which is marked with the letter N or coloured black.

The wire which is coloured BROWN must be connected to

the terminal which is marked with the letter L or coloured red.

This appliance must only be used on A.C. mains supply of

230/240 Volts~.

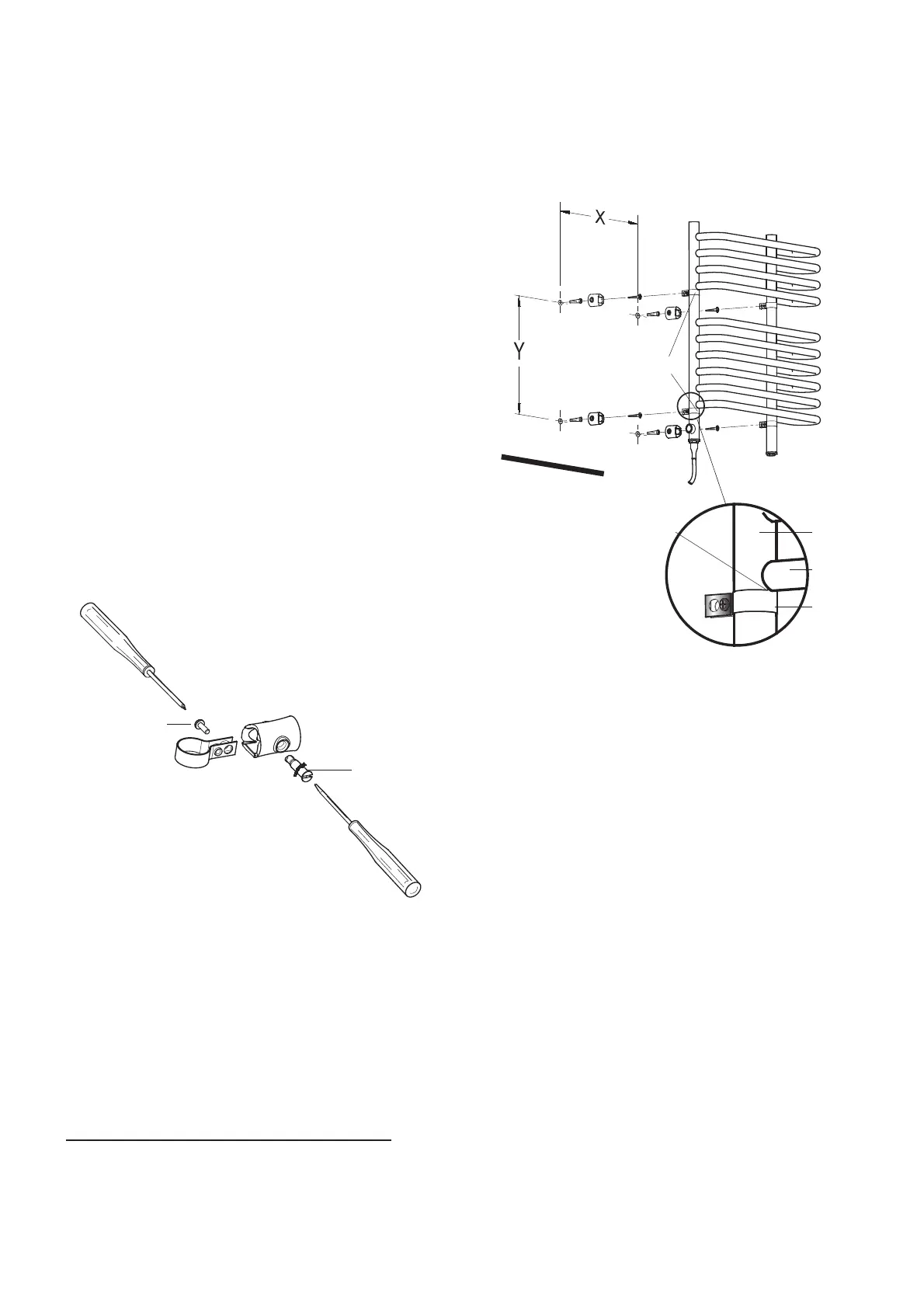

Fig. 1

F - Bleed valve

G - Drain plug

IMPORTANT : THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE

Watts

150

350

400

Weight kg

6.5

Model

BR150

BR350

BR400

Rails

600

930

610

385

603

447

155

BR 150 & 350

BR 400
