Installation and Operating Instructions

Dimplex Air Curtain - Single Phase Conversion Kit - CAB1PN

Suitable for use with the CAB10E, CAB15E & DAB10E (Surface & Recessed)

08/19538/0 Issue 4

THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE

IMPORTANT SAFETY ADVICE

ENSURE THE APPLIANCE IS EARTHED.

This work should only be carried out by a competent

electrician.

Always disconnect the supply before working on the

product.

Ensure the supply cables are of adequate current

carrying capacity and are protected by a suitable

fuse.

Ensure all wiring is ﬁ xed clear of all moving parts and

heat sources.

This kit is not designed for use with DAB15 models.

This conversion kit consists of:

8 x 100mm x 2.5mm tie wraps

4 x Moss Plastic tie wrap clips

2 x Neutral link cable

1 x Live link cable

The instructions for the conversion kit should be

read in conjunction with the ‘Dimplex Air Curtain’

Instructions. All ‘Safety Advice’ to be heeded before

ﬁ tting this kit.

General

The CAB10E, CAB15E and DAB10E are primarlity

designed for 400V~ 3P&N 50Hz operation, however in

the instance where it is not possible to utilise a 3-phase

supply, the units can be de-rated to a ½ heat stiing for

operation via a 230V~ 1P&N 50Hz supply.

Procedure

1. remove the outlet grille assemblies and, where

necessary, the bottom panel and inlet grille to gain

access to the element banks and terminal blocks as

shown in Fig. 1 below.

2. Remove the ﬁ rst half heat (H1) star connection link

cable from both sides of each elmenet bank (Fig. 2 shows

the bottom red (H1)) star connection link cable replaced

with the supplied neutral star connection link cable.

3. Fix the push on clips (two on

either side) to the inside of the

pressure plate as shown in Fig.

1 (the supplied push on clips

are a press ﬁ t into their ﬁ xing

holes (ø3.5mm). Proceed

to attach the neutral star link

connection cable to the push

on clips using the tie wraps as

shown in Fig. 3 below.

Note: Due to extra cable length (for CAB15E) it is

necessary to loop the slack cable in the pressure plate and

secure it using a supplied tie wrap as shown in Fig. 1.

4. Connect the brass ferrule end of the neutral link cable

into the N of the terminal block (along with the Neutral of

the single phase supply) as shown in Fig. 4.

5. Also shown in Fig. 4 is the supplied (brown) Live link

cable, this should be linked from L1 (with connection of

Live from single phase supply) to L2 & L3.

The earth cable is connected as normal within the

terminal block (ensure the supply cable is ﬁ xed

appropriately within the back panel using the correct

sized gland).

6. Check all switch settings operate, as stated within

the evaluation table (overleaf). Note: H2 should still be

connected (as per remote switch connection instruction

manual) even though it will not be utilised (this still allows

a ½ heat setting when switched to full heat rather than no

heat at all).

Figure 1.

Figure 2.

Figure 3.

Figure 4.

BLUE

RED

Once the above loadings and switch settings have been

conﬁ rmed as acceptable, proceed to replace the grille

assemblies, and where necessary, the bottom panel.

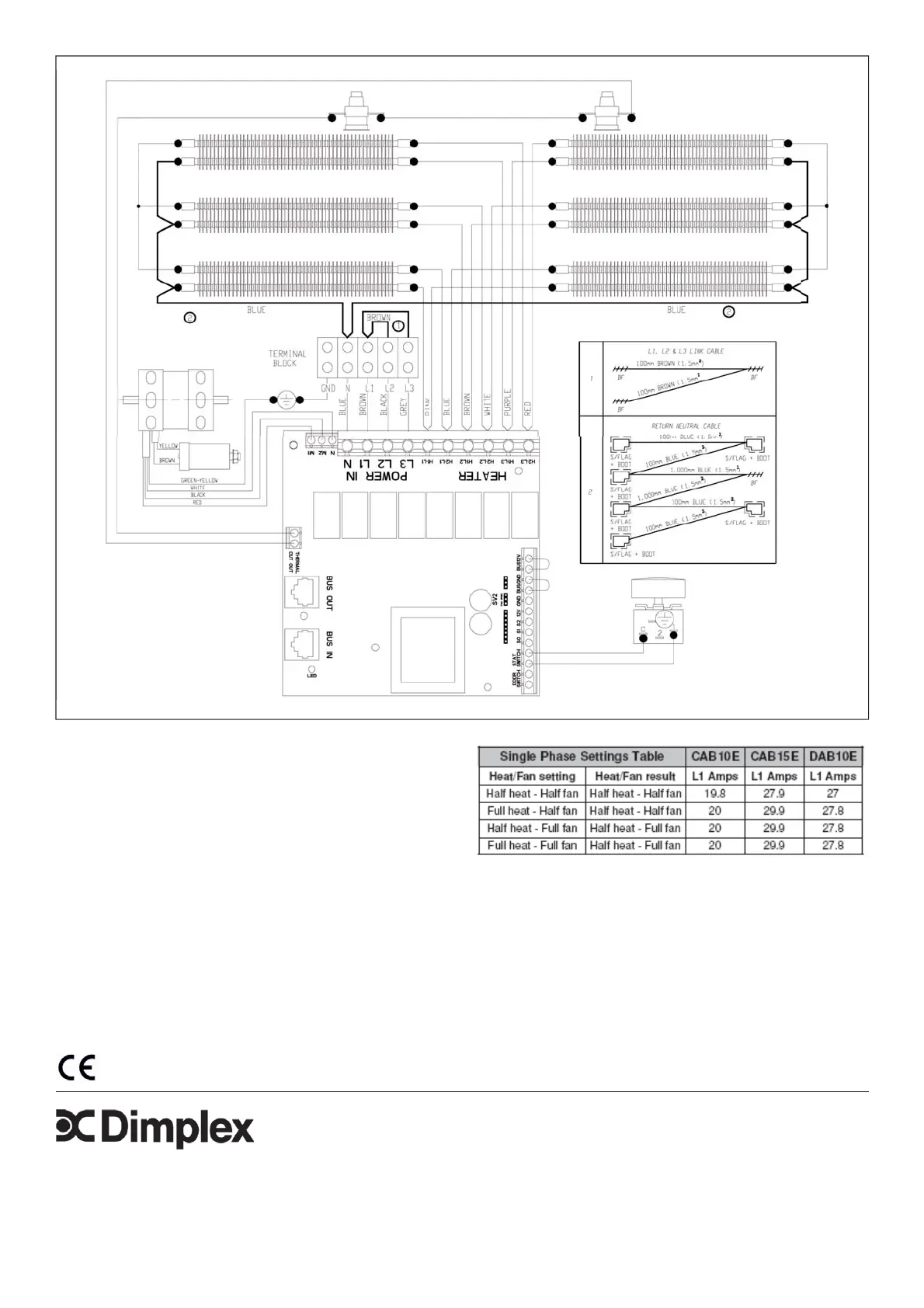

For reference purposes a full wiring schematic is detailed

above.

This product complies with European Safety Standard EN 60335-2-30, and European Standards EN 55014, EN 60555-2 and EN60555-3 for Electromagnetic Compatibility.

These cover the essential requirements of the EEC Directives 2006/95/EC and 2004/108/EC.

Please retain your receipt as proof of purchase.

Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing.

A division of the GDC Group Ltd, Millbrook House, Grange Drive, Hedge End, Southampton SO30 2DF
