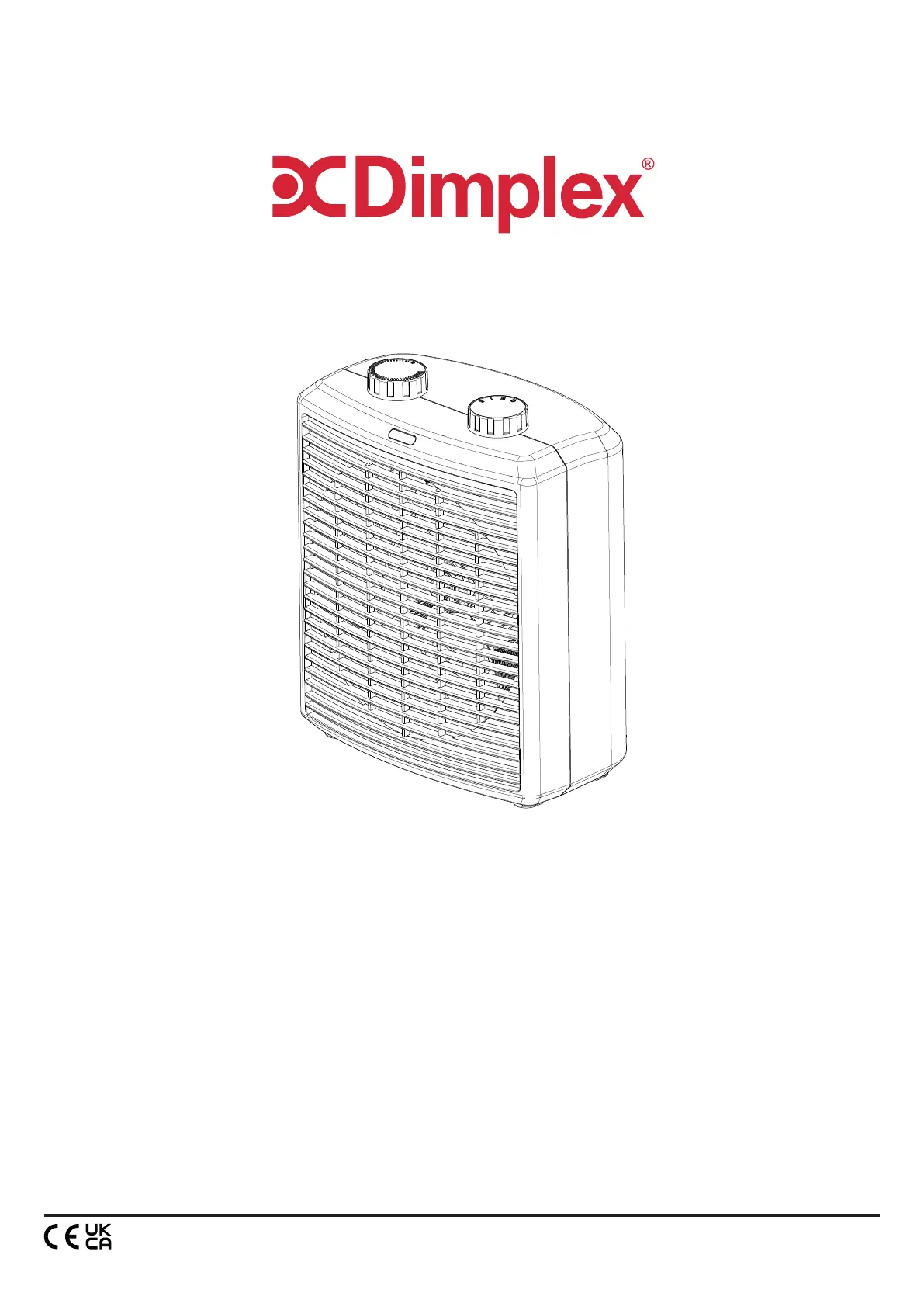

DEUF2N

08/55043/0 Issue 1

This product complies with all the required European and UK Product Safety, Electromagnetic Compatibility and Environmental Standards. They are

fully compliant with the LVD, EMC, RoHS and Eco Design Directives and Regulations.

As with all portable heang appliances: This product is suitable only for well insulated spaces or occasional use.

2kW Upright Fan Heater

Dimensions

(Millimetres)

IMPORTANT SAFETY ADVICE

DO NOT use the heater in the immediate

surroundings of a bath, a shower or a swimming

pool.

DO NOT place the heater directly below a xed

socket outlet.

The socket-outlet must be accessible at all times

to enable the mains plug to be disconnected as

quickly as possible.

DO NOT operate the heater with the mains lead

overhanging the front outlet grille.

DO NOT COVER or obstruct the air inlet and

outlet openings in any way.

This Heater carries the warning symbol

indicating that it must not be covered.

WARNING: In order to avoid overheating, do not

cover the heater.

IMPORTANT: If the mains lead of this appliance is

damaged, it must be replaced by the manufacturer

or its service agent or a similarly qualied person

in order to avoid a hazard.

WARNING: In order to avoid a hazard due to

inadvertent resetting of the thermal cut-out,

this appliance must not be supplied through an

external switching device, such as a timer, or

connected to a circuit that is regularly switched

on and o󰀨 by the utility.

This appliance can be used by children aged from

8 years and above and persons with reduced

physical, sensory or mental capabilities or lack of

experience or knowledge if they have been given

supervision or instruction concerning the use of

the appliance in a safe way and understand the

hazards involved. Children shall not play with the

appliance. Cleaning and user maintenance shall

not be made by children without supervision.

Children of less than 3 years should be kept away

unless continuously supervised.

Children aged from 3 years and less than 8 years

shall only switch on/o󰀨 the appliance provided

that it has been placed or installed in its intended

normal operating position and they have been

given supervision or instruction concerning the

use of the appliance in a safe way and understand

the hazards involved. Children aged from 3

years and less than 8 years shall not plug in,

regulate and clean the appliance or perform user

maintenance.

IMPORTANT : THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE

CAUTION: Some parts of this product can

become very hot and cause burns. Particular

attention has to be given where children and

vulnerable people are present.

WARNING: Risk of fire – Do not use this

appliance connected through an extension lead

or any external switching device such as a plug

in timer or remote control plug in adaptor. All

heating appliances draw high current through the

mains supply and any weakness in the design,

connections or components in these devices can

easily result in overheating of the connection

points resulting in melting, distortion and even

the risk of re.

WARNING: To avoid danger of su󰀨ocation please

remove all packaging materials particularly plastic

and EPS and keep these away from vulnerable

people, children and babies.

WARNING: To avoid the risk of accidental

strangulation from the supply cord all children and

vulnerable people must be supervised when in the

vicinity of the product whether it is working or not.

DO NOT pull, carry or move the appliance using

the power cable.

DO NOT use this heater if it has been dropped.

DO NOT use if there are visible signs of damage

to the heater.

IMPORTANT: Use this heater on a horizontal and

stable surface.

DO NOT use the heater on deep pile carpets or

the long hair type of rugs, or less than 750mm

(30”) away from any overhanging surface. Keep

combustible materials such as drapes and other

furnishings clear from the front, sides and rear of

the heater.

Do not use heater to dry your laundry.

WARNING: Do not use this heater in small rooms

when they are occupied by persons not capable

of leaving the room on their own, unless constant

supervision is provided.

WARNING: To reduce the risk of fire, keep

textiles, curtains or any other ammable material

a minimum distance of 1m from the air outlet.

This instruction leaet belongs to the appliance

and must be kept in a safe place. If changing

owners, the leaet must be surrendered to the

new owner.

Model  Specication

DEUF2N 2.0kW, Thermostat & Switch

H W D

230 190 125

InstallationandOperatingInstructions

Fig.1

2 (Fig. 2)

3 (Fig. 3) 1

be heard when the thermostat operates - this is normal.

Note: If the heater does not come on when the thermostat is at a

low setting, this is normally because the room is warmer than the

thermostat setting and is not a fault.

* When the heat control is set to ‘ ’ for cool blow, set the thermostat

control to maximum.

Position ‘ ’ will turn the heater on and o󰀨 to maintain a temperature

of approximately 5°C.

For your safety, this appliance is tted with a thermal cut-out. In the

event that the product overheats, the cut-out switches the heater

o󰀨 automatically. To bring the heater back into operation, remove

the cause of overheating, then turn o󰀨 the electrical supply to the

heater for a few minutes.

When the heater has cooled su󰀩ciently reconnect and switch on

the heater.

If the cut-out operates repeatedly, contact your supplier.

WARNING ALWAYS DISCONNECT FROM THE POWER

SUPPLYBEFORECLEANINGTHEHEATER.

Do not use detergents, abrasive cleaning powders or polish of

any kind on the heater.

Wipe with a dry cloth to remove dust and a damp cloth (not wet)

to clean o󰀨 stains. Be careful not to allow moisture into the heater.

Use a vacuum cleaner to remove any u󰀨 which does accumulate.

For electrical products sold within the European

Community.

At the end of the electrical products useful life it

should not be disposed of with household waste.

Please recycle where facilities exist. Check with

your Local Authority or retailer for recycling advice

in your country. If you don’t intend to keep the

packaging of this product for later use or storage, please dispose

of it in an eco-friendly way, please dispose of it in your recycling

bin or nearest recycling facility, thank you.

ModelIdentier(s): DEUF2N

Heatoutput

Nominal heat output Pnom 2.0 kW

Minimum heat output (indicative) Pmin 0.8 kW

Maximum continuous heat output Pmax,c 2.0 kW

AuxiliaryelectricityConsumption

At nominal heat output 0.0elmax kW

At minimum heat output elmin 0.0 kW

In standby mode elSB 0.0 kW

Typeofheatoutput/roomtemperaturecontrol

Mechanical thermostat room temperature control Yes

Contact details

Glen Dimplex UK Ltd.,

Millbrook House, Grange Drive,

Hedge End, Southampton.

SO30 2DF

Glen Dimplex Europe Limited,

Airport Road, Cloghran,

County Dublin.

K67 VE08

This heater must be used on an supply only and the voltage A.C.~

marked on the heater must correspond to the supply voltage. This

heater is tted with a plug incorporating a 10 amp fuse. When

replacing the fuse, a 10 amp fuse approved by ASTA to BS 1362

must be used.

If the plug is not suitable for the socket outlets in your home, the

plug must be cut o󰀨 and an appropriate one tted. A plug cut o󰀨

from a mains lead will give a shock hazard if inserted into a 13

amp socket elsewhere in the house. To avoid this, it should be

disposed of immediately.

NOTE: The fuse cover of a non-rewirable plug must be retted

when changing the fuse. Should the cover become lost, the plug

must not be used until the correct replacement fuse cover is

obtained from your supplier.

IMPORTANT: The wires in this mains lead are coloured in

accordance with the following code:

BLUE: NEUTRAL

BROWN: LIVE

Connect the wire to the terminal marked ‘ ’ or coloured BROWN L

RED BLUE. Connect the wire to the terminal marked ‘N’ or

coloured .BLACK Note: ‘L’ or ‘ ’ must not be connected to the N

EARTH E terminal marked ‘ ’ or ‘ ’ or coloured GREEN GREEN or

AND YELLOW.

If in doubt, consult your electrician.

MainElements-See Fig 1.

HeatControl- see Fig. 2

ThermostatControl-see Fig. 3

The heat output is controlled by the

thermostat, according to the room

temperature.

Turn the thermostat knob fully clockwise to

maximum setting initially. When the room is

warm enough, reduce the setting slowly

until the heater just clicks o󰀨.

The heater will now cycle on and off to

maintain your selected room temperature. An audible click may

1. Power Indicator Light

2. Switch Knob

3. Thermostat Control Knob

4. Air Outlet

5. Tip Switch

Fig.3

UsingtheHeate

Recycling

Cleaning

Safety-overhe

Electricalconn

OFF

Cool Blow*

Half Heat

Full Heat

Fig.2
