Sida 1/39

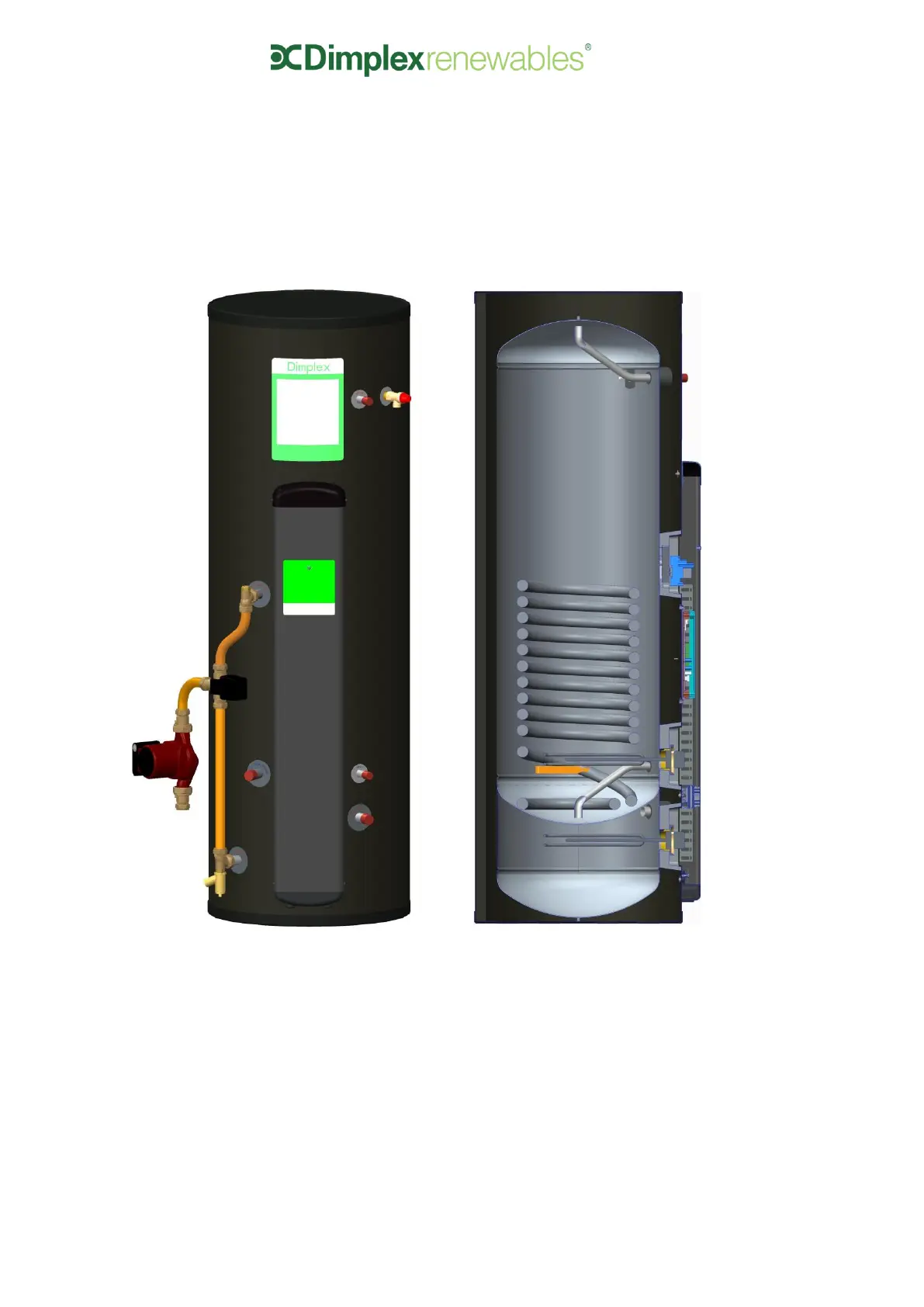

Important - This Manual Must Be Left With The User After

Installation!

EC-Eau Cylinder Range

Installation and User Instructions

A Class Heat Pump Cylinders

Up to 250L

A Class HP Installation and User Instructions R02583-13 05/17

Page 2

The HWA Charter requires that all members adhere to the following:

supply fit for purpose products clearly and honestly described

supply products that meet, or exceed appropriate standards and building and water regulations

provide pre and post sales technical support

provide clear and concise warranty details to customers

For further information on the HWA Charter Membership, please refer to the HWA website

www.hotwater.org.uk’

All Glen Dimplex cylinders are certified by KIWA, for further information on this regulation body please refer

to the KIWA website www.kiwa.co.uk ’

Dimplex is a licensed member of the Benchmark Scheme which aims to improve the standards of installation

and commissioning of domestic heating and hot water systems in the UK and to encourage regular servicing

to optimise safety, efficiency and performance.

Benchmark places responsibilities on both manufacturers and installers. The purpose is to ensure that

customers are provided with the correct equipment for their needs, that it is installed, commissioned and

serviced in accordance with the manufacturer’s instructions by competent persons and that it meets the

requirements of the appropriate Building Regulations. The Benchmark Checklist can be used to demonstrate

compliance with Building Regulations and should be provided to the customer for future reference.

Installers are required to carry out installation, commissioning and servicing work in accordance with the

Benchmark Code of Practice which is available from the Heating and Hot Water Industry Council who manage

and promote the Scheme. Visit www.centralheating.co.uk for more information.

Overall View

A Class HP Installation and User Instructions R02583-13 05/17

Page 3

0 Overall View

Figure 1 Overall View o Cylinder Installation Process : f A Class Heat Pump
