Sida 1/3



Contact Details



Pleasenotethat some contact ofthe details on 

thisPDFdocumentmaynotbe current.



Pleaseuse  the following detailsifyouneedto

contactus:



Telephone:0844 879 3588

Email:customer.services@gdcgroup.co.uk



The widecustomer alsosupportsection websiteofour  features a

rangeof ofinformationwhichmaybe use availabletoyouandis 

24 ahours day.Itincludes:



• Operating   and installation instructions

• Easy       ‘How to use’ guides for storage heaters

• Service  and repairs

• Wheretobuyourproducts

• Literature downloads

• Heating  requirement calculator



 ‐Visit www.dimplex.co.uk/support

A division of GDC Group Ltd

Millbrook House Grange Drive Hedge End Southampton SO30 2DF

www.dimplex.co.uk

istered No: 1313016 En

land

VAT GB 287 1315 50004

EEE Producer Registration Number –

WEE/GE0057TS

Paper from sustainable sources

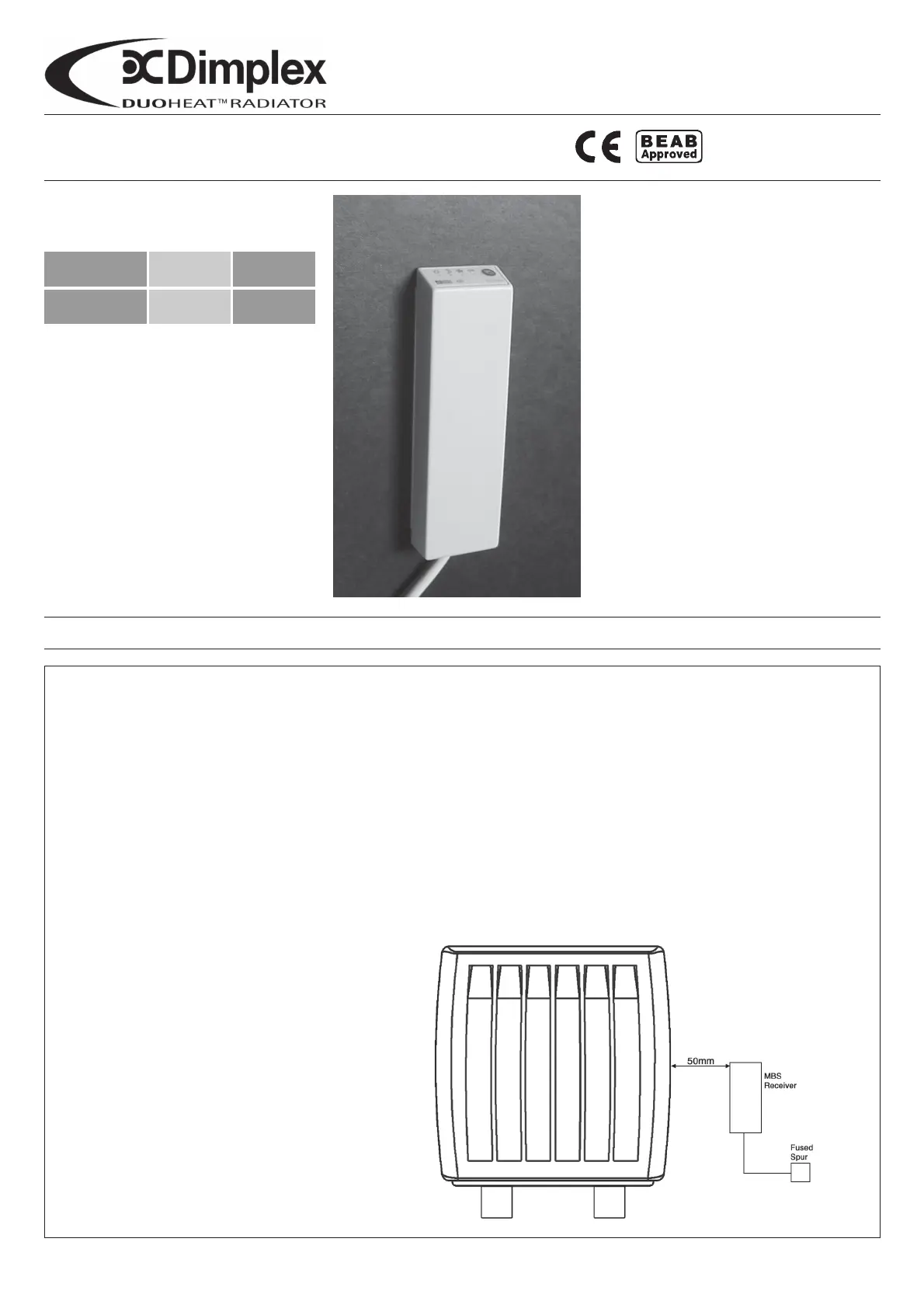

Mains Borne Signalling Receiver Unit

Model: RX03002

Installation and

Operating Instructions

85932 Issue 1

Dimensions

(millimetres)

THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE

GENERAL DESCRIPTION

MBS Receiver for Dimplex DuoHeat Radiators. To be used in conjunction with RX010007 MBS programmer.

(Please refer to RX010007 Operating Instructions).

RX010007 provides central control for up to 20 radiators across 2 zones, using existing wiring to communicate to

the radiator(s). One RX03002 receiver is required for each radiator. The receiver accepts the MBS signal and

converts it to a pilot wire output, automatically switching the radiator(s) between comfort and set back modes in

accordance with the preset programme. Each receiver can manually override the comfort and set back settings

sent by the central control program for the radiator(s) if required.

INSTALLATION

Wall mounting

Firstly decide where you are going to install

the receiver, in conjunction with the clear-

ance of minimum 50mm shown in Fig. 2.

Screw the receiver to the wall using one of

the 4 bracket types or the adhesive pads.

Fig. 2

Fig. 1

Height Width Depth

171mm 50mm 25mm

Glen Dimplex UK Limited

Millbrook House

Grange Drive

Hedge End

Southampton

Hampshire SO30 2DF

UK customer helpline (8.00AM - 6.00PM Mon-Fri; 8.30AM-1.00PM Sat)

Customer Help Line Tel: 0870 7270 101

Fax: 0870 7270 102

e-mail: customer.services@glendimplex.com

Republic of Ireland Tel: 01 842 4833

This appliance complies with the European Standards EN 60 335-1, EN 60 335-2-61, EN 61000-3-2,

EN 61000-3-3, EN 55014 and EN55104 for Safety & Electromagnetic Compatibility.

These standards cover the requirement of the EMC Directives 89/336 & 73/23

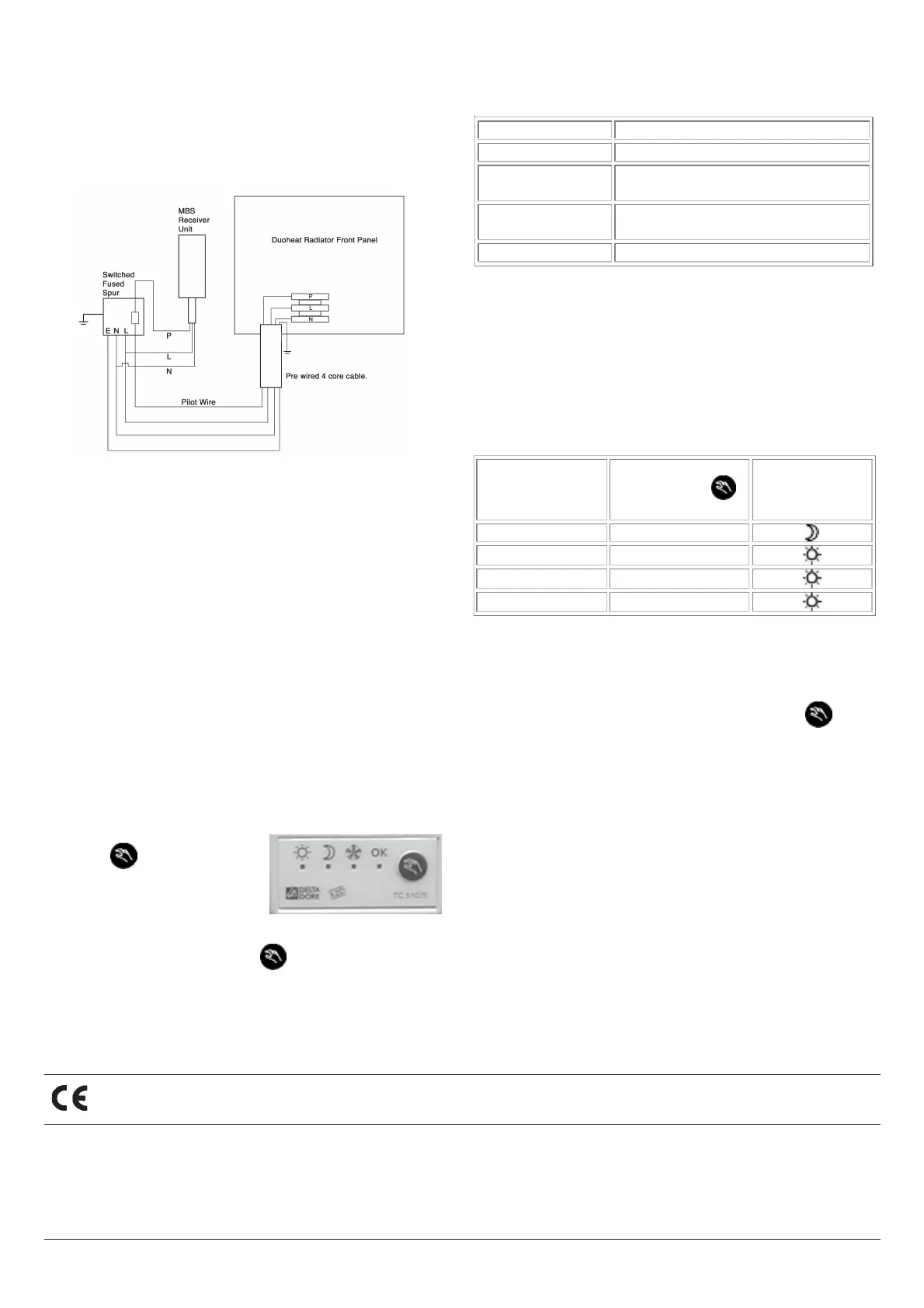

Wiring

IMPORTANT – ISOLATE BOTH MAINS SUPPLIES

TO THE RADIATOR BEFORE INSTALLING

The receiver unit should be connected to the DuoHeat radiator

by connecting the pilot wires from the heater and MBS receiver

unit together.

Connect the brown (L) and blue (N) wires from the RX03002

MBS receiver unit and the DuoHeat radiator to the mains

supply. Connect the black wire (Pilot) from the receiver unit

to the black wire from the DuoHeat radiator front panel using

a through crimp.

Make the connections such that the MBS receiver will be

isolated together with the direct acting power supply to the

heater when the fused spur is switched off.

Switch on the mains supply and the receiver is now ready to

be configured.

Configuration

Set the MBS central controller RX010007 to the configuration

mode. (Please refer to section 5 of RX010007 instructions)

The RX03002 receives information from the central controller

unit and transmits it to the Duo heat radiator.

You must now configure the MBS receiver with the MBS

central controller (RX010007)

Press the key briefly and the

green ‘OK’ light will flash steady.

The receiver is now configured.

If the green ‘OK’ light flashes slowly then the receiver is not

configured. Press and hold the key for 10 seconds until

the green ‘OK’ light flashes slowly then press again briefly,

the green ‘OK’ light should flash steady and the receiver is

now configured.

Operation

Receiver modes are explained in the table below:

Table 1

Manual Override

Each RX03002 MBS receiver can manually override the

comfort and set back settings sent by the RX010007 MBS

central controller. ‘Frost protection’ and the ‘Off’ setting

cannot be overridden by the receiver only by the central

control unit. Room temperature is set by the controls on the

radiator. (See Table 2).

Table 2

Override cancelling;

If the program has been manually overridden at by the

MBS receiver, the MBS controller unit will automatically

change the setting at the start of the next program.

To manually change the setting again press key on

receiver

Cleaning

The outside of the receiver should be wiped over with a soft

damp cloth and then dried. Do not use detergents or abrasives.

After Sales Service

Your Dimplex receiver is guaranteed for one year from date

of purchase. We undertake to exchange or repair free of

charge within this period, any part found to be defective.

Should you require after sales service, please get in touch

with the supplier through whom you purchased the product,

or contact Dimplex Customer Service.

Please do not initially return a faulty product, or part of, to us

as this may result in transit damage and/or a delay in

providing service. Let us know your difficulty by quoting the

model number and we will take the appropriate action.

Controller Mode Heater Function

Comfort Radiator functions at thermostat setting

Setback Radiator controlled at pre-set

minimum setting (approx.17°C)

Frost Protection No input charge accepted. Radiator

maintains approx.5°C

Off No heat output

Program in

progress

Mode after

pressing the

key

Corresponding

flashing light

Comfort Background

Background Comfort

Frost protection Comfort

Off Comfort
