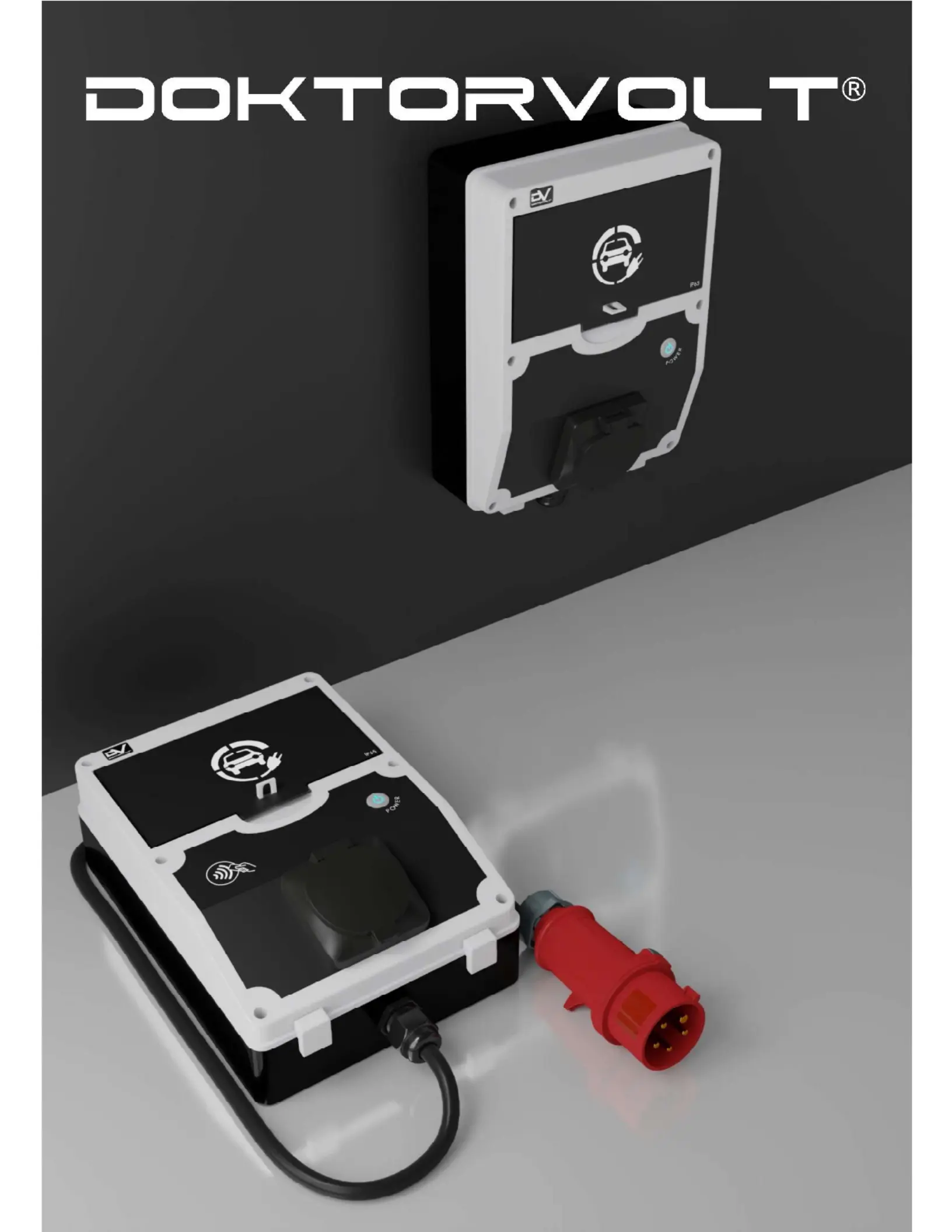

WALLBOX charger for EV
DV-8706-EV; DV-8690-EV; DV-7280-EV; DV-6214-EV
The charger should be disconnected from the power source before installation, configuration or
cleaning!
Installation should only be performed by a qualified installer in accordance with local electrical
regulations!
0. Preparation
Before starting, always ensure that the device is shut down.
For this purpose, the RCD must be in the 0 or lower position.

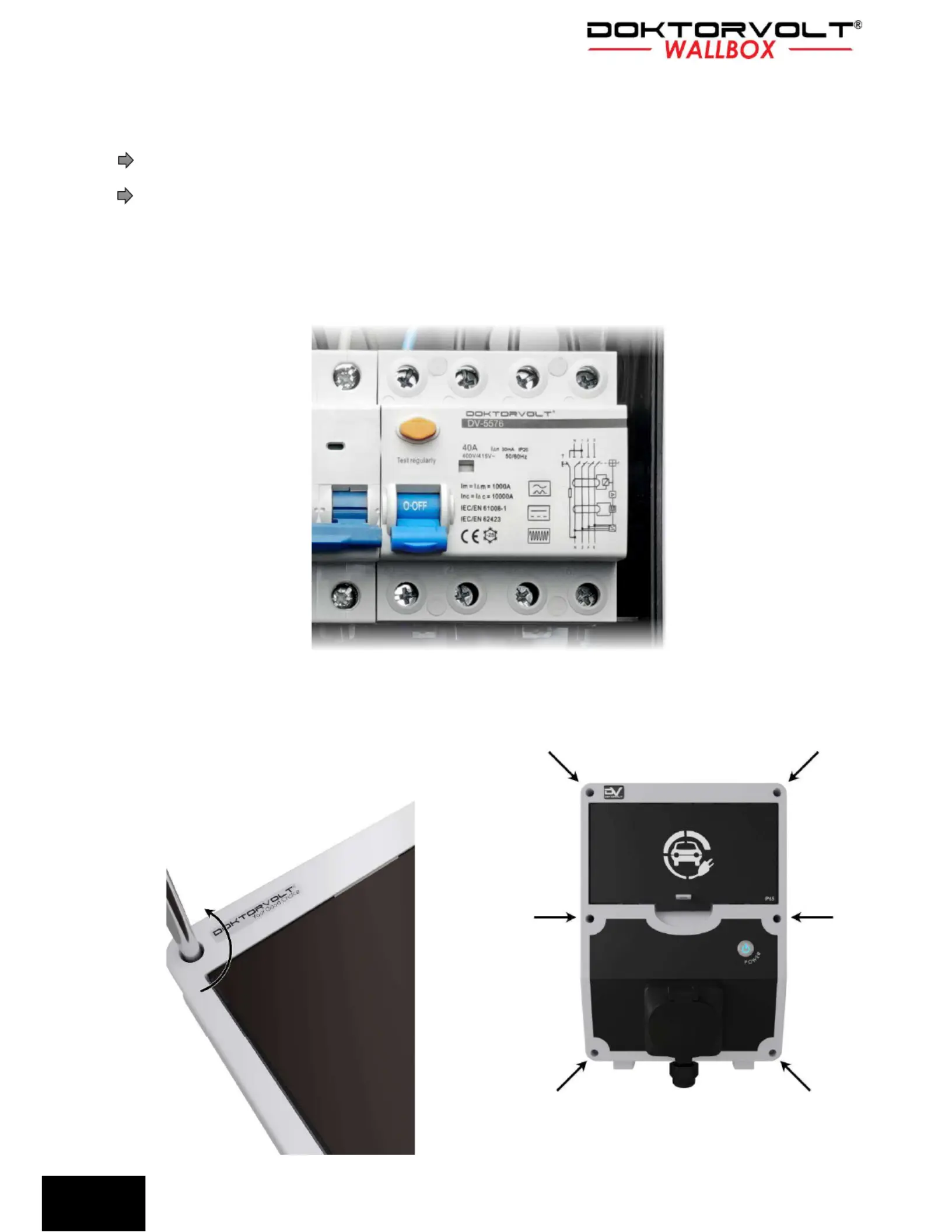

1. Open the housing
Remove the 6 screws holding the top of the housing to the base.
Gently open the case.
EN

3
2. Wall mounting (only for DV-8706-EV; DV-8690-EV)
Refer to the attachment included to the manual
3.

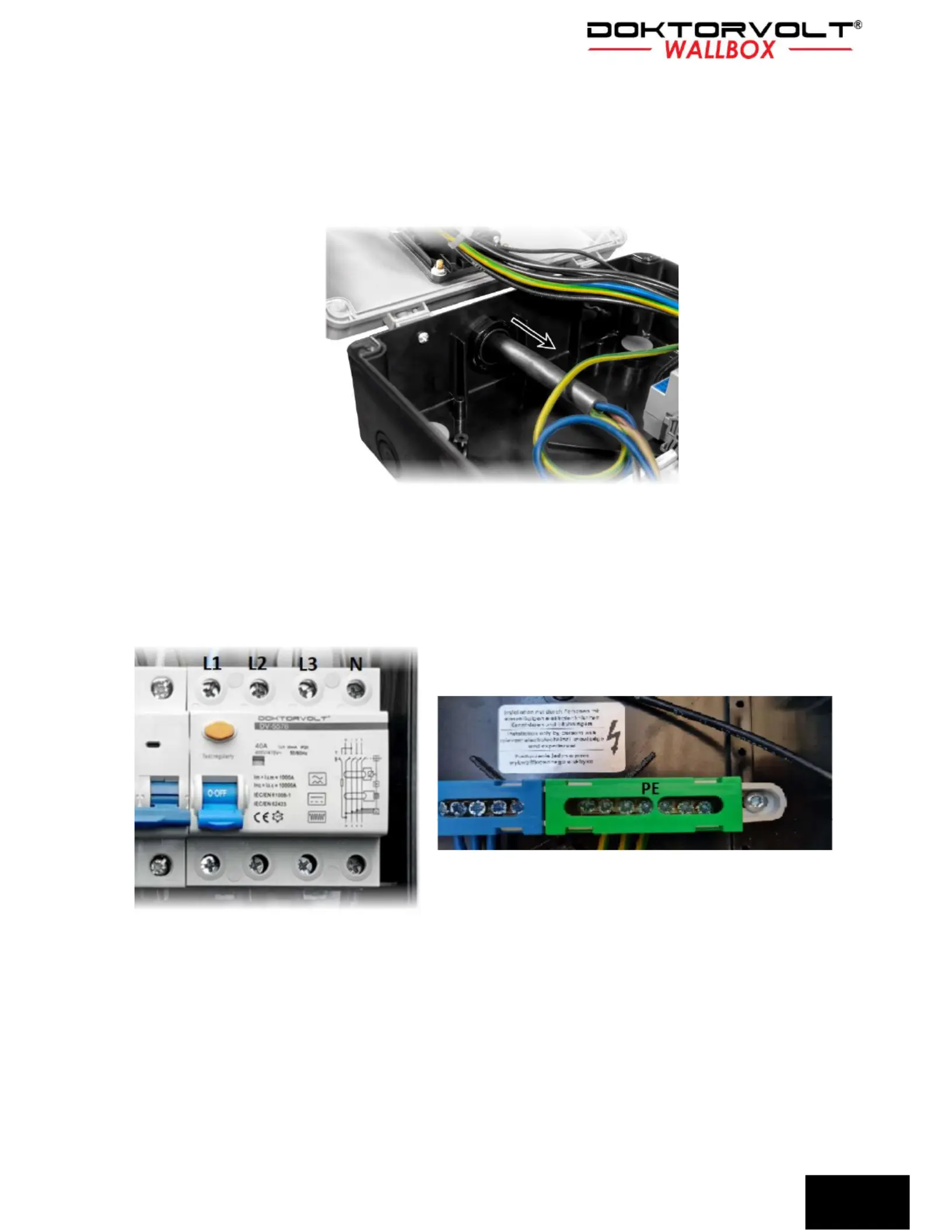

Power supply
3.a
(only for DV-8706-EV; DV-8690-EV)
Put the power cord (cross section: min. 5x4mm2 for a 22kW charger; or min. 5x2.5mm2 for 11kW charger) through
the installed cable gland on the bottom of the enclosure.
Insulate the end of the cable and crimp the individual conductors with sleeve lugs with a diameter that matches
the conductor diameter.
- The phase wires (brown, black, gray) should be connected to the residual current device (RCD) to the input
marked L1, L2 and L3.
- The neutral wire (blue) should be connected to the residual current device (RCD) to the input marked N,
- Screw the protective conductor (yellow-green) to the earthing slats (of the same color)
EN
