RGE400

822705805 REV B 7/17

LaGrange, IN 46761

USA

Service Ofce

Dometic Corporation

1120 North Main Street

Elkhart, IN 46514

For Service Center Assistance

Please Visit: www.edometic.com

CANADA

Dometic Corporation

46 Zatonski, Unit 3

Brantford, ON N3T

5L8 CANADA

MO-M 0951

DIRECTIVES D’INSTALLATION

D’UTILISATION

INSTALLATION

OPERATING INSTRUCTIONS

FOR YOUR SAFETY

If you smell gas:

1. Open windows.

2. Don’t touch electrical switches.

3. Extinguish any open ame.

4. Immediately call your gas supplier.

POUR VOTRE SÉCURITÉ

Si vous sentez une odeur de gaz:

1. Ouvrez les fenêtres.

2. Ne touchez à aucun interrupteur.

3. Éteignez toute amme nue.

4. Avertissez immédiatement votre

fournisseur de gaz.

FOR YOUR SAFETY

Do not store or use gasoline or other

ammable vapors and liquids in the

vicinity of this or any other appliance.

POUR VOTRE SÉCURITÉ

Ne pas entreposer ni utiliser de l’essence

ni d’autres vapeurs ou liquides inamma-

bles à proximité de cet appareil ou de tout

autre appareil.

Improper installation, adjustment,

alteration, service or maintenance can

cause injury or property damage. Refer to

this manual. For assistance or additional

information consult a qualied installer,

service agency or the gas supplier.

Une installation, un réglage, une modi-

cation, une réparation ou un entretien non

conforme aux normes peut entraîner des

blessures ou des dommages matériels.

Lisez attentivement le mode d’emploi

fourni avec l’appareil. Pour obtenir de

l’aide ou des renseignements supplémen-

taires, consultez un installateur ou un

service d’entretien qualié ou le fournis-

seur de gaz.

warning avertissement

CONTENTS

INSTALLATION ________________________________ 3

Information .........................................3

Free-standing model for oor installation only ..............3

Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Refrigerator dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Gas connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Testing LP gas safety shutoff ...........................4

Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Refrigerator removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

OPERATING INSTRUCTIONS ____________________ 5

Importance of leveling a refrigerator . . . . . . . . . . . . . . . . . . . . . 5

Controls ...........................................5

Gas operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Electric operation ....................................5

Thermostat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

How to use the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

mAINTENANCE & SERVICE _____________________ 7

Periodic maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Shut off - storage procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Troubleshooting .....................................9

Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

WIRING DIAGRAm _____________________________ 9

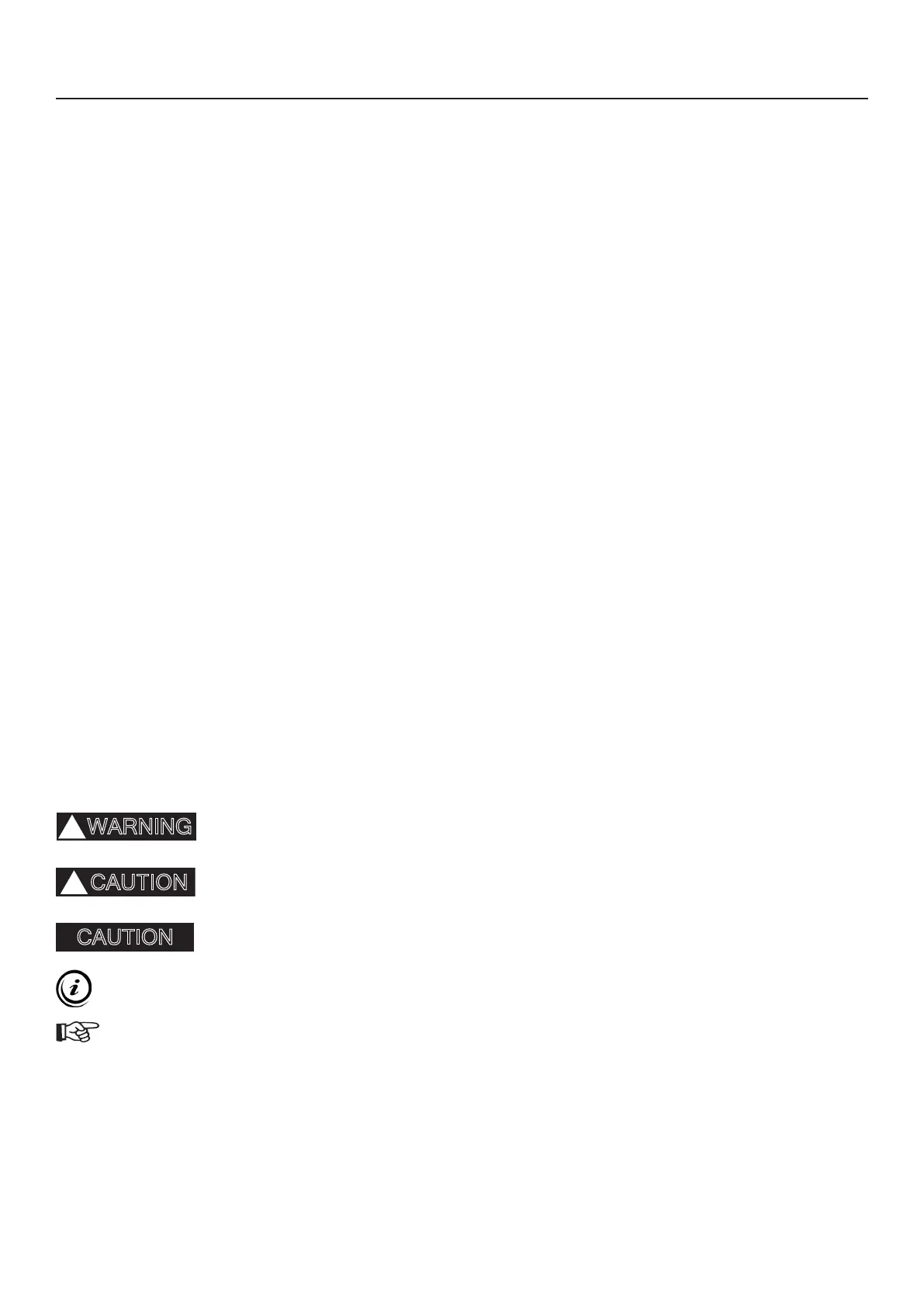

SymbOLS

The following symbols are used throughout the manual:

Indicates a potentially hazardous situation, which, if not avoided, could result

in death or serious injury.

Indicates a potentially hazardous situation, which, if not avoided, may result in

minor or moderate injury.

Used without the safety alert symbol indicates, a potentially hazardous situation which, if not avoided

may result in property damage.

Information

Step-by-step instructions

CAUTION

WARNING

CAUTION

WARRANTy _________________________________ 18

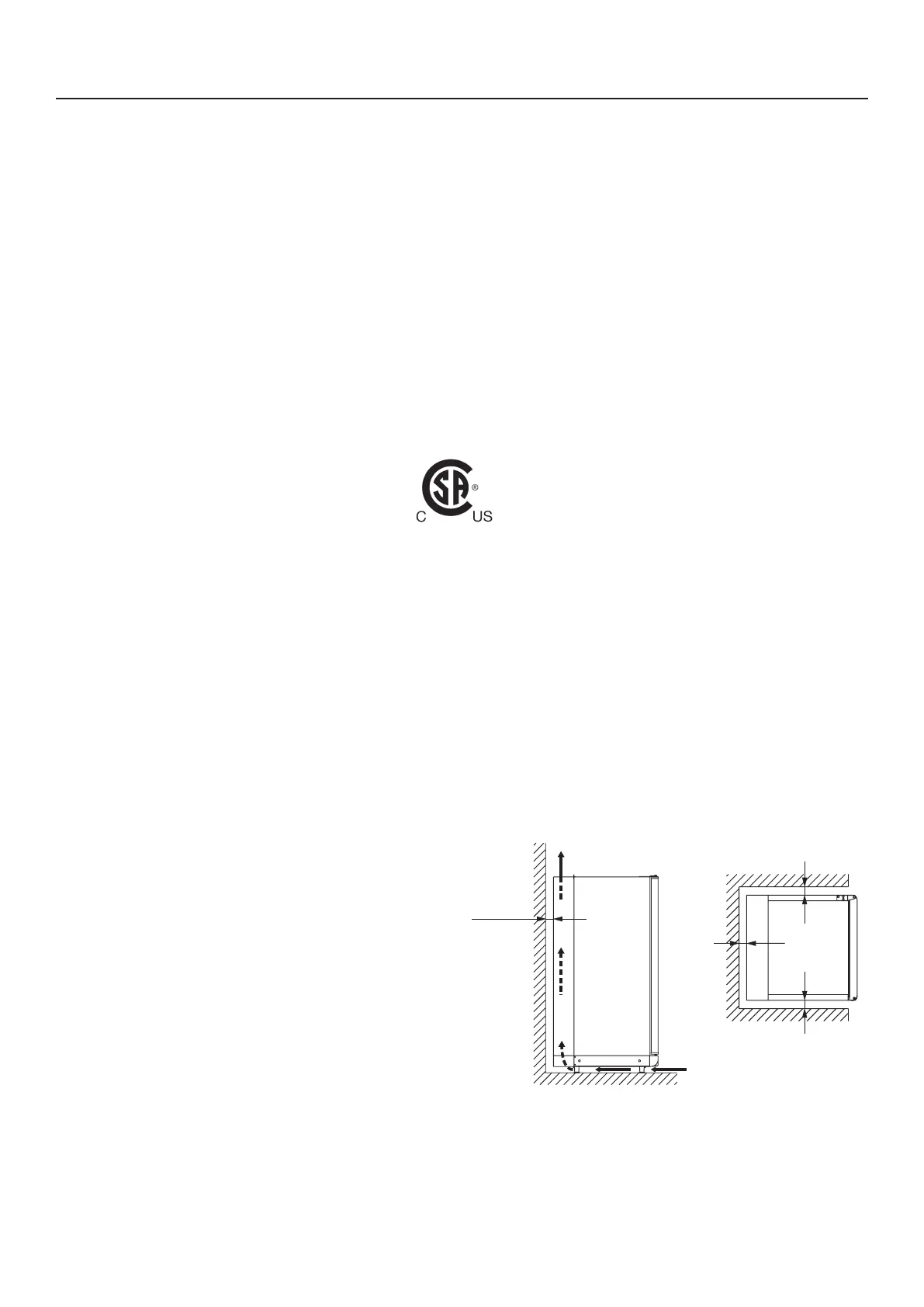

CLEARANCES

Minimum clearances in inches to combustible materials are:

Top 4”

Side 1”

Rear 1”

Bottom The feet must be in place to

ensure free air circulation.

NOTE: DO NOT install the appliance directly on carpeting.

Carpeting must be removed or protected by a metal or wood

panel beneath the appliance, which extends at least the full

width and depth of the appliance.

1 ”

INSTALLATION

In the U.S. the installation must conform with:

National Fuel Gas Code, ANSI Z223.1/NFPA 541.

(latest edition).

Recreational Vehicles Code, ANSI A119.2 (latest edition)2.

Manufactured Home Construction and Safety Standard,3.

Title 24 CFR, Part 3280.

If an external electrical source is utilized, the refrigerator, when

installed, must be electrically grounded in accordance with lo-

cal codes or, in the absence of local codes, the National Electri-

cal Code, ANSI/NFPA 70 - (latest edition).

In CANADA, the installation must conform with:

Natural Gas and Propane Installation Code, CSA B149.11.

CSA Z240 RV Series, Recreational Vehicles.2.

Current CSA Z240.4, Gas-equipped Recreational Vehicles3.

and Mobile Housing.

If an external electrical source is utilized, the refrigerator,

when installed, must be electrically grounded in accordance

with local codes or, in the absence of local codes, the Canadian

Electrical Code, CSA C22.1, Parts I and II - (latest edition).

INfORmATION

This appliance is designed for storage of foods, frozen foods and making ice. It is certiﬁed under the latest edition of ANSI

Z21.19•CSA 1.4 Refrigerators using gas fuel, for a free-standing installation.

The installation must conform with local codes, or in absence of local codes, the following standards as applicable.

fREE-STANDING mODEL fOR fLOOR

INSTALLATION ONLy

The room must be well ventilated and not used as a bedroom.

Further the room should have a window (which can be opened)

or a door to the outside.

For best performance also at high ambient temperatures there

must be a free air circulation over the cooling unit at the rear

of the refrigerator. Ensure that there is a free space of at least 4

inches (100 mm) above the refrigerator and that the ventilation

opening on the top of the cabinet is not covered in any way.

Do not place the refrigerator in a space where air circulation is

restricted. A clearance of at least 1-inch (25 mm) should be left

between the rear and sides of the refrigerator and the surround-

ing walls.

This freestanding refrigerator requires accessibility to the back

for servicing the gas equipment. If allowed by the Local Au-

thorities, the accessibility can be obtained by using a certiﬁed

Flexible Metal Connector of Gas Hose Assembly, which would

allow the refrigerator to be withdrawn without disrupting the

gas supply. However, if the Local Authorities require a rigid

gas supply connector the refrigerator should be located with

sufﬁcient space at the back for servicing or, if located against a

wall, a removable panel of a minimum size of 16” x 20” should

be provided in the wall to allow access to the rear of the refrig-

erator. The refrigerator must be adjusted to a vertical position

in both directions. Use the feet on the refrigerator to adjust its

position.

FROM ABOVE

Wall

Rear

Wall

FROM THE SIDE

At least 1”

(25 mm)
