RECORD THIS INFORMATION FOR FUTURE REFERENCE
BEFORE INSTALLING THE UNIT:
Model No. Serial No.
Product No.
Date Purchased Place of Purchase
REFRIGERATOR MODEL
RM 4223
For Mobile Home or Recreational Vehicle
Installation
Operation by LP Gas, 12V DC or 120V AC
USA
SERVICE OFFICE
The Dometic Corp.
509 So. Poplar St.
La Grange, IN 46761
Phone: 219 463 4858
CANADA
Dometic Dist.
866 Langs Dr.
Cambridge, Ontario
Canada N3H 2N7
Phone: 519 653 4390
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas supply at
main valve.
2. Open windows.
3. Don't touch electrical
switches.
4. Extinguish any open
flame.
5. Immediately call your
gas supplier.
WARNING
Improper installation, adjustment,
alteration, service or maintenance
can cause injury or property
damage. Refer to this manual. For
assistance or additional informati-
on consult a qualified installer,
service agency or the gas supplier.
AVIS
Cet appareil doit être réparé
seulement par un réparateur
autorisé. Modification de l'appareil
pourrait être extrèmement
dangeruse, et pourrait causer mal
ou mort.
FOR YOUR SAFETY
Do not store or use gasoline
or other flammable vapors
and liquids in the vicinity of
this or any other appliance.
REFRIGERATOR
MODEL
RM 4223
INSTALLATION &
OPERATING INSTRUCTIONS
Dometic GmbH
In der Steinwiese 16
D- 57074 Siegen
GERMANY
821 2686-05 11/03
IMPORTANT INSTRUCTIONS
READ CARFULLY
INDEX Page
Installation 2
Operating Instructions 7
Maint. & Service 10
FOR SERVICE CENTER
ASSISTANCE
CALL: 800 544 4881
FOR CHILD SAFETY
DANGER: Risk of child entrapment.
Before you throw away your old
refrigerator: Take off the doors, leave the shelves in place, so that
children may not easily climb inside.
Français page 13
1. GENERAL INSTRUCTIONS
This appliance is designed for storage of food and
storage of frozen food and making ice.
The refrigerators outlined herein have been design certi-
fied by A.G.A. under ANSI Z21.19 Refrigerator Standard
for installation in a mobile home or recreational vehicle
and are approved by the Canadian Gas Association. The
certifications are, however, contingent on the installation
being made in accordance with the following instructions
as applicable.
In the U.S.A., the installation must conform with:
1. National Fuel Gas Code ANSI Z223.1-(latest edition)
2. Manufactured Home Construction and Safety
Standard, Title 24 CFR, Part 3280
3. Recreational Vehicles ANSI A119.2-(latest edition).
The unit must be electrically grounded in accordance
with the National Electric Code ANSI/NFPA 70-(latest
edition) when installed if an external alternating current
electrical source is utilized.
4. Any applicable local code.
In Canada, the installation must conform with:
1. Current CGA B 149 Gas Installation Codes
2. Current CSA Standard Z 240.4 GAS-EQUIPPED
RECREATIONAL VEHICLES AND MOBILE
HOUSING
3. Any applicable local code
The unit must be electrically grounded in accordance
with the CANADIAN ELECTRICAL CODE C 22 Parts 1
and 2.
2. VENTILATION
The installation shall be made in such a manner as to
separate the combustion system from the living space of
the mobile home or recreational vehicle. Louver ope-
nings must have a minimum dimension of 1/4 inch for air
supply or venting of combustion products.
Proper installation requires one fresh air intake and one
upper exhaust vent. The ventilation kits shown in this
instruction manual have been certified for use with the
refrigerator model listed in the Table. For "Certified Vent
System Kits" see Section B. The ventilation kits must be
installed and used without modification. An opening
toward the outside at floor level in the refrigerator com-
partment must be provided for ventilation of heavier-
than-air fuel gases. The lower vent of the recommended
kits is provided with properly sized openings. The flow of
combustion and ventilation air must not be obstructed.
The lower side vent is fitted with a panel which provides
an adequate access opening for ready serviceability of
the burner and control manifold of the refrigerator. This
should be centered on the back of the refrigerator.
3. CERTIFIED INSTALLATION
Certified installations require one upper side vent and
one lower side vent.
For certified vent system kits, see Section B.
For further information, contact your dealer or distributor.
4. METHOD OF INSTALLATION

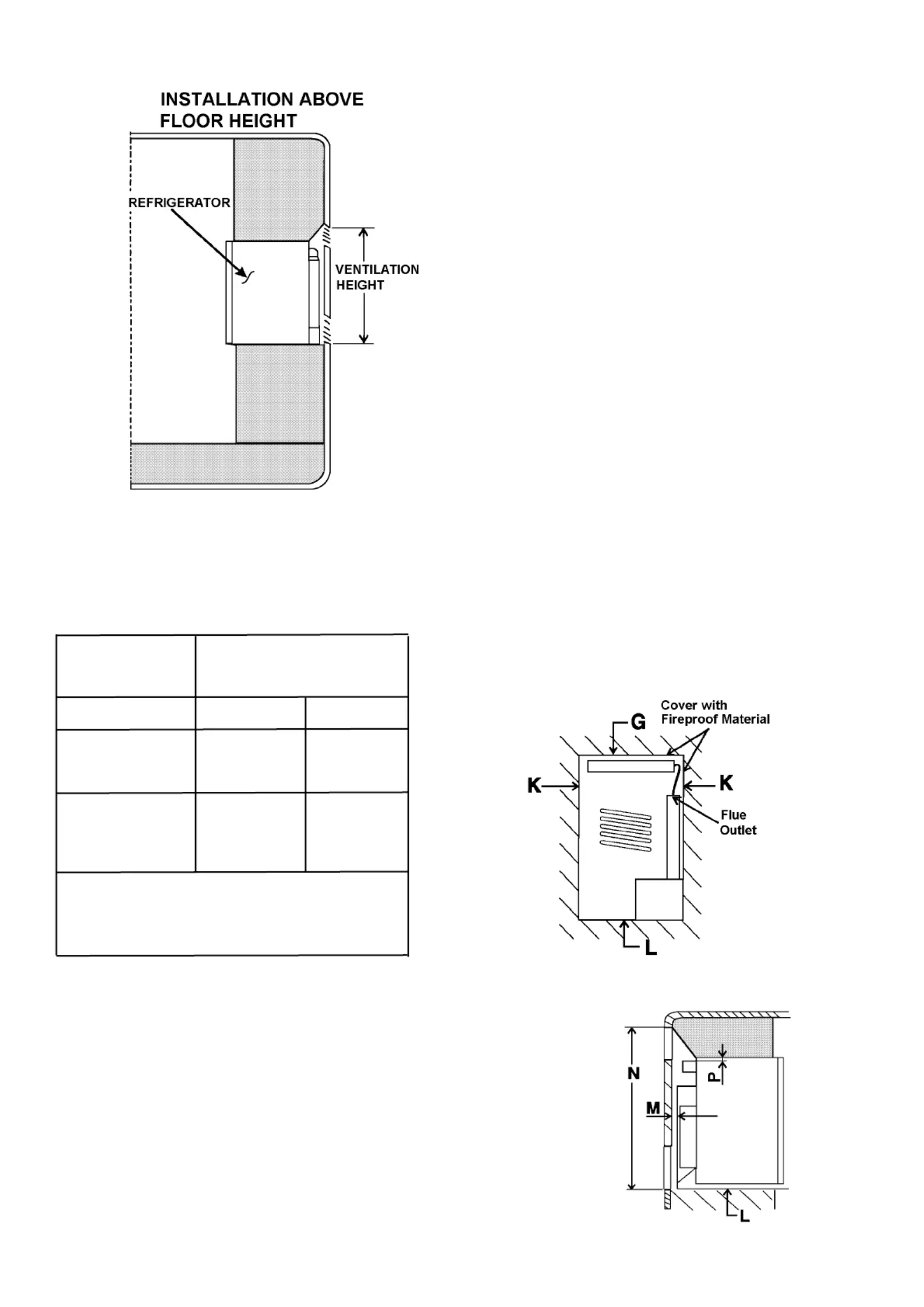

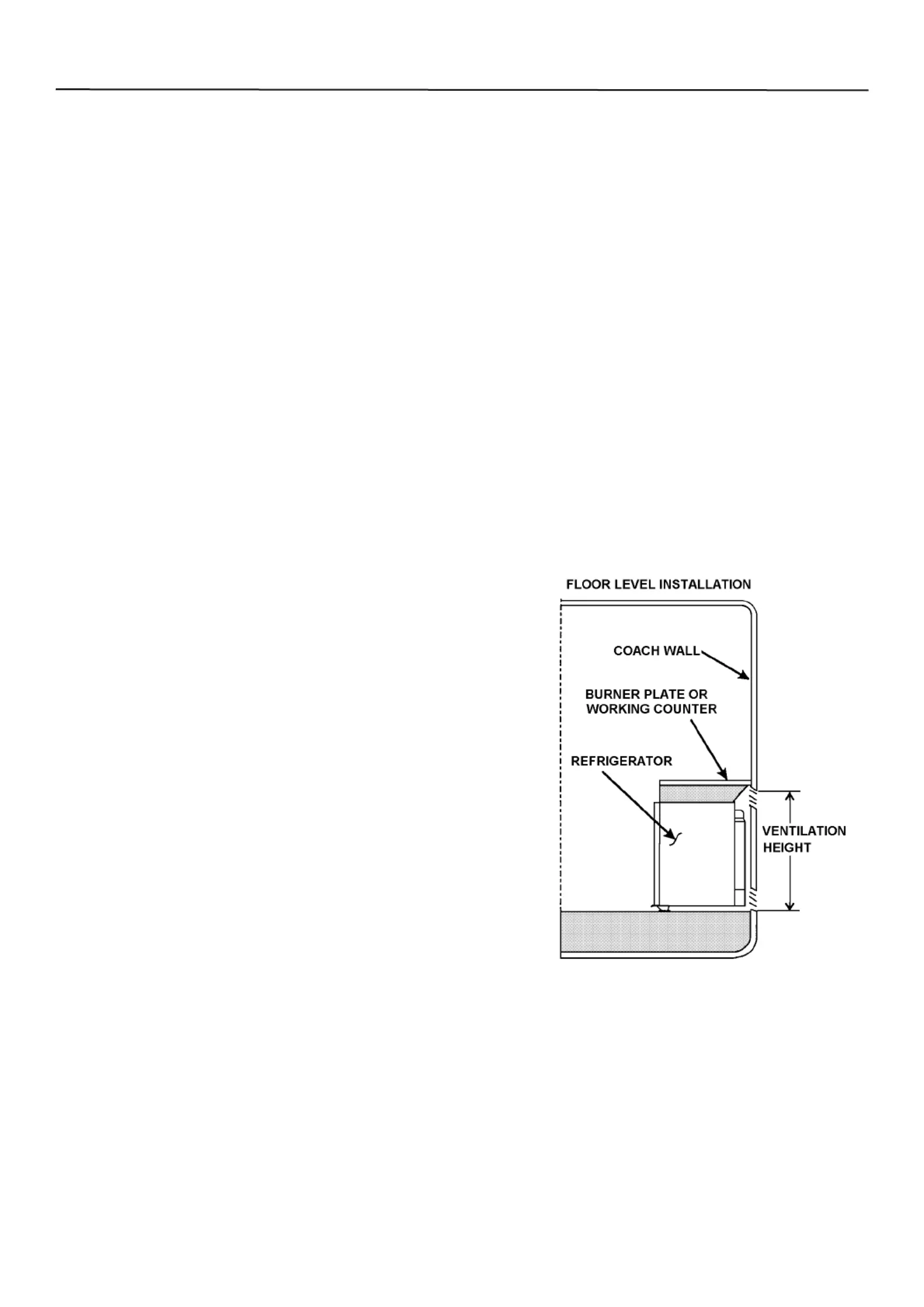

The methods of installation are shown in FIG. 1 & FIG.
1A. It is essential that all maximum or minimum dimen-
sions are strictly maintained as the performance of
the refrigerator is dependent on adequate flow of air over
the rear of the refrigerator.
NOTE: The upper vent should be centered over the
condenser coil at the back of the refrigerator.
FIG.1
SECTION A. INSTALLATION
2
FIG.1a
5. VENTILATION HEIGHTS
Refer to FIG 1 & FIG. 1A., Pages 1 & 2
Installation with * Minimum Ventilation
Upper side vent Height N
And lower side vent
REFRIGERATOR INCHES MM
RM 4223
Metal Side Vents 21.0 533
(2) RM 183 Vents
RM 4223
Plastic Side Vents
(1) 3107560.041 22.0 558.8
(1) 3107560.009
* These dimensions represent the minimum height
allowable. It is recommended the Upper Vent be
located to the maximum possible height of the
vehicle for optimum performance in warmer climates.
6. CLEARANCES
Minimum clearances in inches to combustible materials
are:
G: Top 0"
K: Side 0"
L: Bottom 0"
M: Rear 9/32"
N: See NOTE
P: See NOTE
NOTE: Clearance "M" is between the rearmost part of
the refrigerator and the wall behind the refrigerator.
NOTE: Clearance "N" is the distance between the bot-
tom of the lower vent to the top of upper side vent. For
ventilation height, refer to Section A. Installation, Item 5.
Ventilation Heights. See FIG. 2.
Surfaces directly above and sides adjacent to the
flue outlet must be of, or covered with, fireproof
material. See FIG. 2.
NOTE: Clearance "P" over top of unit condenser fins is
1/4 inch. This is the minimum height which can be allo-
wed over the condenser fins. Whenever possible, increa-
se this height by up to 11 inches; the more ventilation
you provide, the better the performance you can expect
from the refrigerator.
Fig. 2
3
