Sida 1/20

Installation Manual (Pages 2-9)

IP DOOR CHIME

A1061x Series

VERSION ., MIN. HW .

Installationsanleitung (Seiten 10-17)

IP TÜRGONG

A1061x Serie

INSTALLATION MANUAL

You can always ﬁnd the most up-to-date version of the installation manual

on www.doorbird.com/support

To make things easier we use the term „device“ for the product „DoorBird IP

Door Chime“ and „mobile device“ for a smartphone or tablet.

COMPONENTS

Contents

∙ 1x Device

∙ 1x Power supply unit (mains adaptor) with four country-speciﬁc adaptors

∙ 1x RJ45 network cable (300 cm)

∙ 3x Phillips countersunk head screws

∙ 3x Dowels

∙ 3x Crimp connectors

∙ 1x Installation manual

∙ 1x Drilling template

∙ 1x Quickstart guide with Digital Passport

ENGLISH

VIDEOS

Need help with the installation? Be sure to watch our installation videos

which can be found on http://www.doorbird.com/support

Each individual step of the installation is clearly documented in the videos.

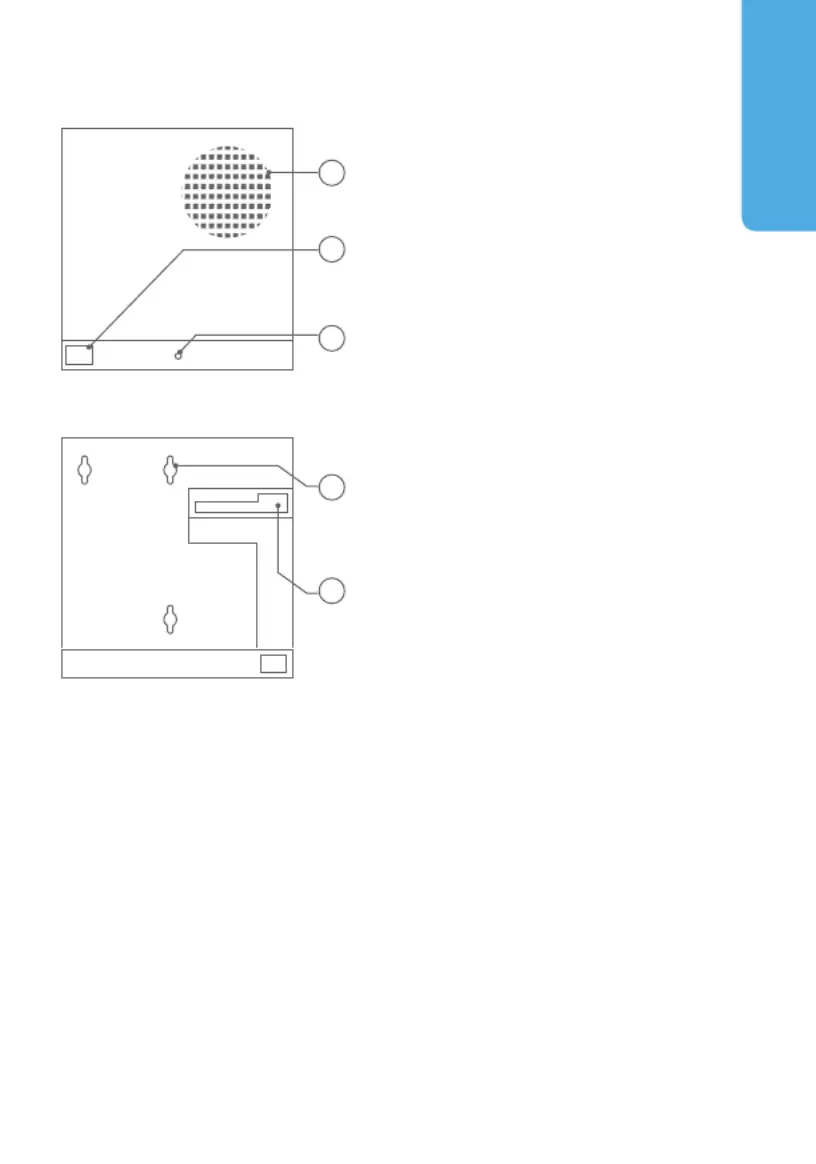

Device

Loudspeaker

Large-sized broadband speaker.

Cable inlet

To feed the cable into the device, if the

cables are surface-mounted.

Diagnostic-LED

To visualize the current status of the device.

Mounting points

To mount the device on a wall or ceiling

using countersunk head screws.

Connection terminal

Power supply (15 VDC -; 15 VDC +),

Storey-call button (STC),

Setup button (SET), LAN/PoE.

Front

Back

INSTALLATION

All steps below should be carried out carefully by a competent adult, taking

into consideration any applicable safety regulations. Should you have any

questions, please contact us or a competent specialist directly. Please ensure

that all wires used for the installation are undamaged along their entire

length and approved for this type of use.
