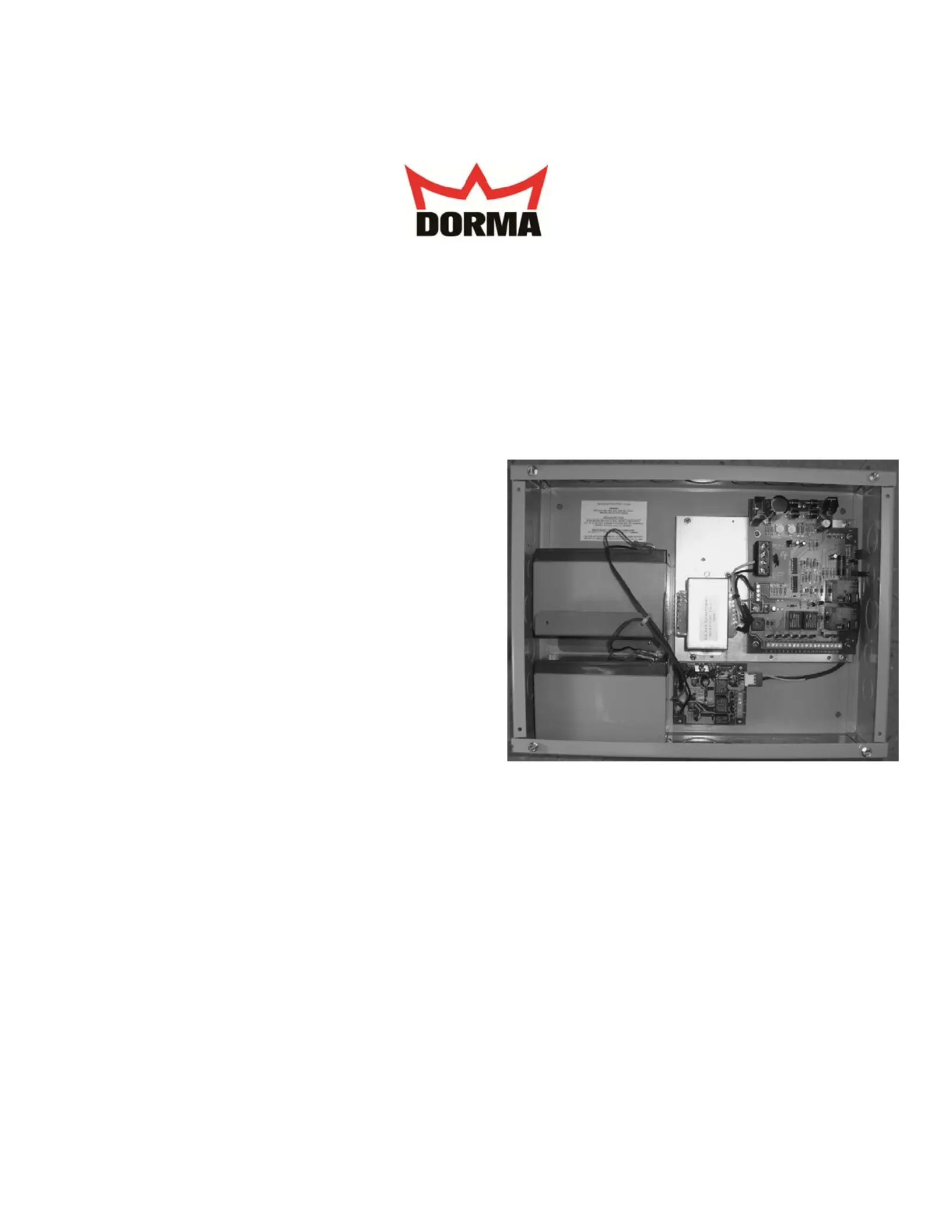

DORMA MODEL PS-426BB
POWER SUPPLY
INSTALLATION INSTRUCTIONS
INSTALLATION
Install in accordance with NFPA 70.
The PS-426BB enclosure should be securely fastened to the wall using the four 1/4 inch
diameter mounting holes located in the back of the box. Position the enclosure so that the
battery compartment is located on the left-hand side. The PS-426BB must not be installed
outdoors.
For the 120VAC power input, terminal block TB1 will accommodate up to 12 AWG wire (solid).
Conduit must be used to provide an adequate earth ground to the enclosure.
NOTE: The maximum input current is 1.08A with a 12.6A inrush current.
Features:
Up to 1.95 Amps Load Capacity
Class 2 Rated Outputs
Overload, Over Voltage, and Short Circuit
Protection
Standby Battery Power with Supervised
AC Fail and Low Battery Outputs
Batteries Supplied with Unit
Up to Two Output Devices Controlled by One
Input
Day/Night Control with Output for Automatic
Door Operator Interface
Input for Connection to Fire Alarm
Auxiliary Output for Powering Stand Alone
Devices, Such as Keypads, Motion Detectors,
and Status Indicators
UL Listed and Tested to 294 Standard for
Access Control System Units
