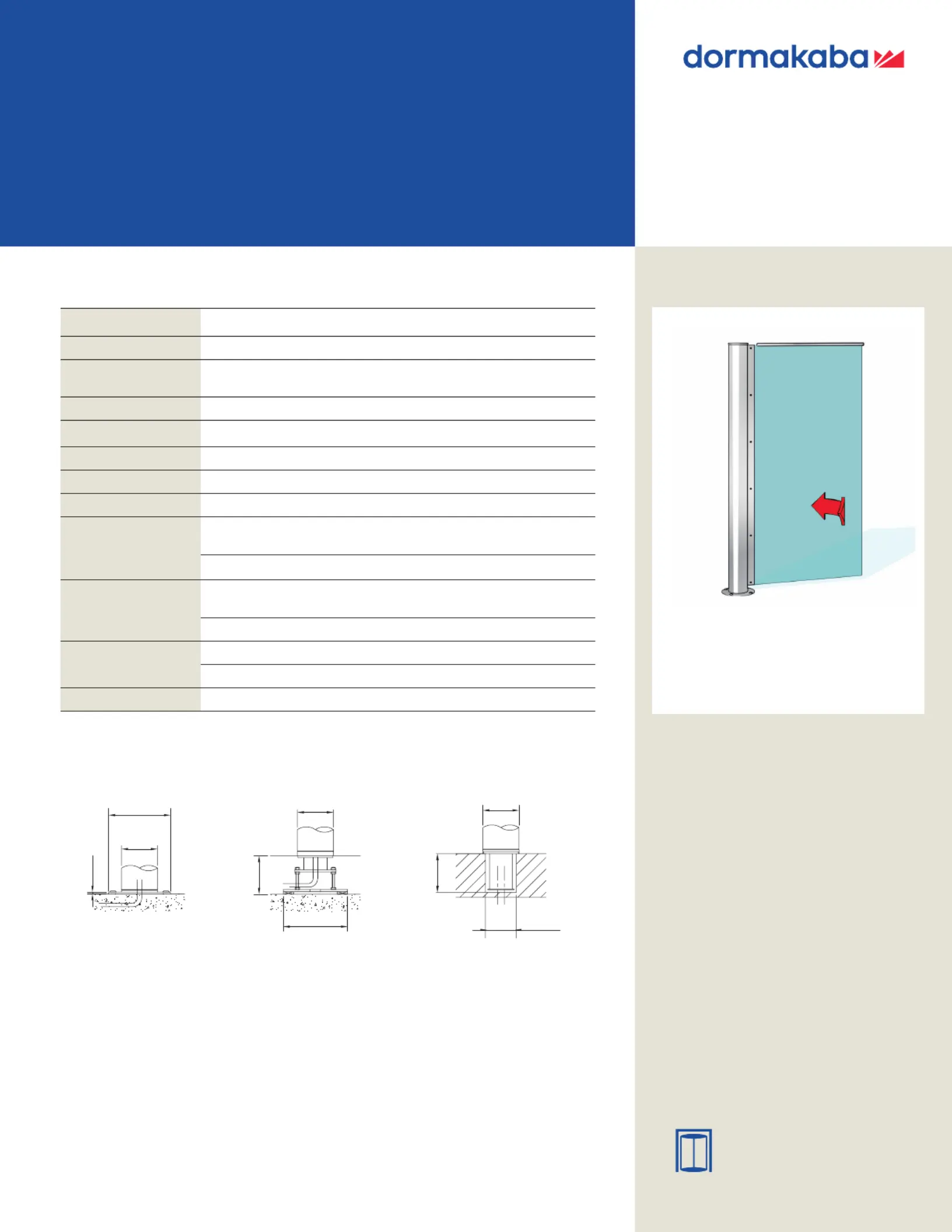

Installation alternatives

Dowelled on finished

floor (standard)

With mounting plate

on subfloor level

Cast-in in finished

floor level

Ø 5-1/2"

Ø 140

Ø 9-7/16"

Ø 240

5/16"

(8)

Ø 5-1/2"

Ø 140

9-13/16"

(250)

X

"Ø 5-1/2

Ø 140

Ø 4-3/4"

Ø 120

5-15/16"

(150)

HSD-E06

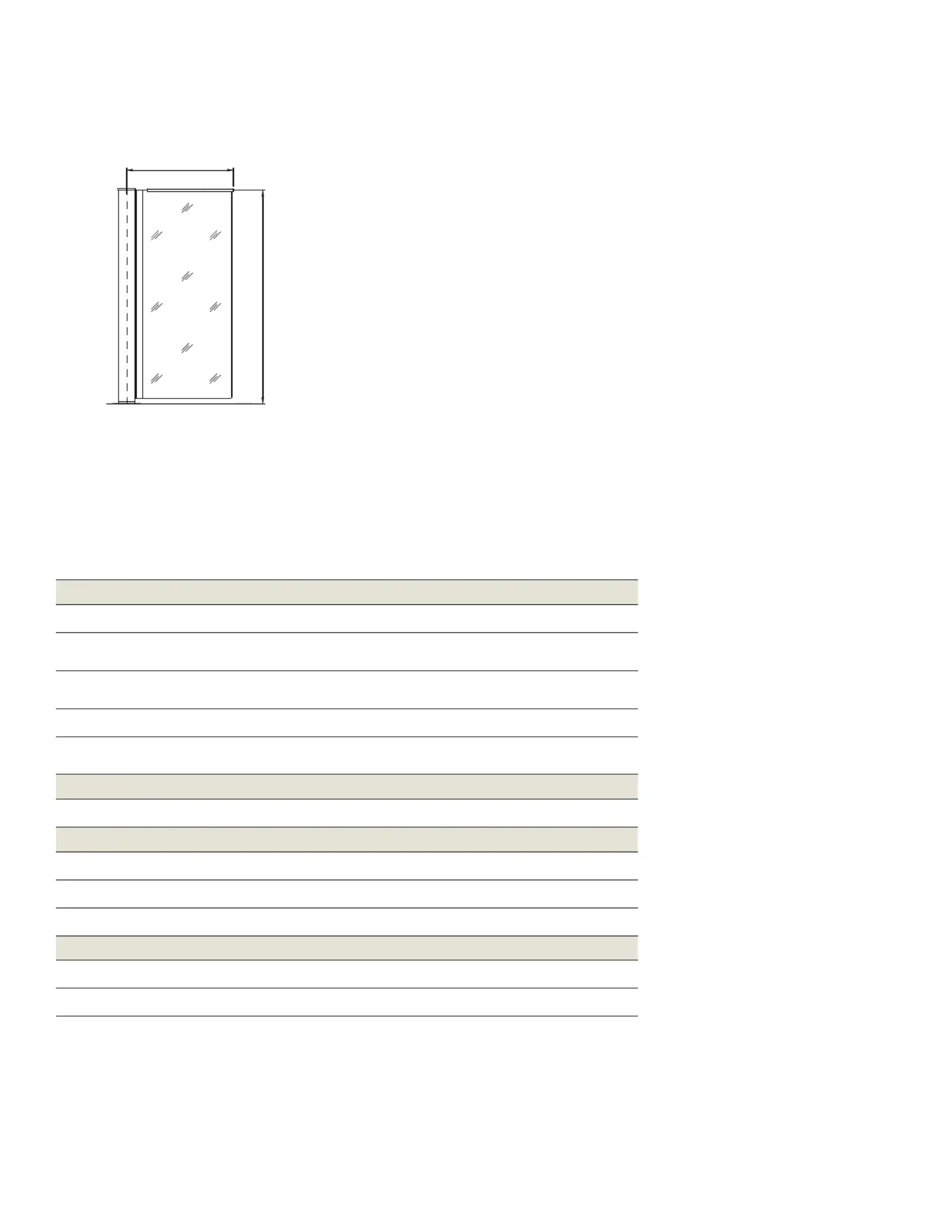

Full-height swing doors

Entrance systems

Standard unitsHSD-E06

Construction

Tubular columnMade of AISI 304 stainless steel, Ø 5-1/2"(Ø 140) with flat steel bar

to clamp the high element.

Barrier elementFull-height glass element, 3/8" (10) TSG with straight handle bar.

Leaf radius35-7/16" (900)

Leaf upper edge70-7/8” (1800)

Locking systemLocking, drive, and toothed holding brake installed in tubular column.

FinishStainless steel satin finish.

FunctionType 2: Power-assisted motion, servo-positioning drive/electrically

controlled in 2 directions.

90° opening in entrance and exit directions.

Electrical equipmentControl unit and power supply unit in an external switch cabinet

H = 11-1/8" (283) / W = 6-5/8” (168) / D = 4-1/2” (115).

Power supply 100–240 VAC 50/60 Hz.

InstallationDowelled on finished floor level, FFL.

Suitable for outdoor installation.

Protection classesHousing IP43, components conducting supply voltage IP54.

Subject to change without notice

Entrance systems

Note

Dimensions shown as inches

followed by millimeters; for

example, 1" (25).
