INSTALLATION
© 2015 RutheRfoRd ContRols Int’l | A doRMA GRoup CoMpAny
www.rutherfordcontrols.com • Phone: 1.800.265.6630 • fax: 1.800.482.9795 • e-mail: sales@rutherfordcontrols.com

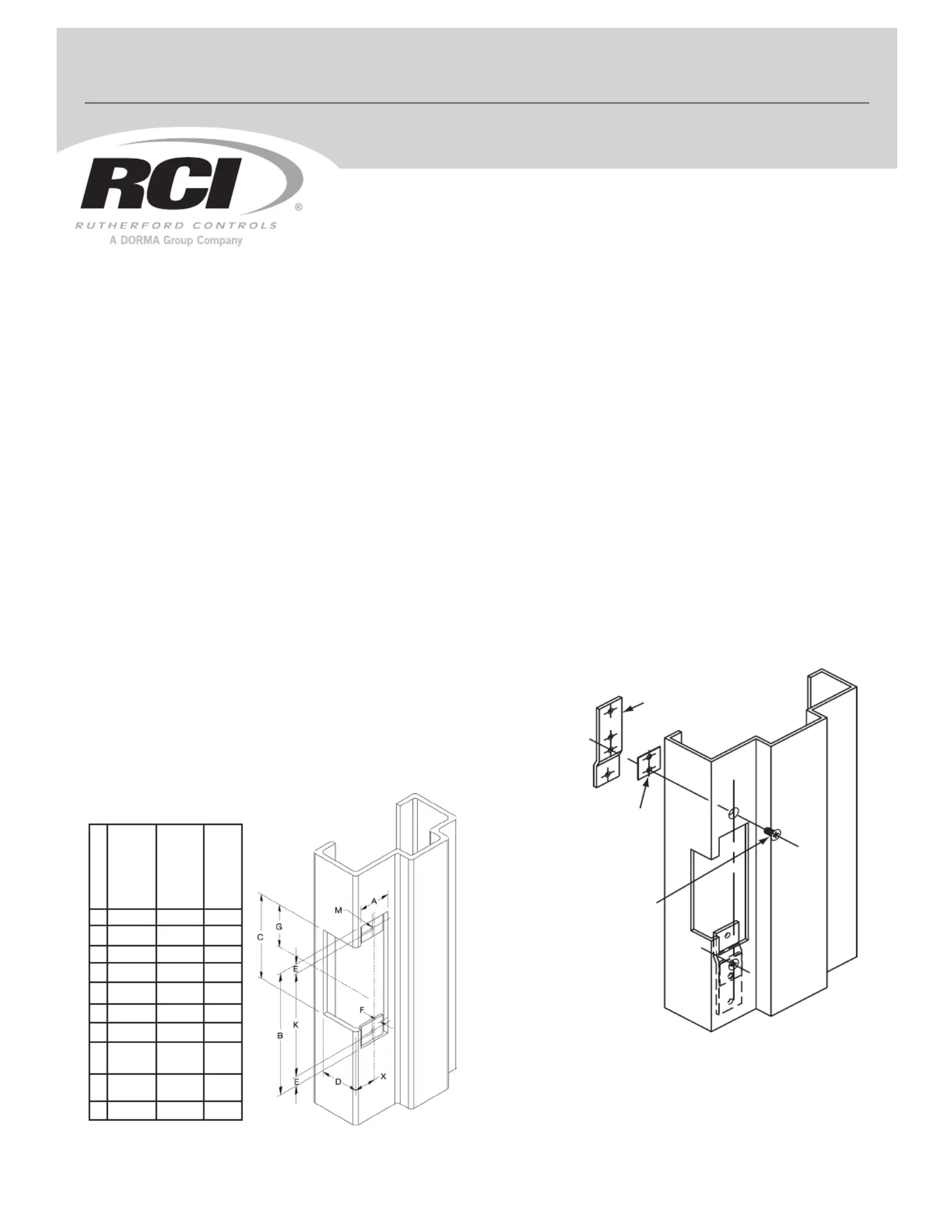

When installing an electric strike on an inactive door of a set of double doors, it can be treated the same as a frame installation in most situations. For
more information contact the Technical Service Department at 1-800-265-6630 or 519-621-7651.
Fire labeled heavy-duty electric strike
F1119
isf1119
Pcn14079
r06/15Gr-1
INSTRUCTIONS

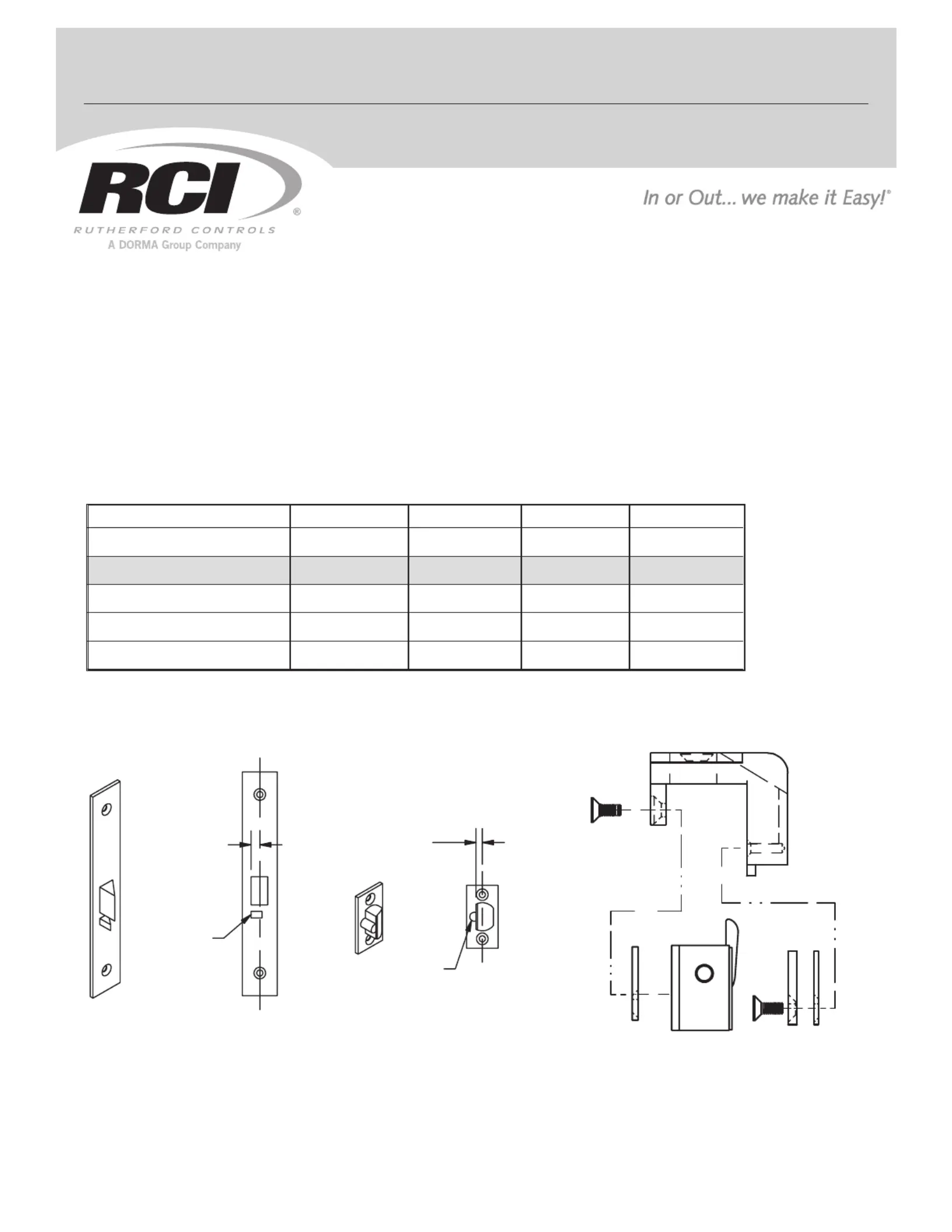

1. To determine if the Strike Shim positions need adjustment, measure dimension “R” (see Figure 1) from the center to the edge
of the latch. When necessary rearrange Strike Shims according to the chart below. The “shipped as default” positions are
illustrated in Figure 2.
SHIM PLACEMENT CHART
Note:Shims consist of two thin and one thick. Install with the indicated hardware per the appropriate measurement R range.
Shipped as Default
Figure #1
Figure #2
S1
S2
“R” distance
from center to
edge of latch
“R” distance from
center to edge of latch
Deadlock
Trigger
Deadlock
Trigger
Mortise Lock
Cylindrical Lock
Measurement “R” “S1” Shims “S1” Screws “S2” Shims “S2” Screws
5/16” (8.2mm) or Less None M4 x 10mm 1 thick, 2 thin M4 x 10mm
5/16” - 3/8”, (8.2 - 9.7mm) 1 thin M4 x 10mm 1 thick, 1 thin M4 x 10mm
3/8” - 7/16”, (9.7 - 10.7mm) 1 thick M4 x 10mm 2 thin M4 x 10mm
7/16” - 1/2”, (10.7 - 12.2mm) 1 thick, 1 thin M4 x 14mm 1 thin M4 x 10mm
1/2” - 9/16” (12.2 - 13.7mm) 1 thick, 2 thin M4 x 14mm none none
