Original Instructions
Version 1 – June 2022
Stock No. 28369 Part No. DAT-IWTF
INLINE
WATER
TRAP AND
F I LTE R
Read this manual in full before attempting to
use this product and retain it for later use.
Always use the latest version of the manual.
1. Scope
This inline water trap and lter is designed to
catch water and other impurities in
compressed air systems and can be installed
directly onto the tool inlet or elsewhere in the
air line. Part of our core range, this product is
suitable for regular use by enthusiasts and
tradespersons alike.
WARNING! This product is not a toy
and must be respected.
2. Specication
Stock No. 28369
Part No. DAT-IWTF
Rated pressure 8bar (115psi)
Max. pressure 10bar (145bar)
Thread size 1/4” BSP
Weight 0.09kg
3. Health and Safety
Information
Important: Read all the Health and
Safety instructions before attempting to
operate, maintain or repair this product.
Non-compliance with these instructions
may result in injury or damage to the user,
the product or the vehicle to be lifted.
3.1 General Health and Safety
Precautions
• Observe all standard safety precautions
and good practices when working with air
tools.
• Before every use, inspect the tools for
missing, broken, loose or corroded parts.
Important: DO NOT use this product if it
is damaged in any way. Contact Draper
Tools to discuss repair and replacement
options.
• Ensure that all accessories and
attachments are securely tightened
before use.
• Use the product only in the manner
instructed in this manual.
• DO NOT modify this product in any way.
• ONLY use spare parts supplied by Draper
Tools.
Helpline: +44 (0) 23 8049 4344 Sales Desk: +44 (0) 23 8049 4333
General Enquiries: +44 (0) 23 8026 6355 Website: drapertools.com
Email: sales@drapertools.com
Draper Tools Limited, Hursley Road, Chandler’s Ford, Eastleigh, Hampshire, SO53 1YF, UK
2. Screw the water trap outlet (3) onto the air
tool or other connecting inlet.
3. Wrap a length of PTFE tape around the
inlet of the water trap inlet (2) and attach
the desired coupling.
4. Connect the inlet to the air line.
After use, hold the product upright and press
the valve (4) to release any water from the
reservoir.
6. Maintenance and
Disposal
Important: Always disconnect the product
from the air line before attempting to
maintain the product.
• Drain the reservoir weekly and before
storing.
• Replace the water trap if it no longer
creates an airtight seal or becomes visibly
dirty on the inside.
• Store the product in a clean and dry
environment, out of reach of children.
• DO NOT allow dirt, dust and other debris
to enter the product.
At the end of its working life, or when it can
no longer be repaired, dispose of the product
according to local regulations.
7. Explanation of Symbols
Read the instruction manual
Warning!
1/4"
BSP
Thread size
Maximum pressure
Operating pressure
Contact your local authority for details of
collection schemes in your area.
Copyright © Draper Tools Limited
3.2 Additional Safety
Instructions for Air Tools
• Compressed air can cause severe injury.
− ALWAYS turn o and disconnect the
air supply before leaving the product
unattended.
− Ensure that compressed air is not
blocked by or in contact with any part
of your body.
• ONLY use clean, dry and regulated
compressed air.
WARNING! NEVER use oxygen,
combustible gases or other
bottled gasses as a supply for this
product. Use of these substances
may cause the product to explode.
• Ensure that the product is compatible with
the air supply before use.
• Ensure all connections are securely
tightened.
• DO NOT exceed the maximum stated air
pressure.

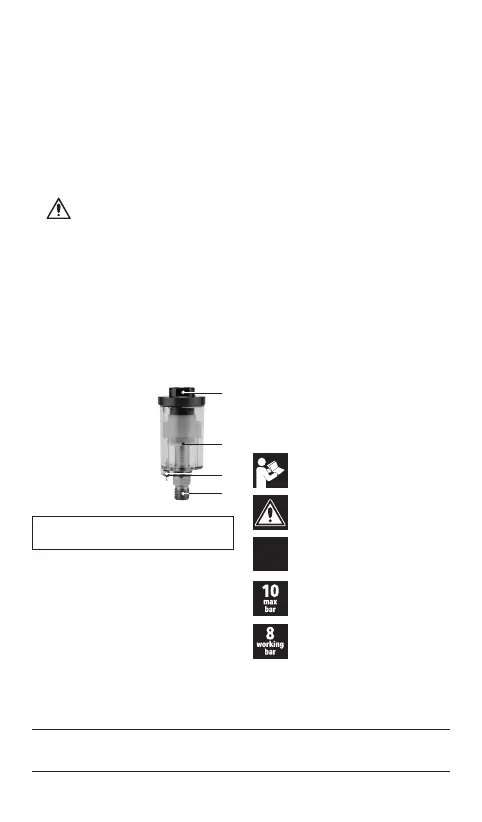

4. Product Overview
Carefully remove
the product from the
packaging and examine
it for any signs of damage
that may have occurred
during shipment.
(1) Filter
(2) Inlet
(3) Outlet
(4) Valve
Please visit drapertools.com for our full
range of accessories and consumables.
5. Operation
Important: Before using this product, read
and understand all the safety instructions
listed in this manual.
1. Wrap a length of PTFE tape around the air
line inlet of the air tool or other air line
component to which the product will be
connected.
Important: For a more secure seal, the
PTFE tape should be wrapped in the
opposite direction to the thread.
(3)
(1)
(4)
(2)
