Helpline: +44 (0) 23 8049 4344 Sales Desk: +44 (0) 23 8049 4333 General Enquiries: +44 (0) 23 8026 6355 Website: drapertools.com Email: [email protected]

Draper Tools Limited, Hursley Road, Chandler’s Ford, Eastleigh, Hampshire, SO53 1YF, UK 1125

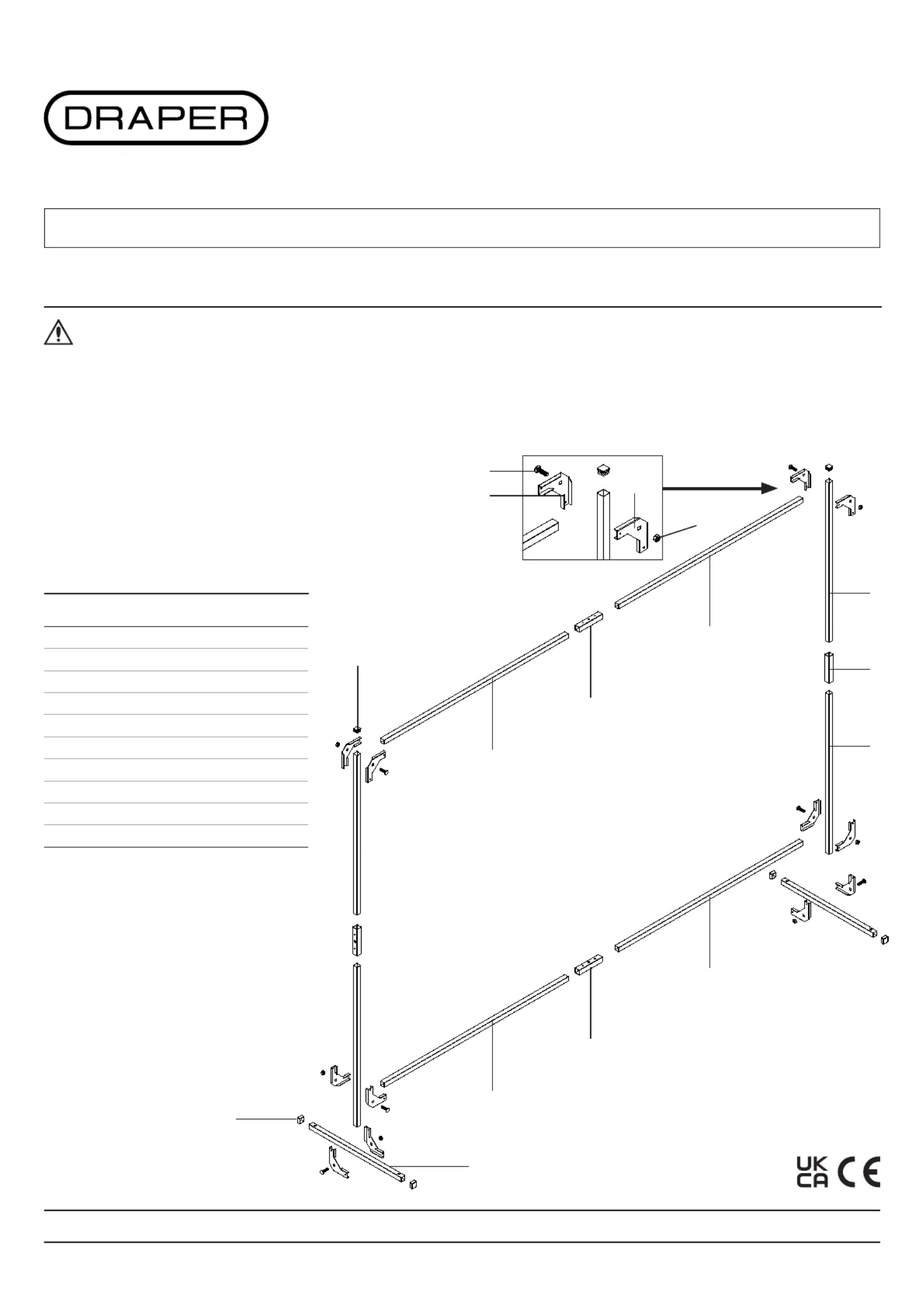

WELDING CURTAIN WITH

METAL FRAME

28406 –INSTRUCTIONS FOR USE

EN

2. Parts List

PartQuantity

ABeam posts4

BSide posts4

CPlatforms2

DCorner brackets6

EEnd caps2

FPlatform caps4

GSplicers4

HNylon curtain ties19

INuts6

JBolts6

1. Health & Safety Information

WARNING!

• This welding curtain frame is designed to be used to suspend a welding

curtain attached using curtain rings.

• The frame must be assembled as shown in the illustration.

• Place on a at level surface.

• Ensure that the frame and curtain are assembled correctly before use.

• DO NOT position the frame where it will cause an obstruction and maintain

safe working practices.

• DO NOT leave anything on or up against the assemble frame and curtain.

• DO NOT use if the curtain is damaged in any way.

Original Instructions

Version 1 – November 2025

3. Bracket Assembly Instructions

1. Pre-t the nuts and bolts to the brackets (D). DO NOT tighten.

2. Slip the brackets over the end of the posts (A) and (B).

3. Ensure the brackets are correctly position and hand tighten bolts.

4. Once the frame is assembled, tighten all the bolts with a spanner.

Please visit for the latest version of this manual and the associated parts list, if applicable.drapertools.com/manuals

Draper Tools Europe B.V. Oude Graaf 8, 6002 NL, Weert, Netherlands.

(F)

(J)

(D)

(A)

(A)

(A)

(G)

(G)

(A)

(E)

(D)

(B)

(B)

(I)

(G)

(C)

• Dimensions when assembled –

Height 183cm (6ft) X Width 183cm (6ft).

BS EN 25980: 2014

BS EN ISO 9001: 2015
