52329
EN
Original Instructions
Version 2
April 2024
CLUTCH MATE®
CLUTCH
ALIGNING
TOOL
© Published by Draper Tools Limited
UK: Draper Tools Limited, Hursley Road, Chandler’s Ford, Eastleigh, Hampshire, SO53 1YF Website: drapertools.com E -mail: [email protected]
EU: Delta International, Delta International BV, Oude Graaf 8, 6002 NL, Weert, Netherlands

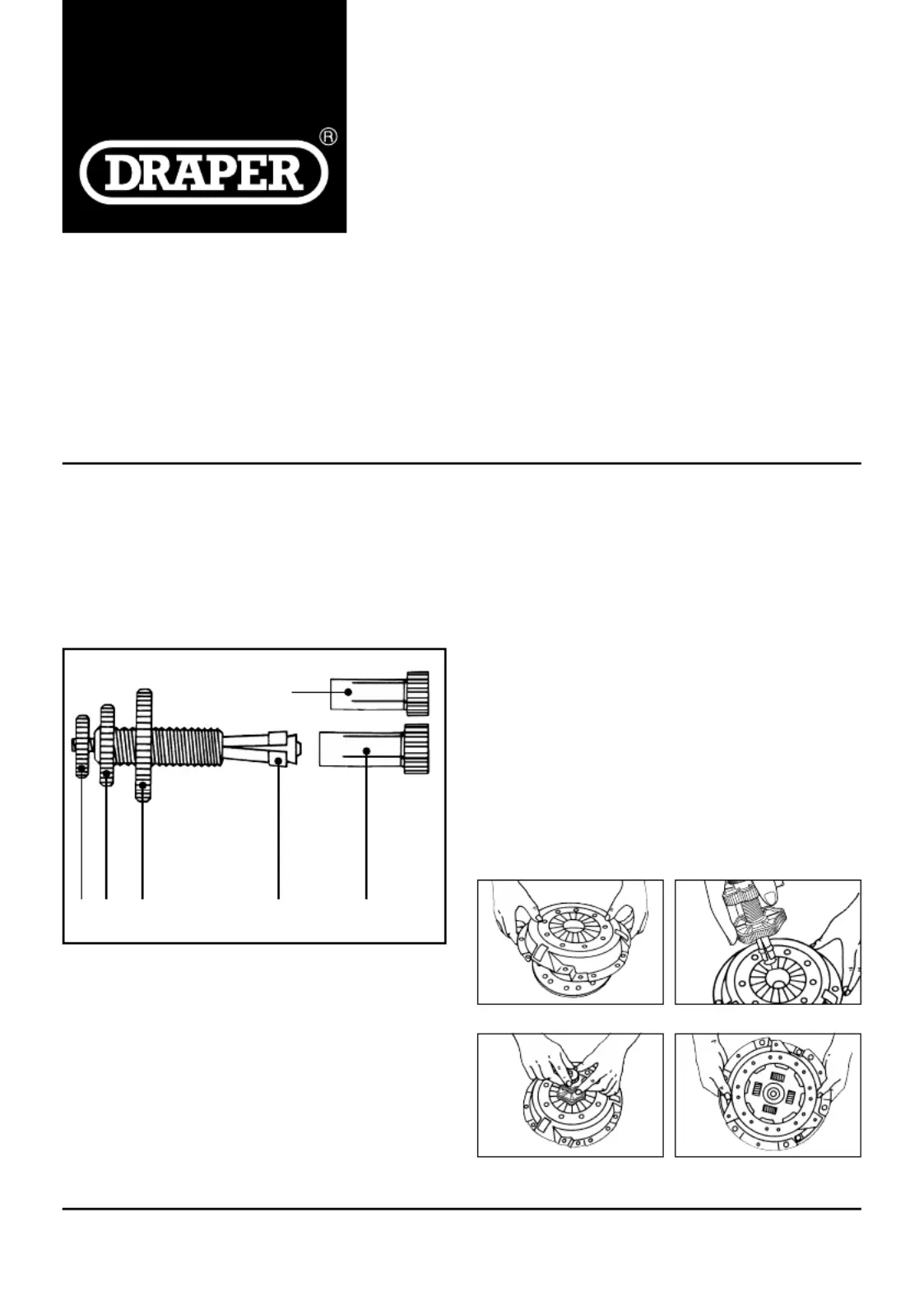

ASSEMBLY INSTRUCTIONS
The tool is supplied with three collet sizes ‘D’.
To change the collet, unscrew the top nut ‘A’.
Completely withdraw the central metal threaded
bolt, remove the collet and replace with the required
one.
INSTRUCTIONS FOR USE
1. Place the pressure plate on top of the clutch plate
(Fig. 1).
2. Fit the clutch tool into the pressure plate and
clutch plate, then push nut ‘B’ down (Fig. 2).
3. Tighten nut ‘A’ (Fig. 3).
4. Finger tighten nut ‘C’.
5. Turn the assembled unit over, and centre/align
the clutch plate onto the pressure plate. Tighten
nut ‘C’ (Fig. 4).
The complete pre-assembled clutch and pressure
plate unit can now be installed on the vehicle.
IMPORTANT: ALWAYS refer to the vehicle
manufacturer’s or Haynes workshop manual for
detailed and concise instructions on how to remove
and replace the clutch assembly in your vehicle.
1 Fig.2 Fig.
3 Fig.4 Fig.
(A)(B)(C)(D)(D)
(D)
