Helpline: +44 (0) 23 8049 4344 Sales Desk: +44 (0) 23 8049 4333 General Enquiries: +44 (0) 23 8026 6355 Website: drapertools.com Email: sales@drapertools.com

Draper Tools Limited, Hursley Road, Chandler’s Ford, Eastleigh, Hampshire, SO53 1YF, UK 0224

MANUAL & PNEUMATIC

OIL EXTRACTOR

77057 – INSTRUCTIONS FOR USE

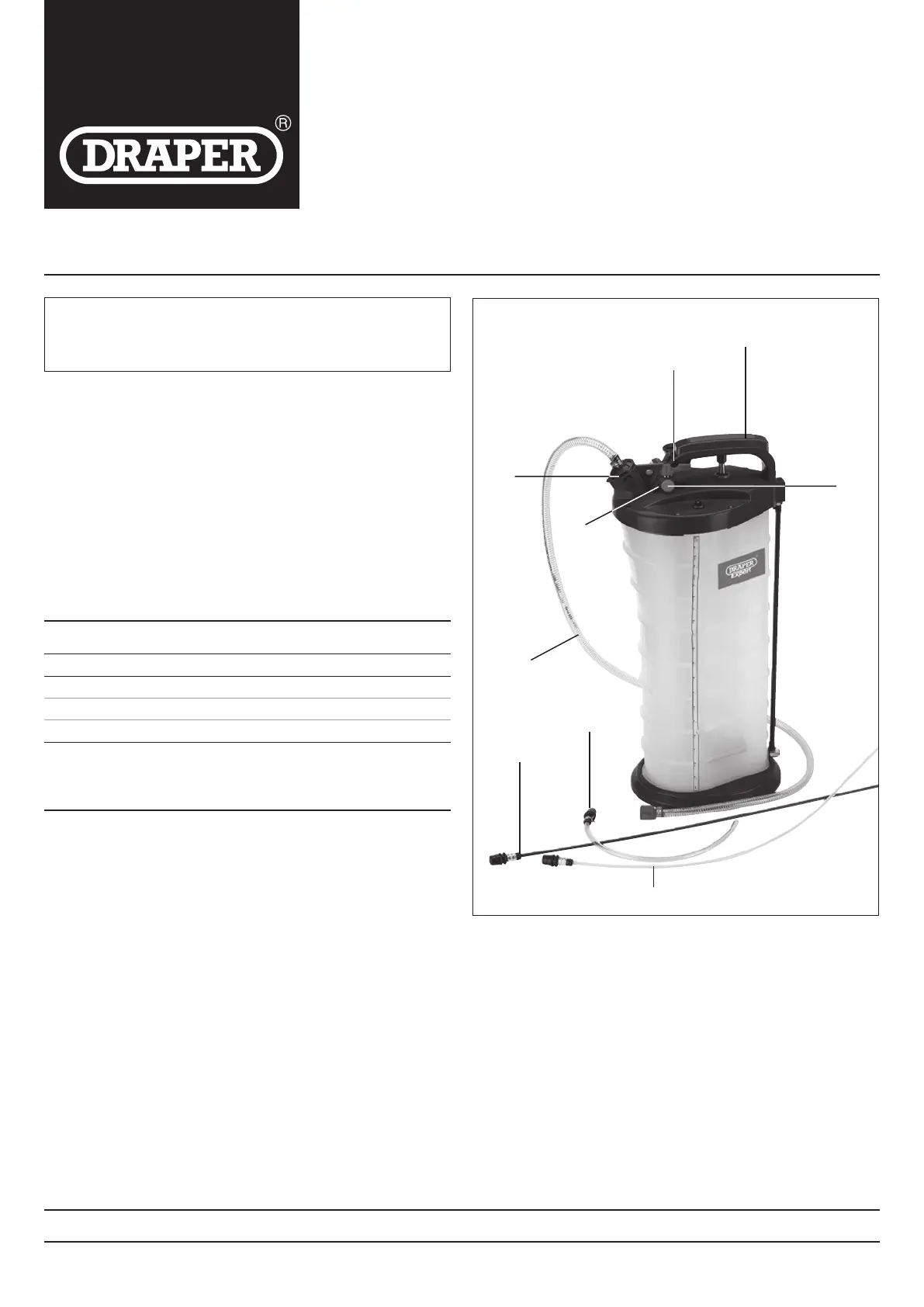

4. Identication - Fig. 1

2. Specication

Stock No. 77057

Part No. OE2

Reservoir capacity: 10L

Air Inlet size: ¼” BSP

Pressure rating: 0.8MPa

3. Health and Safety Information

Important: Read all the Health and Safety instructions before attempting to

operate, maintain or repair this product. Failure to follow these instructions may

result in injury or damage to the user, the product or the vehicle.

• WARNING!: Used engine oil is carcinogenic – always wear protective gloves.

• DO NOT allow waste uid types to mix in the reservoir.

• At the end of its working life, dispose of the product responsibly and in line

with local regulations. Recycle where possible.

• Dispose of oil separately and in accordance with local regulations; DO NOT

abandon it in the environment.

• WARNING! Keep packaging materials out of reach of children. Dispose of

packaging correctly and responsibly and in accordance with local

regulations.

1. Product Introduction

1.1 Intended Use

This product is designed to extract oils and brake uids from motor vehicles,

motor bikes, marine engines, gearboxes, generators etc. without the removal of

the oil drain plug. Easily operated by using either hand pump action or with a

compressed air supply.

Any other application beyond the conditions established for use will be

considered misuse. Draper Tools accepts no responsibility for improper use of

this product.

1. 1.5m Suction tube

2. Exhaust

3. Air inlet

4. Air control valve

5. Reservoir cap

6. Manual pump handle

Extraction Tubes

A. 1 x 6mm O.D. x 4mm I.D. blue

plastic coated metal

B. 1 x 6mm O.D. translucent plastic

C. 1 x 9mm O.D. clear plastic

Original Instructions

Version 2 - February 2024

Fig. 1

(4)

(6)

Read this leaet in full before using this product and retain it for future use.

Please visit drapertools.com/manuals for the latest version.

(5)

(C)

(3)

(2)

(1)

(A)

(B)

• Before use check that the vehicle is suitable for use with vacuum extraction

– refer to the manufacturer’s or Haynes workshop manual.

5.1 Manual Operation

1. Fit the most suitable extraction tube (A), (B) or (C) to the suction tube (1).

2. Pump the handle (6) up and down to create the suction vacuum.

3. Open the air control valve (4) to extract the uid and close to stop extraction.

5.2 Using Compressed Air

1. Check that the air pressure is set correctly and that the control valve (4) is

fully closed before connecting to the air supply.

2. Fit the most suitable extraction tube (A), (B) or (C) to the suction tube (1).

3. Open the air control valve (4) to extract the uid and close to stop extraction.

5.3 Emptying The Reservoir

1. Close the air control valve and disconnect from the air supply.

2. Remove the reservoir cap (5) and pour into a suitable storage/transport

container.

Helpline: +44 (0) 23 8049 4344 Sales Desk: +44 (0) 23 8049 4333 General Enquiries: +44 (0) 23 8026 6355 Website: drapertools.com Email: sales@drapertools.com

Draper Tools Limited, Hursley Road, Chandler’s Ford, Eastleigh, Hampshire, SO53 1YF, UK 0224

5. Operation and use

Please visit drapertools.com/manuals for the latest version of this manual and the associated parts list, if applicable.

6. Warranty

6 Months - Visit drapertools.com/warranty for full details.
