Sida 1/12

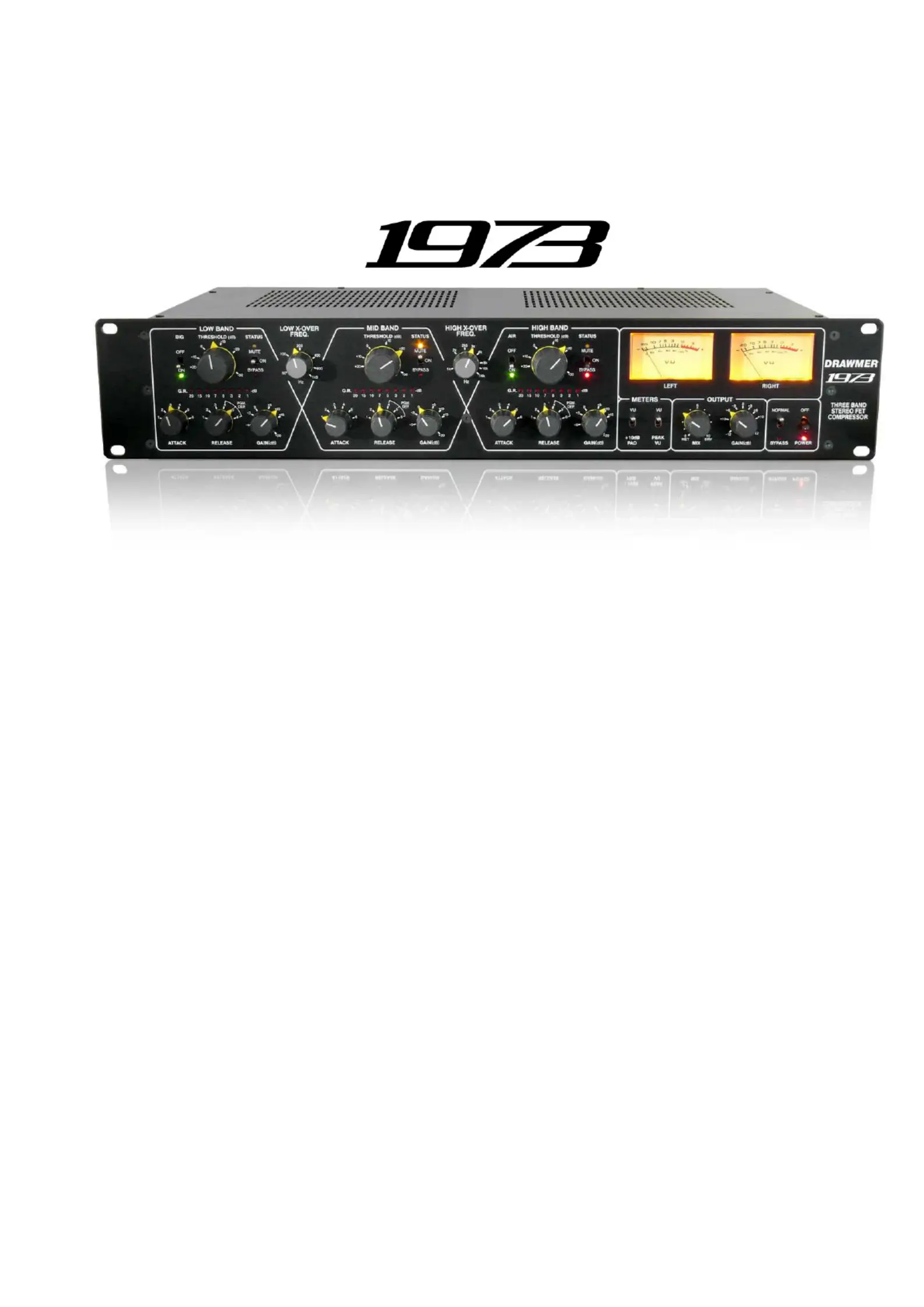

DRAWMER
Three-Band Stereo
FET Compressor
OPERATOR’S MANUAL
CONTENTS
Warranty
Safety Consideration
Chapter 1 - Introduction
Introduction
Installation
Power Connection
Audio Connections
Chapter 2 - Control Description
Control Description
Quick Setup Procedure
Chapter 3 - General Information
If a fault develops
Contacting Drawmer
Specification
Block Diagram
Recall Sheet
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2
DRAWMER 1973 OPERATOR’S MANUAL
Drawmer Electronics Ltd., warrants the Drawmer 1973
Three-Band Stereo FET Compressor to conform
substantially to the specifications of this manual for a period
of one year from the original date of purchase when used
in accordance with the specifications detailed in this
manual. In the case of a valid warranty claim, your sole
and exclusive remedy and Drawmer’s entire liability under
any theory of liability will be to, at Drawmer’s discretion,
repair or replace the product without charge, or, if not
possible, to refund the purchase price to you. This warranty
is not transferable. It applies only to the original purchaser
of the product.
For warranty service please call your local Drawmer dealer.
Alternatively call Drawmer Electronics Ltd. at +44 (0)1709
527574. Then ship the defective product, with transportation
and insurance charges prepaid, to Drawmer Electronics
Ltd., Coleman Street, Parkgate, Rotherham, S62 6EL UK.
Write the RA number in large letters in a prominent position
on the shipping box. Enclose your name, address,
telephone number, copy of the original sales invoice and a
detailed description of the problem. Drawmer will not accept
responsibility for loss or damage during transit.
This warranty is void if the product has been damaged by
misuse, modification or unauthorised repair.
THIS WARRANTY IS IN LIEU OF ALL WARRANTIES,
WHETHER ORAL OR WRITTEN, EXPRESSED, IMPLIED
OR STATUTORY. DRAWMER MAKES NO OTHER
WARRANTY EITHER EXPRESS OR IMPLIED,
INCLUDING, WITHOUT LIMITATION, ANY IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR
A PARTICULAR PURPOSE, OR NON-INFRINGEMENT.
PURCHASER’S SOLE AND EXCLUSIVE REMEDY
UNDER THIS WARRANTY SHALL BE REPAIR OR
REPLACEMENT AS SPECIFIED HEREIN.
IN NO EVENT WILL DRAWMER ELECTRONICS LTD. BE
LIABLE FOR ANY DIRECT, INDIRECT, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES
RESULTING FROM ANY DEFECT IN THE PRODUCT,
INCLUDING LOST PROFITS, DAMAGE TO PROPERTY,
AND, TO THE EXTENT PERMITTED BY LAW, DAMAGE
FOR PERSONAL INJURY, EVEN IF DRAWMER HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.
Some states and specific countries do not allow the
exclusion of implied warranties or limitations on how long
an implied warranty may last, so the above limitations may
not apply to you. This warranty gives you specific legal
rights. You may have additional rights that vary from state
to state, and country to country.
In the interests of product development, Drawmer reserve the right to modify or
improve specifications of this product at any time, without prior notice.
ONE YEAR LIMITED WARRANTY
COPYRIGHT
This manual is copyrighted © 2014 by Drawmer Electronics Ltd. With all rights reserved. Under copyright
laws, no part of this publication may be reproduced, transmitted, stored in a retrieval system or translated
into any language in any form by any means, mechanical, optical, electronic, recording, or otherwise, with-
out the written permission of Drawmer Electronics Ltd.
DRAWMER
1973
Three-Band Stereo
FET Compressor
SAFETY CONSIDERATIONS
CAUTION - MAINS FUSE
TO REDUCE THE RISK OF FIRE
REPLACE THE MAINS FUSE ONLY WITH
A FUSE THAT CONFORMS TO IEC127-2.
250 VOLT WORKING, TIME DELAY TYPE
AND BODY SIZE OF 20mm x 5mm.
THE MAINS INPUT FUSE MUST BE
RATED AT 230V=T250mA and 115V=T500mA.
CAUTION - MAINS CABLE
DO NOT ATTEMPT TO CHANGE
OR TAMPER WITH THE
SUPPLIED MAINS CABLE.
CAUTION - SERVICING
DO NOT PERFORM ANY SERVICING.
REFER ALL SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK DO NOT EXPOSE
THIS EQUIPMENT TO RAIN OR MOISTURE.
3
DRAWMER 1973 OPERATOR’S MANUAL
DRAWMER
THREE-BAND STEREO
FET COMPRESSOR
The 1973 is a Three Band Compressor with the versatility,
control and ability to shape sound that no full band
compressor could ever provide and at an affordable price.
Expanding on the renowned range of dynamics processors
DRAWMER introduce an affordable Three Band Stereo
FET Compressor that every engineer will completely
appreciate - the 1973. The culmination of 30 years of
development and experience, the 1973 combines the
functionality and control of the world class DRAWMER
S3 with the familiarity and quality of the illustrious 1960
and 1968, providing three bands of transparent, intuitive
compression for the price of a conventional single full band
compressor.
How does the 1973 differ from a full band compressor? In
essence, the 1973 comprises a set of crossover filters
that splits the audio signal into three frequency bands,
each split signal then passes through its own compressor
and is independently adjusted, after which the signals are
recombined and the final Wet/Dry mix and levels can be
adjusted. The advantage is that one band's compression
has no affect on the others.
What's so good about a three band compressor anyway?
The 1973 can pull off amazing feats that a single-band
compressor could never accomplish. For example, it can
easily prevent an acoustic guitar, cello, or double bass
from sounding boomy on low notes without thinning the
highs.
Are you recording a vocal track that sounds too shrill?
The timbre can easily be altered without eliminating detail
and clarity. Adding heavier compression in the bass band
can add to the thickness and richness of the voice, in the
mid band raspiness is controlled, whilst compression to
the high band can give sizzle and definition to an otherwise
bland voice. In addition, sibilance can easily be tamed.
In a mastering situation, having independent control over
each band can resolve a problem mix, pulling out individual
instruments, brighten the brilliance/air or make the bottom
CHAPTER 1
INTRODUCTION
end of a mix sound huge whilst simultaneously avoid
"pumping" or "breathing" artifacts and increase headroom.
Multiband compressors can be intimidating and difficult
to use due to a minefield of controls and poor lay out, with
this in mind, the 1973 has been designed to be as simple,
familiar and intuitive as possible whilst still giving complete
control over the audio.
Main Features:
Standard intuitive controls such as Threshold, Gain,
Switched Attack & Release with Gain Reduction
Metering on Each Band.
Fast Reacting Soft Knee F.E.T. Design with excellent
Left/Right Tracking across the Full Range of
compression.
Variable Wet/Dry Mix plus Output Gain Knobs give a
'Parallel Compression' function without the need for
external mixing devices, providing Complete and
Effortless Control over the amount of compression used
and Output Levels.
Variable Band Split Filters at a 6dB Per Octave slope
with Switch-able Mute and Bypass on Each Band make
'Tuning In' to a Frequency Simple.
‘Big’ and 'Air' Modes Help to preserve the Very Deep
Lows and Enhance the Sparkling Highs.
Two Analogue V.U. Meters with Switchable +10dB Meter
Rescale Modes and a Switchable ‘Peak’ mode to
Display Fast Transients Not Normally Seen on
Conventional V.U.s.
Internal Low Hum Toroidal Linear Power Supply with
Voltage Selector Switch
Classic Drawmer Build Quality with Rugged Steel
Chassis and Aluminium Front Panel.
