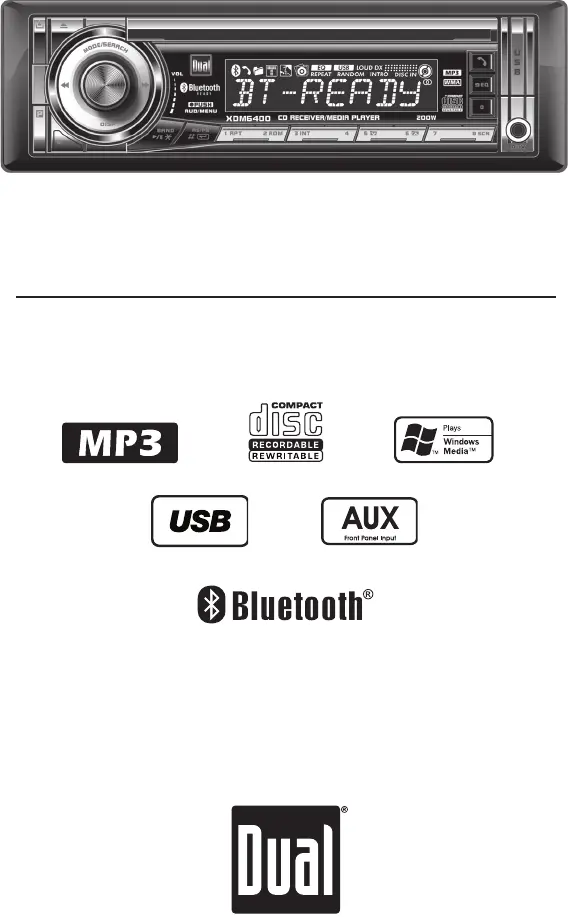

INSTALLATION/OWNER'S MANUAL
AM/FM/CD/MP3/WMA/USB/3.5mm/Bluetooth® Ready Receiver with Detachable Face
XDM6400
2

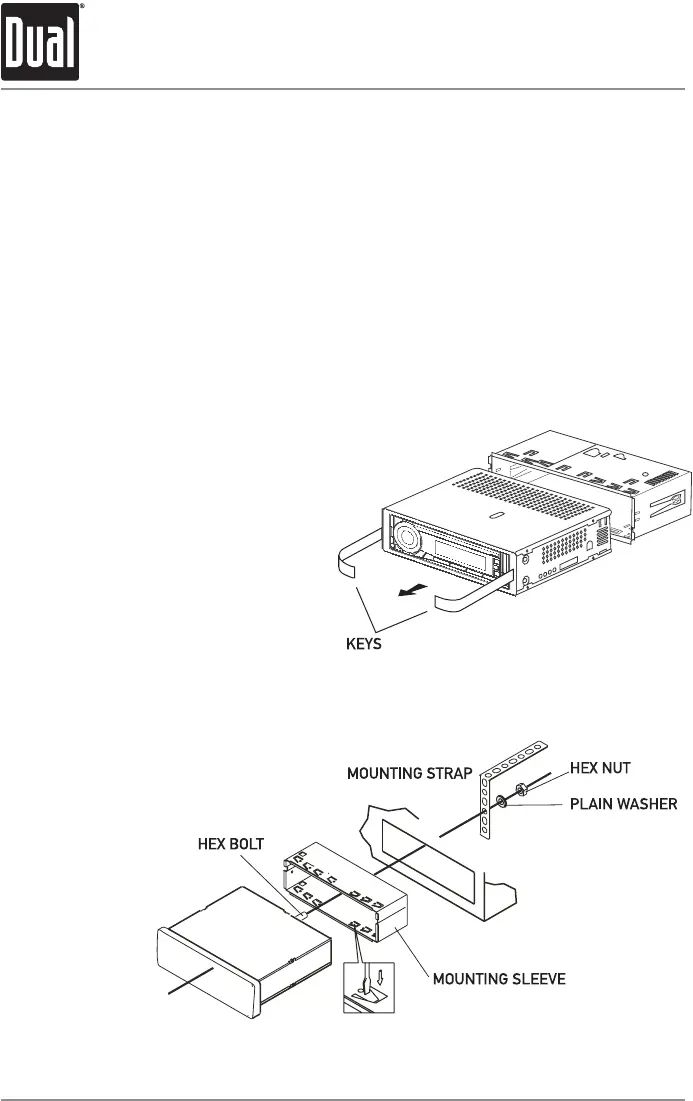

TYPICAL FRONT-LOAD DIN MOUNTING METHOD
Please read entire manual before installation.
Before You Start
• Disconnect negative battery terminal. Consult a qualified technician for instructions.
• Avoid installing the unit where it would be subject to high temperatures, such as from
direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
Getting Started
• Remove trim ring from unit,
• Remove 2 transit screws located
on top of the unit.
• Insert the supplied keys into the
slots as shown, and slide the unit
out of the mounting sleeve.
• Install mounting sleeve into
opening, bending tabs to secure.
• Connect wiring harness and
antenna. Consult a qualified
technician if you are unsure.
• Certain vehicles may require an
installation kit and/or wiring
harness adapter (sold separately).
• Test for correct operation and slide
into mounting sleeve to secure.
• Snap trim ring into place.
XDM6400 INSTALLATION
Preparation
3
FUSE
When replacing the fuse,
make sure new fuse is the
correct type and amperage.
Using an incorrect fuse
could damage the radio.
The XDM6400 uses one
10 amp ATM fuse located
beside the wiring connector.
XDM6400 INSTALLATION
Wiring Diagram
BLACK 8-pin Female Mini-DIN
BTM60 Connection (sold separately)
Antenna Connector
