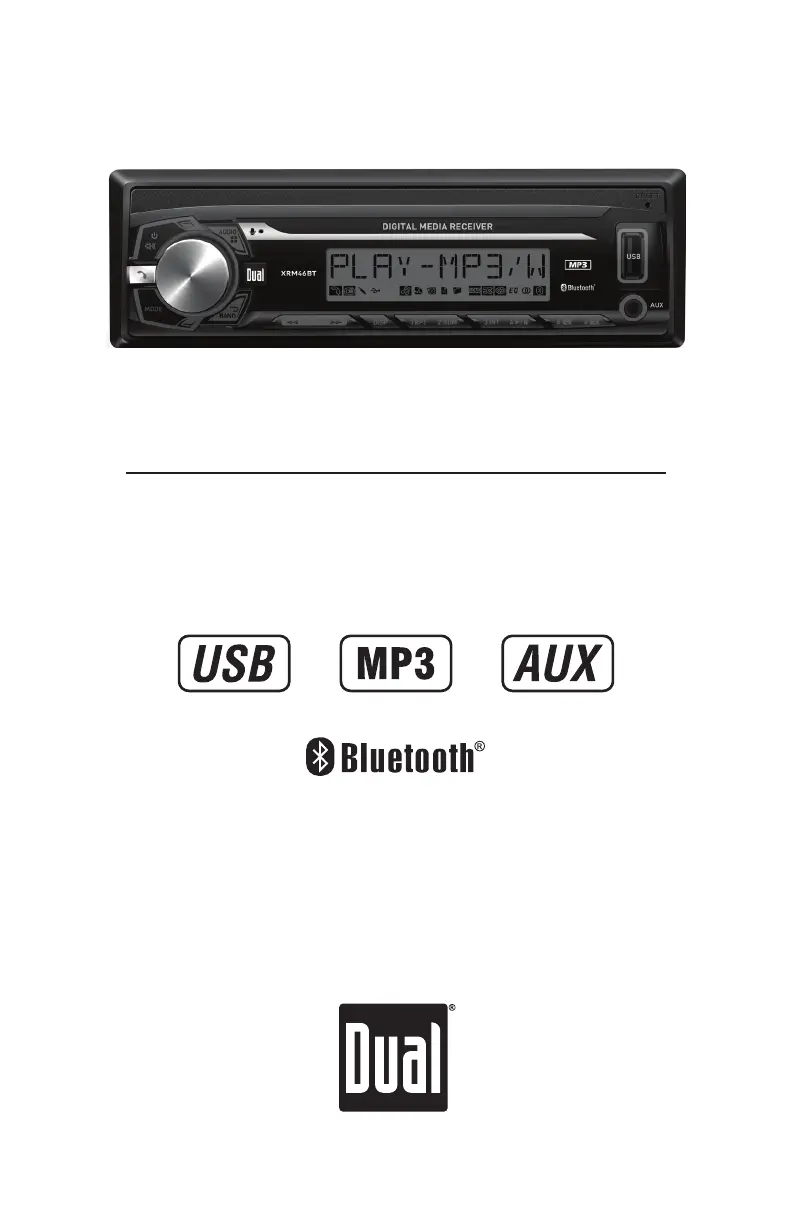

INSTALLATION/OWNER'S MANUAL

AM/FM Receiver with Bluetooth

XRM46BT

XRM46BT INSTALLATION

TYPICAL FRONT-LOAD

DIN MOUNTING METHOD

KEYS

HEAD

UNIT

MOUNTING

SLEEVE

INSTALLATION

MOUNTING KIT

OR DASHBOARD

Preparation

Please read entire manual before installation.

Before You Start

• Disconnect negative battery terminal. Consult a qualified technician for instructions.

• Avoid installing the unit where it would be subject to high temperatures, such as from

direct sunlight, or where it would be subject to dust, dirt or excessive vibration.

Getting Started

• Remove trim ring from unit.

• Remove 2 transit screws located on top of the unit.

• Insert the supplied keys into the slots as shown, and slide the unit out of the mounting

sleeve.

• Install mounting sleeve into opening, bending tabs to secure.

• Connect wiring harness and antenna. Consult a qualified technician if you are unsure.

• Certain vehicles may require an installation kit and/or wiring

harness adapter (sold separately).

• Test for correct operation and slide into mounting sleeve to secure.

• Snap trim ring into place.

XRM46BT INSTALLATION

Wiring Diagram

FUSE

When replacing the fuse,

make sure new fuse is the

correct type and amperage.

Using an incorrect fuse could

damage the radio.

The unit uses one

10 amp AGC fuse located

in-line.

Antenna

Connector

10 AMP

AGC Fuse
