Sida 1/2
x5x1
#5 EU/CH/UK
x5
#6 US
DC
A B

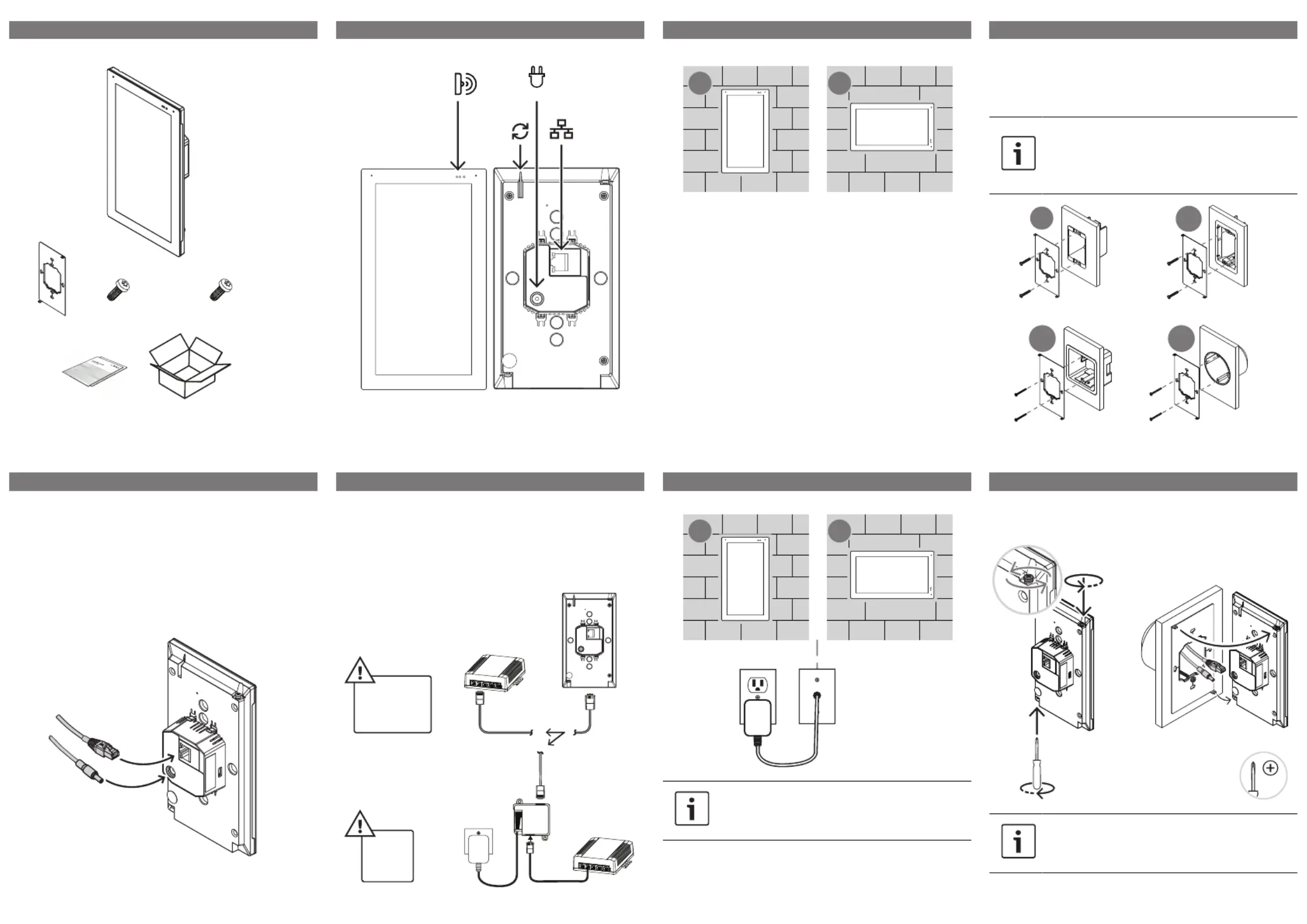

The device can be mounted in portrait, or in land-
scape.
A: To install the device in portrait, install the 1-gang
junction box or low-voltage bracket vertically.
B: To install the device in landscape, install the 1-
gang junction box or low-voltage bracket horizont-
ally.
To install the device you will also need one of the
following electrical junction boxes (not included) for
the supplied mounting bracket.
Notice!
Make sure to remove the 2 original screws
of the junction box before mounting the
bracket.
UK
US
EU
LV1
Low-voltage mounting
Arlington LV1
The device can be powered over the Ethernet con-
nection (PoE) or by connecting a 24 V power supply
(not included). If both are connected, the device will
draw power from the 24 V power supply. The device
will automatically power on when power is applied.
PoE connection requires IEEE 802.3af standard. Use
a network switch or PoE injector that meets this
standard. Connect the device using a standard
T568A or T568B Ethernet cable.
T568A
T568B
IEEE 802.3af
A B
Notice!
The 24V DC power supply unit is not in-
cluded.
PH2
Notice!
Do not completely remove the screws from
the device.
1 | 2 | 3 | 4 |
5 | 6 | 7 | 8 |
Top of single-gang Box
Mounting Bracket
Wall
1
1
2
2

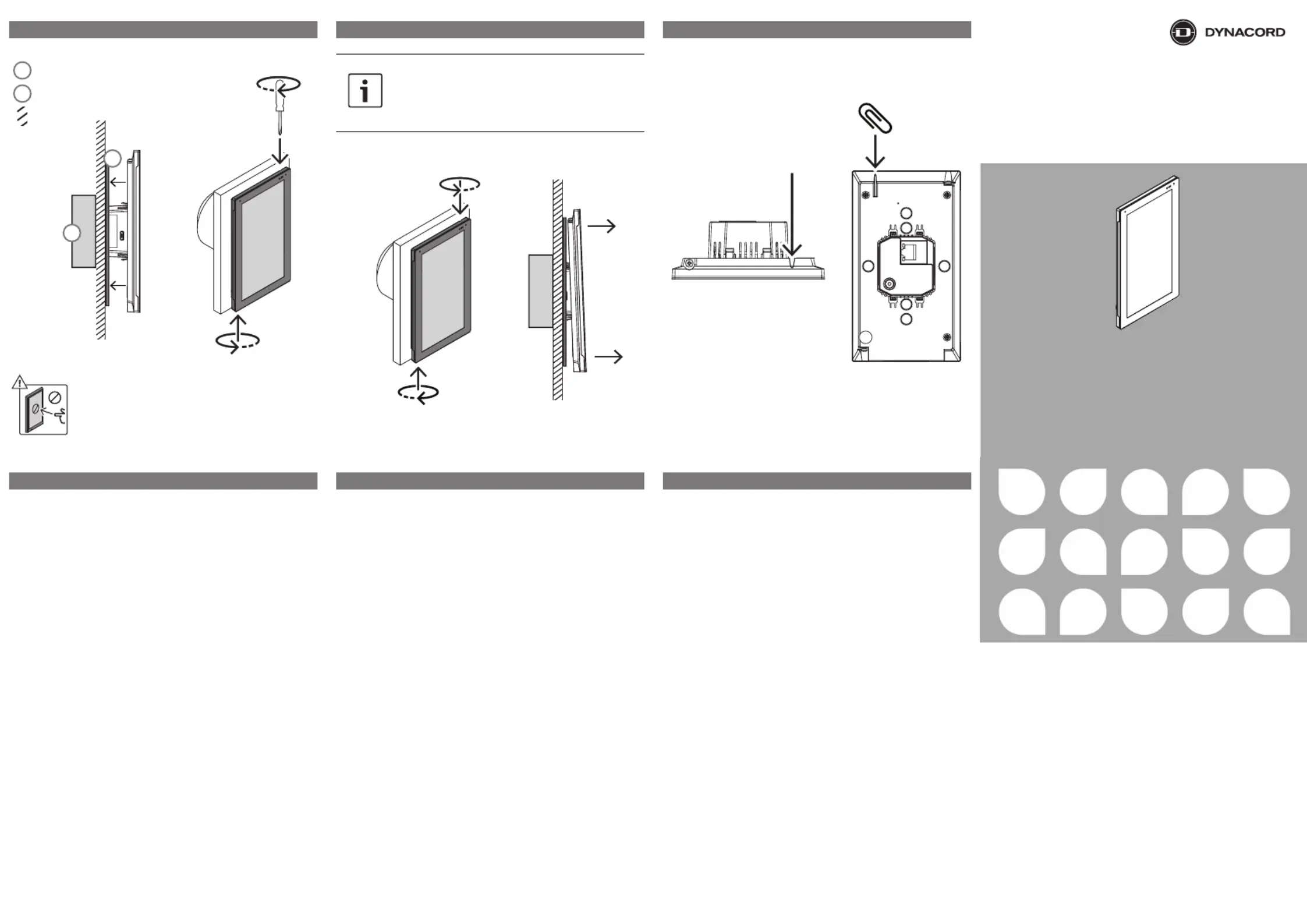

Warning!
Do not press directly on the screen to
mount it in place.
Notice!
The following last 2 steps are for removal
of the device and to reset the device, re-
spectfully.
To remove the device, loosen the 2 screws and pull
the device from the edges, one at a time.
To reboot the device, use a paper clip and press the
recessed event key.
9 | 10 | 11 |
12 | 13 | 14 |
Touch Panel Controller for MXE
TPC‑1 Touch Panel Controller
en Quick installation guide
2020-09 | V01 | F.01U.384.715 | 202009291408
