Sida 1/13
Integrator S10, S9.1, D1, S1, DA01/05, 01/03

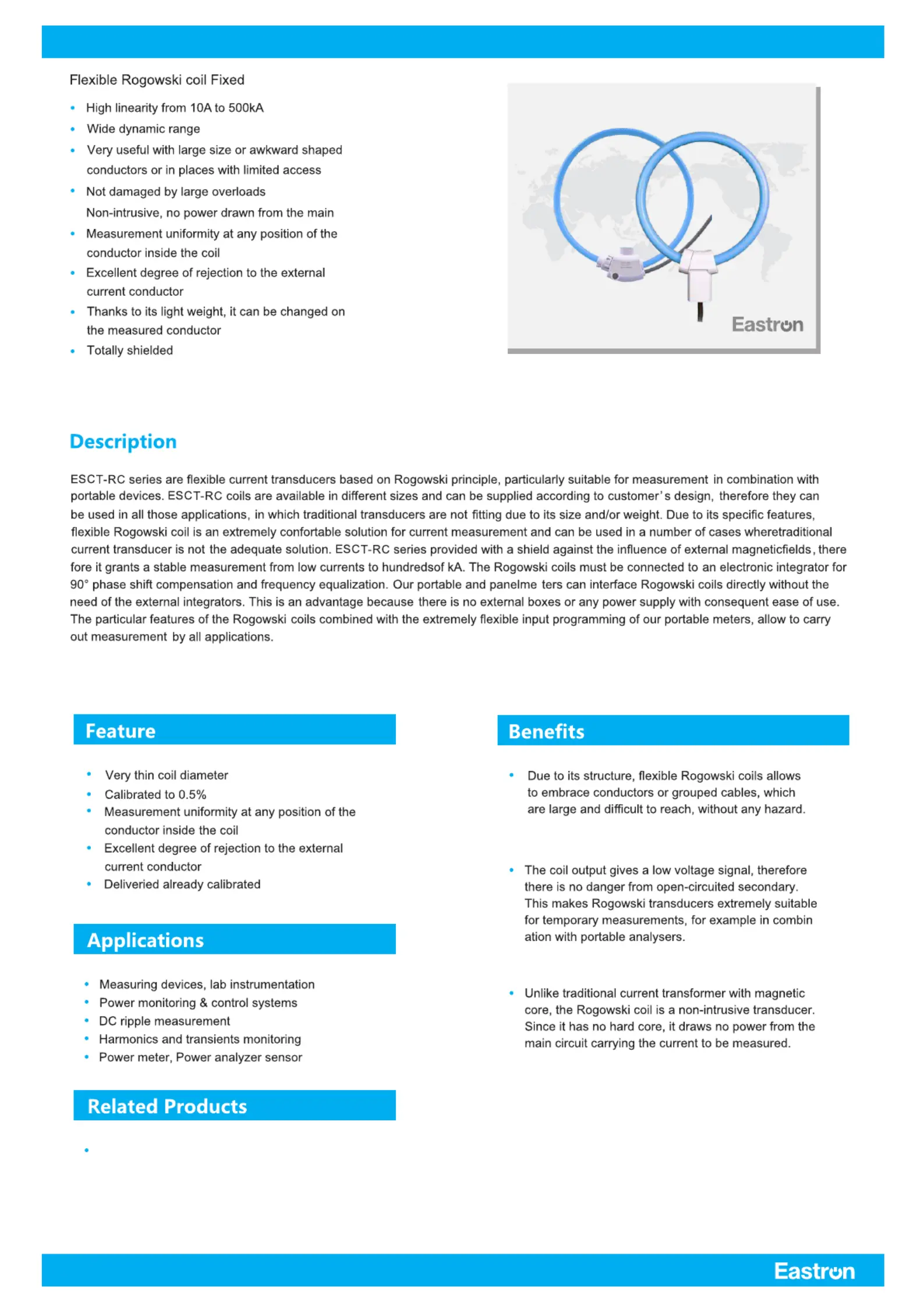

Rogowski Coils-ESCT-RC/SRC series
Current Range: 10A to 500kA
Rogowski coils have been used for the detection and measurement of electric currents for decades. They are based on a simple principle: an “air-cored”
coil is placed around the conductor in a toroidal fashion and the magnetic field produced by the current induces a voltage in the coil . The voltage output is
proportional to the rate of change of current. This voltage is integrated, thus producing an output proportional to the current. By using precision winding
techniques, especially developed for the purpose, the coils are manufactured so that their output is not influenced by the position of the conductor within
the toroid, and to reject interference from external magnetic fields caused, for example, from nearby conductors. Basically, a Rogowski coil current
measuring system consists of a combination of a coil and conditioning electronics.Rogowski coil current trans ducers are used for the AC measurement .
They can be used in similar circumstances to current transformers but for many applications they have considerable advantages:
Widedynamic range.
High linearity.
Very useful with large size or awkward shaped conductors or in places with limited access. Thanks to the structure without hard core,the coil can be
easily manufactured according to the application or to the available space.
Unlike traditional current transducers， there is no danger from open-circuited secondaries.
They cannot be damaged by large overloads.
They are non-intrusive. They draw no power from the main circuit carrying the current to be measured.
They are also light weighted and in some applications are light enough to be suspended on the conductor being measured.
The transducer does not measure direct currents but， unlike a current transformer， it can carry out accurate measurements of AC
component even if there is a large superimposed DC component， since there is no iron core causing saturation. This feature is
particularly useful for measuring ripple currents for example in battery charging systems.
Output sensitivity tolerance: ± % 5 ( not calibrated)
Output sensitivity torlance:
± % ℃5 , 25 (calibrated)
Position error:
±1
ESCT-RC Series: 80mV/kA @60Hz
ESCT-SRC Series: 120mV/kA@50Hz
240mV/kA@50Hz
100mV/kA @60Hz
50mV/kA @50Hz
85mV/kA @50Hz
IP68 Type A B D
IP65 Type E (ESCT-SRC Series)
IP54 Type C (ESCT-RC16/24/36)
/
200V/kA @60Hz
333mV/kA @60Hz
ESCT-SRC100
ESCT-SRC150
ESCT-SRC300
380
555
1000
115 100
175 150
315 300
E
E
E
Lead Length
Ratio
85mV/kA@50Hz
85mV/kA@50Hz
85mV/kA@50Hz
85mV/kA@50Hz
85mV/kA@50Hz
85mV/kA@50Hz
50mV/kA@50Hz
50mV/kA@50Hz
50mV/kA@50Hz
240mV/kA@60Hz
240mV/kA@60Hz
240mV/kA@60Hz
ED
Selection Reference
ESCT-RC60-2M-85-B
RC: 120mV/kA＜
SRC: 120mV/kA≥
Cable length ( Customizable)
Ratio: 85mV/kA(Customizable)
Colour ( R: Red , B: Blue, O: Orange, Y: Yellow, G: Green)
Coil Length
*All the parameters can be customized, please contact for more details.
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
ESCT-RC60-2M-85-B means window size at 60mm, cable lenth 2 meters, rated ratio 85mV/kA and blue colour.
ESCT-RC45 20565 45 D2000 85mV/kA@50Hz
