ebbe America LLC• P.O. Box 160496,
UT 84016 • Tel: 801-820-7200 • Fax: 801-447-5225
www.ebbe-america.com

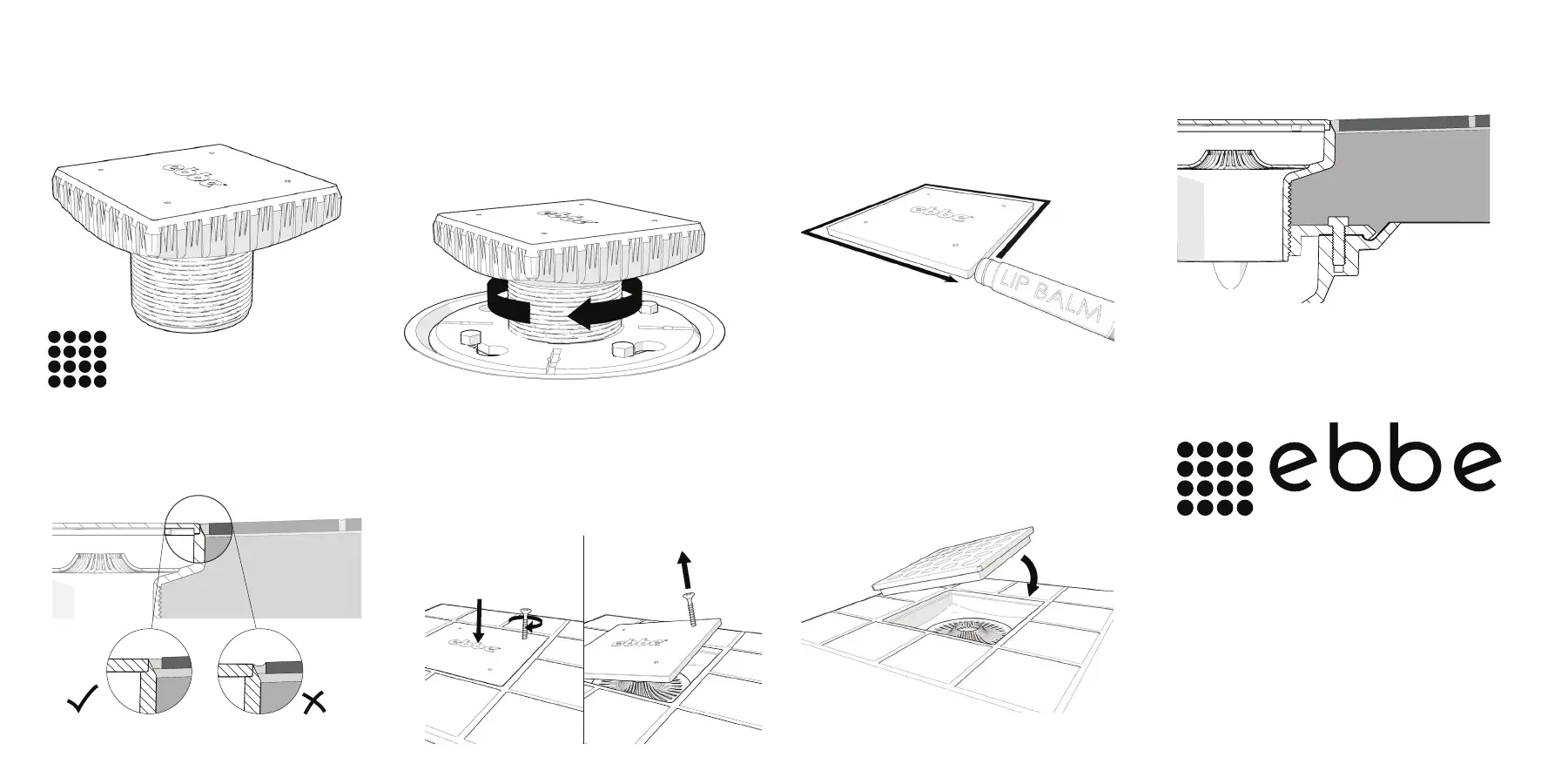

E4400 INSTALLATION GUIDE
WITH MORTAR BED, TILE, AND GROUT
STEP 1 - THREAD INTO CLAMPING COLLAR
(*Note: If E4400 doesn’t fit clamping collar see
ebbe-america.com for adapter products)
STEP 2 - ADJUST HEIGHT
Top of construction plug must be flush with top of
surrounding tile when complete
STEP 3- INSTALL MORTAR BED
STEP 4- INSTALL TILE
STEP 5- INSTALL GROUT
-Grout as normal treating construction plug like a tile
-Leave grout line around construction plug (a) full (b)
not recessed
STEP 7 - INSTALL ebbe PRO/UNIQUE GRATE
*ebbe Pro and ebbe Unique grates sold separately
ALLOW 24HRS BEFORE REMOVING CONSTRUCTION PLUG
AMERICA
STEP 6 - REMOVE THE CONSTRUCTION PLUG
-Push center of plug 2-3 times to flex and separate
plug from grout
-Thread a screw into one of 4 holes enough to grab
-Pull plug out using screw
PUSH HERE TO FLEX
TIP:To prevent grout from sticking to construction
plug, remove and apply thin wax or lip balm to
perimeter of plug and place it back in the riser.
(a) (b)
