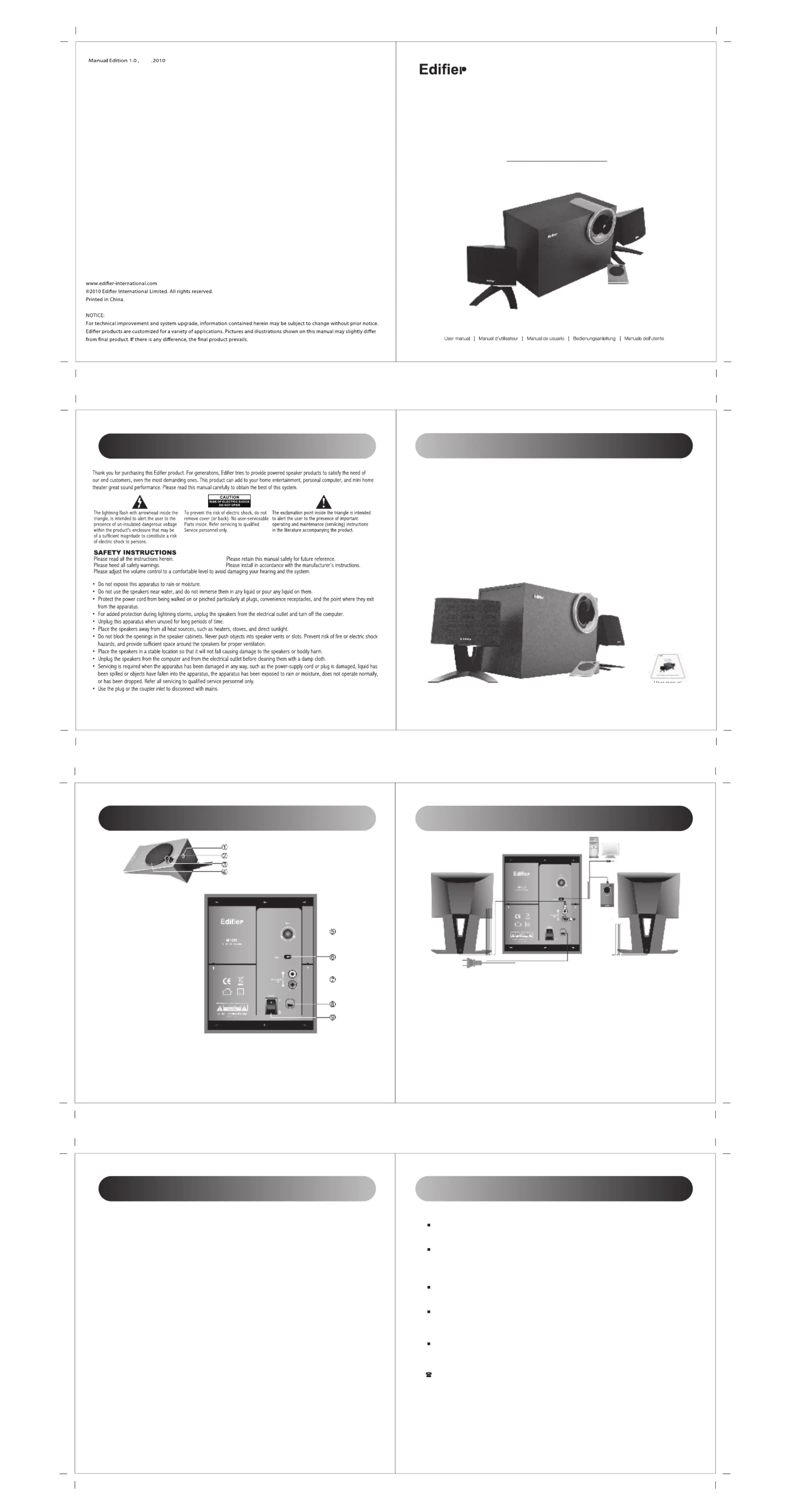

Sida 1/1

5. Bass trimmer

6. Line in

7. Output for satellites

8. Power cord

9. Power switch

1. Headphone jack

2. “Mute” switch

3. LED indicator

4. Volume control knob

Note: a. Audio only comes through the headphones when it is connected to the headphone

jack on the wired controller.

b.The wired volume controller will not affect the volume through the headphones.

Packing list

Important safety instruction

Troubleshooting

Not all speakers function:

Please first check if the speaker wires are connected securely; then check if the Line-in connectors are reversed;

check also if the audio source is at fault.

One speaker does not function when playing CD from computer:

This kind of phenomena is prone to happen on new computer systems that one satellite does not function when playing CD,

but system works fine when playing WAV formatted files. This is mainly due to the fault connection of CD-ROM and sound card,

that one channel of signal is shorted to the ground. Please refer to the manual of CD-ROM and sound card to adjust the wire

connection.

System does not work at all:

1. Please check if power is connected, and if the wall outlet is switched on.

2. Please check if the audio source and audio input cable is connected correctly.

Noise coming from speakers:

Amplifier circuitry of this product generates little noise, while the background noise of some VCD/DVD player or computer

sound card are too high. Please keep the system in active mode and remove the audio source, if no sound can be heard at

1 meter away from the system, then there is no problem with this product.

Magnetic interference:

This system is complete magnetically shielded, and can be placed near TV or monitor. But since magnet of the subwoofer

driver is large, some magnetism leakage is inevitable when the system is too close to the monitor, and it is recommended

to keep a 1 meter distance between the speaker system and monitor or TV set.

If you have any further questions or concerns regarding Edifier Products:

Please visit our website at: www.edifier.com, or email Edifier Support for further assistance at: main@edifier.com,

If you prefer, you may contact us by phone, Toll Free: 1-877-EDIFIER (334-3437).

English

Multimedia Speaker

Illustration

Specification

July

M1380

Unboxing

Setting up

What’s in the Box

● 1 × Subwoofer

● 2 × Satellite speakers (with cable)

● 1 × Wired controller (with cable)

● 1 × User manual

Power output: R/L: RMS 8W × 2 (THD =10%,

=1KHz)

SW: RMS 12W (THD =10%,

=80Hz)

Signal to noise ration: ≥85dBA

Distortion: ≤0.05%

Input sensitivity: R/L: 450mV ± 50mV

SW: 70 mV ± 20mV

Bass unit: 5inch (131mm), magnetically shielded, 4Ω

Tweeter unit: 2¾inch (70mm), magnetically shielded, 4Ω

Dimension: Subwoofer: 164(W) × 200(W) × 280(D) mm

Satellite: 120(W) × 151(W) × 125(D) mm

Net weight: Approx. 4.2kg

Gross weight: Approx. 5.2kg

1. Connect the satellite speakers and the subwoofer

Connect the satellites to the speaker output port on the back panel of the subwoofer, using the 3.5mm connector

cable attached to the satellites.

2. Connect to audio source

Connect audio sources (like a PC sound card, MP4 player or CD player) to the wired controller, using the 3.5mm

connector cable attached to the wired controller.

3. Plug & Play

Adjust the master volume to a comfortable level to listen to music from any audio source.

Subwoofer

Satellite speakers

Wired controller

Satellite speakers

User manual

Bass reflection port

Produktspecifikationer

Varumärke:	Edifier
Kategori:	högtalare
Modell:	M1380
Vikt:	4200 g
Rekommenderad användning:	PC
Ljudutgångskanaler:	2.1 kanaler
Fjärrstyrd:	Ja
Total harmonisk distorsion (THD):	10 %
Subwooferns mått (BxDxH):	164 x 280 x 220 mm
Förstärkningsenhet ingår:	Ja
Typ av förstärkningsenhet:	Förstärkare
Produktens färg:	Svart
Uteffekt (RMS):	28 W
Material, hölje:	Trä
Subwoofer RMS-effekt:	12 W
Subwooferns högtalarelement, diameter (imperial):	5 "
Strömkälla:	AC
Antal satellithögtalare:	2
Basnivåkontroll:	Ja
Signal/brusförhållande (SNR):	85 dB
Satellithögtalarens RMS-effekt:	16 W
Satellithögtalarens mått (BxDxH):	120 x 125 x 151 mm
Förstärkare / mottagare inmatningsgränssnittstyp:	3.5 mm jack, RCA
Magnetiskt skyddad:	Ja
Förstärkningsenhetens formfaktor:	Inbyggd
Satellithögtalarens mellandrivenhet, diameter:	2.75 "
