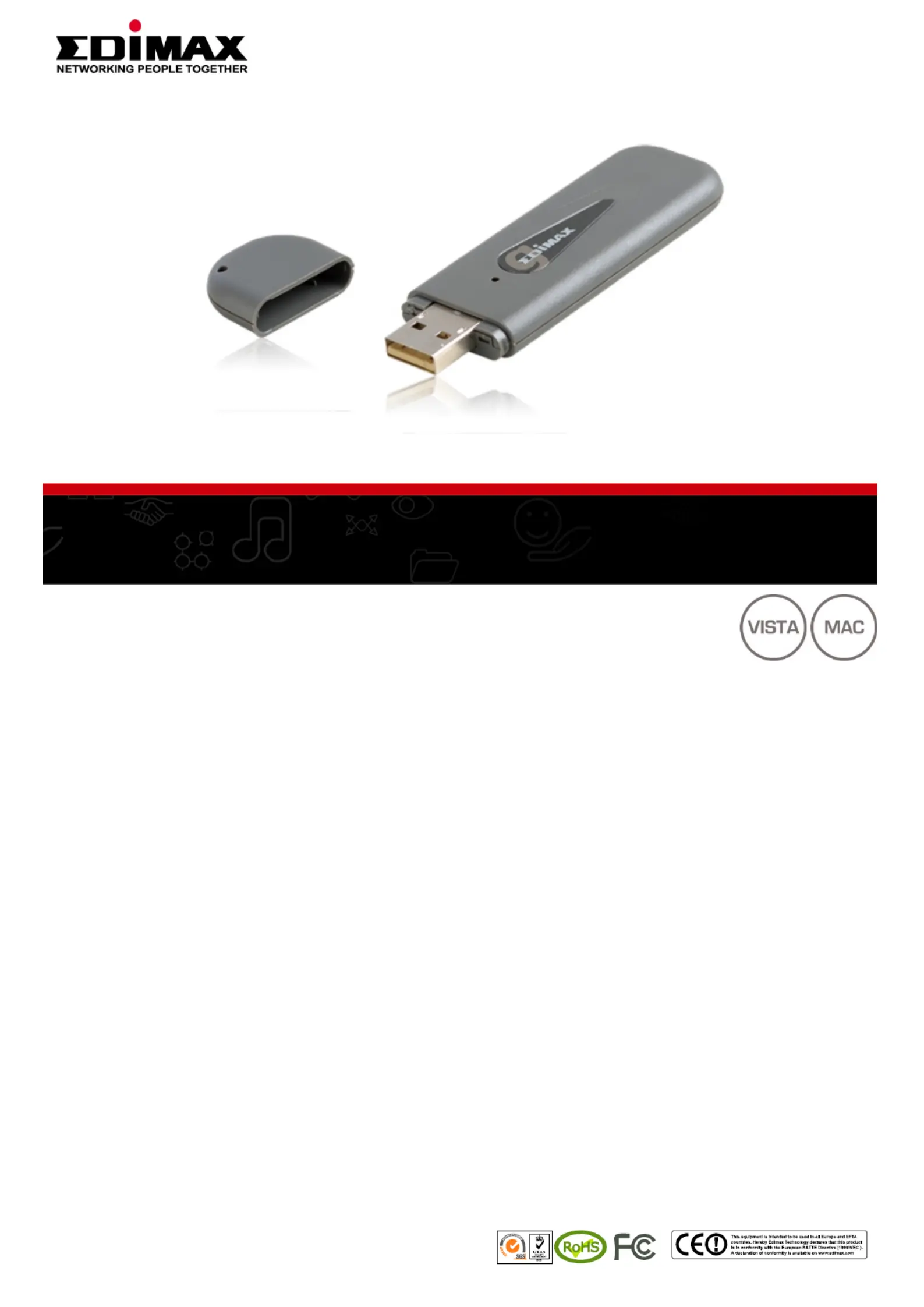

EW-7316Ug

Wireless 802.11b/g

USB Adapter

EW-7316Ug is a compact size wireless 802.11b/g USB adapter which provides a simple and easy way to add or

upgrade wireless connectivity to your desktop or notebook computer. This wireless 802.11b/g USB Adapter supports

high data rate up to 54Mpbs. You can just plug it into your computer’s USB port and enjoy the high-speed wireless

network access.

Compatible with wireless 11b/g data rate up to 54Mbps

EW-7316Ug is complied with wireless 802.11b/g standards which is fully compatible with any wireless 802.11b/g

device. Incorporating USB2.0 and wireless 802.11b/g, the transmission data rate is up to 54Mbps which enables the

smooth files transfer and Internet surfing.

Supports 64/128-bit WEP, WPA & WPA2 encryption protects wireless communication

This adapter supports 64/128-bit WEP data encryption to protect your wireless network from eavesdropping. It also

supports WPA or WPA2 robust encryption to prevent your network intruded.

Plug & Play easy installation

The installation cannot be easier. Simply plug the adapter into any available USB port, the CD-ROM will help you the

setup of wireless connection.

Portable and compact design

The compact design of EW-7316Ug is convenient to carry for all mobile users.

* Maximum performance may vary depending on network conditions and environmental factors.

NETWORK SETUP DIAGRAM AND RELATED PRODUCTS

* Maximum performance may vary depending on network conditions and environmental factors.

An example of how the EW-7316ug can be setup:

•Connect the EW-7316Ug wireless adapter to your computer.

•Connect to wireless 802.11b/g access point or broadband router.

FEATURES AND TECHNICAL SPECIFICATIONS

•Works with both IEEE 802.11b and IEEE 802.11g products.

•High-speed data transfer rate - up to 54Mbps.

•High throughput supports multi-media data bandwidth requirement.

•Supports 64/128-bit WEP , WPA/WPA2 (TKIP with IEEE 802.1x) and AES data encryption

•Automatic fallback increases data security and reliability.

HARDWARE INTERFACE STANDARD FREQUENCY BAND

USB2.0 Interface

Internal Printing Antenna

IEEE802.11b, IEEE802.11g 2.4000~2.4835GHz (Industrial

Scientific Medical Band)

DATA RATE MODULATION LED

11b: 1/2/5.5/11Mbps

11g: 6/9/12/24/36/48/54Mbps

auto fallback

11g : OFDM with BPSK, QPSK, 16QAM, 64QAM

11b : BPSK, QPSK, CCK

Link / Active

TX / RX

SECURITY DIMENSION HUMIDITY & TEMPERATURE

WEP 64/128, WPA, WPA2, AES 9(H) x 27(W) x 87(D) mm Max. 95% (Non Condensing)

32~131°F (0 ~55°C)

SYSTEM REQUIREMENTS OUTPUT POWER CERTIFICATIONS

Windows 98/ME/2000/XP/2003/Vista

Mac 10.3.x / 10.4.x

Linux Kernel 2.4 / 2.6

11g: 15±1dBm

•11b: 17±1dBm

CE, FCC

Produktspecifikationer

Varumärke:	Edimax
Kategori:	nätverkskort/adapter
Modell:	EW-7316Ug
Bredd:	27 mm
Djup:	87 mm
Höjd:	9 mm
Certifiering:	CE, FCC
Kompatibla operativsystem:	Windows 　98/ME/2000/XP/2003/Vista\nMac 10.3.x / 10.4.x\nLinux Kernel 2.4 / 2.6
Värdgränssnitt:	USB
Maximal dataöverföringshastighet:	54 Mbit/s
Mac-operativsystem som stöds:	Ja
Nätverksegenskaper:	IEEE 802.11b, IEEE 802.11g
Produktstorlek (BxDxH):	9 x 27 x 87 mm
Temperatur vid drift:	0 - 55 ° C
Intervall för relativ operativ luftfuktighet:	10 - 95 %
Frekvensområde:	2.4 - 2.4835 GHz
Anslutningsteknologi:	Trådlös
Modulator:	CCK, QPSK
Wi-Fi-band:	Singel-band (2,4 GHz)
Länk-/aktivitets-LED:	Ja
Beskrivning av uteffekt:	11g: 15±1dBm;11b: 17±1dBm
