Abbildungen können nicht im Serien-Lieferumfang enthaltenes Zubehör darstellen / Illustrations can contain accessories, which are not included

in standard extent of delivery.

Abbildungen ähnlich, produktionsbedingte Abweichung vorbehalten / Illustration similar (in design), production-wise modications reserved

File: S:\shared-pool\Product-Documentation\T-Produktbeschreibung\30_n0t\Originale_Englisch_PA04\4300661_01015.doc

Erstelldatum / create date: 25.05.2005 15:36:00 Aktualisiert / up dated: 27.10.2008

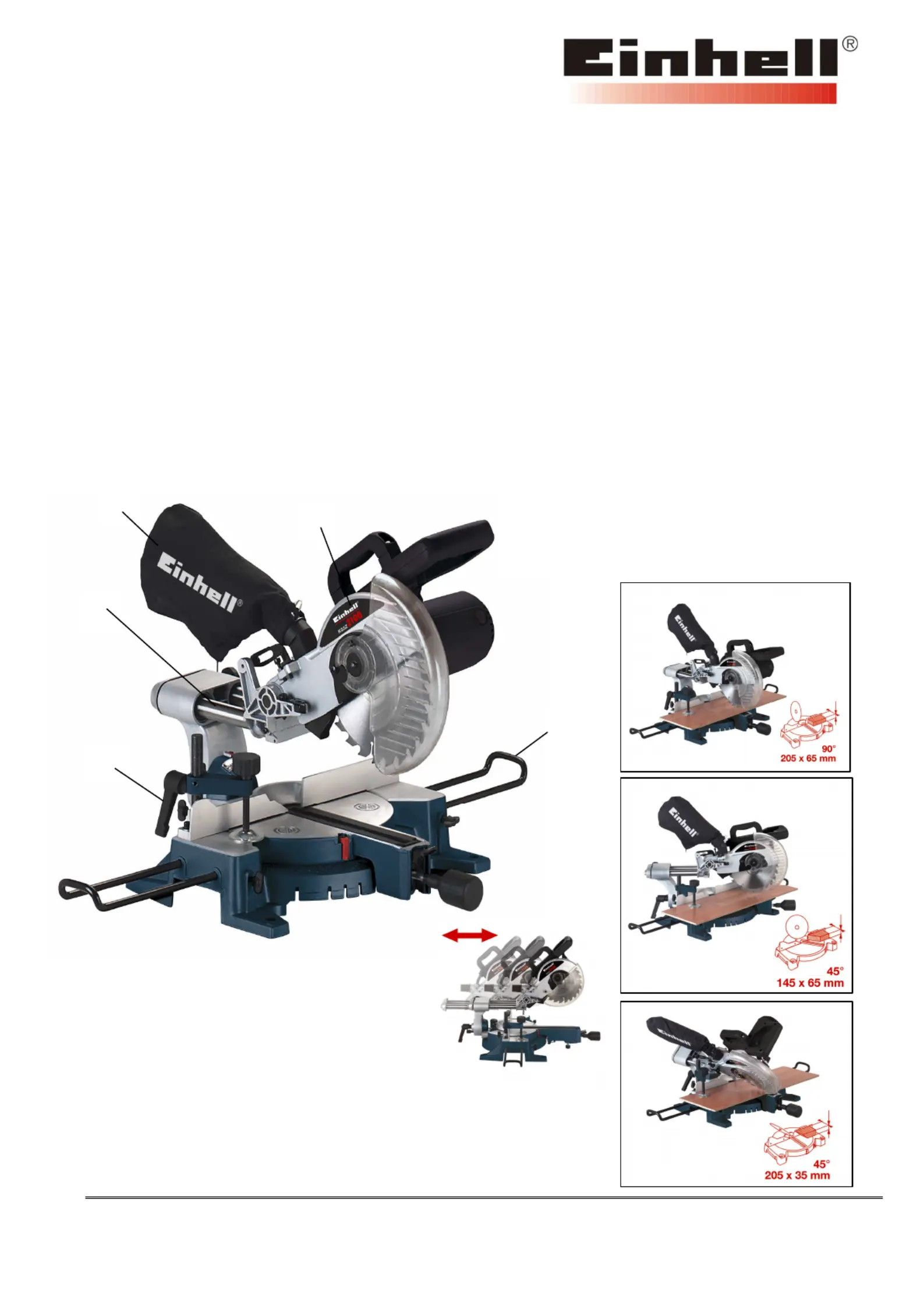

Features

:

-Carbide tipped saw blade (1)

-Rotating table for precise angle cuts ranging

from –45° to +45°

-

Incl. dust bag (5) and bilateral transport locking (2)

-

Motor head tiltable to the left continuously from 0° to + 45°

-

Clamping device for safely xing of the work piece (3)

-

Double pivoted sliding feature (4)

Sliding Cross Cut- and Mitre Saw

Art.-No.: 43.006.61

KGSZ 2100

Bar-Code: 4006825511857

Sales Unit: 1 pc

As special accessory available:

Carbide tipped-saw blade

Art.-No.:45.020.48

Ø 210 x Ø 30 x 2,8mm; 24 teeth

Bar code.: 4006825456004

Carbide tipped saw blade

Art.-No.:45.020.34

Ø 210 x Ø 30 x 2,8mm; 48 teeth

Bar code.: 4006825456110

The sliding cross cut

-

and mitre table saw KGSZ 2100 war

rants a clean and precise cut of wooden parts without any

problems. Double mitre cuts are possible because of its tilting and swivelling motor-head. Due to its double pivoted

sliding feature the saw can cut a width of 205 mm and is suitable for cuts of wide panels and laminate oorboard in

only one processing step.

Technical data

:

-Mains: 230 V ~ 50 Hz

-Power: 1700 watts

-Idle speed n

o

: 4800 min

-1

-Saw blade: Ø 210 x Ø 30 x 2,8mm

-No. of teeth: 24

-Turning range: -45°/ 0°/+45°

-Mitre cut: 0° to 45° to the left

-Cutting width 90° x 90° 205 x 65 mm

-Cutting width 90° x 45° 145 x 65 mm

-Cutting width 45° x 90° 205 x 35 mm

-Cutting width 45° x 45° 145 x 35 mm

-Weight: approx. 17,3 kg

-

Packing dimension: 610 x 530 x 410 mm

1

2

3

5

4
