17. Seitenauswurfdeckel
18. 4 Sternmuttern für Schubbügel
19. Seitenauswurfadapter
20. Mulchadapter
21. Abdeckung unterer Schubbügel
3. Bestimmungsgemäße Verwendung
Der Benzin Rasenmäher ist für die private
Benutzung im Haus- und Hobbygarten geeignet.
Als Rasenmäher für den privaten Haus- und Hobby-
garten werden solche angesehen, deren jährliche
Benutzung in der Regel 50 Stunden nicht über-
steigen und die vorwiegend für die Pflege von Gras-
oder Rasenflächen verwendet werden, nicht jedoch
in öffentlichen Anlagen, Parks, Sportstätten sowie
nicht in der Land- und Forstwirtschaft.
Bitte beachten Sie, dass unsere Geräte
bestimmungsgemäß nicht für den gewerblichen,
handwerklichen oder industriellen Einsatz konstruiert
wurden. Wir übernehmen keine Gewährleistung,
wenn das Gerät in Gewerbe-, Handwerks- oder
Industriebetrieben sowie bei gleichzusetzenden
Tätigkeiten eingesetzt wird.
Die Einhaltung der vom Hersteller beigefügten Ge-
brauchsanweisung ist Voraussetzung für den
ordnungsgemäßen Gebrauch des Rasenmähers. Die
Gebrauchsanweisung enthält auch die Betriebs-,
Wartungs- und Instandhaltungsbedingungen.
Achtung! Wegen körperlicher Gefährdung des
Benutzers darf der Rasenmäher nicht zu folgenden
Arbeiten eingesetzt werden: zum Trimmen von
Büschen, Hecken und Sträuchern, zum Schneiden
und Zerkleinern von Rankgewächsen oder Rasen
auf Dachbepflanzungen oder in Balkonkästen und
zum Reinigen (Absaugen) von Gehwegen und als
cksler zum Zerkleinern von Baum- und
Heckenabschnitten. Ferner darf der Rasenmäher
nicht als Motorhacke verwendet werden zum Ein-
ebnen von Bodenerhebungen, wie z.B. Maulwurfs-
hügel.
Aus Sicherheitsgründen darf der Rasenmäher nicht
als Antriebsaggregat für andere Arbeitswerkzeuge
und Werkzeugsätze jeglicher Art verwendet werden.
4. Technische Daten
Hinweis:
Genaue technische Daten zum Motor entnehmen Sie
bitte der beiliegenden Briggs & Stratton Anleitung.
Motortyp: Einzylinder-Viertaktmotor 158 ccm
Arbeitsdrehzahl n0: 2800 min-1
Kraftstoff: Benzin bleifrei
Schnitthöhenverstellung: zentral (30-75 mm)
Schnittbreite: 480 mm
Gewicht: 35 kg
Geräusch und Vibration
Schalldruckpegel LpA 85,6 dB(A)
Unsicherheit KpA 2 dB
Schallleistungspegel LWA 96 dB(A)
Unsicherheit KWA 3 dB
Tragen Sie einen Gehörschutz.
Die Einwirkung von Lärm kann Gehörverlust bewir-
ken.
Schwingungsemissionswert ah= 6,1 m/s2
Unsicherheit K = 1,5 m/s2
5. Vor Inbetriebnahme
5.1 Zusammenbau der Komponenten.
Bei der Lieferung sind einige Teile demontiert. Der
Zusammenbau ist einfach, wenn die folgenden Hin-
weise beachtet werden
Achtung! Beim Zusammenbau undr Wartungs-
arbeiten benötigen Sie folgendes zusätzliches Werk-
zeug, das nicht im Lieferumfang enthalten ist:
neine Ölauffangwanne flach (für Ölwechsel)
neinen Messbecher 1 Liter (Öl / Benzinfest)
neinen Benzinkanister
neinen Trichter (passend zum Benzineinfüll-
stutzen des Tanks)
nHaushaltswischtücher (zum Abwischen von Öl /
Benzinresten; Entsorgung an der Tankstelle)
neine Benzin Absaugpumpe (Plastikausführung,
in Baumärkten erhältlich)
neine Ölkanne mit Handpumpe (in Baumärkten
erhältlich)
10
Anleitung_RG_PM_48_B_S_SPK7.e$S__ 10.05.12 15:23 Seite 10
Wichtig: Vor dem Starten des Motors bewegen
Sie die Motorbremse mehrmals, um zu Prüfen,
ob das Stopseil auch gut funktioniert.
Beachte: Der Motor ist auf die Schnittgeschwin-
digkeit für Gras, und Grasauswurf in den Fang-
sack und für eine lange Motor-Lebenszeit ausge-
legt
4. Überprüfen Sie den Ölstand
5. Füllen Sie den Tank mit Benzin, wenn er leer ist
und verwenden Sie einen Trichter und
Maßbehälter. Vergewissern Sie sich, dass das
Benzin sauber ist.
Beachte: Verwenden Sie nur bleifreies Benzin.
Warnung: Verwenden Sie immer nur einen
Sicherheitsbenzinkanister. Rauchen Sie nicht beim
Einfüllen von Benzin. Schalten Sie den Motor vor
dem Einfüllen von Benzin ab und lassen Sie den
Motor einige Minuten abkühlen.
Mulchen
Beim Mulchen wird das Schnittgut im
geschlossenen Mähergehäuse zerkleinert und auf
dem Rasen wieder verteilt. Eine Grasaufnahme und
Entsorgung entfällt.
Achtung: Mulchen ist nur bei relativ kurzem Rasen
möglich. Optimale Ergebnisse erzielen Sie nur mit
einem Mulchmesser (als Zubehör erhältlich).
Um die Mulchfunktion zu nutzen, hängen Sie den
Fangsack aus und schieben Sie den Mulchadapter

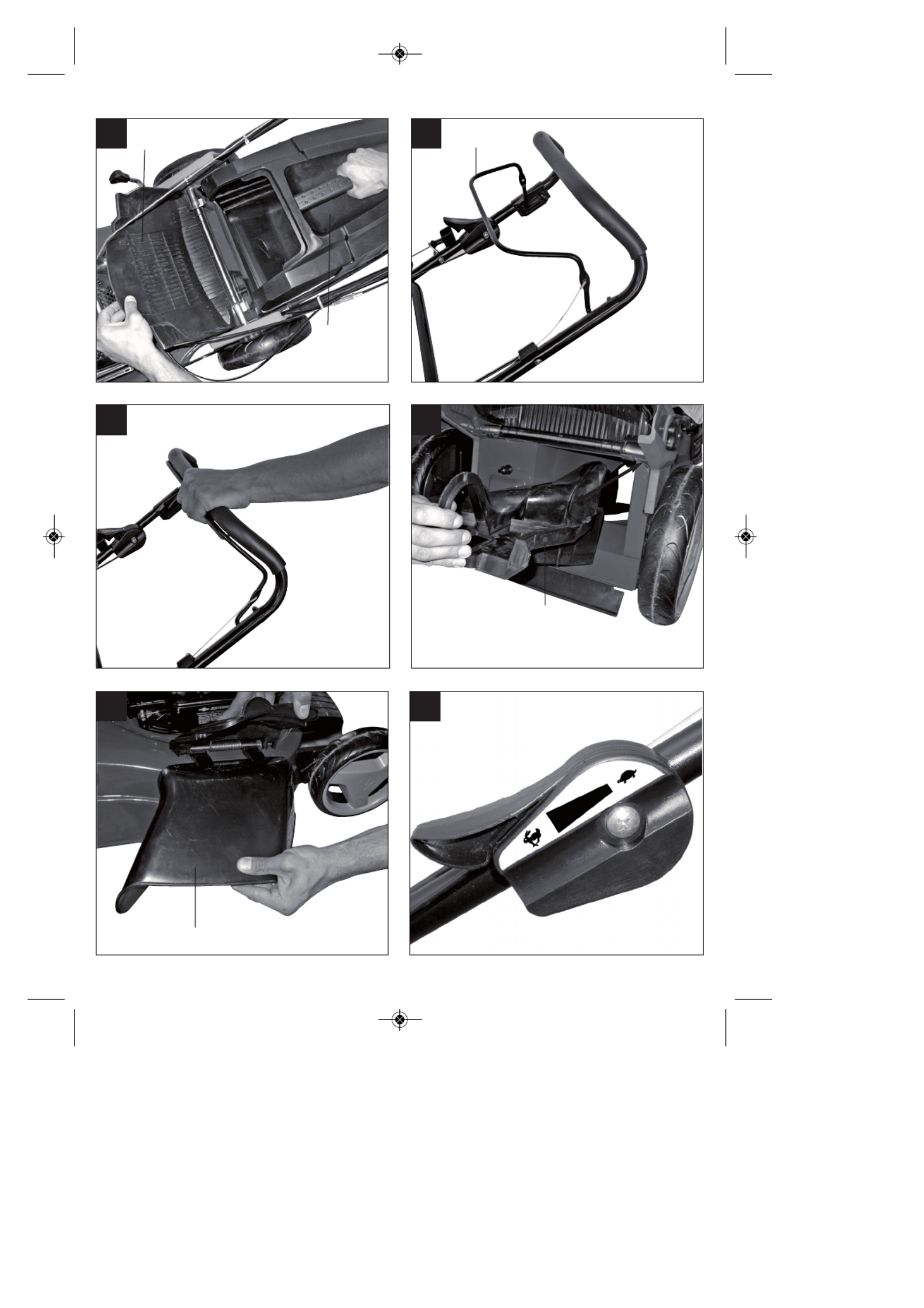

(Abb. 5d /Pos. 20) in die Auswurföffnung und
schließen Sie die Auswurfklappe.
Seitenauswurf
Um den Seitenauswurf zu nutzen sollte der
Mulchadapter (Pos. 20) montiert sein. Hängen Sie
den Seitennauswurfadapter (Abb. 5e/Pos. 19) wie in
Abbildung 5e zu sehen ein.
llstandanzeige Fangsack
Der Fangsack verfügt über eine Füllstandanzeige

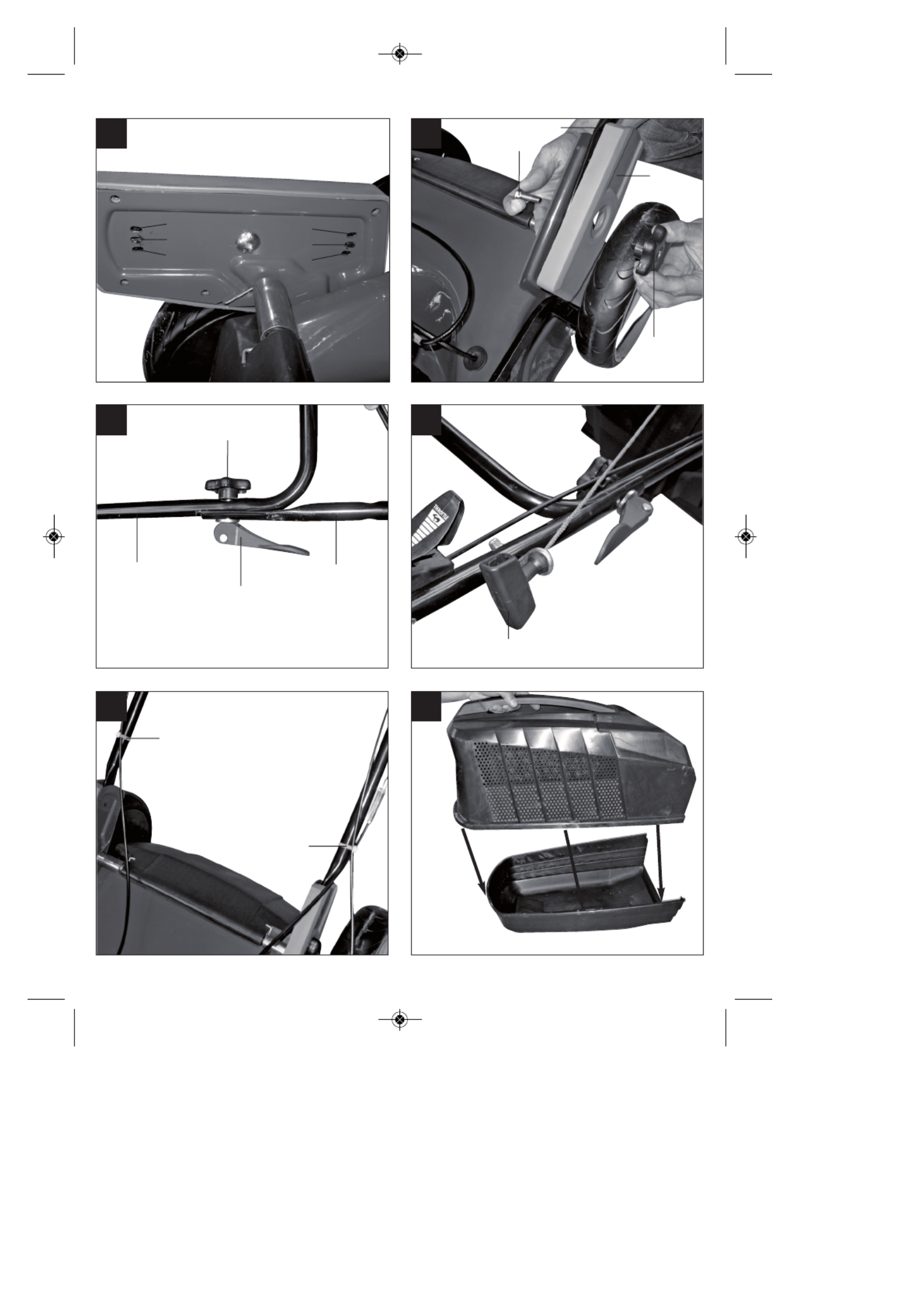

(Abb. 2/Pos. 6). Diese wird durch den Luftstrom den
der Mäher im Betrieb erzeugt geöffnet. Fällt die
Klappe während des Mähens zu, ist der Fangsack
voll und sollte geleert werden. Für eine einwandfreie
Funktion der Füllstandanzeige müssen die Löcher
unter der Klappe immer sauber und durchlässig sein.
6.1 Vor dem Mähen
Wichtige Hinweise:
1. Ziehen Sie sich richtig an. Tragen Sie festes
Schuhwerk und keine Sandalen oder
Tennisschuhe.
2. Überprüfen Sie das Schneidemesser. Ein
Messer, das verbogen oder sonst wie beschädigt
ist, muss gegen ein Originalmesser
ausgetauscht werden.
3. Füllen Sie den Benzintank im Freien auf. Be-
nutzen sie einen Einfülltrichter und einen Meß-
behälter. Wischen Sie übergelaufenes Benzin
weg.
4. Lesen und beachten Sie die Betriebsanleitung
und auch die Hinweise bezüglich des Motors und
der Zusatzgeräte. Heben Sie die Anleitung auch
für die anderen Benutzer des Gerätes zugänglich
auf.
5. Auspuffgase sind gefährlich. Lassen Sie den
Motor nur im Freien an.
6. Vergewissern Sie sich, dass alle
Sicherheitseinrichtungen vorhanden sind und
auch gut funktionieren.
7. Das Gerät sollte nur von einer Person bedient
werden, die auch dazu geeignet ist.
8. Das Mähen von nassem Gras kann gefährlich
sein. Mähen Sie Gras möglichst trocken.
9. Weisen Sie andere Personen oder Kinder an,
sich vom Mäher entfernt aufzuhalten.
10. Mähen Sie niemals bei schlechten Sichtver-
hältnissen.
11. Heben Sie herumliegende, lose Gegenstände vor
dem Mähen vom Boden auf.
6.2 Hinweise zum richtigen Mähen
Achtung! Öffnen Sie die Auswurfklappe nie,
wenn die Fangeinrichtung entleert wird und der
Motor noch läuft. Das umlaufende Messer kann
zu Verletzungen führen.
Befestigen Sie die Auswurfklappe und den Gras-
fangsack immer sorgfältig. Beim Entfernen vorher
den Motor ausschalten.
Der durch die Führungsholme gegebene Sicherheits-
abstand zwischen Messergehäuse und Benutzer ist
stets einzuhalten. Beim Mähen und Fahrtrichtungs-
änderungen an Böschungen und Hängen ist beson-
dere Vorsicht geboten. Achten Sie auf einen
sicheren Stand, tragen Sie Schuhe mit rutschfesten,
griffigen Sohlen und lange Hosen. Mähen Sie immer
quer zum Hang.
D
12
Anleitung_RG_PM_48_B_S_SPK7.e$S__ 10.05.12 15:23 Seite 12
nge über 15 Grad Schräge dürfen mit dem
Rasenmäher aus Sicherheitsgründen nicht gemäht
werden.
Üben Sie besondere Vorsicht beim
Rückwärtsbewegen und beim Ziehen des
Rasenmähers. Stolpergefahr!
6.3 Das Mähen
Nur mit scharfen, einwandfreien Messern schneiden,
damit die Grashalme nicht ausfransen und der
Rasen nicht gelb wird.
Zur Erzielung eines sauberen Schnittbildes den
Rasenmäher in möglichst geraden Bahnen führen.
Dabei sollten sich diese Bahnen immer um einige
Zentimeter überlappen, damit keine Streifen stehen
bleiben.
Die Unterseite des Mähergehäuses sauber halten
und Grasablagerungen unbedingt entfernen. Abla-
gerungen erschweren den Startvorgang, beein-
trächtigen die Schnittqualität und den Grasauswurf.
An Hängen ist die Schneidbahn quer zum Hang zu
legen. Ein Abgleiten des Rasenmähers lässt sich
durch Schrägstellung nach oben verhindern.
Wählen Sie die Schnitthöhe, je nach der tatsäch-
lichen Rasenlänge. Führen Sie mehrere Durchgänge
aus, so dass maximal 4 cm Rasen auf einmal abge-
tragen wird.
Bevor irgendeine Kontrolle des Messers durchge-
führt wird, Motor abstellen. Denken Sie daran, dass
das Messer nach dem Ausschalten des Motors sich
noch einige Sekunden weiterdreht. Versuchen Sie
nie, das Messer zu stoppen.
Prüfen Sie regelmäßig, ob das Messer richtig be-
festigt, in gutem Zustand und gut geschliffen ist.
Schleifen oder ersetzen Sie es, falls dies nicht der
Fall sein sollte. Falls das in Bewegung befindliche
Messer auf einen Gegenstand schlägt, den
Rasenmäher anhalten und warten bis das Messer
vollkommen still steht. Kontrollieren Sie
anschließend den Zustand des Messers und des
Messerhalters. Falls dieses beschädigt ist muss es
ausgewechselt werden.
Hinweise zum Mähen:
1. Achten Sie auf feste Gegenstände. Der
Rasenmäher könnte beschädigt werden oder es
könnten Verletzungen entstehen.
2. Ein heißer Motor, Auspuff oder Antrieb kann Ver-
brennungen verursachen. Also nicht berühren.
3. Bei Hängen oder steil abfallendem Gelände
vorsichtig mähen.
4. Fehlendes Tageslicht oder nicht ausreichende
künstliche Beleuchtung sind ein Grund, um das
Mähen einzustellen.
5. Überprüfen Sie den Mäher, das Messer und die
anderen Teile, wenn Sie in einen Fremdkörper
gefahren sind oder wenn das Gerät stärker als
normal vibriert.
6. Machen Sie keine Einstellungsänderungen oder
Reparaturen ohne den Motor vorher abzustellen.
Ziehen Sie den Zündkabelstecker.
7. Auf oder in der Nähe einer Straße achten Sie auf
den Straßenverkehr. Halten Sie den
Grasauswurf von der Straße fern.
8. Vermeiden Sie Stellen, wo die Räder nicht mehr
greifen oder das Mähen unsicher ist. Vor einer
Rückwärtsbewegung vergewissern Sie sich, ob
nicht kleine Kinder hinter Ihnen sind.
9. In dichtem, hohen Gras stellen Sie die höchste
Schnittstufe ein und mähen Sie langsamer. Vor
dem Entfernen von Gras oder sonstigen
Verstopfungen, stellen Sie den Motor ab und
lösen Sie das Zündkabel.
10. Entfernen Sie niemals Teile, die der Sicherheit
dienen.
11. Füllen Sie niemals Benzin in den Motor, der noch
heiß ist oder läuft
6.4 Entleeren des Grasfangsackes
Sobald während des Mähens Grasreste liegen
bleiben, muss der Fangsack entleert werden.
Achtung! Vor dem Abnehmen des Fangsackes
den Motor abstellen und den Stillstand des
Schneidwerkzeugs abwarten.
Zum Abnehmen des Fangsackes mit einer Hand die
Auswurfklappe anheben, mit der anderen Hand den
Fangsack am Tragegriff herausnehmen (Abb. 4).
Der Sicherheitsvorschrift entsprechend fällt die Aus-
wurfklappe beim Aushängen des Fangsackes zu und
verschließt die hintere Auswurföffnung. Bleiben
dabei Grasreste in der Öffnung hängen, so ist es für
ein leichteres Starten des Motors zweckmäßig, den
Rasenmäher um etwa 1m zurückzuziehen.
Schnittgutreste im Mähergehäuse und am Arbeits-
werkzeug nicht von Hand oder mit den Füßen ent-
fernen, sondern mit geeigneten Hilfsmitteln, z.B.
Bürste oder Handbesen.
Zur Gewährleistung eines guten Aufsammelns
müssen der Fangsack und besonders das Luftgitter
von innen nach der Benutzung gereinigt werden.
Fangsack nur bei abgeschaltetem Motor und
stillstehendem Schneidwerkzeug einhängen.
Auswurfklappe mit einer Hand anheben und mit der
anderen Hand den Fangsack am Handgriff halten
und von oben einhängen.
D
13
Anleitung_RG_PM_48_B_S_SPK7.e$S__ 10.05.12 15:23 Seite 13
6.5 Nach dem Mähen
1. Den Motor immer zuerst abkühlen lassen, bevor
man den Rasenmäher in einem geschlossenen
Raum abstellt.
2. Entfernen Sie Gras, Laub, Schmiere und Öl vor
dem Einlagern. Keine anderen Gegenstände auf
dem Mäher ablagern.
3. Kontrollieren Sie vor erneutem Gebrauch alle
Schrauben und Muttern. Gelockerte Schrauben
sind fest zu ziehen.
4. Entleeren Sie den Grasfangsack vor dem
erneuten Gebrauch.
5. Lösen Sie den Zündkerzenstecker, um unerlaub-
ten Gebrauch zu verhindern.
6. Achten Sie darauf, dass der Mäher nicht neben
einer Gefahrenquelle abgestellt wird.
Gasschwaden können zu Explosionen führen.
7. Es dürfen nur Originalteile oder solche vom
Hersteller genehmigte Teile bei Reparaturen
verwendet werden (siehe Adresse der
Garantieurkunde).
8. Bei längerem Nichtgebrauch des Mähers, den
Benzintank mit einer Benzinabsaugpumpe ent-
leeren.
9. Kinder anweisen den Mäher nicht zu benützen.
Er ist kein Spielzeug.
10. Niemals Benzin in der Nähe einer Funkenquelle
aufbewahren. Verwenden Sie immer einen ge-
prüften Kanister. Halten Sie Benzin von Kindern
fern.
11. Ölen und warten Sie das Gerät
7. Reiningung, Wartung, Lagerung,
Transport und Ersatzteilbestellung
Achtung: Wartungsinformationen und
Wartungsintervalle zum Motor finden Sie in der
beiligenden Motoranleitung von Briggs &
Stratton.
Achtung:
Arbeiten Sie nie bei laufendem Motor an
stromführenden Teilen der Zündanlage oder
berühren diese. Ziehen Sie vor allen Wartungs- und
Pflegearbeiten den Zündkerzenstecker von der
Zündkerze ab. Führen Sie niemals irgendwelche
Arbeiten am laufenden Gerät durch. Arbeiten die in
dieser Bedienungsanleitung nicht beschrieben
werden, sollten nur bei einer autorisierten Fach-
werkstatt durchgeführt werden.
7.1 Reinigung
Nach jedem Gebrauch sollte der Mäher gründlich
gereinigt werden. Besonders die Unterseite und die
Messeraufnahme.
Hinweis: Bevor Sie den Rasenmäher auf die Seite
kippen, entleeren Sie den Kraftstofftank mit einer
Benzinabsaugpumpe vollständig. Der Rasenmäher
darf nicht über 90 Grad gekippt werden. Am
leichtesten entfernen Sie Schmutz und Gras gleich
nach dem Mähen. Angetrocknete Grasreste und
Schmutz können zu einer Beeinträchtigung des
Mähbetriebes führen. Kontrollieren Sie, ob der
Grasauswurfkanal frei von Grasresten ist und
entfernen diese bei Bedarf. Reinigen Sie den Mäher
niemals mit einem Wasserstrahl oder Hoch-
druckreiniger. Der Motor soll trocken bleiben.
Aggressive Reinigungsmittel wie Kaltreiniger oder
Waschbenzin dürfen nicht verwendet werden.
7.2 Wartung
7.2.1 Radachsen und Radnaben
Sollten einmal pro Saison leicht eingefettet werden.
Dazu nehmen Sie die Radkappen mit einem Schrau-
bendreher ab undsen die Befestigungsschrauben
der Räder.
7.2.2 Messer
Lassen Sie ihr Messer aus Sicherheitsgründen nur
von einer autorisierten Fachwerkstatt schärfen,
auswuchten und montieren. Um ein optimales
Arbeitsergebnis zu erzielen, wird empfohlen das
Messer einmal im Jahr überprüfen zu lassen.
Wechseln des Messers (Abb. 8)
Beim Wechseln des Schneidwerkzeuges dürfen nur
Original-Ersatzteile verwendet werden. Die Kenn-
zeichnung des Messers muss mit der in der Ersatz-
teilliste angegebenen Nummer übereinstimmen.
Niemals ein anderes Messer einbauen.
Beschädigte Messer
Sollte das Messer trotz aller Vorsicht mit einem Hin-
dernis in Berührung gekommen sein, sofort Motor
abstellen und Zündkerzenstecker abziehen.
Mäher seitlich kippen und Messer auf Beschädigung
überprüfen. Beschädigte oder verbogene Messer
müssen ausgewechselt werden. Niemals ein ver-
bogenes Messer wieder geradebiegen. Niemals mit
einem verbogenen oder stark abgenutzten Messer
arbeiten, dies verursacht Vibrationen und kann
weitere Beschädigungen am Mäher zur Folge haben.
Achtung: Beim Arbeiten mit einem beschädigten
Messer besteht Verletzungsgefahr.
D
14
Anleitung_RG_PM_48_B_S_SPK7.e$S__ 10.05.12 15:23 Seite 14
Messer nachschleifen
Die Messerschneiden können mit einer Metallfeile
nachgeschärft werden. Um eine Unwucht zu ver-
meiden sollte das Schleifen nur von einer
autorisierten Fachwerkstatt durchgeführt werden.
7.2.3 Pflege und Einstellung der Seilzüge
Die Seilzüge öfters einölen und auf Leichtgängigkeit
überprüfen.
7.2.4 Reparatur
Nach Reparatur oder Wartung vergewissern, ob alle
sicherheitstechnischen Teile angebracht und in
einwandfreiem Zustand sind.
Verletzungsgefährdende Teile von anderen
Personen und Kindern unzugänglich aufbewahren.
Achtung: Laut Produkthaftungsgesetz haften wir
nicht für Schäden die durch unsachgemäße Repara-
tur verursacht werden oder wenn bei Ersatzteilen
nicht Originalteile oder von uns freigegebene Teile
verwendet werden. Ebenso haften wir nicht für
Schäden von unsachgemäßen Reparaturen. Beauf-
tragen sie einen Kundendienst oder einen autorisier-
ten Fachmann. Entsprechendes gilt auch für Zube-
hörteile.
7.2.5 Betriebszeiten
Rasenmäher dürfen nur an Werktagen in der Zeit
von 7.00 – 19.00 Uhr betrieben werden. Beachten
Sie bitte die gesetzlichen Bestimmungen, die örtlich
unterschiedlich sein können.
7.3 Vorbereitung für das Einlagern des
Rasenmähers
Warnhinweis: Entfernen Sie das Benzin nicht in ge-
schlossenen Räumen, in der Nähe von Feuer oder
beim Rauchen. Gasdämpfe können Explosionen
oder Feuer verursachen.
1. Entleeren Sie den Benzintank mit einer Benzin-
absaugpumpe.
2. Starten Sie den Motor und lassen Sie den Motor
solange laufen bis das restliche Benzin ver-
braucht ist .
3. Reinigen Sie das ganze Gerät, um die Lackfarbe
zu schützen.
4. Bewahren Sie das Gerät an einem gutgelüfteten
Platz oder Ort auf.
7.4 Vorbereitung des Rasenmähers für den
Transport
1. Entleeren Sie den Benzintank (siehe Punkt
7.3/1)
2. Lassen Sie den Motor solange laufen bis das
restliche Benzin verbraucht ist.
3. Entleeren Sie das Motoröl vom warmen Motor.
4. Entfernen Sie den Zündkerzenstecker von der
Zündkerze.
5. Reinigen Sie das Gehäuse.
6. ngen Sie den Startseilzug am Haken
(Abb. 3c) aus. Lösen Sie die Flügelmuttern und
klappen den oberen Schubbügel nach unten.
Beachten Sie dabei, dass beim Umklappen die
Seilzüge nicht geknicket werden.
7. Wickeln Sie einige Lagen Wellpappe zwischen
oberen und unteren Schubbügel und Motor, um
ein Scheuern zu vermeiden.
7.5 Ersatzteilbestellung
Bei der Ersatzteilbestellung sollten folgende
Angaben gemacht werden:
Typ des Gerätes
Artikelnummer des Gerätes
Ident- Nummer des Gerätes
Ersatzteil- Nummer des erforderlichen Ersatzteils
Aktuelle Preise und Infos finden Sie unter
www.isc-gmbh.info
8. Entsorgung und Wiederverwertung
Das Gerät befindet sich in einer Verpackung um
Transportschäden zu verhindern. Diese Verpackung
ist Rohstoff und ist somit wieder verwendbar oder
kann dem Rohstoffkreislauf zurückgeführt werden.
Das Gerät und dessen Zubehör bestehen aus
verschiedenen Materialien, wie z.B. Metall und
Kunststoffe. Führen Sie defekte Bauteile der
Sondermüllentsorgung zu. Fragen Sie im
Fachgeschäft oder in der Gemeindeverwaltung nach!
D
15
Anleitung_RG_PM_48_B_S_SPK7.e$S__ 10.05.12 15:23 Seite 15
17
GB
Table of contents:
1. Safety regulations
2. Layout
3. Intended use
4. Technical data
5. Before starting the equipment
6. Operation
7. Cleaning ,maintenance, storage, transport and
ordering of spare parts
8. Disposal and recycling
9. Troubleshooting guide
Anleitung_RG_PM_48_B_S_SPK7.e$S__ 10.05.12 15:23 Seite 17
Important!
When using the equipment, a few safety precautions
must be observed to avoid injuries and damage.
Please read the complete operating instructions and
safety regulations with due care. Keep this manual in
a safe place, so that the information is available at all
times. If you give the equipment to any other person,
hand over these operating instructions and safety
regulations as well. We cannot accept any liability for
damage or accidents which arise due to a failure to
follow these instructions and the safety instructions.
1. Safety instructions for hand-
operated lawn mowers
Note
1. Read the directions with due care. Familiarize
yourself with the settings and proper operation of
the machine.
2. Never allow children or other persons who are
not familiar with the operating instructions to use
the mower. Contact your local governmental
agency for information regarding minimum age
requirements for operating the mower.
3. Never mow in the direct vicinity of persons -
especially children - or animals. Always keep in
mind that the operator is responsible for
accidents involving other persons and/or their
property.
4. If you give the equipment to any other person,
give them these operating instructions as well.
Preliminary measures
1. Always wear sturdy, non-slip footwear and long
trousers when mowing. Never mow barefoot or in
sandals.
2. Check the grounds on which the machine will be
used and remove all objects that could be caught
up and violently flung out of the chute.
3. Warning: Petrol is highly flammable! Therefore:
- Only store petrol in containers designed to hold
petroleum-based liquids.
- Only refuel out in the open and do not smoke
during the refueling process.
- Always refuel the lawn mower before starting
the engine. Always ensure that the fuel tank cap
is closed when the engine is running and when
the mower is hot; also do not refuel.
- If petrol has overflowed, do not under any
circumstances attempt to start the engine.
Instead, remove the machine from the affected
area. Avoid starting the engine until the petrol
fumes have completely evaporated.
- For safety reasons, the petrol tank and other
tank closures must be replaced if they are
damaged.
4. Replace defective mufflers.
5. Before using the mower, visually inspect it to
ensure that the blade, mounting bolts and the
entire cutting apparatus are in good working
order (i.e. not worn out or damaged). To prevent
any imbalance, replace worn out or damaged
blades and mounting bolts as a set only (if
applicable).
6. Please note that where a mower has more than
one blade, the rotation of one of the blades can
cause the others to rotate as well.
Handling
1. Do not let the combustion engine run in enclosed
areas, as dangerous carbon monoxide gas can
build up.
2. Only mow in broad daylight or in well-lit
conditions. Avoid using the machine on wet
grass as far as possible.
3. Always maintain good footing on inclines.
4. Only operate the machine at a walking pace.
5. For machines with wheels: Always mow across
hills i.e. never straight up or straight down.
6. Be particularly careful when you change direction
on a slope.
7. Do not mow on overly steep inclines.
8. Always be extra careful when turning the mower
around and when pulling it towards you.
9. Switch off the lawn mower and ensure that the
blade has stopped rotating whenever the mower
has to be tilted for transporting over areas other
than lawns and whenever it has to be moved
from or to the area you want to mow.
10. Never use the lawn mower if the blade or safety
grilles are damaged, or without the attached
guards, e.g. deflectors and/or grass catching
devices.
11. Do not adjust or overclock the engine speed
settings.
12. Release the engine brake before you start the
engine.
13. Start the engine with care, in accordance with
the manufacturerʼs instructions. Make sure that
your feet are far enough away from the mower
blade!
14. Do not tilt the lawn mower when you start the
engine unless the mower must raised off of the
ground a little in order to start it. In the latter
case, tilt the mower as little as absolutely
necessary and only raise the side opposite to
that of the user.
15. Never start the engine while standing in front of
the chute.
16. Never move your hands or feet toward or under
18
GB
Anleitung_RG_PM_48_B_S_SPK7.e$S__ 10.05.12 15:23 Seite 18
19
GB
any rotating parts. Keep clear of the chute
opening at all times.
17. Never lift or carry a lawn mower with the engine
running.
18. Switch off the engine and pull the spark plug
boot:
- before you dislodge any blockages or clogs in
the chute.
- before carrying out any checks, cleaning,
maintenance or other work on the lawn mower
- if the lawn mower strikes a foreign body,
examine it for signs of damage and carry out any
necessary repairs before restarting and
continuing to work with the mower. If the lawn
mower begins to experience exceptionally strong
vibrations, immediately switch it off and check it.
19. Switch off the engine:
- when you leave the lawn mower.
- before you refuel.
20. When you switch off the engine, move the speed
lever to the Off position. Close the petrol
stopcock.
21. Operation of the machine at higher than normal
speed can lead to an increased risk of accidents.
22. Take care when carrying out installation work on
the machine, and avoid trapping fingers between
the moving cutting tool and the fixed parts of the
machine.
Maintenance and storage
1. Make sure that all nuts, bolts and screws are
tightened securely and that the machine is in
safe working condition.
2. Never store the mower (with petrol in the tank)
inside a building in which petrol fumes could
come into contact with open flames or sparks.
3. Allow the motor to cool before you put the lawn
mower in an enclosed area.
4. In order to avoid fire hazards, keep the engine,
exhaust and the area around the fuel tank free
from grass, leaves and leaking grease (oil).
5. Routinely check the grass basket for signs of
wear and impaired functionality.
6. For your own safety, replace worn or damaged
parts without delay.
7. If the fuel tank should require emptying this
should only be done in the open air using a
petrol suction pump (available from DIY shops).
CAUTION!
Read all safety regulations and instructions.
Any errors made in following the safety regulations
and instructions may result in an electric shock, fire
and/or serious injury.
Keep all safety regulations and instructions in a
safe place for future use.
Explanation of the symbols on the machine
(Fig. 10):
1) Read the operating instructions
2) Important! Danger from catapulted parts. Keep a
safe distance.
3) Important! Switch off the engine and pull the
spark plug boot before doing any maintenance,
repair, cleaning or adjustment work.
4) Fill with oil and fuel before starting the mower.
5) Caution! Wear ear protection and safety goggles.
6) Engine start/stop lever (I=Engine on; 0=Engine
off)
7) Risk of cut injuries. Caution: rotating cutters.
2. Layout (Fig. 1+2)
1. Engine start/stop lever – engine brake
2. Top push bar
3. Throttle lever
4. Starter cable
5. Lower push bar
6. Filling level indicator debris bag
7. Debris bag
8. Ejector flap
9. Cutting height adjustment
10. Tank filler cap
11. Oil-filler neck
12. Oil drainage screw
13. 2 x cable ties
14. Spark plug wrench
15. 2 x square head screws for top push bar
16. 2 screws for upper push bar with high speed
clamping function
17. Side ejector cover
18. 4 x star nuts for push bar
19. Side ejector adaptor
20. Mulching adaptor
21. Cover for lower push bar
Anleitung_RG_PM_48_B_S_SPK7.e$S__ 10.05.12 15:23 Seite 19
21
GB
so that the high speed clamping function remains
operational.
4. Insert the grip of the starter cord (Fig. 3c/Item 4)
into the hook provided for that purpose as shown
in Figure 3c.
5. Fasten the cords to the push bar with the supplied
cable ties (Fig. 3d/Item. 13).
6. The debris bag should be assembled as shown in
Figure 3e. For this, insert the upper lugs of the
debris bag carefully into the openings on the
lower debris bag.
7. Lift the ejector flap (Fig. 4 / Item 8) with one hand
and hook in the grass bag (Fig. 4/Item 7) as
shown in Figure 4
5.2 Setting the cutting height
Important! Adjust the cutting height only when
the engine is switched off and the plug boot has
been pulled.
Before you begin to mow, check to ensure that
the blade is not blunt and that none of the
fasteners are damaged. To prevent any
imbalance, replace blunt and/or damaged blades
as a set only (if applicable). To carry out this
check, first switch off the engine and pull the
spark plug boot.
The cutting height is centrally adjusted with the
cutting height adjustor lever
(Fig. 7/Item 9). Up to 5 different cutting heights
can be selected.
Pull the adjustor lever out and select the desired
cutting height. The lever snaps into the desired
position.
6. Operation
Note:
For detailed information on starting the engine,
refer to the enclosed manual from Briggs &
Stratton.
Important.
The engine does not come with oil in it.
Therefore, be sure to add oil before starting the
engine. You will also need to fill in petrol, as this
is also not supplied upon delivery.
In order to avoid any unintentional start-ups of the
lawn mower, it comes equipped with an engine
brake (Fig. 5a/Item 1) which must be pulled back
before the engine can be started. When the engine
control lever is released it must return to its initial
position, at which point the engine automatically
switches off.
You can control the rotation speed of the blade using
the speed lever (Fig. 6).
Before you start mowing, you should run through
this operation several times in order to ensure that
the machine is working properly.
Whenever you need to perform any kind of adjust-
ment and/or repair work on your lawn mower, wait
until the blade has come to a complete stop.
Always switch off the engine before carrying out any
adjustments, maintenance or repairs.
Note:
1. Engine brake (Fig. 5a/Item 1): Use the lever to
stop the engine. When you release the lever the
engine and the blade stop automatically (Fig.
5b). To mow, hold the lever in the working
position. Before you start to mow, check the
start/stop lever several times to be sure that it is
working properly. Ensure that the tension cable
can be smoothly operated (i.e. is not catching or
kinking in any way).
2. Speed lever (Fig. 6): Move this lever in order to
increase or decrease the engine speed. (Tortoise
= Slow / Hare = Fast)
3. Caution: The blade begins to rotate as soon as
the engine is started.
Important:
Before you start the engine, move the motor
brake several times to be sure that the stop
cable is properly working. Note: The engine is
factory set to a speed that is optimal for cutting
and blowing grass into the basket and is
designed to provide many years of use.
4. Check the oil level.
5. Fill the tank with petrol when it is empty, using a
funnel and measuring vessel. Make sure that the
petrol is clean.
Note: Use only unleaded petrol as fuel.
Warning: Never use more than one safety petrol
can. Do not smoke when refueling. Switch off the
engine before refueling and allow the engine to cool
down for a few minutes.
Mulching
In the mulching mode the cuttings are shredded in
the enclosed mower housing and then spread back
onto the lawn. It is not necessary to gather and
dispose of the grass.
Anleitung_RG_PM_48_B_S_SPK7.e$S__ 10.05.12 15:23 Seite 21
23
GB
attached, is in good condition and is sharp. If the
contrary is the case, sharpen the blade or replace it.
In the event that the blade strikes an object,
immediately switch off the lawn mower and wait for
the blade to come to a complete stop. Then inspect
the condition of the blade and the blade mount.
Replace any parts that are damaged.
Tips for proper mowing:
1. Pay attention to ensure that you do not run into
or over anything that could damage the mower.
The lawn mower could be damaged and/or the
machine could inflict bodily injury.
2. A hot engine, exhaust or drive unit can burn the
skin if touched. Thus, do not touch these parts
unless the mower has been switched off for a
while and you know that they have cooled down!
3. Use extra caution when mowing on inclines and
steep grades.
4. Insufficient daylight or even a sufficient level of
artificial light is one reason not to mow.
5. Check the mower, the blade and other parts if
they have struck a foreign object or if the
machine vibrates more than usual.
6. Do not make any adjustments or repairs until the
engine has been switched off. Pull the plug boot.
7. Pay special attention if you are mowing directly
next to a street or are close by one (traffic).
Always keep the grass chute pointed away from
the street.
8. Avoid mowing in places where the wheels have
trouble gripping or mowing is unsafe in any other
way. Before you back up, ensure that nobody is
standing behind you (especially little children,
who are more difficult to see).
9. When mowing over thick, high grass, select the
highest cutting level and mow at a slower speed.
Before you remove any grass or blockages of
any kind, switch off the engine and pull the plug
boot.
10. Never remove any safety-related parts.
11. Never fill the engine with petrol when it is hot or
is running.
6.4 Emptying the grass basket
As soon as grass clippings start to trail the lawn
mower, it is time to empty the grass basket.
Important! Before taking off the grass basket,
switch off the engine and wait until the blade has
come to a stop.
To take off the grass basket, use one hand to lift up
the chute flap and the other to grab onto the basket
handle (Fig. 4). Remove the basket.
For safety reasons, the chute flap automatically falls
down after removing the grass basket and closes off
the rear chute opening. If any grass remains in the
opening, it will be easier to restart the engine if you
pull the mower back approx. 1 meter.
Do not use your hands or feet to remove clippings in
or on the mower housing, but instead use suitable
tools such as a brush or a hand broom.
In order to ensure that the majority of grass clippings
are picked up, the inside of both the catch bag and
especially the air grill must be cleaned after each
use.
Reattach the catch bag only when the engine is
switched off and the blade is stopped.
Using one hand, lift up the chute flap, while grabbing
onto the basket handle with the other. Hang in the
basket from the top.
6.5 After mowing
1. Allow the engine to cool before you put the lawn
mower in an enclosed area.
2. Remove grass, foliage, grease and oil before
storing the mower. Do not place any objects on
top of the mower.
3. Check all the screws and nuts once more before
you start to use the lawn mower again. Tighten
any loose screws.
4. Also be sure to empty the grass basket.
5. Pull the spark plug boot to prevent unauthorized
use.
6. Ensure that you do not park the mower next to
any source of danger. Petrol fumes can lead to
explosions.
7. Only original parts or parts approved by the
manufacturer may be used for repairs
(see address on the warranty certificate).
8. If the lawn mower is not going to be used for an
extended period, empty the petrol tank using a
petrol suction pump.
9. Tell your children not to use the mower. It is not
a toy.
10. Never place petrol near an ignition source.
Always use a can that is approved to store
petrol. Keep petrol away from children.
11. Oil and maintain the machine.
Anleitung_RG_PM_48_B_S_SPK7.e$S__ 10.05.12 15:23 Seite 23
7. Cleaning, maintenance, storage,
transport and ordering of spare parts
Important: The enclosed engine manual from
Briggs & Stratton provides maintenance
information and maintenance interval
information on the engine.
Important:
Never work on or touch conducting parts on the
ignition unit with the engine running. Always pull the
spark plug boot from the spark plug before starting
any work of care or maintenance. Never perform any
work on the machine while it is running. Any work not
described in these Operating Instructions must be
performed by an authorized service workshop only.
7.1 Cleaning
After each use, the mower should be thoroughly
cleaned (especially the underside and blade
receptacle).
Note: Before you tilt the lawnmower onto its side,
empty the fuel tank completely with a petrol pump.
The lawnmower must not be tilted more than 90
degrees. The simplest time to remove dirt and grass is
directly after mowing. Dried residual grass and dirt
could cause damage to the mowing operation. Make
sure the grass ejector canal is free from residual
pieces of grass and remove these if necessary. Never
clean the mower with a direct jet of water or a high
pressure cleaner. The motor must stay dry.
Aggressive cleaning agents such as cold cleaning
solvent or petroleum ether must not be used.
7.2 Maintenance
7.2.1 Wheel axles and wheel hubs
These should be lightly greased once a season. To
do so, remove the wheel caps with a screwdriver and
slacken the fastening screws on the wheels.
7.2.2 Blade
For safety reasons you should only ever have your
blade sharpened, balanced and mounted by an
authorized service workshop. For optimum results it
is recommended that the blade should be inspected
once a year.
Changing the blade (Fig. 8)
Only ever use original spare parts when having the
blade replaced. The marking on the blade must be
matched with the number given in the list of spare
parts. Never have any other model of blade fitted.
Damaged blades
Should the blade, in spite of all precautions, come
into contact with an obstruction, shut down the
engine immediately and pull the spark plug boot. Tip
the lawn mower onto its side and check the blade for
damage. Damaged or bent blades must be replaced.
Never attempt to bend a bent blade back to straight
again. Never mow the lawn with a bent or heavily
worn blade as this will cause vibrations and can lead
to further damage to the lawn mower.
Important: There is a risk of injury if you work with a
damaged blade.
Resharpening the blade
The blades can be resharpened with a metal file. In
order to avoid imbalance, the blade should be
resharpened by an authorized service workshop.
7.2.3 Care and adjustment of the cables
Oil the cables at regular intervals and check that they
move easily.
7.2.4 Repairs
After any repair or maintenance work, check that all
safety-related parts are in place and in proper
working order.
All parts which may cause injury must be kept where
they are inaccessible to children or others.
Important: In accordance with product liability
legislation we are not liable for any damages caused
by improper repairs or the use of spare parts that are
not original spare parts or parts approved by us. In
addition, we are also not liable for any damages
arising from improper repairs. Such work should be
performed by a customer services workshop or
authorized specialist. The same applies to accessory
parts.
7.2.5 Times of use
Lawn mowers are only permitted to be used on
workdays between the hours of 7.00 a.m. and 7.00
p.m. Please comply with statutory regulations, which
may vary from location to location.
7.3 Preparing the mower for long-term storage
Caution: Do not empty the petrol tank in enclosed
areas, near fire or when smoking. Petrol fumes can
cause explosions and fire.
1. Empty the petrol tank with a petrol suction pump.
2. Start the engine and let it run until any remaining
petrol has been used up.
3. Clean the cooling fins of the cylinder and the
housing.
4. Be sure to clean the entire machine to protect
the paint.
24
GB
Anleitung_RG_PM_48_B_S_SPK7.e$S__ 10.05.12 15:23 Seite 24
25
GB
5. Store the machine in a well-ventilated place.
7.4 Preparing the mower for transportation
1. Empty the petrol tank (see item 7.3.1).
2. Always let the engine run until it has used up the
remainder of petrol in the tank.
3. Empty the engine oil from the warm engine.
4. Remove the spark plug boot from the spark plug.
5. Cleaning the equipment.
6. Remove the start tension cable from the hook
(Fig. 3c). Slacken the wing nuts and fold down
the upper push bar.
7. Wedge a few layers of corrugated cardboard
between the upper and lower push bars and the
engine in order to prevent any chafing.
7.5 Ordering replacement parts
Please quote the following data when ordering
replacement parts:
Type of machine
Article number of the machine
Identification number of the machine
Replacement part number of the part required
For our latest prices and information please go to
www.isc-gmbh.info
8. Disposal and recycling
The unit is supplied in packaging to prevent its being
damaged in transit. This packaging is raw material
and can therefore be reused or can be returned to
the raw material system.
The unit and its accessories are made of various
types of material, such as metal and plastic.
Defective components must be disposed of as
special waste. Ask your dealer or your local council.
Anleitung_RG_PM_48_B_S_SPK7.e$S__ 10.05.12 15:23 Seite 25
9. Faults and remedies for faults
Caution: Always switch off the engine and pull the ignition cable before starting any inspection or adjustment
work.
Caution: If, after making an adjustment or repair to the engine, you let it run for a few minutes, remember that
the exhaust and other parts will get hot. Thus, do not touch parts that emanate heat, as these may burn you.
Important. If problems arise in connection with the engine, please refer to the enclosed manual from
Briggs & Stratton.
Fault Possible cause Remedy
Loud while running, machine
vibrates heavily
- Screws are loose
- Blade fasteners are loose
- Blade is unbalanced
- Check screws
- Check blade fasteners
- Replace blade
Engine does not start - Brake lever not pressed
- Fuel tank is empty
- Press brake lever
- Refill with fuel
Uneven mowing results - Blade is blunt
- Cutting height is too low
- Engine speed is too low
- Sharpen the blade
- Set correct height
- Set lever to max.
Unsatisfactory bagging of the
grass
- Engine speed is too low
- Cutting height is too low
- Blade is worn
- Basket is clogged
- Set speed lever to max.
- Set correct height
- Replace the blade
- Empty the basket
GB
26
Anleitung_RG_PM_48_B_S_SPK7.e$S__ 10.05.12 15:23 Seite 26
Attention !
Lors de lʼutilisation dʼappareils, il faut respecter
certaines mesures de sécurité afin dʼéviter des
blessures et dommages. Veuillez donc lire
attentivement ce mode dʼemploi/ces consignes de
sécurité. Veillez à le conserver en bon état pour
pouvoir accéder aux informations à tout moment. Si
lʼappareil doit être remis à dʼautres personnes, veillez
à leur remettre aussi ce mode dʼemploi/ces
consignes de sécurité. Nous déclinons toute
responsabilité pour les accidents et dommages dus
au non-respect de ce mode dʼemploi et des
consignes de sécurité.
1. Consignes de sécurité de la
tondeuse à gazon commandée à la
main
Remarques
1. Lisez minutieusement ce mode dʼemploi.
Apprenez à vous servir correctement de la
machine en effectuant les réglages.
2. Ne permettez jamais à des enfants ou autres
personnes nʼayant pas connaissance du mode
dʼemploi de se servir de la tondeuse à gazon.
Des prescriptions locales peuvent déterminer
lʼâge minimum requis des utilisateurs.
3. Ne tondez jamais le gazon alors que dʼautres
personnes, particulièrement des enfants ou
encore des animaux, se trouvent à proximité.
Pensez au fait que lʼopérateur/opératrice ou
lʼutilisateur/utilisatrice de la machine sera tenu/e
responsable de tout accident sur dʼautres
personnes ou ce qui leur appartient.
4. Si lʼappareil doit être remis à dʼautres personnes,
remettez-leur aussi ce mode dʼemploi.
Mesures préalables
1. Pendant la tonte, portez toujours des chaussures
solides et un pantalon long. Ne tondez jamais
pieds nus ou en sandales légères.
2. Contrôlez le terrain sur lequel vous allez
employer la machine et retirez tous les objets
pouvant être attrapés et éjectés par la tondeuse.
3. Avertissement : Lʼessence est extrêmement
inflammable :
- conservez lʼessence uniquement dans des
réservoirs prévus à cet effet
- faites le plein uniquement à lʼair libre et ne
fumez pas pendant le remplissage
- il faut remplir lʼessence avant de démarrer le
moteur. Pendant que le moteur fonctionne ou
si la tondeuse est chaude, il est interdit dʼouvrir
la fermeture du réservoir et de remplir de
carburant.
- si de lʼessence déborde, il ne faut surtout pas
essayer de mettre le moteur en marche. Au
lieu de cela, il faut éloigner la machine de
lʼendroit sali dʼessence. Tout essai de
démarrage doit être évité jusquʼà ce que les
vapeurs dʼessence soient complètement
volatilisées
- pour des raisons de sécurité, remplacez
toujours le réservoir à essence et autres
fermetures de réservoir dès quʼun
endommagement est détecté.
4. Remplacez les amortisseurs de bruit défectueux
5. Avant lʼutilisation, contrôlez toujours à vue si
lʼoutil de coupe, toute lʼunité de coupe et les
boulons de fixation sont usés ou abîmés. Pour
éviter tout déséquilibre, les pièces
endommagées ou usées et les boulons de
fixation doivent être uniquement remplacés par
jeux complets.
6. Pour les appareils qui ont plusieurs lames,
veillez au fait que lorsque lʼon tourne une lame,
les autres commencent aussi à tourner.
Manipulation
1. Ne faites jamais marcher le moteur à combustion
dans des endroits fermés dans lesquels du
monoxyde de carbone, dangereux, peut
sʼemmagasiner.
2. Ne tondez quʼà la lumière du jour ou lorsque
vous êtes bien éclairé artificiellement. Si
possible, évitez de vous servir de lʼappareil
lorsque lʼherbe est mouillée.
3. Veillez à toujours garder une position équilibrée
sur les pentes.
4. Ne guidez la machine quʼau pas
5. Pour les machines sur roues, veuillez respecter :
tondez transversalement par rapport à la pente,
jamais en descente ou en montée.
6. Faites particulièrement attention lorsque vous
changez de direction sur une pente.
7. Ne tondez pas sur des pentes très raides
8. Soyez particulièrement précautionneux lorsque
vous faites demi-tour avec la tondeuse à gazon
ou lorsque vous la tirez vers vous.
9. Arrêtez la lame lorsquʼil vous faut renverser la
tondeuse à gazon en cas de transport par-
dessus autres surfaces que de lʼherbe et
lorsque vous déplacez la tondeuse à gazon
dʼune surface à tondre à une autre.
10. Nʼutilisez jamais la tondeuse à gazon lorsque la
grille de protection ou les dispositifs de
protection sont endommagés ou sans dispositif
de protection monté, p. ex. des chicanes et/ou
dispositifs collecteurs dʼherbe.
11. Ne modifiez jamais les réglages de base du
F
28
Anleitung_RG_PM_48_B_S_SPK7.e$S__ 10.05.12 15:23 Seite 28
36
F
9. Dérangements et dépannage
Avertissement : Mettez tout dʼabord le moteur hors circuit et retirez le câble dʼallumage avant toute
inspection ou ajustement.
Avertissement : si après un ajustement ou une réparation, le moteur a tourné quelques minutes, pensez au
fait que le pot dʼéchappement les autres pièces sont chaudes. Donc, ne les touchez pas afin dʼéviter des
brûlures.
Attention. Si des problèmes apparaissent et qu’ils proviennent du moteur, veuillez lire le mode
d’emploi Briggs & Stratton joint.
rangement Cause probable pannage
Course irrégulière, fortes
vibrations de lʼappareil
- vis desserrées
- fixation des lames desserrée
- lame non équilibrée
- contrôlez les vis
- contrôlez la fixation des lames
- remplacez la lame
Moteur ne démarre pas - levier du frein non appuyé
- réservoir à essence vide
- ppuyez sur le levier du frein
- remplissez de carburant
Le gazon vire au jaune, coupe
irrégulière
- lame émoussée
- hauteur de coupe trop basse
- vitesse de rotation du moteur
trop lente
- aiguisez la lame
- régler la hauteur correcte
- mettez le levier sur maxi.
Lʼéjection dʼherbe nʼest pas
propre
- vitesse de rotation du moteur
trop lente
- hauteur de coupe trop basse
- lame usée
- sac collecteur bouc
- mettez lʼaccélérateur sur maxi.
- réglez correctement
- remplacez la lame
- videz le sac collecteur
Anleitung_RG_PM_48_B_S_SPK7.e$S__ 10.05.12 15:23 Seite 36
I
43
Prima di eseguire qualsiasi controllo della lama
bisogna spegnere il motore. Tenete presente che la
lama continua a ruotare per alcuni secondi dopo aver
disinserito il motore. Non cercate mai di fermare la
lama.
Controllate regolarmente che la lama sia ben fissata,
in buono stato e ben affilata. In caso contrario
affilatele o sostituitele. Se le lame in movimento
vanno a battere con un oggetto, fermare il tosaerba e
attendere fino a quando le lame siano
completamente ferme. Controllate quindi lo stato
della lama e del portalama. Se sono danneggiati
devono essere sostituiti.
Avvertenze per tagliare lʼerba
1. Fate attenzione ai corpi estranei. Potrebbero
danneggiare il tosaerba o causare lesioni.
2. Se il motore, lo scappamento o lʼazionamento
sono caldi possono causare ustioni. Quindi non
toccarli.
3. Tagliare lʼerba con cautela in caso di pendii o di
terreni in forte pendenza.
4. Se vengono a mancare la luce diurna o quella
artificiale si deve smettere di tagliare lʼerba.
5. Controllate il tosaerba, le lame e le altre parti se
avete incontrato un corpo estraneo o se
lʼattrezzo vibra più del normale.
6. Non modificate le impostazioni e non eseguite
riparazioni senza avere prima spento il motore.
Staccate il connettore del cavo di accensione.
7. In strada o nelle vicinanze di una strada fate
attenzione al traffico. Fate in modo che lʼerba
tagliata non finisca in strada.
8. Evitate i punti nei quali le ruote non facciano più
presa o il lavoro sia insicuro. Prima di muovervi
allʼindietro accertatevi che non ci siano bambini
piccoli alle vostre spalle.
9. Se lʼerba è folta ed alta impostate il livello di
taglio maggiore e tagliate lʼerba più lentamente.
Prima di togliere lʼerba o altre ostruzioni,
spegnete il motore e staccate il cavo di
accensione.
10. Non togliete mai le parti che servono per la
sicurezza.
11. Non riempite mai la benzina se il motore è
ancora caldo o in funzione.
6.4 Svuotare il sacco di raccolta dellʼerba
Non appena rimangono dei resti di erba sul prato
mentre si sta tagliando, si deve svuotare il dispositivo
di raccolta.
Attenzione! Prima di togliere il dispositivo di
raccolta spegnete il motore e attendete che la
lama si sia fermata.
Per togliere il dispositivo di raccolta sollevate con
una mano il portello di scarico e con lʼaltra estraete il
dispositivo dallʼimpugnatura (Fig. 4).
Secondo le norme di sicurezza il portello di scarico si
chiude quando viene sganciato il dispositivo,
chiudendo anche lʼapertura posteriore di scarico. Se
nellʼapertura rimangono resti di erba, si consiglia di
arretrare di ca. 1 m il tosaerba per riavviare il motore
più facilmente.
Non togliete resti di erba tagliata dalla scocca e
dallʼutensile con le mani o con i piedi, ma con mezzi
adatti, come per es. una spazzola o uno scopino.
Per garantire che lʼerba venga raccolta bene, sia il
sacco di raccolta, ma soprattutto la grata dellʼaria
devono venire puliti dopo lʼuso.
Agganciate il dispositivo di raccolta solo a motore
disinserito e con lʼutensile fermo.
Sollevate con una mano il portello di scarico e con
lʼaltra agganciate dallʼalto il dispositivo di raccolta,
tenendolo per lʼimpugnatura.
6.5 Dopo avere tagliato lʼerba
1. Lasciare sempre prima raffreddare il motore
prima di mettere il tosaerba in un locale chiuso.
2. Prima di metterlo via togliere sempre erba, foglie,
lubrificante e olio. Non depositare altri oggetti sul
tosaerba.
3. Prima di usarlo di nuovo controllate tutti le viti e i
dadi. Le viti allentate devono venire serrate
bene.
4. Svuotate il sacco di raccolta dellʼerba prima di
usarlo di nuovo.
5. Staccate il connettore della candela per evitare
lʼuso da parte di persone non autorizzate.
6. Fate attenzione che il tosaerba non venga tenuto
vicino ad una sorgente di pericoli. Le esalazioni
di gas possono provocare esplosioni.
7. Per le riparazioni si devono usare solamente
pezzi originali o autorizzati dal costruttore (vedi
indirizzo del documento di garanzia).
8. Svuotate il serbatoio della benzina con una
pompa di aspirazione in caso di inattività
prolungata.
9. Istruire i bambini di non usare il tosaerba. Non è
un giocattolo.
10. Non tenere mai la benzina vicino ad una
sorgente di calore. Usate sempre una tanica
omologata. Tenete la benzina fuori della portata
Anleitung_RG_PM_48_B_S_SPK7.e$S__ 10.05.12 15:23 Seite 43


Produktspecifikationer

Varumärke: Einhell
Kategori: Gräsklippare
Modell: RG-PM 48 B&S

Behöver du hjälp?

Om du behöver hjälp med Einhell RG-PM 48 B&S ställ en fråga nedan och andra användare kommer att svara dig
