All disclosures, noces and warranty condions are being wrien on the back of the box. Revision 1.0. Released on 15

January, 2013. of

Installation and mounting manual for EK-FC R9- DCII Backplate 280X

This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability

whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at for updates. Before www.ekwb.com

installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.

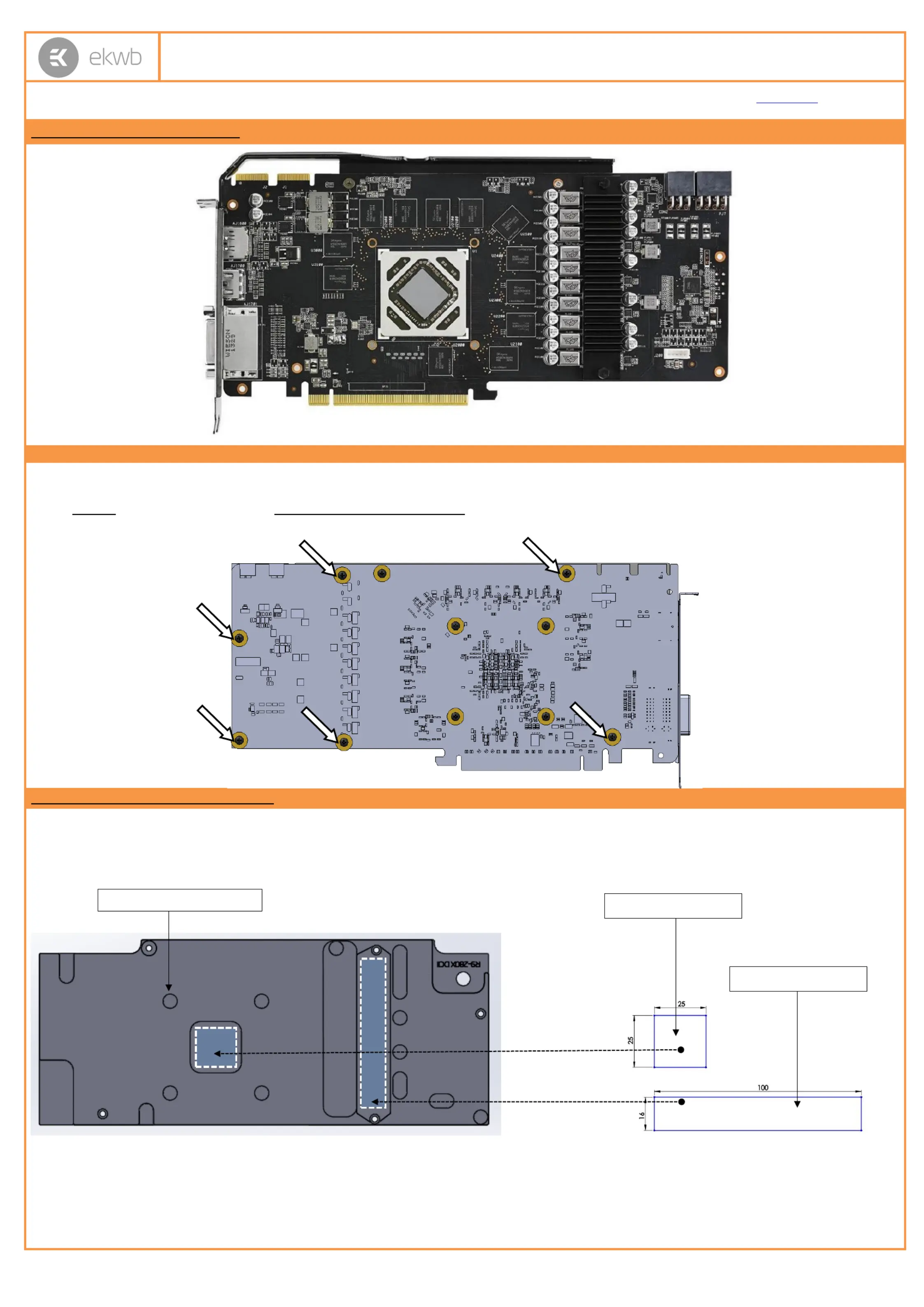

STEP 1: GENERAL INFORMATION. Sample picture of AMD Radeon R9- DCII graphics card.280X

STEP 2: PREPARING YOUR GRAPHICS CARD

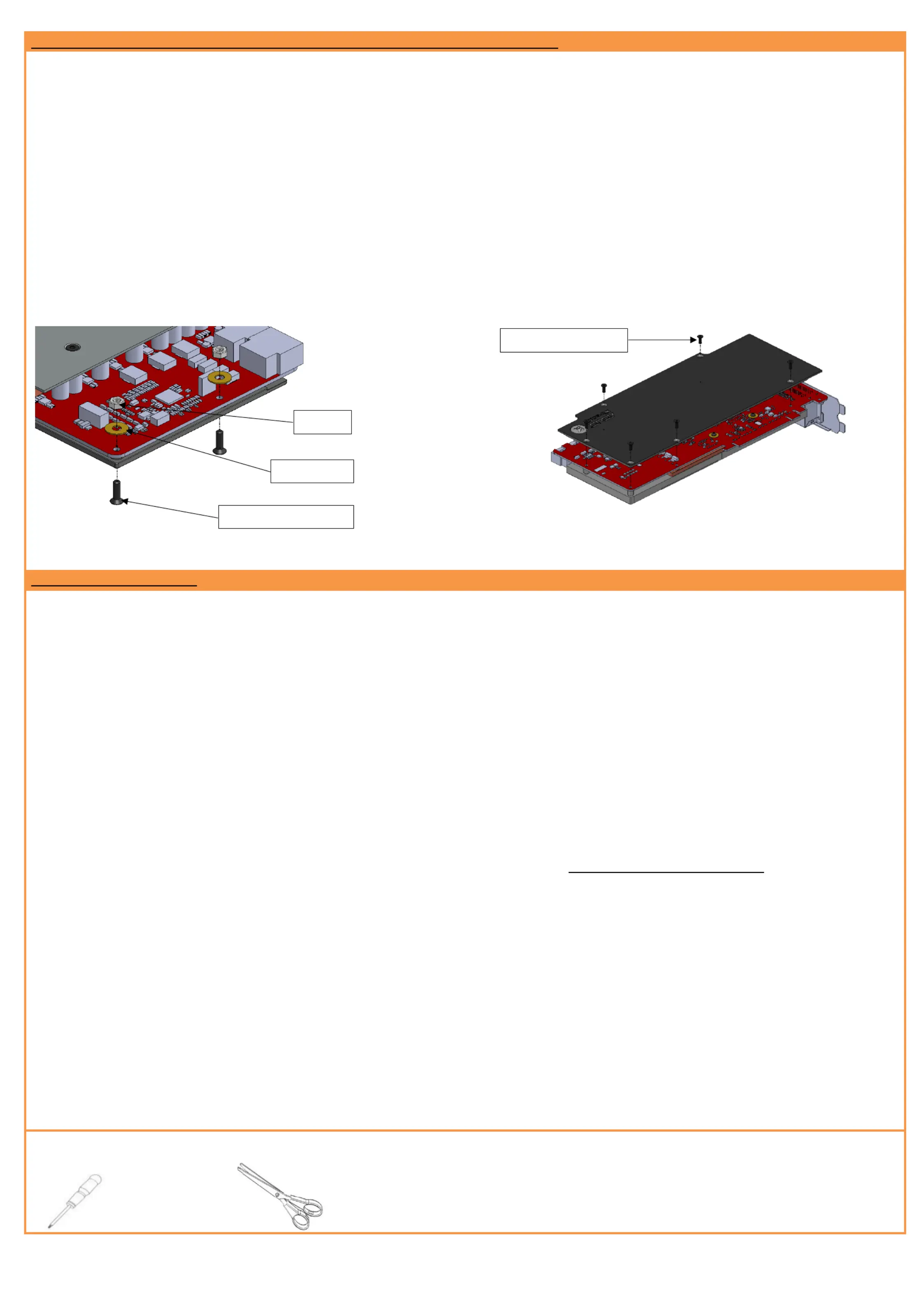

EK-FC R9- DCII Backplate is very easy to install. First install EK- - DCII series water block according to its installation manual. If you 280X FC R9 280X

have it already installed lease check the picture below to see which mounting screws are to be left in their position and which are to be removed. , p

Please remove the six (6) M3x4 DIN7985 screws and their washers as well (marked with arrow).

STEP 3: APPLYING THE THERMAL PADS

EK FC R9- - DCII 280X Backplate features passive cooling of the printed circuit board and it’s components therefore it is mandatory to install the

enclosed thermal pad. Please install enclosed 1mm and 1,5mm thick thermal pad (Thermal Pad A 1mm (100x16), Thermal Pad C 1,5mm – –

(25x25) as shown on the picture below. You may need to trim the excess thermal pad. )

Thermal PAD A 1mm

EK-FC R9- DCII Backplate 280X

Thermal PAD C 1,5mm

Produktspecifikationer

Varumärke:	EK Water Blocks
Kategori:	Hårdvarakylning
Modell:	EK-FC R9-280X DCII
Material:	Gjuten aluminium
Modell:	Bakre platta
Produktens färg:	Svart
Lämplig placering:	Grafikkort
Stödd grafikadapter:	AMD Radeon R9 280X
