6x 20W RGBLA+UV LED Batten Fixture, IP65 Rated
Specications are subject to change without notice ©Elation Professional 06/05/2025
Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com
Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands
+31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu

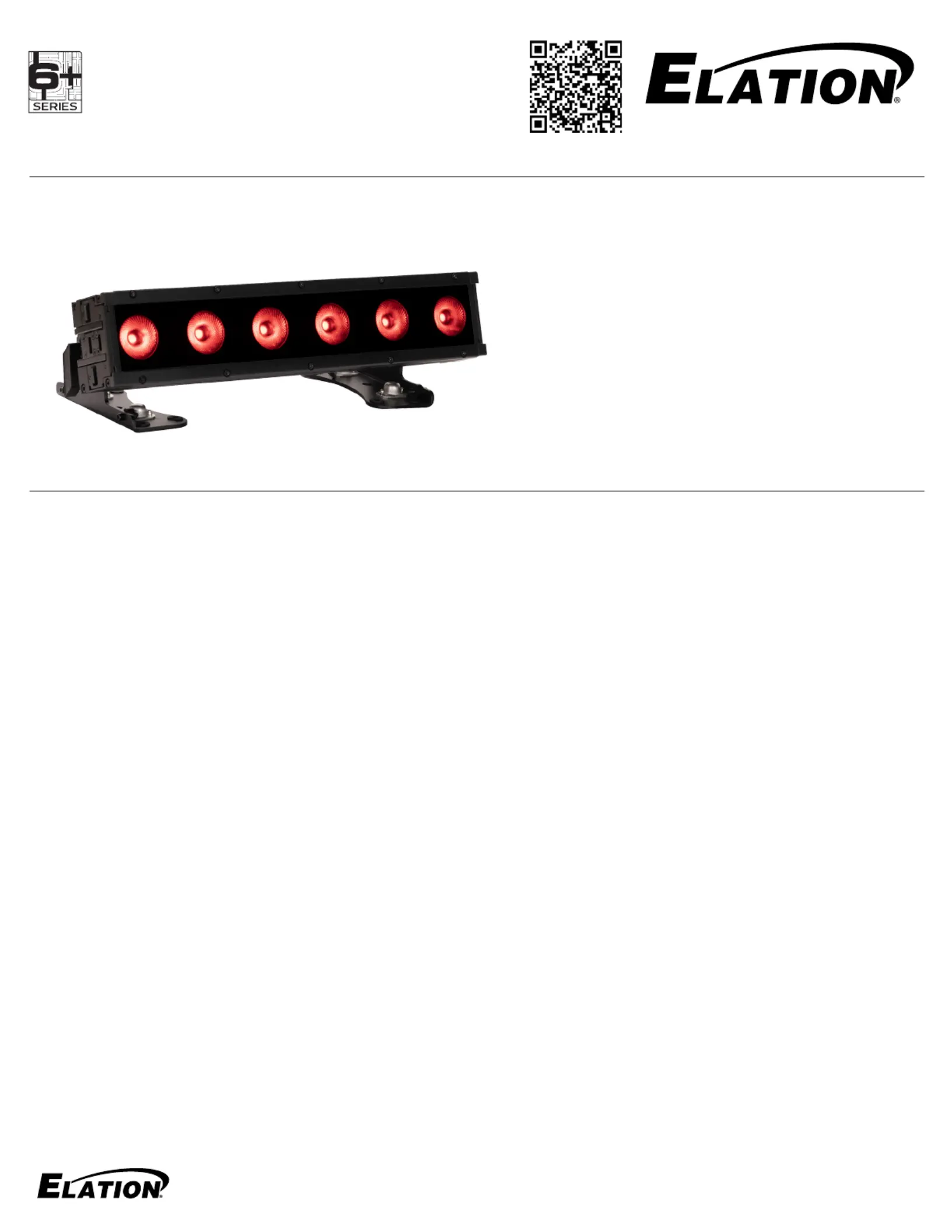

SIX+ BAR S
KEY FEATURES
(6) 20W RGBLA+UV LED Array
>4000 Lumens, 90.9 CRI
Extra Large 50mm Lenses
Beam Angle: 30°x 14° (Frost Filter Included)
Full Pixel Control
Completely Fanless Cooling
Integrated L Track for Flexible Mounting
Unique End-to-End Interconnection System
Art-Net, sACN and KlingNet Support
IP65 Rated
Unleash the full potential of LED batten lighting and ignite your creative spark with the new SIX+ BAR S !
The SIX+ BAR S represents an innovative line of creative LED batten solutions that harmonizes the latest in LED color
technology with versatile design for greater artistic expression. An upgrade of Elation’s beloved SixBar 500, the SIX+
BAR S raises the bar with more output, a broader color spectrum and an overall superior quality of light.
Equipped with 20W RGB+Lime+Amber+UV LEDs and boasting an impressive CRI of 90.9, the SIX+ BAR S oers a stunning
array of colors, ensuring a beautifully homogenized wash of light with high-quality color reproduction. Its meticulously
engineered optical system ensures even light distribution, and the proprietary RGBLA+UV engine delivers high-delity
whites and intense primaries with homogenized color blending. Extra-large 50 mm lenses make it ideal for direct view
applications and individual cell control opens up for a myriad of design possibilities.
The half-meter-long SIX+ BAR S houses 6 RGBLA+UV LEDs and packs a punch at over 4000 lumens. With fully variable
color temperature adjustment (2400K - 8500K), CMY emulation, and a virtual gel library, designers have immediate
access to a diverse LED color array, including beautifully mixed whites. A time-ecient SixBar emulation mode ensures
perfect color matching and DMX control with existing SixBar xtures. The integrated accessory slot accommodates the
included frost lter, with optional ND lters and other optics available. The xture also ships with an included glare
shield for wall wash applications.
Designed for ultimate exibility, the SIX+ BAR S’s innovative housing allows for end-to-end interconnection and includes
integrated L track on three sides for exible mounting and positioning. Trunnions designed for attachment to the L track
can be xed at multiple points to optimize positioning around objects or obstacles.
Ideal for a large variety of productions and easily integrated into installation applications, the SIX+ BAR S serves as a
highly versatile wash light, uplight, wall/cyc wash, accent light, direct view pixel strip and more. Wrapped in a durable,
fully IP65-rated housing, the xture is suitable for any environment, indoors or outdoors, and the C4-M marine grade
coating ensures protection against the harshest environments, even salty coastal air. Its fanless convection cooling
guarantees silent operation, making it ideal for noise-sensitive environments.
Controllable via DMX/RDM, Art-Net, sACN, and KlingNet protocols, the SIX+ BAR S also features proprietary Aria p1-x2
wireless device management for simplied system setup and maintenance.
Do more with LED batten lighting and set your creative spirit free with the SIX+ BAR S !
DATA SHEET
6x 20W RGBLA+UV LED Batten Fixture, IP65 Rated
Specications are subject to change without notice ©Elation Professional 06/05/2025
Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com
Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands
+31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu
SIX+ BAR S
SPECIFICATIONS
SOURCE
(6) x 20W RGBLA+ UV LEDs
30,000 Hour Average LED Life*
*May vary depending on several factors including but not limited
to: Environmental Conditions, Power/Voltage, Usage Patterns
(On-O Cycling), Control and Dimming.
PHOTOMETRIC DATA
Total Lumen Output:
4,435 (Goniometer)
CRI- 90.9
TLCI- 80
No Lens
Beam Angle: 20°
Field Angle: 33°
Included Frost
Beam Angle: 30°
Field Angle: 60°
EFFECTS
Full Pixel Control
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
COLOR
RGBLA+ UV Color Array
CMY Emulation
Variable CCT 2400K - 8500K
Dim-to-Warm Fade
Virtual Gel Swatch Book
CONTROL / CONNECTIONS
13 DMX Channel Modes (1ch, 3ch, 6ch, 9ch,
13ch, 16ch, 16ch, 22ch, 22ch, 34ch, 46ch, 82ch,
36ch)
5 Six Bar 500 Emulation DMX Channel Modes
(6ch, 7ch, 11ch, 13ch, 36ch)
4 Button Control Panel, LED Display
Aria p2-x2 Wireless Device Management
RDM (Remote Device Management)
IP65 5pin XLR DMX In/Out
IP65 RJ45 Ethernet In/Out (Art-Net, sACN,
KlingNet)
IP65 Locking Power Cable In/Out
SIZE / WEIGHT
Length: 19.7” (500mm)
Width: 6.9” (176mm)
Vertical Height: 8.1” (206mm)
Weight: 14.88 lbs / 6.75kg
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
110W Max Power Consumption
Power Thru Capacity: 10A (10 Units @110V; 21
Units @ 240V)
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 375.1
INCLUDED ITEMS
Safety Cable
IP65 Locking Power Cable
Frost Filter
Glare Shield
Fixture Interconnect Splice
OPTIONAL ITEMS
BAR S NSP Lens (BLS021)
BAR S WFL Lens (BLS061)
BAR S XFL Lens (BLS101)
BAR S L140 Lens (BLS141)
BAR S L1060 Lens (BLS161)
# 8050000053 - Omega Bracket (Qty.2)
Fixture Interconnect Splice Package (FISP06)
L-Track to M10 Adapter,70mm (LTR001)
L-Track to M10 Adapter, 44.5mm (LTR008)
L Track C-Clamp & Adapter Assembly, 70mm
(LTR100)
L Track C-Clamp & Adapter Assembly, 44.5mm
(LTR112)
Interconnect Clamp Adapter (FICA01)
APPROVALS / RATINGS
CE | cETLus | IP65 | FCC | UKCA
IP65
6x 20W RGBLA+UV LED Batten Fixture, IP65 Rated
Specications are subject to change without notice ©Elation Professional 06/05/2025
Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com
Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands
+31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu
SIX+ BAR S
SIX226 1237000341 SIX+ BAR S
BLS021 1223200117 BAR S NSP
BLS061 1223200108 BAR S WFL
BLS101 1223200116 BAR S XFL
BLS141 1223200115 BAR S L140
BLS161 1223200114 BAR S L1060
8050000053 OMEGA BRACKETPENDING
FISP06 1236300110 FIXTURE INTERCONNECT SPLICE PACKAGE
LTR001 L-Track to M10 Adapter, 70mmPENDING
LTR008 L-Track to M10 Adapter, 44.5mmPENDING
LTR100 L-Track C-Clamp & Adapter Assembly, 70mmPENDING
LTR112 L-Track C-Clamp & Adapter Assembly, 44.5mmPENDING
FICA01 PENDING INTERCONNECT CLAMP ADAPTER

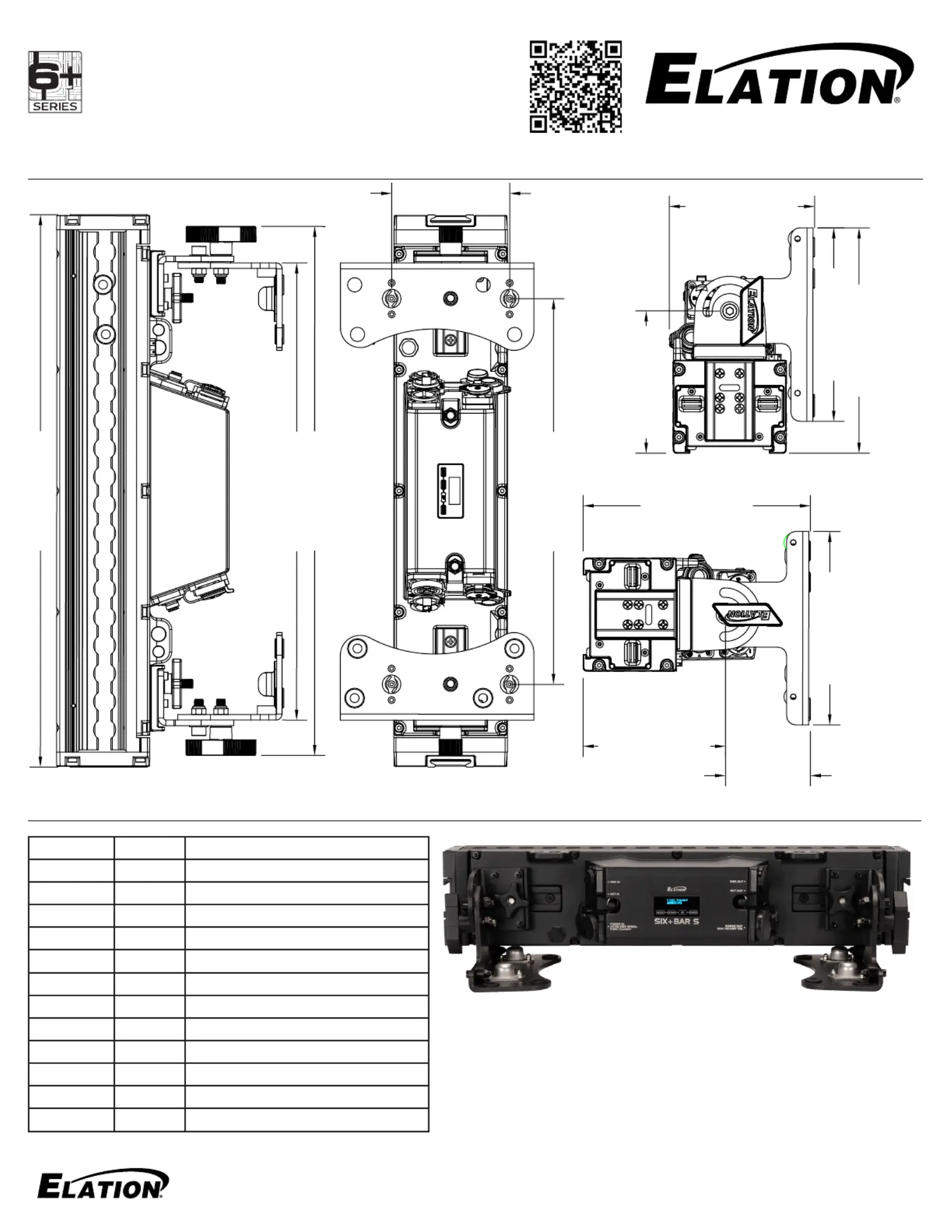

DIMENSIONAL DRAWING
ORDERING INFORMATION
13.8in. [350mm]
4.2in. [107mm]
18.9in. [480mm]
16.3in. [415mm]
19.7in. [501mm]
8.1in. [205mm]
5.1in. [129mm]
6.9in. [176mm]
5.2in. [132mm]
5.1in. [129mm]
6.9in. [176mm]
8.1in. [206mm]
3.0in. [77mm]
