Sida 1/4
MB3
Wall/Ceiling
Mounting Bracket
Installation Instructions
MB3 Wall/Ceiling Mounting Bracket Kit
The MB3 Wall/Ceiling Mounting Bracket Kit features robust brackets and hardware that allow for a Zx3 loudspeaker
to be quickly and easily mounted to a wall or ceiling in almost any position to obtain the desired sound coverage.

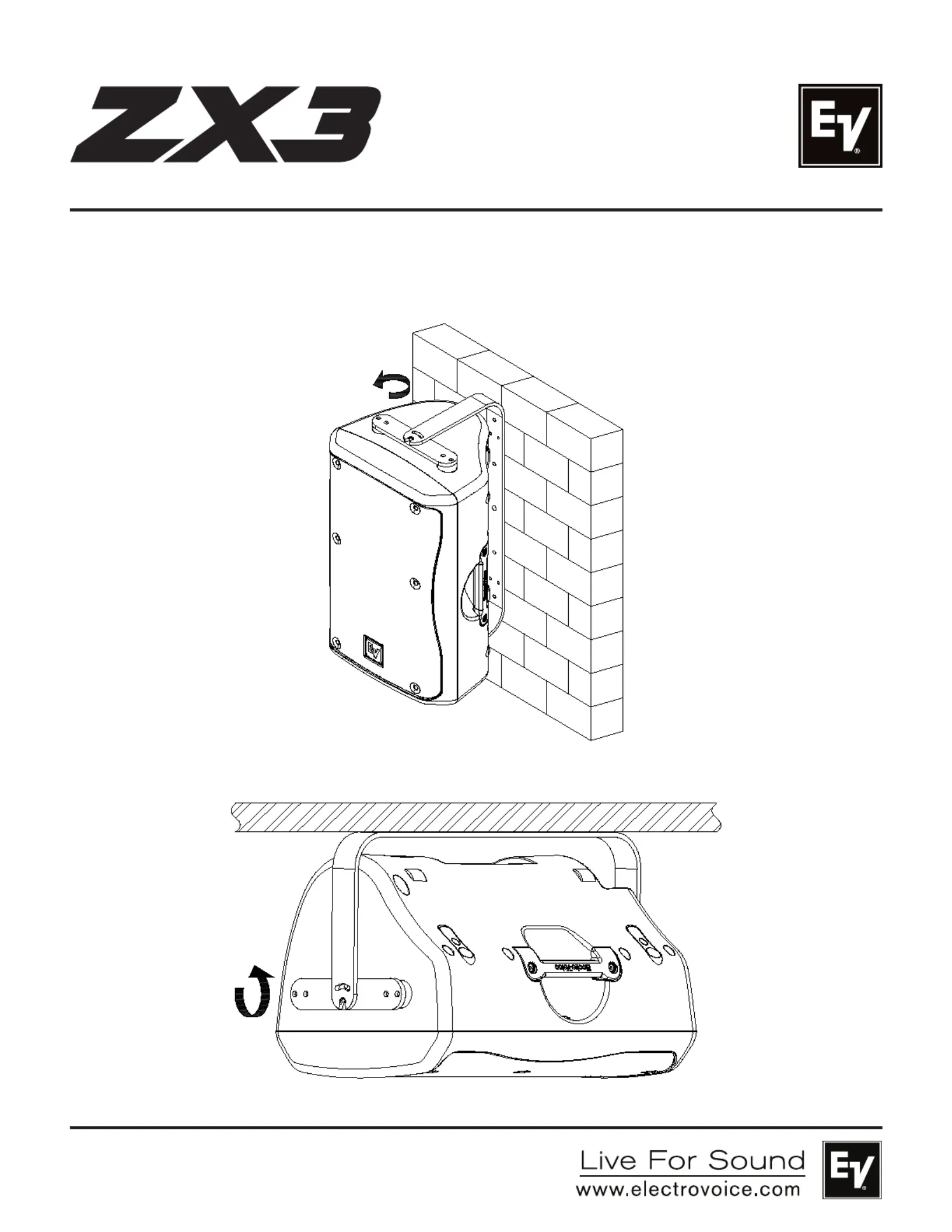

Figure 1: Suspending the Zx3 from a wall using the MB3
Figure 2: Suspending the Zx3 from a ceiling using the MB3
Item C
(x4)
Step 1: Attach Spanning Brackets
Remove the single-stud fittings on the top of
the enclosure by removing the four screws, and
remove the two decals on the bottom of the en-
closure by using a knife or razor blade (Figure 3).
Install the four spacers (Item D) and two spanning
brackets (Item B), using the eight flat head screws
(Item C). Thread two M8 cap screws (Item E) into
the front threaded hole of each spanning bracket,
until they are flush with the bottom of the spanning
bracket (Figure 4).
MB3 Mounting Bracket Includes
Item Description Qty.
A U-Bracket 1
B Spanning Bracket 2
C Screw, 10-32 x 1-3/4”, Flat Head 8
D Spacer 4
E Socket Head Cap Screw, M8x20mm 4
F Washer, M8 2
G Lock Washer, M8 2
Item D
(x2)
Item B

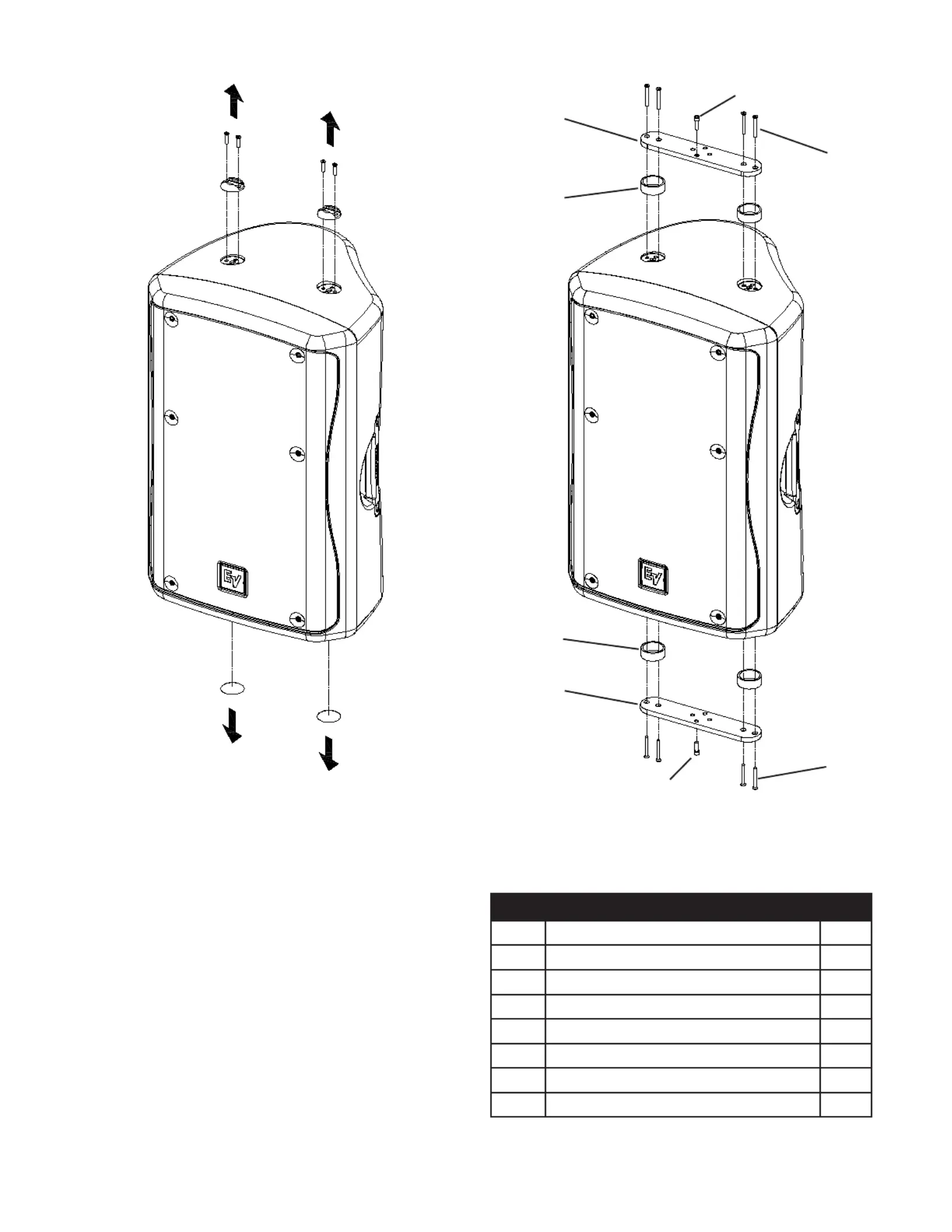

Figure 3: Figure 4: Removing hardware on the Zx3 Installing the Spanning Brackets
Item E
Item C
(x4)
Item D
(x2)
Item B
Item E
Step 2: Mount the U-Bracket
Mount the U-bracket (Item A) to a wall or ceiling using
the appropriate holes (Figure 5). Use fasteners (not
included) that are suitable for the construction mate-
rial of the wall or ceiling. See dimension diagrams for
mounting hole patterns and dimensions.
Step 3: Mount the Zx3 to the U-Brackets
Slide the Zx3 into the U-bracket by aligning the M8 cap
screws with the front slots of the U-bracket (Figure 6).
The weight of the Zx3 will pull the top M8 cap screw
into the recess of the front slot of the U-bracket (wall
mount/vertical orientation only). Rotate the Zx3 to the
desired orientation (Figure 7), and install the two M8
washers (Item F), two M8 lock washers (Item G), and
two M8 cap screws (Item E), using the threaded hole
that aligns with the rear slot. Tighten the four M8 cap
screws (Figure 8).
Item A
4 Medium Holes for
Ceiling Mount/Wall Mount
(Vertical Orientation)
4 Small Holes for
Ceiling Mount/Wall Mount
(Horizontal Orientation)
Rear Slot
(Top and Bottom)
Front Slot
(Top and Bottom)

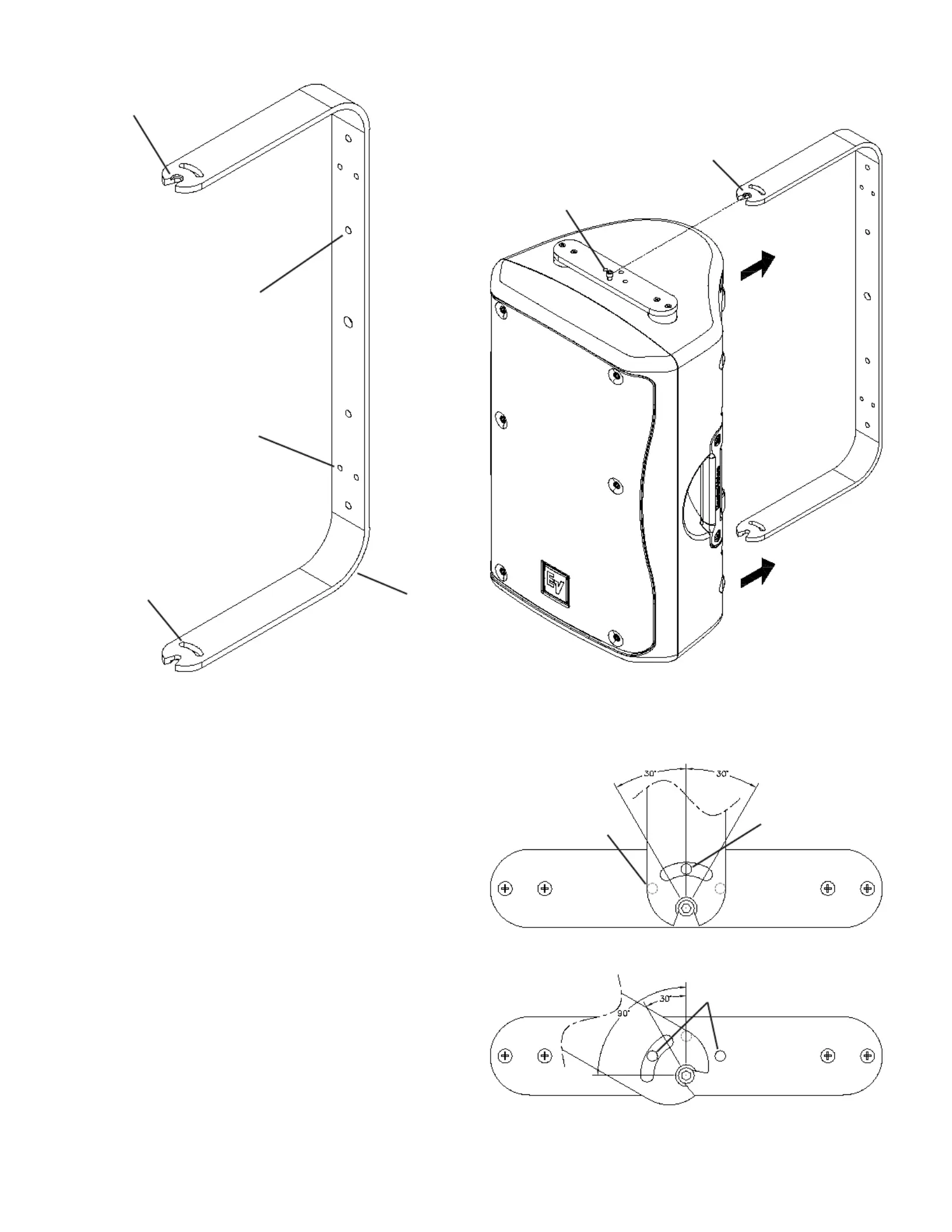

Figure 5: MB3 U-Bracket Features
Figure 6: Aligning the Zx3 Enclosure with the U-Bracket
Figure 7: Rotating to desired angle
M8 Cap Screw
Flush with Bottom
of Spanning
Bracket
(Top and Bottom)
Front Slot
(Top and Bottom)
Use rear hole for
angles up to 30°
Use either side holes for
angles between 30° and 90°
Holes under
bracket shown
as dashed lines
