SERVICE DATA SHEET
240389641
ICE & WATER - AUTOMATIC DEFROST
SIDE BY SIDE - R134a
IMPORTANT SAFETY NOTE
The information provided herein is designed to assist qualified
repair personnel only. Untrained persons should not attempt to
make repairs due to the possibility of electrical shock. Disconnect
power cord before servicing this appliance.
IMPORTANT
If any green grounding wires are removed during servicing,
they must be returned to their original position and properly
secured.
CAUTION
All electrical parts and wiring must be shielded from torch
flame. DO NOT allow torch to touch insulation; it will char
at 200°F and flash ignite (burn) at 500°F. Excessive heat will
distort the plastic liner.
NOTE
This product comes equipped with an Adaptive Defrost Control
(ADC). To activate manual defrost, simultaneously press and
hold the Fresh Food up (+) and Fresh Food down (-) keys for 5
seconds. A “d” in the freezer temperature window and “F” in the
refrigerator temperature window will display when the heater is
activated. To deactivate manual defrost, simultaneously press
and hold the Fresh Food up (+) and Fresh Food down (-) keys
for 5 seconds. A “d” and “F” will be displayed until the defrost
cycle is complete.
ICE MAKER INFORMATION
Test Cycling
Press the momemtary contact on the ON/OFF switch
for approximately 15 seconds. Ice maker will continue to
complete the cycle.
Water Fill Volume
Remove cover by inserting screwdriver in notch at bottom and
prying cover from housing. The water fill adjustment screw
will change the fill time. One turn is equal to 20cc (.68 oz.).
The correct fill is 102 to 110cc (3.25 to 3.5 oz.). When a water
valve is replaced, the fill volume must be checked.
T
U
R
N
Mounting
Plate
Screws
Mounting
Plate
Screw
Motor
Gear
Timing
Gear
Water Fill
Adjustment
Ice Maker
ON/OFF
Switch
PERFORMANCE DATA NO LOAD & NO DOOR OPENINGS AT MID-POINT
CONTROL SETTING (2500 ++ V4)
Type A with Run/Start
Capacitor
65°F (18°C) Ambient90°F (32°C) Ambient
Variable SpeedStandardVariable SpeedStandard
Operating Time74 to 84%32 to 40%100%55 to 65%
Freezer Temperature-2° to 2° F
-19° to -17° C
0° to 4° F
-18° to -16° C
-1° to 3° F
-18° to -16° C
-1° to 3° F
-18° to -16° C
Refrigerator Temperature34° to 39° F
1° to 4° C
34° to 39° F
1° to 4° C
34° to 39° F
1° to 4° C
34° to 39° F
1° to 4° C
Low Side Pressure
(cut-in)
5 to 12 psig
43 to 83 kPa
5 to 12 psig
43 to 83 kPaN/A 5 to 12 psig
43 to 83 kPa
Low Side Pressure
(cut-out)
-2 to 2 psig
-14 to 14 kPa
-2 to 2 psig
-14 to 14 kPa
-2 to 2 psig
-14 to 14 kPa
-2 to 2 psig
-14 to 14 kPa
High Side Pressure
(last 1/3 cycle)
90 to 105 psig
621 to 724 kPa
90 to 115 psig
621 to 793 kPa
120 to 135 psig
827 to 931 kPa
130 to 155 psig
896 to 1069 kPa
Wattage (last 1/3 cycle)60 to 65120 to 15065 to 80130 to 160
Amps (running).7 to 1.11.0 to 1.4.9 to 1.31.1 to 1.5
Base Voltage115 vac (127 vac max)
DEFROST SPECIFICATIONS
Cabinet Size
Thermostat Heater
Cut-in Cut-outWattsOhms
23’, 23’ CD, 26’25° F (-4° C)47° F (8° C)45030
Elecrttonic Timer - (ADC) Defrost 24 minutes every 6-96 hours of compressor run time.
CONDENSER FAN MOTOR
Watts RPMAmps
3.11100 CW Opposite Shaft0.03 Running
ICE MAKER SPECIFICATIONS
Electrical115 vac (127 vac max)
ThermostatOpens at 48° F ( 9° C), Closes at 15° F ( -9° C)
Heater Voltage85 vac

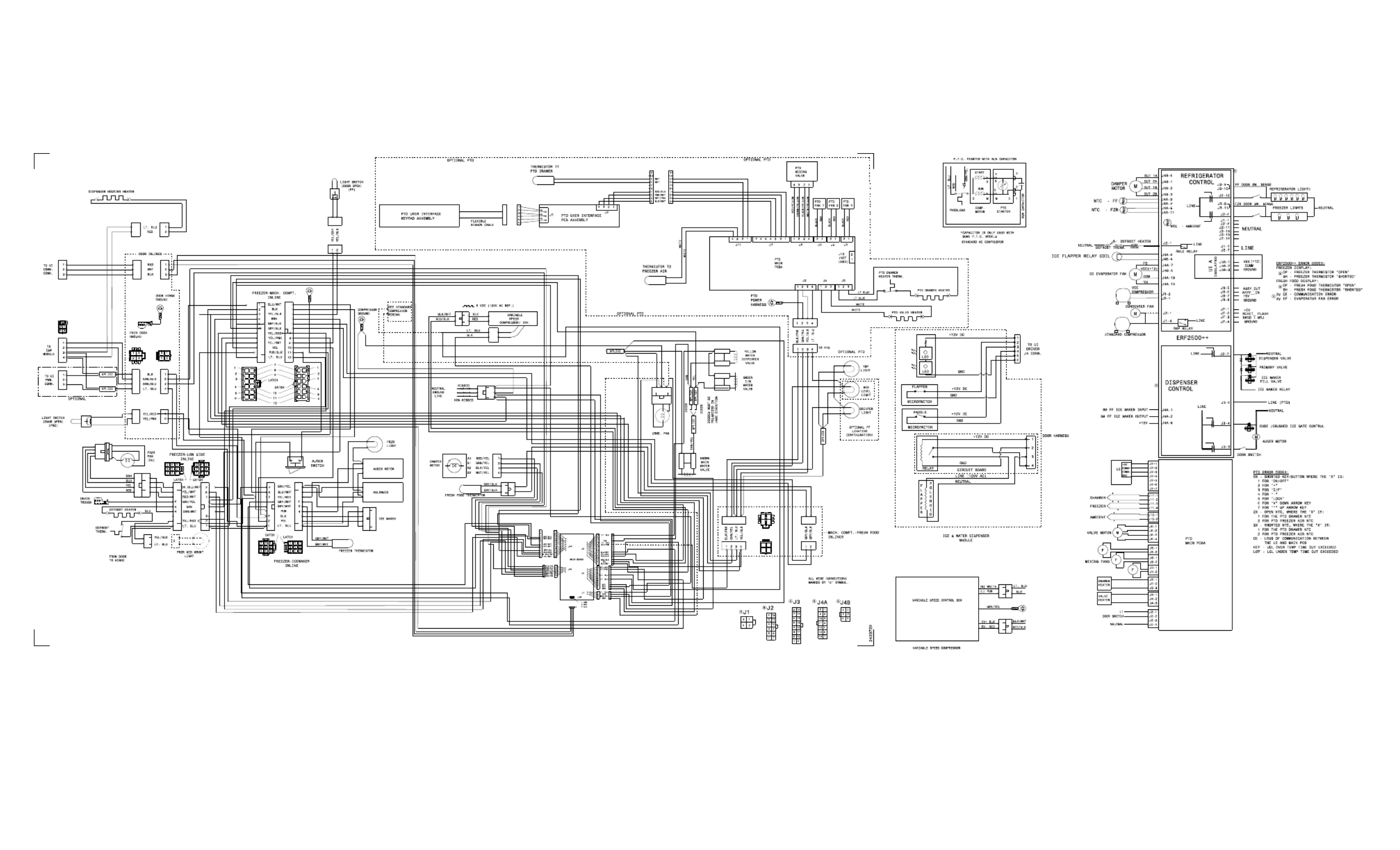

ICE MAKER CONNECTOR PLUG CONNECTIONS
Wire NumberWire ColorConnects to:
1 Green/YellowGround
2YellowWater Valve
3 BlackLine
4Light BlueNeutral
IMPORTANT: PLEASE RETURN THIS SHEET TO
IT’S ORIGINAL LOCATION
