MANUAL
PF3 MK2

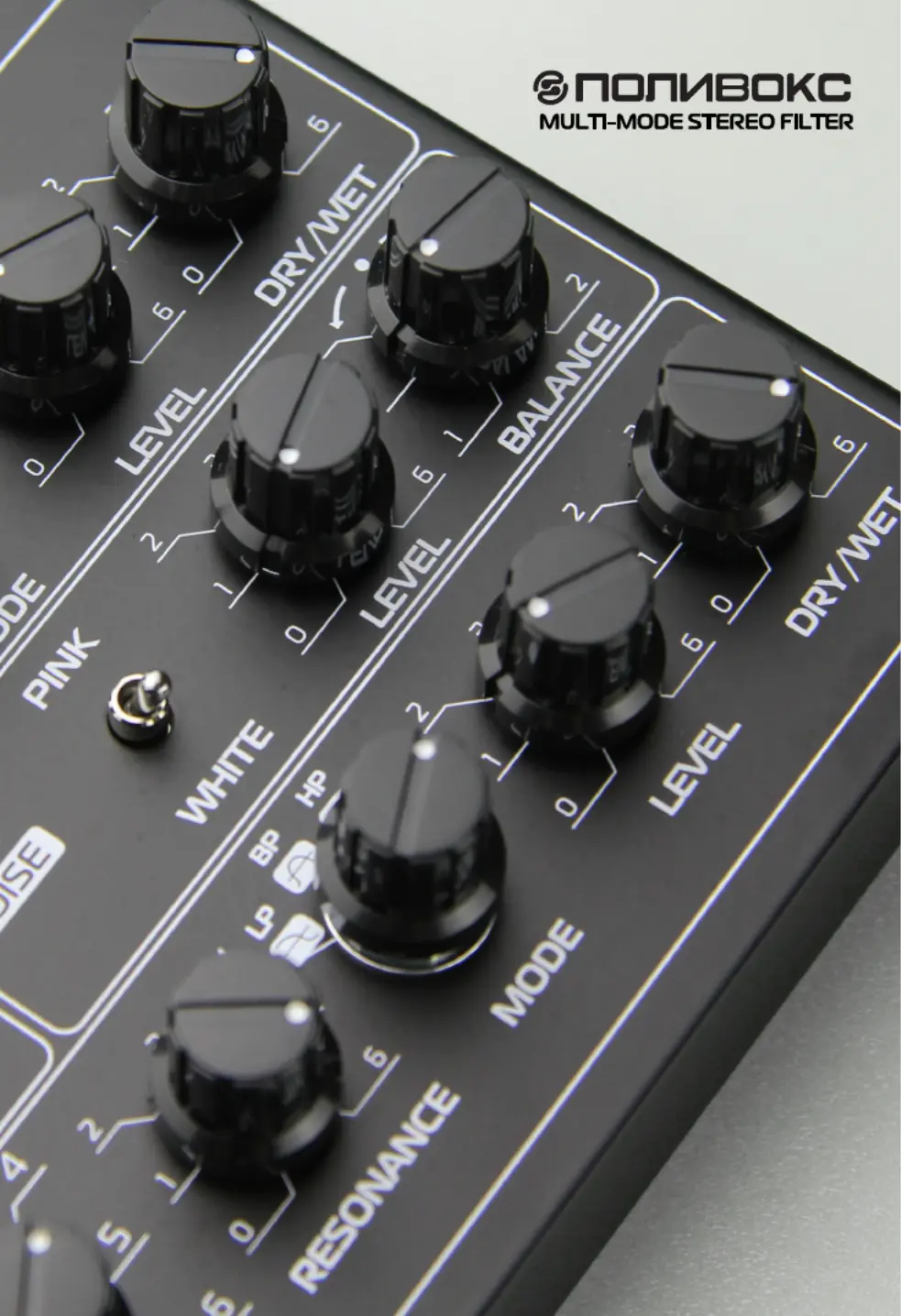

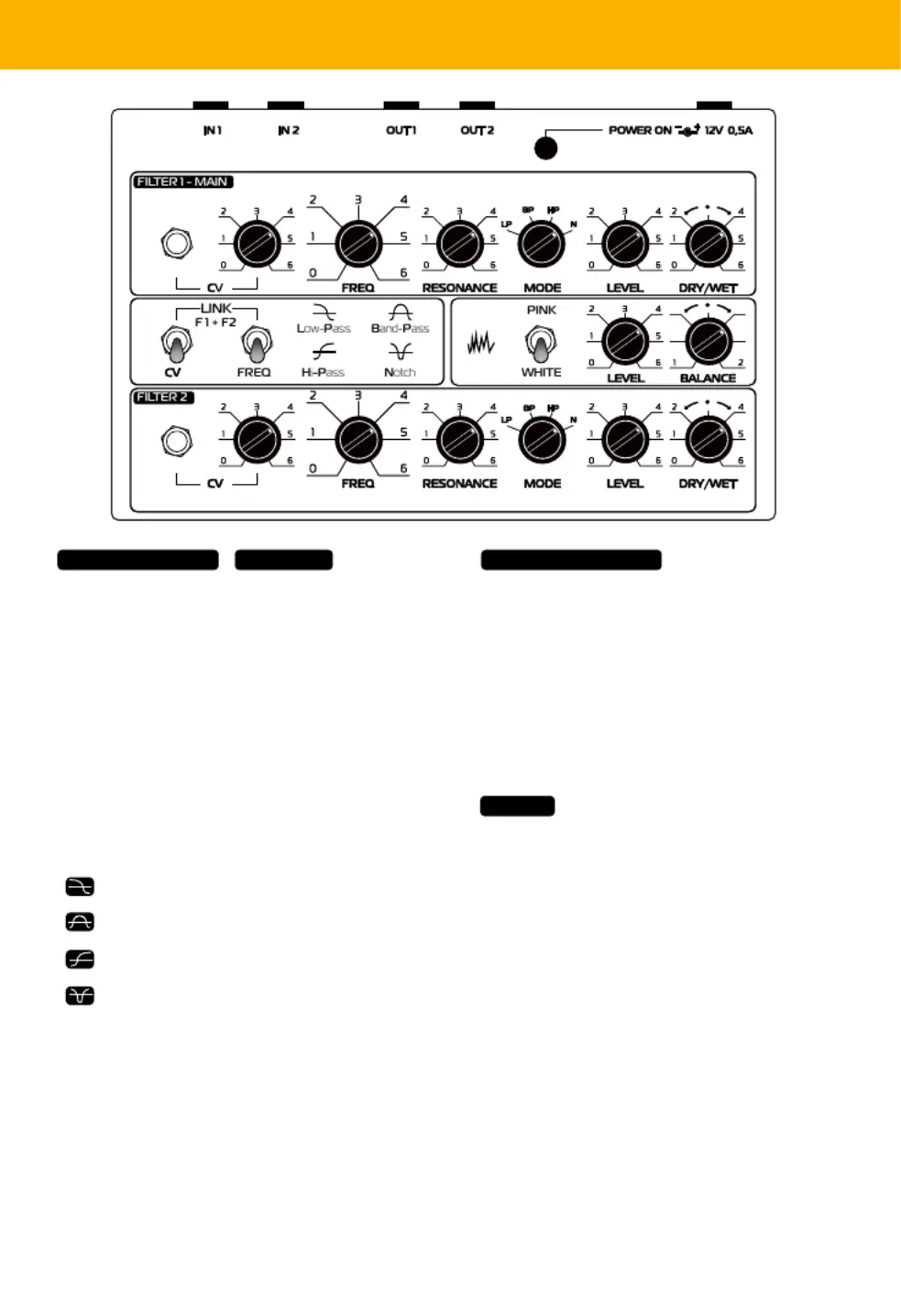

CONTROLS
CV – you can control/automate filter
cutoff via using in. Led indicator CV CV
mirrors the amount of voltage in the
input jack.
CV potentiometer attenuates applied CV
to the filter cutoff frequency.
CUTOFF – manual filter cutoff frequency
RESONANCE – Filter resonance (boost
the frequency near cutoff point)
MODE- Filter mode switch
LP – low pass
BP – band pass
HP – high pass
N – notch filter
LEVEL – controls the output level of
filtered signal to balance the volume.
DRY/WET – blends dry and filtered
signals
CV in – connect control voltage standart
mono minijack from eurorack system
LINK CV – when switched on links CV on
filter 1 to control both filters 1 and 2
LINK FREQ – when switched on links
FREQ CONTROL on filter 1 to control
both filters 1 and 2
There is a noise generator built in the
filter. It can blend noise to the audio
signal
PINK/WHITE – switch two types of noise
LEVEL – controls the level of noise
generator.
BALANCE – adjusts amount of noise
signal going to filter 1 and 2
IN1 IN2 and –this is an audio input of the filter. To operate in stereo or dual mono
mode plug in stereo of 2 mono signals here. If you plug just the and two IN1 OUT 2
filters are conneccted in series. If you plug input 1 and 2 and outputs 1 and 2 two filters
work in stereo (parallel mode). - switches on/off the unit. POWER ON POWER SUPPLY-
use 12VDC adapter 0,5 - 1 A (center positive)
FILTE MAIN FREQ CONTROLR 1 -
FILTER 2
NOISE
POLYVOX PF3 MK2 double-stereo filter utilizes the classic Soviet filter chip for a
unique and iconic filter tone. This filter will make your sound dirty and angry. With the
resonance turned up, you won't lose bass frequencies. Two independent 12dB
multi-mode filters that can be controlled by a single cutoff knob. Turning the filter into
a 24dB filter, when connected in series. When connected in stereo, you can achieve
interesting effects by using different modes to each channel.
A noise generator is on board pre-filter and can be used separately as a source of white
and pink noise. There are two types of noise - white and pink. You can choose the type
of noise via switch. Adjust the volume and balance of the noise using the WHITE/PINK
LEVEL BALANCE and pots in the noise section. Volume as well as clean and processed
signal balance per channel.
To adjust cutoff frequency, use the control. To boost the volume near the cutoff FREQ
frequensy turn the RESONANCE control clockwise. LEVEL control adjust the level of the
filtered signal. WET/DRY control blends direct and filtered signals in any proportion. For
remote control of the cutof frequency, use the input jack and the potentiometer CV CV
to control amount of to cutoff. Led indicator near the CV jack mirrors the control CV
voltage applied to input. Polivoks PF-3 has two separate filters onboard. To control CV
cutoff of both filters with the filter 1 cutoff pot and , switch on the link switch in the CV
middle of the control panel.
The UD1208 chips used in the filter are very sensitive and are never the same.
Therefore you will not mathematically get two identical filters. Which is an
advantage when using the unit in stereo.
WARNING!

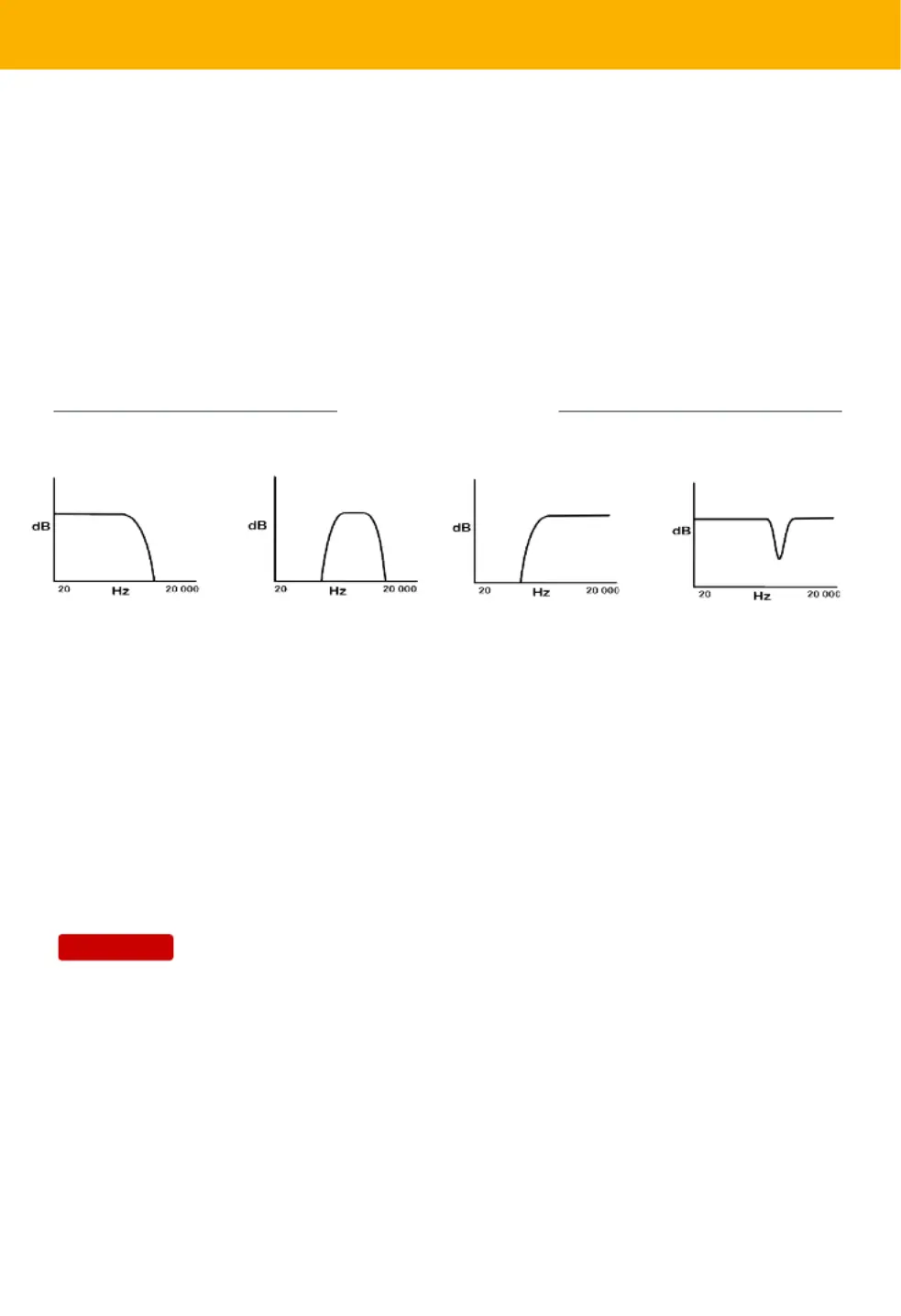

LowPass BandPass HiPass Notch
FILTER MODES
LowPass – removes
frequency content
above the cutoff
frequency.
High pass – removes
frequency content
below the cutoff
frequency.
Band pass – removes
frequency content
above and below the
cutoff frequency.
Notch – removes
frequency content
at the cutoff
frequency.
DESCRIPTION
