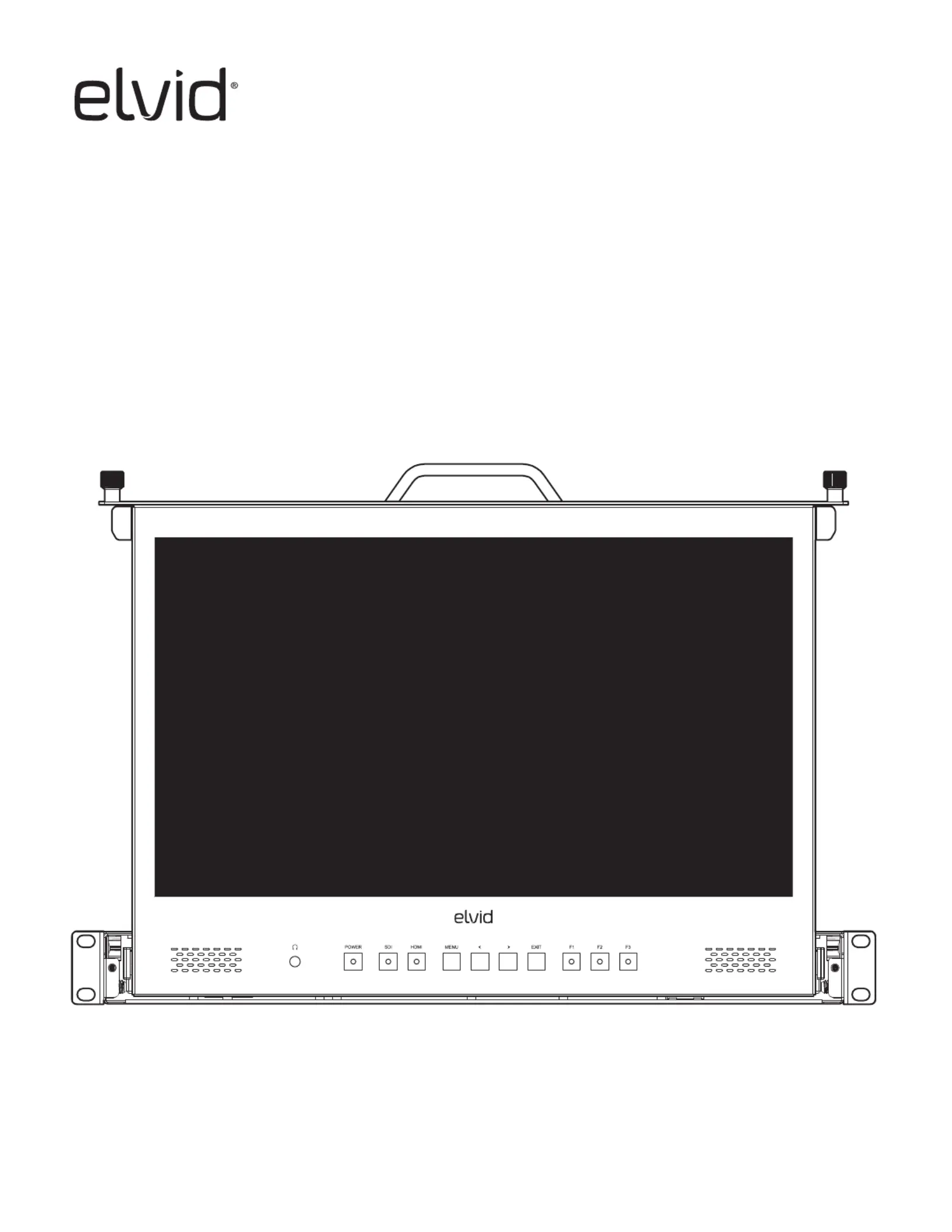

USER MANUAL

STUDIOVISION

SRM-17X1D-4KHS

17.3 in. Rack Drawer Monitor

STUDIOVISION SRM-17X1D-4KHS4KHDR

PRECAUTIONS

• Keep this product away from water and any

flammable gases or liquids.

• Do not expose this product to humidity or extreme

heat or cold.

• Make sure this product is powered off when

plugging it into a power source.

• Use only the correct, recommended voltage.

• Do not attempt to disassemble or repair this product.

• Exposure to high sound levels can cause permanent

hearing loss. Avoid listening at high volumes for

extended periods of time.

• When the monitor is not in the protective case, do

not place or store it facedown, since this can damage

the screen.

BOX CONTENTS

• Elvid StudioVision Monitor

• Power adapter

• Tally adapter

• Handle this product with care. Avoid any impacts to

this product.

• Do not block the vents in this product.

• Disconnect this product from its power source

before storage and during electrical storms.

• Do not use chemical solutions to clean this product.

Clean it with only a soft, dry cloth.

• Keep this product away from children.

• Make sure that this product is intact and that there

are no missing parts.

• To avoid damage to this product, be careful not

to overtighten or improperly thread any of the

threaded fittings.

• All images are for illustrative purposes only.

THANK YOU FOR CHOOSING ELVID.

The Elvid SRM-17X1D-4KHS rackmount monitor with HDR support is a 17.3-inch full HD monitor that’s ideal for travel,

broadcast trucks, and location shoots. When it’s not in use, the monitor folds down and slides into a single rack space

of a 19-inch machine rack. The LCD panel’s native 1920 × 1080 resolution provides a sharp image and facilitates precise

color rendering. The monitor features HDMI and SDI inputs and outputs, and its native aspect ratio of 16:9 fits most

popular video formats. The monitor has a 170° viewing angle, so no matter where you place it in a studio, location, or

broadcast truck, you’ll view the picture in crisp detail.

Easy-to-access menus let you select which of the many monitoring and broadcast tools to display on each side. Three

assignable function buttons give you the option of placing specic picture adjustment tools at your ngertips. User-

supplied 3D LUTs can be loaded via the USB port, and Ethernet software control is supported via the ethernet port. A

DE-15 Tally connector is compatible with standard tally systems for monitoring in broadcast applications. The monitor

supports up to 16 audio channels, and a headphone output allows you to monitor the input signal from any one of the

eight stereo pairs.

TABLE OF

CONTENTS

Overview ...............................................................................................................................................................................................................................................................4

Getting Started ...................................................................................................................................................................................................................................................6

User Interface .....................................................................................................................................................................................................................................................7

Picture Menu .......................................................................................................................................................................................................................................................9

Marker Menu .....................................................................................................................................................................................................................................................10

Function Menu .................................................................................................................................................................................................................................................10

Waveform Menu ...............................................................................................................................................................................................................................................11

Audio Menu .......................................................................................................................................................................................................................................................12

System Menu ....................................................................................................................................................................................................................................................12

Supported Resolutions and Frame Rates ................................................................................................................................................................................................13

Specications ....................................................................................................................................................................................................................................................14

Troubleshooting 15 ................................................................................................................................................................................................................................................
