Sida 1/4
POWER
STOP
VOLUME
VOLUME
OPEN/CLOSESTANDBY LED
PLAY/PAUSETUNING +/-
TUNE/SKIP STOP
HEA DP HONE
PLAY/PAUSE
STAN DBY
SU B
TITLE
DV D TUNER AUX
LANGUAGE TITLE RETU RN
ANGLE
GO TO
MENU
ZOOM
SE TU P
AUDIO
1
DI SPL AY
2 3
>1 0 0
N/ P
SLEEP MUTE
O P EN /
OPEN/CLOSE
C LO SE
ENTER
A- B REPEAT PROG .
SE L ECT
LI ST ENING
TES T
TO NE
ST OP
STOP
PLAY/PAUSE
PLAY/PAUSE
SL OW
S TA
-
S TA
+
S T /M O
T UN T UN
+
M E M O
456
789
AD J/VOL
+
STANDBY
TUNER
TUNING +/- VOLUME +/-
ENTER
/ / /
Complete Home Theater System with DVD/CD Player and Digital Tuner
This Quick Set Up Guide will help you get your new Emerson Home Theater System connected, positioned, and operating so
you can begin enjoying movies and music as quickly as possible.
All of the initial default settings have been pre-set for the system to be operated in North America. No further adjustments are
required at this time.
The diagrams below show the important controls on the front panel and remote control that you will use to perform the
operations in this Quick Set Up Guide.
MODEL : AV300
Quick Set Up Guide
BASIC SETUP AND CONNECTIONS
1. Carefully remove the system from the display carton and confirm that you have the following items:
•Main Unit x 1.
•Satellite Speakers x 5.
•Subwoofer x 1.
•Remote Control x 1.
•Satellite Cables x 5.
Save the carton and all packing materials.
2. Install the batteries in the remote control.
3. Place the main unit in the desired location but do not connect the AC power cord at this time.
4. Refer to the following connection diagram.
•Connect all 6 speakers to the color coded terminals on the back of the main unit using the appropriate color coded speaker
cables.
•Connect your TV to the back of the main unit using the supplied video cable (yellow plugs on each end).
•Connect the AM and FM antennas to the back of the main unit.
•Connect the power cords of the main unit and subwoofer to 120V 60 Hz AC household outlets. The STANDBY indicator on
the front of the subwoofer turns red.
•Press the POWER button on the front of the main unit to turn on the main power, then press the STANDBY button on the
remote control to put the system into the Standby mode. The red STANDBY indicator turns 'On'.
Note:
In order to use the remote control to turn the system 'On' and 'Off' the main POWER button on the front panel must be 'On'. We
suggest that this POWER button be left in the 'On' position at all times. If the system will not be used for an extended period -
such as a two week vacation, etc - then you can set the main POWER button back to the 'Off' position.
• Subwoofer Cable x 1.
• Remote Batteries x 2.
• Video Cable x 1.
• AM and FM Antennas.
• Owner's Manual.
• Rubber Feet x 20.
Subwoofer
Ri
g
ht Surround Speaker
Ri
g
ht Front Speaker Center Speaker Left Front Speaker
Left Surround Speaker
FL CF SLSR
(4 )
AM
AM loop antenna
(Included)
FM antenna
(Included)
Audi o
Inp ut
MOD EL NO . AV30 0
PO WER S OU RCE AC 120 V~6 0Hz
MOD EL SY STEM SP 300W
PA RT N O. 16 -1 3 79
H. H .S C OT T I NC .
9 EN TI N ROAD
PA RSI PP A NY , N J 0 70 5 4-0 4 30
MA DE IN CH INA / F AB RIO UE EN CH IN E
AC 1 20 V~ 60 Hz
18 0P ha se 0

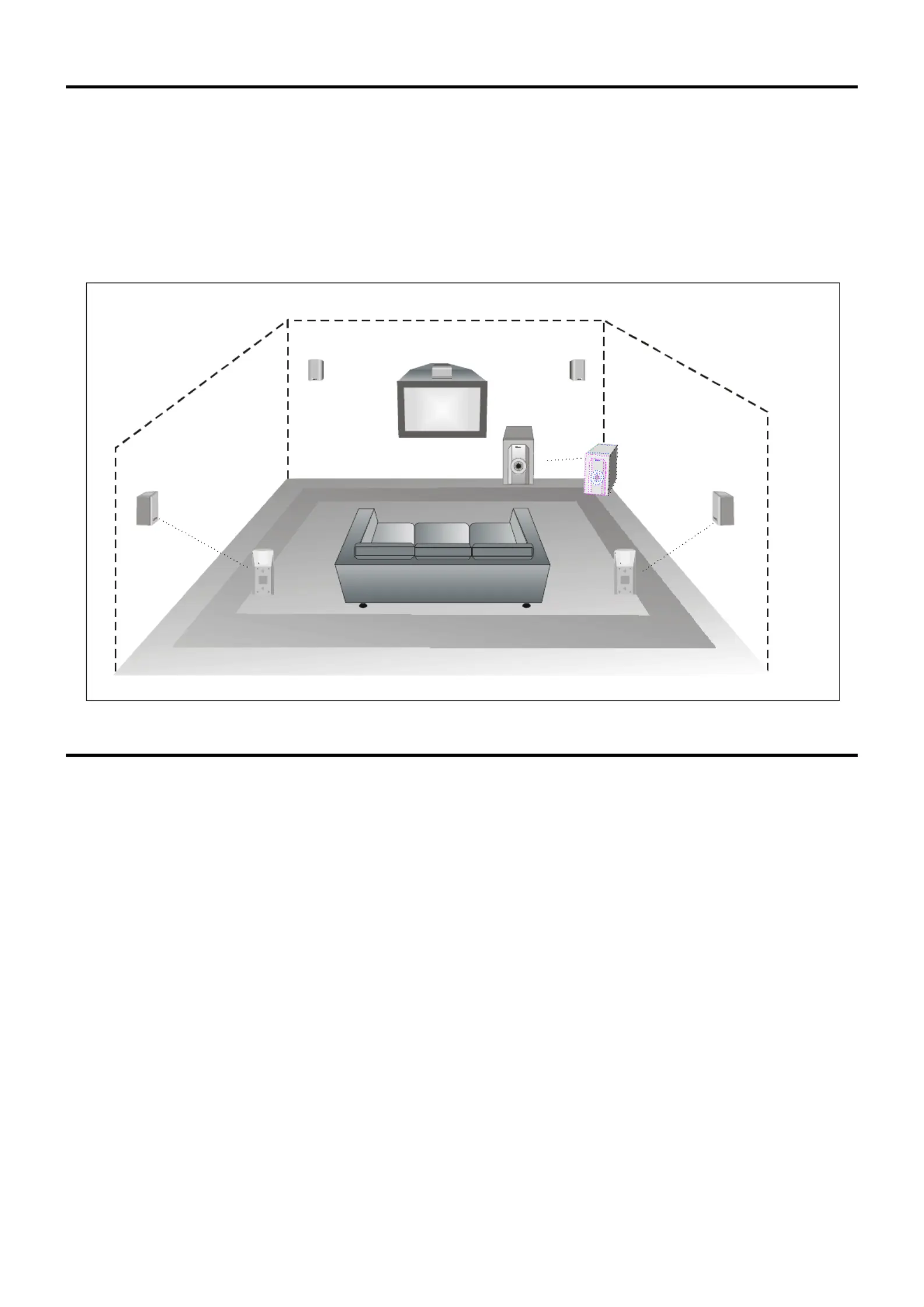

POSITIONING THE SPEAKERS
Refer to the following speaker positioning diagram. All 5 satellites should be approximately the same distance from your listening
position.
•Place center speaker either directly above or below your TV screen.
•Place front left and right speakers to the left and right of TV at approximately same height as center speaker.
•Place rear left and right speakers either in line with, or behind your listening position, at ear level, or slightly above, when
seated.
•Place subwoofer on floor in front of room, either next to TV or in corner, facing your listening position.
DVD PLAYBACK
1. Turn on your TV. If necessary use your TV remote to select the external video source such as AUX, VIDEO, etc.
2. Press the STANDBY button on the AV300 remote control. The Emerson DVD logo screen should appear on your TV.
3. Press the OPEN/CLOSE button on the AV300 remote control or front panel. Drawer opens. (Note: Remote must be pointed at
front of AV300 to operate.)
4. Insert DVD movie disc in tray with printed side up. Press OPEN/CLOSE button to close drawer. Player will read disc. On
some discs playback will start automatically. On other discs the DVD Menu Screen appears. Press PLAY/PAUSE button to
begin playback, or use 'arrow' buttons and ENTER button to select other playback options from DVD menu.
5. If disc has Dolby Digital, Dolby Pro Logic, or DTS soundtrack, you will hear sound from all 5 satellites plus subwoofer. If disc
has stereo soundtrack you may only hear sound from front left and right speakers plus subwoofer.
6. Press ADJ/VOL (Adjust Volume) "+" or "–" buttons to adjust volume level.
7. When finished watching press STOP and/or OPEN CLOSE. Remove disc, press STANDBY to turn off AV300. The STANDBY
indicator turns 'On'. Also turn off your TV.
Surround-left
Surround-right
Center
Front-left
Front-right
Subwoofer
or
oror
LISTENING
POSITION
