GEIST™ SWITCHAIR

AIRFLOW MANAGEMENT DEVICE

Quick Installation Guide

VM1175/590-2227-501A 1

Models:

SA1-01001NB

Switch Type:

Side air intake-front (port) exhaust

switch

CAUTION: Ensure the required

airflow for safe operation of

equipment is not compromised

when installing the Geist SwitchAir

device.

WARNING: Take precaution to

avoid interference with the switch’s

input power cords when installing

behind a live switch.

1. Installing the adjustable

rails

Using customer-provided

hardware, insert cage nuts into

the front two holes as well as

the rear extension tab hole of

each adjustable rail.

Select a 1U space in the rack

and hold one of the rails

between the front and rear rack

uprights. Lengthen or shorten

the adjustable rail by adjusting

the rear extension tab, loosely

fitting the rail between the

insides of the rack uprights.

Attach the front of the

adjustable rail to the front

upright using only the top hole

of the 1U space. Leave the

bottom front hole open for

later use.

Attach the rear rail extension

tab to the rear rack upright. Use

the center hole of the 1U space

for this attachment.

2. Installing the wipers

Attach the SwitchAir wipers

using the provided screws.

Orient the wipers with the tab

facing away from the centerline

of the device.

3. Installing the switch

Slide the network switch into the

rails. Using customer-provided

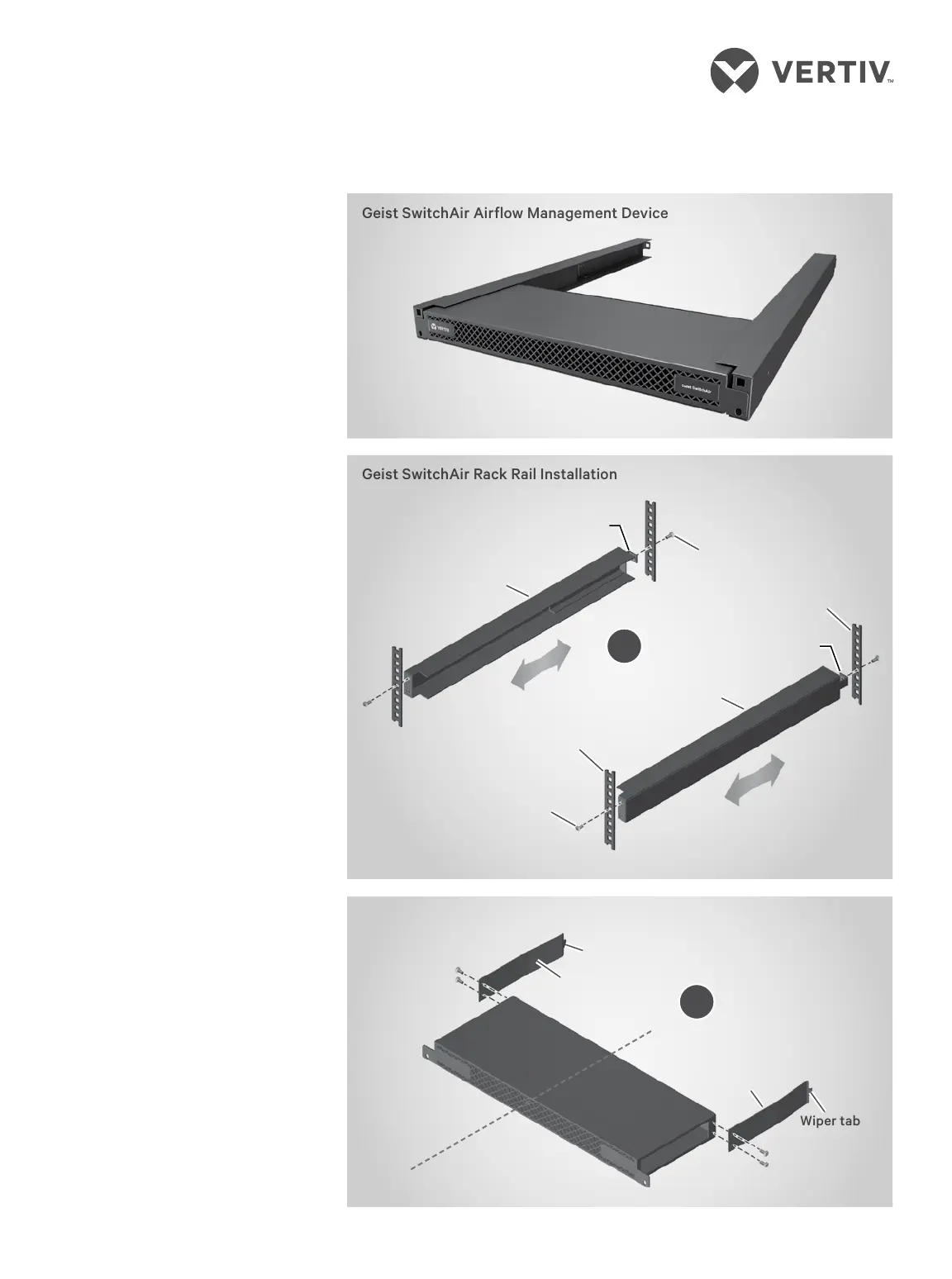

Geist SwitchAir Airflow Management Device

Geist SwitchAir Rack Rail Installation

Rack uprights

Adjustable rail

Rack uprights

U-space top screw

U-space middle screw

Adjustable rail

Extension tab

Wiper tab

Geist SwitchAir Wiper Installation

Wiper

Wiper tab

CENTERLINE

OF DEVICE

To contact Vertiv Technical Support: visit www.VertivCo.com

trademarks or registered trademarks of their respective owners. While every precaution has been taken to ensure accuracy and completeness herein, Vertiv Co. assumes no

responsibility, and disclaims all liability, for damages resulting from use of this information or for any errors or omissions. Specifications are subject to change without notice.

GEIST™ SWITCHAIR AIRFLOW MANAGEMENT DEVICE

Quick Installation Guide

2 VM1175/590-2227-501A

cage nuts and screws, mount

the switch to the rear rack

uprights using the 1U space’s

top and bottom holes.

4. Installing the device into

the rack

Insert the SwitchAir device into

the open rack space at the

switch’s U-height.

As the SwitchAir device is

inserted into the space, the

wipers make contact with the

rear corners of the switch.

The wiper tabs act as a guide to

deflect the wipers past the

switch’s corners and along it’s

sides.

Once the SwitchAir device is

fully seated against the

uprights, install the U-space

bottom screws on both sides.

Airflow

SwitchAir

Switch

Geist SwitchAir Rack Installation Complete

Geist SwitchAir and Network Switch Installation

Bottom hole

location

Top and bottom

hole locations
