GEIST™ SWITCHAIR

AIRFLOW MANAGEMENT DEVICE

Quick Installation Guide

SL-70388_REV0/VM-1177/590-2212-501A 1

Models:

SA1-01002XLNB

Type:

Rear Air Intake-Front (Port)

Exhaust Switches

CAUTION: Ensure the required

airflow for safe operation of

equipment is not compromised

when installing the Geist SwitchAir.

WARNING: Take precaution to

avoid interference with the switch

input power cords when installing

on a live unit.

1. Installing the adjustable

rails

Using customer provided

hardware, insert cage nuts into

the front two holes as well as

the rear extension tab hole of

each adjustable rail.

Select a 1U space in the rack

and hold one of the rails in

position between the front and

rear rack uprights. Lengthen or

shorten the adjustable rail by

adjusting the rear extension

tab, loosely fitting the rail

between the insides of the rack

uprights.

Attach the front of the

adjustable rail to the front

upright using only the top hole

of the 1U space. Leave the

bottom front hole open for later

use.

Attach the rear rail extension

tab to the rear rack upright. Use

the center hole of the 1U space

for this attachment.

Repeat the procedure for

installation of the adjustable rail

on the opposite side.

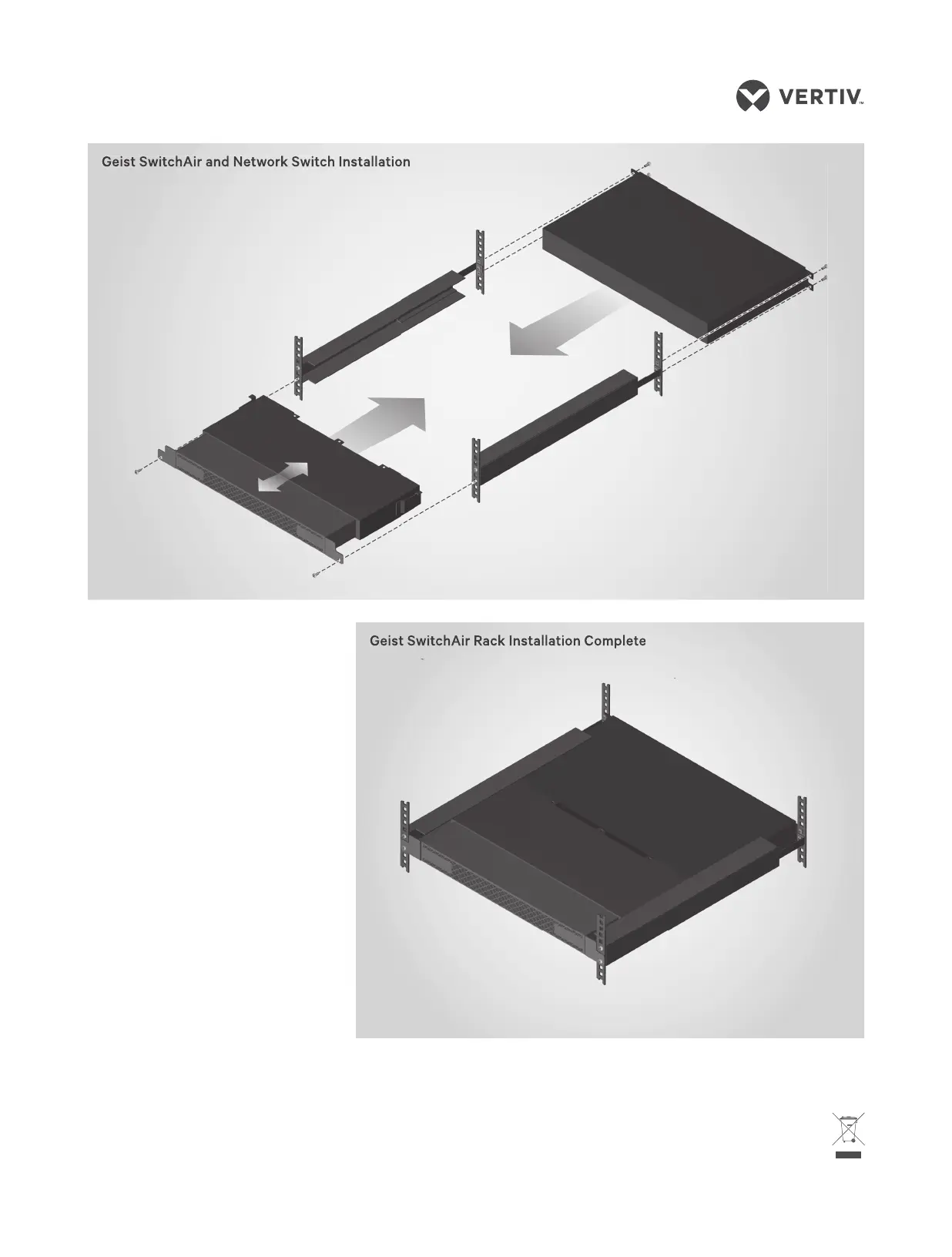

2. Installing the switch

Slide the network switch into

the rails. Using customer

provided cage nuts and screws,

mount the switch to the rear

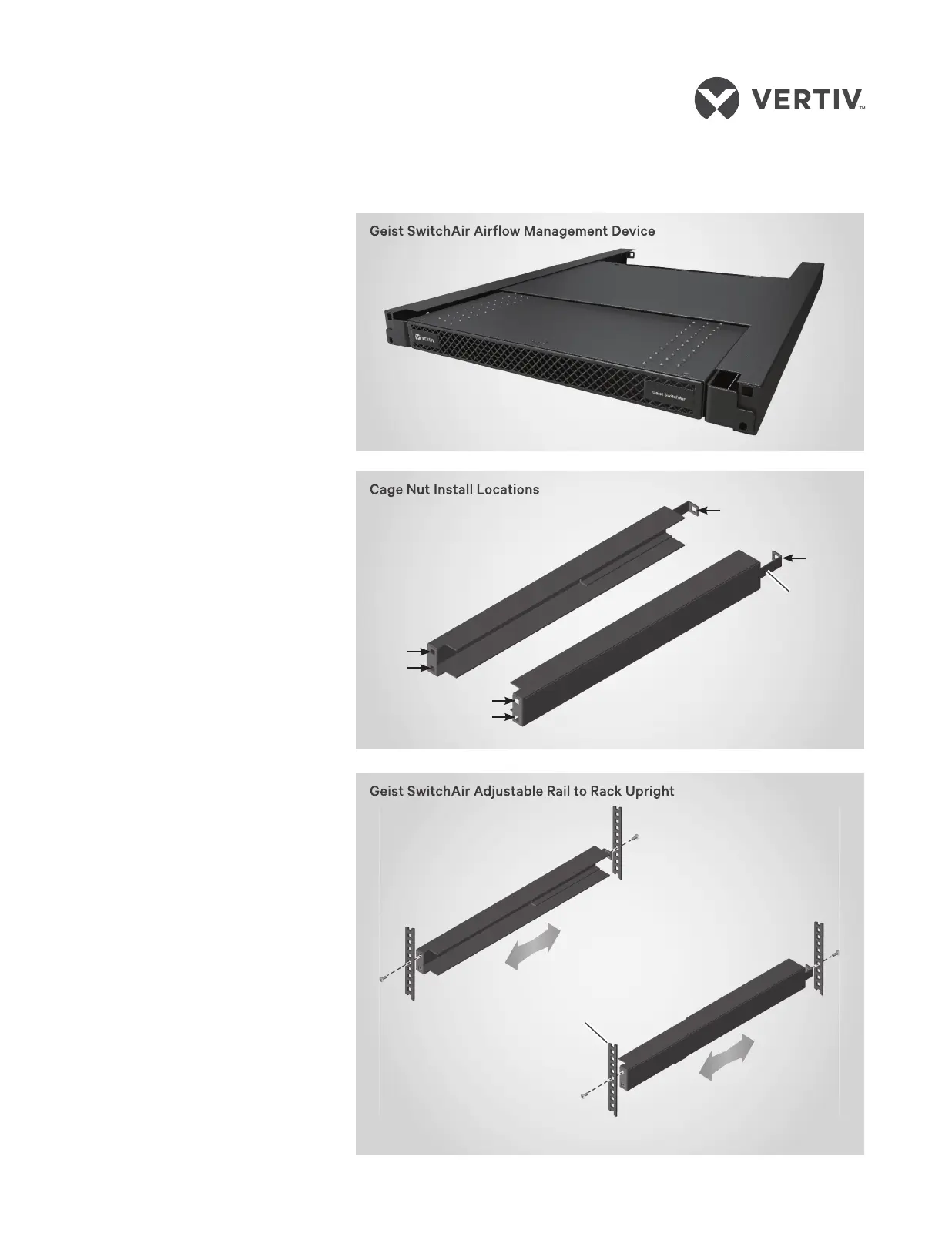

Geist SwitchAir Airflow Management Device

Cage Nut Install Locations

Extension

tab

Geist SwitchAir Adjustable Rail to Rack Upright

FRONT

BACK

Rack uprights

Top hole

location

Top hole

location

Center hole

location

Center hole

location

Expand rails to fit

inside uprights

Produktspecifikationer

Varumärke:	Emerson
Kategori:	Inte kategoriserad
Modell:	SA1-01002XLNB
Vikt:	11340 g
Bredd:	323.8 mm
Djup:	533.4 mm
Ramtyp:	Öppen stomme
Rackmontering:	Ja
Rackkapacitet:	1U
Produktens färg:	Svart
bruksanvisning:	Ja
Hållbarhetscertifiering:	RoHS
Kylning typ:	Passiv
