LONG RANGE

WIRELESS ACCESS POINT / CLIENT BRIDGE

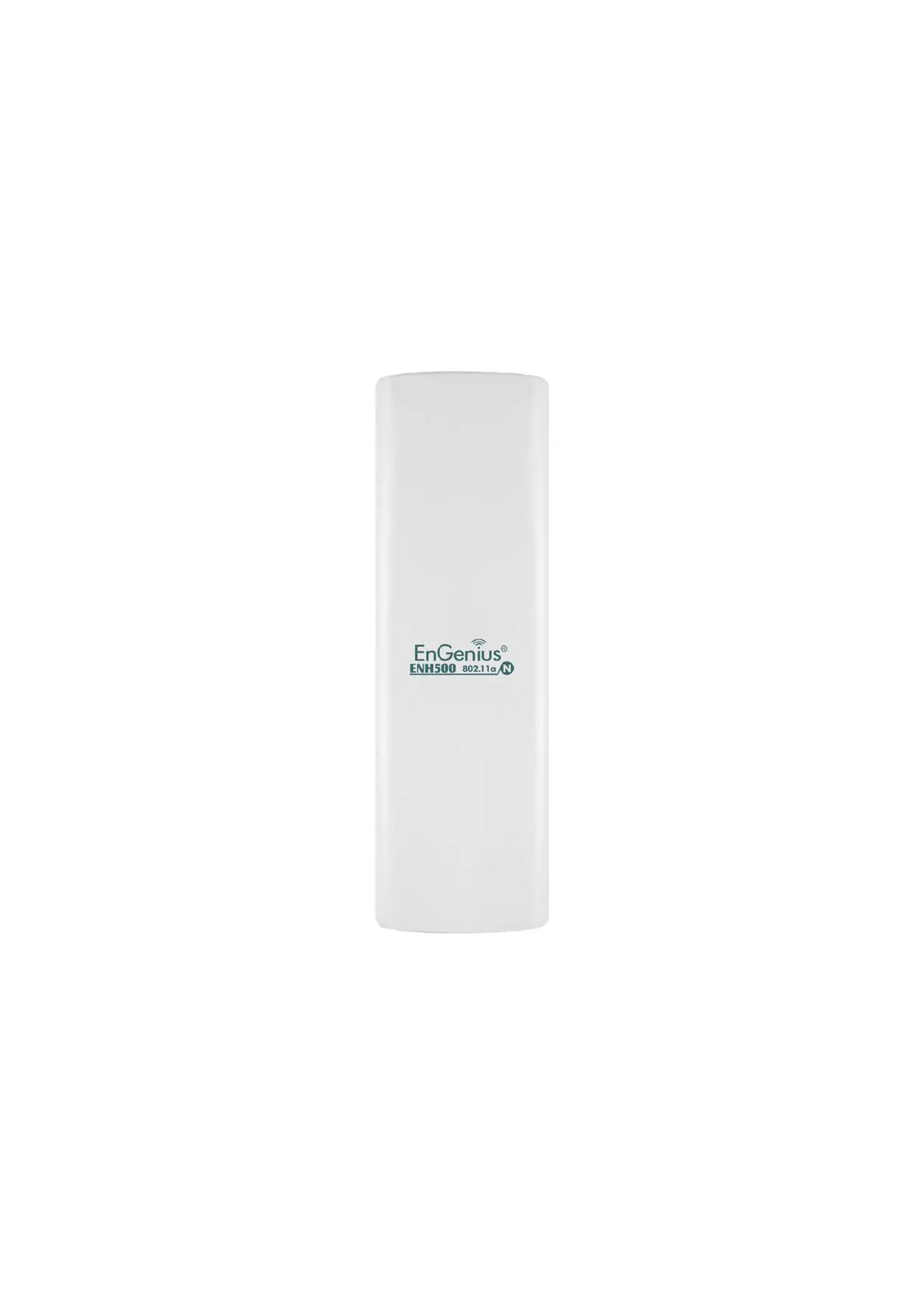

Model : ENH500

User Manual

Version : 1.0

Table of Contents

1 PRODUCT OVERVIEW ...................................................................................................................................................... 5

1.1

FEATURE ....................................................................................................................................................................... 5

1.2

BENEFITS ....................................................................................................................................................................... 6

1.3

PACKAGE CONTENTS ...................................................................................................................................................... 8

1.4

SYSTEM REQUIREMENT .................................................................................................................................................. 8

1.5

HARDWARE OVERVIEW .................................................................................................................................................. 8

2 ENH500 MULTI-FUNCTION INSTRUCTION GUIDE

................................................................................................... 9

2.1

ACCESS POINT .............................................................................................................................................................. 9

2.2

ACCESS POINT WITH WDS FUNCTION ............................................................................................................................ 9

2.3

CLIENT BRIDGE ............................................................................................................................................................ 10

2.4

WDS BRIDGE .............................................................................................................................................................. 10

2.5

CLIENT ROUTER ........................................................................................................................................................... 11

3 COMPUTER CONFIGURATION INSTRUCTION

......................................................................................................... 12

3.1

ASSIGN A STATIC IP ..................................................................................................................................................... 12

3.2

LOGGING METHOD ...................................................................................................................................................... 13

4 STATUS

.............................................................................................................................................................................. 14

4.1

SAVE/LOAD ................................................................................................................................................................. 14

4.2

MAIN ......................................................................................................................................................................... 15

4.3

WIRELESS CLIENT LIST ................................................................................................................................................. 16

4.4

SYSTEM LOG ............................................................................................................................................................... 17

4.5

CONNECTION STATUS .................................................................................................................................................. 18

4.6

DHCP CLIENT TABLE ................................................................................................................................................... 19

5 SYSTEM

............................................................................................................................................................................. 20

5.1

SWITCHING OPERATION MODE .................................................................................................................................... 20

6 WIRELESS CONFIGURATION

........................................................................................................................................ 21

6.1

WIRELESS SETTINGS ..................................................................................................................................................... 21

6.1.1 Access Point Mode

........................................................................................................................................ 21

6.1.2 Client Bridge Mode

....................................................................................................................................... 24

6.1.3 WDS Bridge Mode

......................................................................................................................................... 26

6.1.4 Client Router Mode

....................................................................................................................................... 28

6.2

WIRELESS SECURITY SETTINGS ...................................................................................................................................... 30

6.2.1 WEP

................................................................................................................................................................ 30

6.2.2 WPA-PSK

....................................................................................................................................................... 31

6.2.3 WPA2-PSK

..................................................................................................................................................... 32

6.2.4 WPA-PSK Mixed

............................................................................................................................................ 33

Produktspecifikationer

Varumärke:	Engenius
Kategori:	ej kategoriserat
Modell:	ENS500
Vikt:	300 g
Bredd:	99 mm
Djup:	185.42 mm
Höjd:	28.95 mm
Förpackningens bredd:	71.12 mm
Strömförsörjning:	24V, 0.6A
LED-indikatorer:	Ja
Placering:	Vägg
Frekvensband:	5 GHz
Gränssnitt:	LAN, WLAN
Internminne:	64 MB
Återställningsknapp:	Ja
MAC-adressfiltrering:	Ja
Flashminne:	16 MB
Maximal dataöverföringshastighet:	300 Mbit/s
2,4 GHz:	Nej
5 GHz:	Ja
Antennfunktioner:	Integrerad antenn
Produktens färg:	Vit
Låddjup:	309.88 mm
Vikt inkl. förpackning:	707.6 g
Datahastighet för Ethernet-LAN:	10, 100 Mbit/s
Strömförsörjning via Ethernet (PoE) stöd:	Ja
Antal LAN (RJ-45) anslutningar:	2
Produktstorlek (BxDxH):	99.06 x 185.42 x 28.9 mm
Temperatur vid drift:	-20 - 70 ° C
Temperaturintervall (förvaring):	-30 - 80 ° C
Intervall för relativ operativ luftfuktighet:	0 - 90 %
VLAN-stöd:	Ja
AC-inspänning:	24 V
Internationellt skydd (IP) kod:	IP65
Kryptering/säkerhet:	802.1x RADIUS, WDS, WPA, WPA2
AC-adapter inkluderad:	Ja
Maximal överföringshastighet för trådlöst LAN:	300 Mbit/s
Överföringseffekt:	15 dBmW
Modulator:	16-QAM, 64-QAM, BPSK, OFDM, QPSK
Automatiskt trådlöst distributionssystem (WDS):	Ja
RADIUS (Remote Authentication Dial-In User Service):	Ja
Lednings Protokoll:	SNMP v1/v2c/v3, MIB I/II
Antenn ökningsnivå (max):	10 dBi
Kommunikationsstandarder:	IEEE 802.11a, IEEE 802.11n, IEEE 802.1x
Stöd för garanterad tjänstekvalitet (QoS):	Ja
Automatisk kanalväljare:	Ja
VLAN-funktioner:	Tagged VLAN
Antennens riktningstyp:	Riktande
Intern:	Nej
Antal SSID som stöds:	4
Förpackningsstorlek (B x D x H):	71.12 x 309.8 x 233.68 mm
Driftsätt:	Access Point (AP), Client Bridge, Client Router, WDS
Tillgängliga dataöverföringshastigheter:	6, 9, 12, 18, 24, 36, 48, 54, 300Mbps
