ENT Series Compensation
Contactors
Long Lifespan
Compact and
Robust Design
Integrated Auxiliary
Contact Option
www.entes.eu
2
Why Use a Compensation Contactor?
At the moment of switching, a capacitor practically behaves like a short circuit.
The magnitude of the inrush (charging) current depends on the AC voltage level at the moment of
switching, as well as the impedance of the supply cable and power transformers.
In single capacitor applications, the peak charging current can reach up to 30 times the capacitor’s rated
current. For multi-step capacitor banks, inrush currents may exceed 180 times the rated value.
Working Princible
The ENT Series Capacitor Contactors are specially designed to
meet capacitor application requirements. The contactors are
equipped with three early-make auxiliary contact blocks and six
series-connected resistors—two fast discharge damping resistors
per phase. This design limits the inrush current to remain within
the contactor’s making capacity. The main contacts are designed
to carry the normal rated capacitor current, and after closing,
eectively short-circuit the resistors.
This design enables safe and reliable switching of capacitor loads with high eciency.
Product Series
• The contactors are three-phase, rated for 415V AC, 50/60 Hz, with capacities ranging
from 2.5 kVAr to 100 kVAr.
• They comply with IEC 60947-4-1 and IS/IEC 60947-4-1 standards for AC-6B utilization category.
Benets:
• Compliant with IS 13947-4-1 Standard for AC-6B Utilization Category
• Reduces costly spare part expenses.
• Ensures long electrical lifetime.
• Provides low power loss in the ‘ON’ position, contributing to energy savings.
• Oers high safety.
• Eliminates the risk of dangerous voltage.
• Enables parallel switching of capacitors without requiring power derating.
• Increases operational eciency with less maintenance and downtime.
This excessive inrush current may pass through
the contactor due to the contribution from both
the supply network and the previously connected
capacitors. Such current levels can be sucient to
cause welding of the main contacts in standard
contactors.
• To limit current uctuations, add a series
damping resistor for fast discharge.
• Make sure to use a specially designed capacitor
contactor.
Max Capacitor
Charge Current
Capacitor
I
n
Time (t)
Max Current : >180 ln
Frequency: 3 to 15 kHz
Capacitor
Current
l
n
Nominal Current

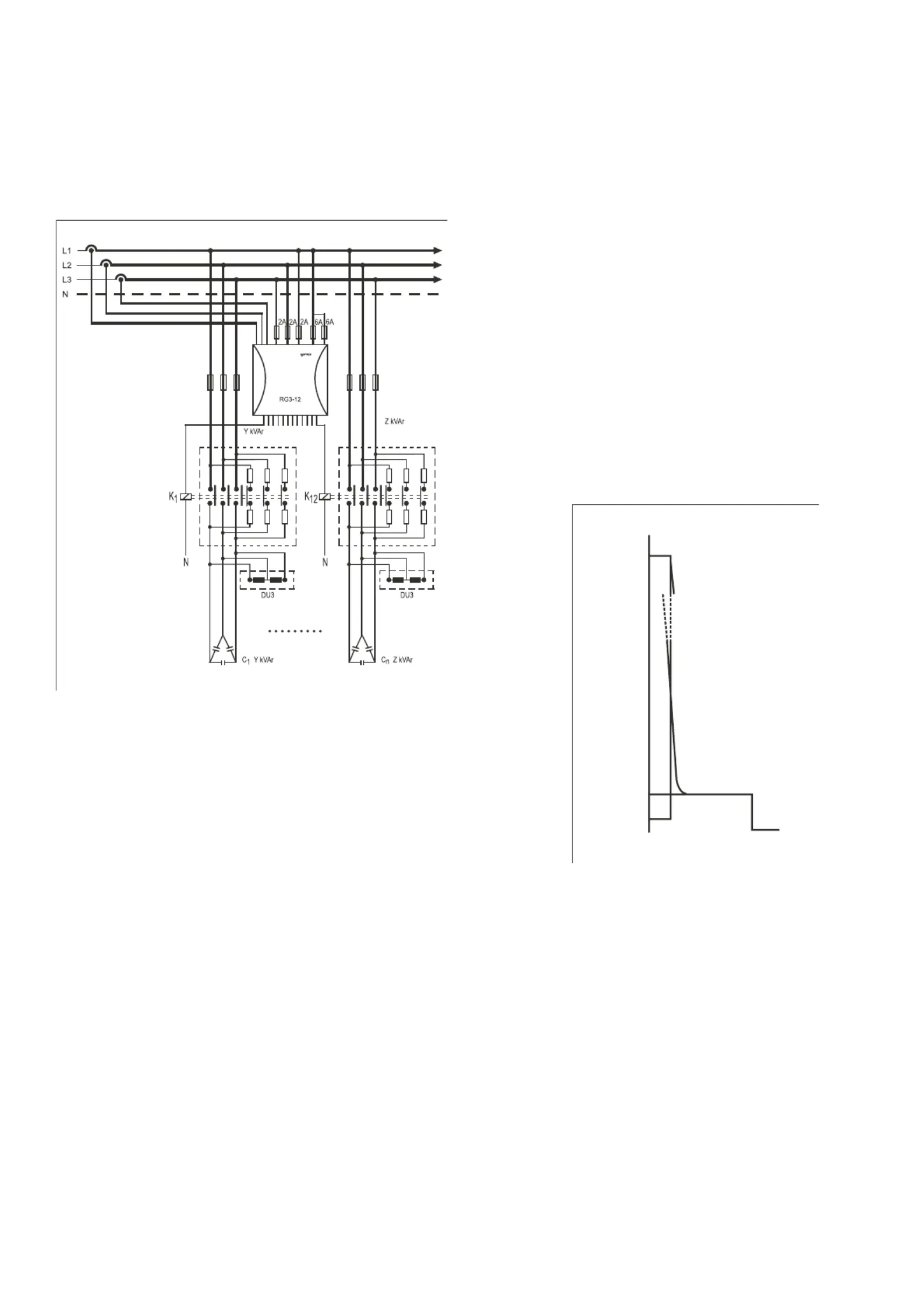

Reactive
Power
Control Relay
Compensation Contactor
Compensation
Contactor
Discharge Unit Discharge Unit
Capacitors
3
Technical Specications
Technical Drawings
“Operating Power (kVAr) 0<55 °C 50/60Hz”
Instantaneous Auxiliary
Contacts
Maximum
Operations
per Hour
Switching
Life
220V-240V 400V-440V
Power
(kVAr)
Akım
@220V
Power
(kVAr)
Akım
@400V
NO NC
Number
of Uses
ENT-KT-2,5-C10 1,4 3,67 2,5 3,6 1 0 240 150.000
ENT-KT-5-C10 2,8 7,34 5 7,21 1 0 240 150.000
ENT-KT-7,5-C11 4 10,49 7,5 10,82 1 1 240 200.000
ENT-KT-12-C11 6,7 17,58 12,5 18,04 1 1 240 200.000
ENT-KT-16-C11 8,5 22,3 16,7 24,1 1 1 240 200.000
ENT-KT-20-C11 10 26,24 20 28,86 1 1 240 100.000
ENT-KT-25-C11 15 39,36 25 36,08 1 1 240 100.000
ENT-KT-33-C12 20 52,48 33,3 48,06 1 2 240 100.000
ENT-KT-40-C12 25 65,6 40 57,73 1 2 240 100.000
ENT-KT-50-C12 30 78,72 50 72,16 1 2 240 100.000
ENT-KT-60-C12 40 104,97 60 86,6 1 2 240 100.000
ENT-KT-75-C12 40 104,97 75 108,25 1 2 240 100.000
ENT-KT-100-C12 60 262,43 100 144,33 1 2 240 100.000
Contactor Type ENT-KT-2,5-C10-
ENT-KT-25-C11 : 35 DIN Rail Mounting
Contactor Type ENT-KT-2,5-C10-
ENT-KT-25-C11 : 35 DIN Rail Mounting
Contactor Type ENT-KT-2,5-C10-
ENT-KT-25-C11 : 35 DIN Rail Mounting
ENT-KT-100-C12
