EPSON® PowerLite® 600p/811p/820p
Multimedia Projector
User’s Guide
ii
Important Safety Information
WARNING: Never look into the projector lens when the lamp is turned on; the bright light can damage your eyes.
Never let children look into the lens when it is on. Never open any cover on the projector, except the lamp and
filter covers. Dangerous electrical voltages inside the projector can severely injure you. Except as specifically
explained in this User’s Guide, do not attempt to service this product yourself. Refer all servicing to qualified service
personnel.
WARNING: The projector and its accessories come packaged in plastic bags. Keep plastic bags away from small
children to avoid any risk of suffocation.
Caution: When you replace the lamp, never touch the new lamp with your bare hands; the invisible residue left by
the oil on your hands may shorten the lamp life. Use a cloth or glove to handle the new lamp.
Copyright Notice
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in
any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior
written permission of SEIKO EPSON CORPORATION. The information contained herein is designed only for
use with this EPSON product. EPSON is not responsible for any use of this information as applied to other
products.
Neither SEIKO EPSON CORPORATION nor its affiliates shall be liable to the purchaser of this product or third
parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse,
or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the
U.S.) failure to strictly comply with SEIKO EPSON CORPORATION’s operating and maintenance instructions.
SEIKO EPSON CORPORATION shall not be liable for any damages or problems arising from the use of any
options or any consumable products other than those designated as Original EPSON Products or EPSON
Approved Products by SEIKO EPSON CORPORATION.
EPSON is a registered trademark of SEIKO EPSON CORPORATION.
EPSON Connection, EPSON Store, and Extra Care, are service marks; SizeWise is a trademark; and PrivateLine,
Presenters Club, and PowerLite are registered trademarks of Epson America, Inc.
General Notice: Other product names used herein are for identification purposes only and may be trademarks of
their respective owners. EPSON disclaims any and all rights in those marks.
Copyright © 2002 by Epson America, Inc. 4/02
Printed on recycled paper. CPD-13953
C
iii
Contents
Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Getting the Most from Your Projector . . . . . . . . . . . . . . . . . . 2
Using Your Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Getting More Information . . . . . . . . . . . . . . . . . . . . . . . . 3
Registration and Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Unpacking the Projector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Additional Components. . . . . . . . . . . . . . . . . . . . . . . . . . 6
Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1Setting Up the Projector . . . . . . . . . . . . . . . . . . . . . . 9
Positioning the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Connecting to a Laptop Computer. . . . . . . . . . . . . . . . . . . . 12
Connecting the Computer Cable . . . . . . . . . . . . . . . . . . 12
Connecting the Cable for Remote Mouse Control . . . . . 13

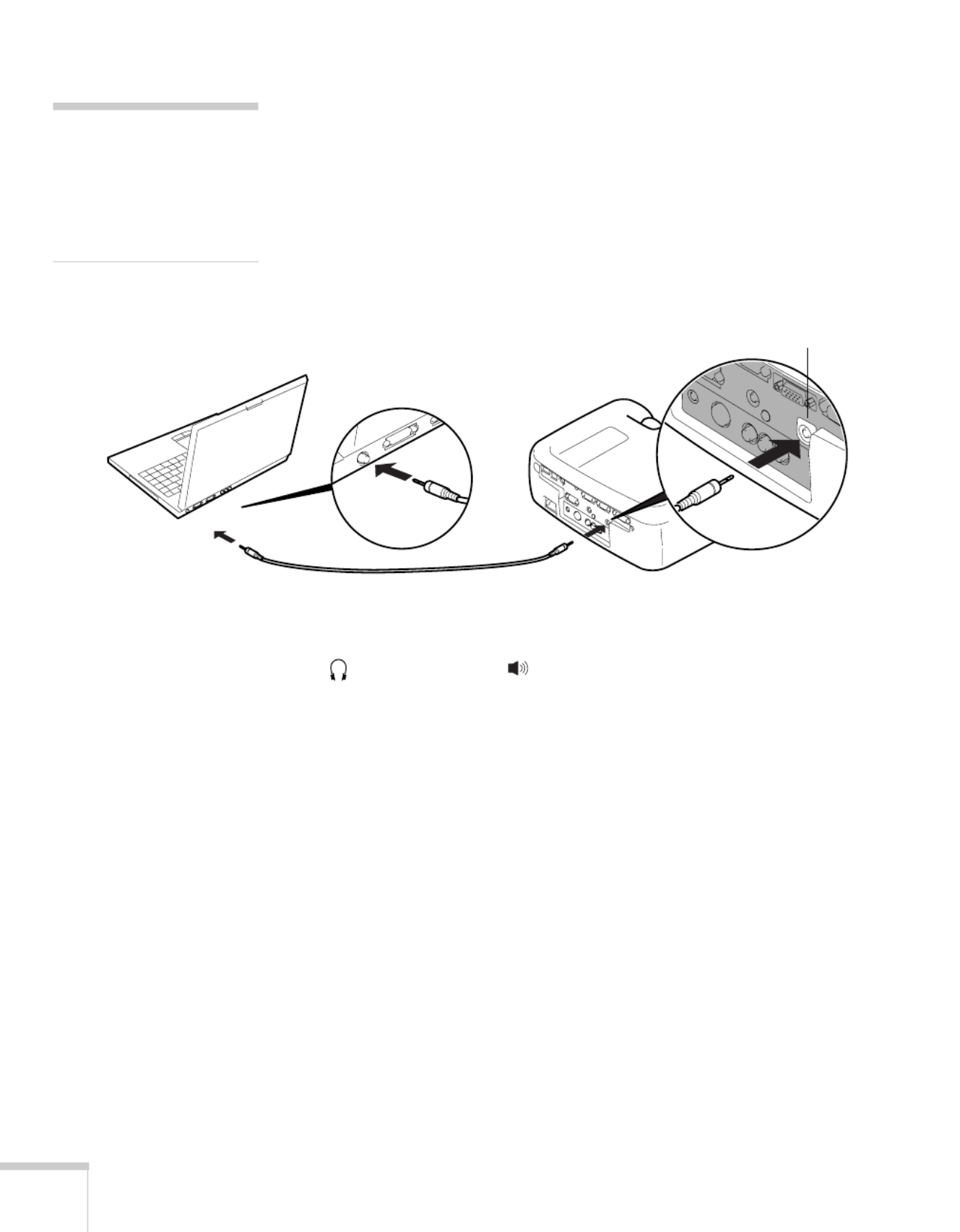

Amplifying Computer Audio . . . . . . . . . . . . . . . . . . . . . 14
Connecting to Video Sources . . . . . . . . . . . . . . . . . . . . . . . . 15

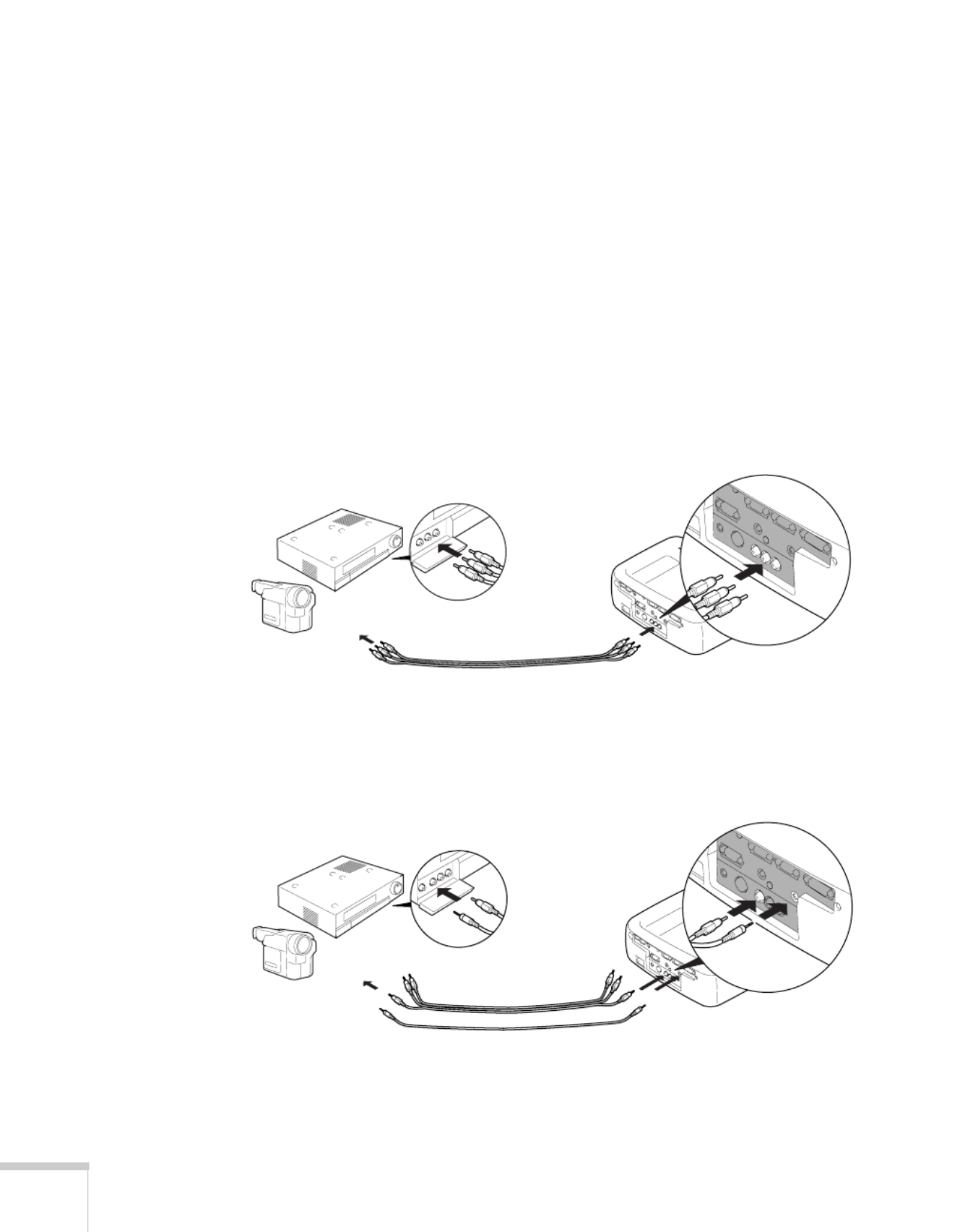

Connecting the RCA A/V Cable . . . . . . . . . . . . . . . . . . 16
Connecting an S-Video Cable . . . . . . . . . . . . . . . . . . . . 17
Connecting a Component Video Cable . . . . . . . . . . . . . 18
2Using the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Turning On Your Equipment. . . . . . . . . . . . . . . . . . . . . . . . 20
Turning On the Projector . . . . . . . . . . . . . . . . . . . . . . . 20
What To Do If You See a Blank Screen . . . . . . . . . . . . . 22
Adjusting the Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Focusing and Zooming Your Image . . . . . . . . . . . . . . . . 25
Adjusting the Height of Your Image . . . . . . . . . . . . . . . 26
Adjusting the Image Shape. . . . . . . . . . . . . . . . . . . . . . . 27
Resizing the Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Adjusting the Tracking and Synchronization . . . . . . . . . 28
iv
Controlling the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Switching Between Picture Sources . . . . . . . . . . . . . . . . 29
Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Turning Off the Picture and Sound . . . . . . . . . . . . . . . 30
Shutting Down the Projector . . . . . . . . . . . . . . . . . . . . . . . . 30
3Using the Remote Control . . . . . . . . . . . . . . . . . . . 33
Turning On and Using the Remote Control . . . . . . . . . . . . 34
Installing Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Turning On the Remote Control. . . . . . . . . . . . . . . . . . 34
Using the Remote Control. . . . . . . . . . . . . . . . . . . . . . . 35
Controlling the Picture and Sound. . . . . . . . . . . . . . . . . . . . 35
Switching Between Picture Sources . . . . . . . . . . . . . . . . 35
Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Turning Off the Picture and Sound . . . . . . . . . . . . . . . 36
Stopping Action. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Zooming Your Image. . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Resizing the Image. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

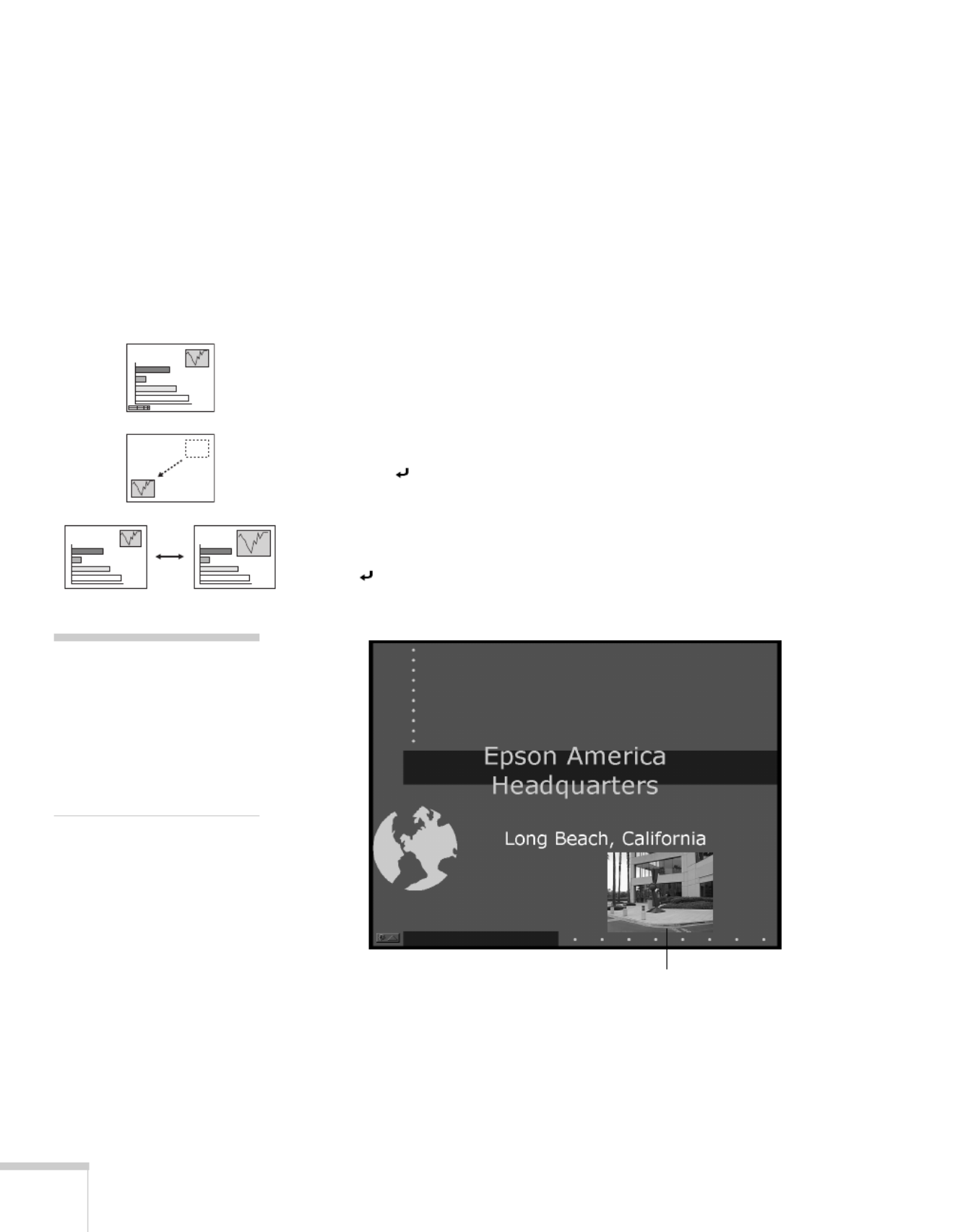

Displaying Picture-in-Picture Video . . . . . . . . . . . . . . . 38
Highlighting Your Presentation . . . . . . . . . . . . . . . . . . . . . . 39
Using the Pointer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Spotlighting Your Image . . . . . . . . . . . . . . . . . . . . . . . . 40
Using Horizontal and Vertical Highlights . . . . . . . . . . . 40
Using the Remote Control as a Wireless Mouse . . . . . . . . . . 41
4Fine-tuning the Projector. . . . . . . . . . . . . . . . . . . . 43

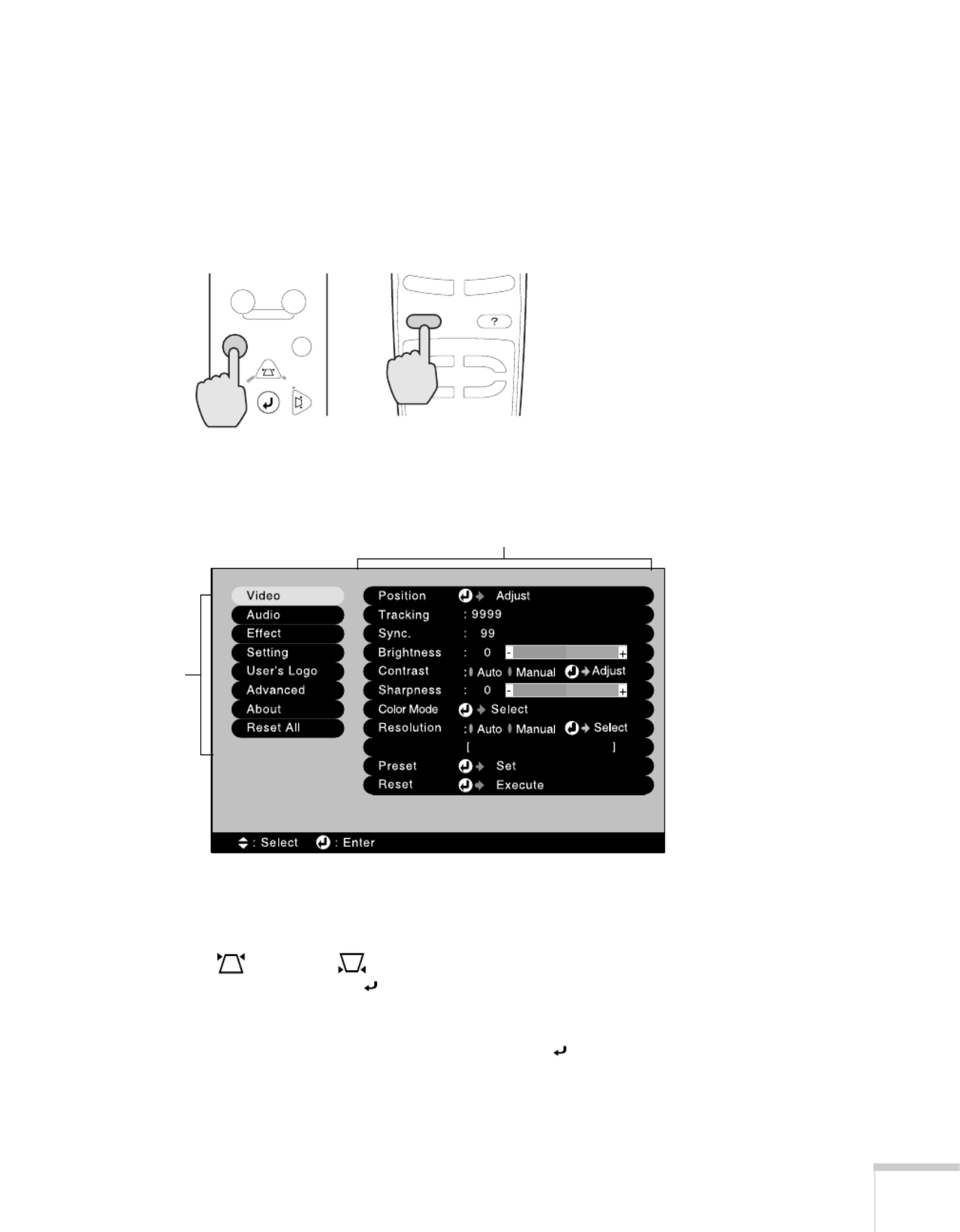

Using the Projector’s Menu System . . . . . . . . . . . . . . . . . . . 44
Changing Menu Settings . . . . . . . . . . . . . . . . . . . . . . . . 45
Adjusting the Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Repositioning the Image . . . . . . . . . . . . . . . . . . . . . . . . 48
Adjusting Image Appearance . . . . . . . . . . . . . . . . . . . . . 48
Saving and Recalling Computer Settings . . . . . . . . . . . . 50
Adjusting the Sound. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Customizing the Highlighting Tools . . . . . . . . . . . . . . . . . . 52
Creating Your Own Startup Screen . . . . . . . . . . . . . . . . . . . 53
Capturing the Image . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Choosing When to Display the Image . . . . . . . . . . . . . 54
v

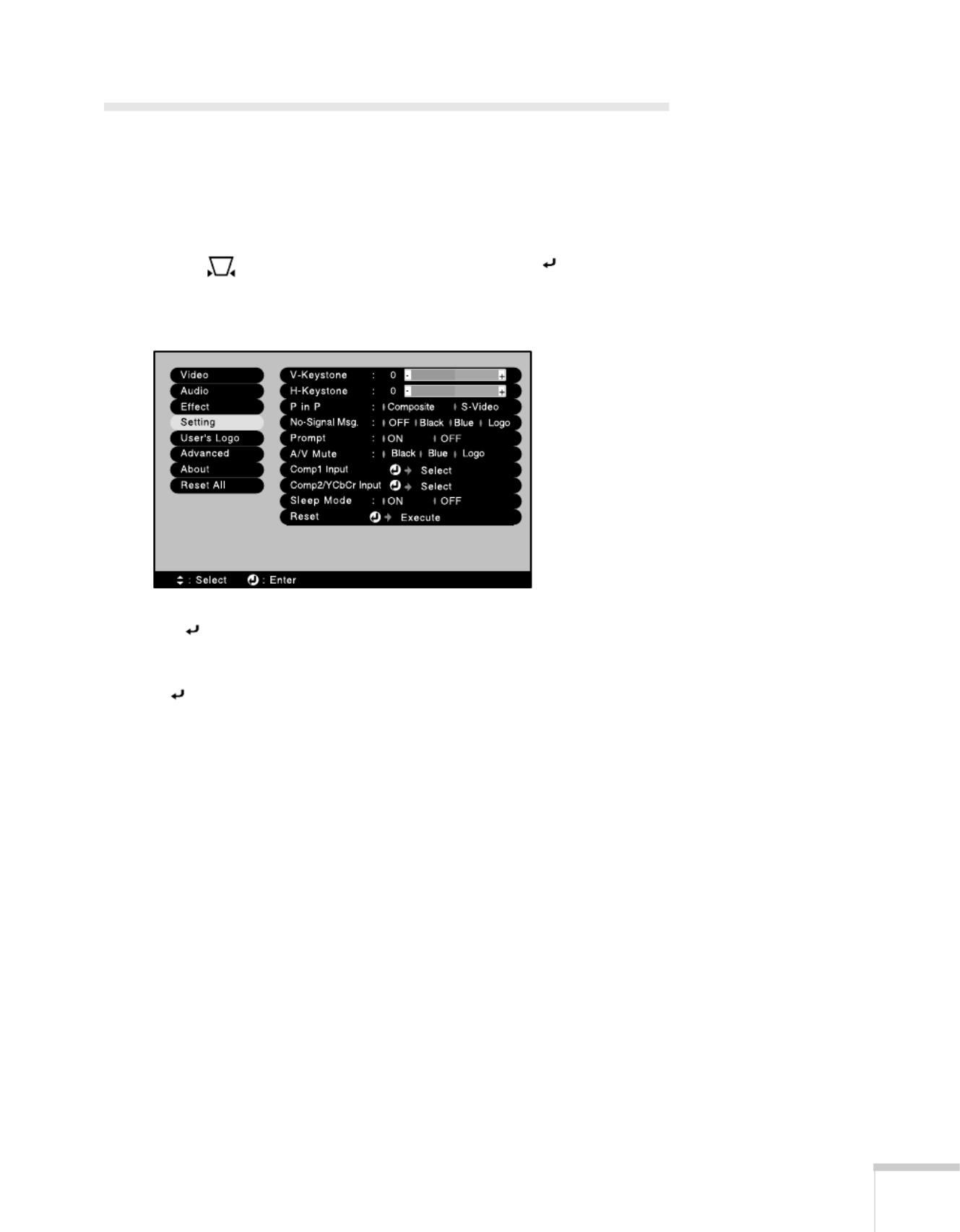

Customizing Projector Features . . . . . . . . . . . . . . . . . . . . . . 55
Setting Advanced Features . . . . . . . . . . . . . . . . . . . . . . . 57
Viewing Lamp Usage and Other Information. . . . . . . . . . . . 58
Restoring the Default Settings . . . . . . . . . . . . . . . . . . . . . . . 59
5Maintaining and Transporting
the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Cleaning the Lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Cleaning the Projector Case . . . . . . . . . . . . . . . . . . . . . . . . . 62
Cleaning and Replacing the Air Filter . . . . . . . . . . . . . . . . . . 63
Replacing the Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Resetting the Lamp Timer . . . . . . . . . . . . . . . . . . . . . . . 67
Transporting the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . 68
6Solving Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Using On-Screen Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
What To Do When the Lights Flash. . . . . . . . . . . . . . . . . . . 71
Solving Problems with the Image or Sound . . . . . . . . . . . . . 73
Solving Problems with the Remote Control . . . . . . . . . . . . . 79
Where To Get Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Telephone Support Services . . . . . . . . . . . . . . . . . . . . . . 80
AAppendix A: Connecting to
Additional Equipment . . . . . . . . . . . . . . . . . . . . . . 81
Installing the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Controlling the Projector from a Computer . . . . . . . . . . 83
Connecting to an External Audio System . . . . . . . . . . . . 83
Connecting to a PC Desktop Computer. . . . . . . . . . . . . . . . 84
Connecting the Computer Cable . . . . . . . . . . . . . . . . . . 84
Connecting the Mouse Cable. . . . . . . . . . . . . . . . . . . . . 86
Connecting the Audio Cable . . . . . . . . . . . . . . . . . . . . . 87
Connecting to a Desktop Macintosh . . . . . . . . . . . . . . . . . . 88
Connecting the Computer Cable . . . . . . . . . . . . . . . . . . 88
Connecting the Mouse Cable. . . . . . . . . . . . . . . . . . . . . 90
Connecting the Audio Cable . . . . . . . . . . . . . . . . . . . . . 91
Connecting to a Second Computer. . . . . . . . . . . . . . . . . . . . 92
vi
Connecting to a High-End Workstation . . . . . . . . . . . . . . . 93
Connecting to a DVI Video Source . . . . . . . . . . . . . . . . . . . 93
BAppendix B: Notices. . . . . . . . . . . . . . . . . . . . . . . . . 95
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . 95
Remote Control Information . . . . . . . . . . . . . . . . . . . . . . . . 97
Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . 98
FCC Compliance Statement. . . . . . . . . . . . . . . . . . . . . . . . . 99
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
CAppendix C: Technical Specifications. . . . . . 103
General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Projection Lamp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Mouse Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Computer Video Port Pin Assignments . . . . . . . . . . . . . . . 105
Compatible Video Formats . . . . . . . . . . . . . . . . . . . . . . . . 106
ESC/VP21 Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
W
Welcome 1
-
Welcome
The EPSON® PowerLite® 600p, 811p, and 820p are portable
projectors that weigh less than 10 pounds and offer up to 2500 ANSI
lumens of brightness. From classrooms to auditoriums, your full-color
presentations and videos will be bright and visible even in ordinary
room lighting.
Images are displayed at a resolution of 1024 × 768 pixels (PowerLite
811p and 820p) or 800 × 600 pixels (PowerLite 600p). The 0.9-inch
LCD provides a high contrast ratio for incredibly vivid images and
clear text. Improved color processing technology reduces “video noise”
for rich, saturated images, while 5-watt amplified sound and
whisper-quiet operation contribute to theater-quality video.
With EPSON’s patented SizeWise™ chip, the projector supports
computer displays ranging from VGA through UXGA (or SXGA on
the PowerLite 600p). The projector also supports the Digital Visual
Interface (DVI) format.
You can connect the projector to a wide range of computers, including
PCs and laptops, Apple® Macintosh,
®
Power Macintosh® series
(including G3 and G4 systems), PowerBook
®
computers, many
iMac®
and iBook® series systems, and high-end workstations such as
the Sun® SPARCstation.
™
You can use any of the following video sources: VCR, DVD player,
camcorder, digital camera, or laser disc player. The projector supports
composite video, S-Video, and component video, and it automatically
senses the video format (HDTV, NTSC, PAL, or SECAM).
Support for USB audio and horizontal keystone control contribute to
ease of setup in a wide variety of environments.
2Welcome
Getting the Most from Your Projector
Your EPSON PowerLite projector is a highly versatile presentation
tool. You can connect it to one or two computer sources and up to
three video sources and easily switch between them. You can also
include sound for up to three of the sources.
Depending on your presentation, you can take advantage of any or all
of these options:
■Connecting to a laptop or other computer
If you want to connect to a PC laptop or Macintosh PowerBook
or iBook, see page 12. To connect to a desktop computer, a
workstation, a computer that outputs video in Digital Visual
Interface (DVI) format, or more than one computer, see
Appendix A.
■Connecting to video sources
You can connect a DVD player, VCR, camcorder, laser disc
player, digital camera, or any other video source to your projector.
You can connect up to three video sources at the same time (with
or without a computer) and easily switch between them.
See page 15 for instructions.
■Using the remote control
The remote control lets you switch from one computer or video
source to another, with access to picture-in-picture, pointer,
zoom, and many other projector features. For details, see
Chapter 3.
By connecting an additional cable, you can also use the remote
control as a wireless mouse. This lets you click through
slideshow-style presentations (such as PowerPoint
®) from up to
30 feet away. For more information, see page 41.
■Including sound in your presentation
If your presentation includes sound, you can connect the USB
cable or an optional audio cable to use the projector’s built-in
speakers. For details, see page 14 (for laptops) or Appendix A (for
other systems).
note
You can connect a maximum
of four sources at the same
time.
Welcome 3
If you’re permanently installing the projector, you may wish to
connect external speakers or a public address system to the
projector’s Audio Out port; see page 83.
■Controlling the Projector from a Computer
If you want to be able to control the projector’s settings from a
computer (for example, if the projector is ceiling-mounted), you
can install the EMP Link program. You can download this
program, plus its User’s Guide, from EPSON’s web site at
support.epson.com. You’ll also need a serial or USB cable to
connect the projector to the computer.
Using Your Documentation
To connect the projector to your laptop and get your presentation
up and running fast, see the Quick Setup sheet in your owner’s kit.
This book contains all the information you need to set up and use
your projector. Please follow these guidelines as you read through it:
■Warnings must be followed carefully to avoid bodily injury.
■Cautions must be observed to avoid damage to your equipment.
■Notes contain important information about your projector.
Getting More Information
Need tips on giving presentations? Quick steps for setting up your
projector? Here’s where you can look for help:
■presentersonline.com
Includes a library of articles covering presentation tips, tricks, and
technology. The site provides templates, clip art and sound clips,
as well as Presenters Services to use on the road. Even more
resources and services are available if you register to join the
Presenters Club®— ’and it s free.
■Quick Setup sheet
Gives you all the instructions you need to get your projector set
up and connected to a laptop or PowerBook computer.
4Welcome
■Owner’s Kit
Includes your Quick Setup sheet, warranty brochures, and
EPSON PrivateLine® Support card. Store this User’s Guide in the
folder and keep the folder with your projector at all times.
■Built-in help system
Provides assistance for common problems. Available from the
Help button on the projector or the remote control. See page 70
for details.
■support.epson.com
Download FAQs and e-mail your questions to EPSON support.
If you still need help after checking this User’s Guide and the sources
listed above, you can use the EPSON PrivateLine Support service to
get help fast. Call (800) 637-7661 and enter the PIN on the card in
your owner’s kit. Or take advantage of EPSON’s automated support
services 24 hours a day. See page 80 for more information.
Registration and Warranty
Your projector comes with a basic carry-in warranty (on page 100) as
well as an international warranty that let you project with confidence
anywhere in the world. For details, see the warranty brochure included
in your owner’s kit.
In addition, for customers who register their projector, EPSON offers
free Extra CareSM Road Service. In the unlikely event of an equipment
failure, you won’t have to wait for your unit to be repaired. Instead,
EPSON will ship you a replacement unit anywhere in the United
States or Canada, usually via overnight delivery. See the brochure in
your owner’s kit for details.
To register, simply fill out the registration card included in your
owner’s kit and mail it to EPSON. Or you can register online at
http://epsonwebreg.info2.net/. Registering also lets you receive special
updates on new accessories, products, and service.
Welcome 5
Unpacking the Projector
After unpacking the projector, make sure you have all the parts shown
below:
Save all packaging in case you need to ship the projector. Always use
the original packaging (or the equivalent) when you need to send the
projector to another location.
If you are moving the projector by hand, use a carrying case (such as
the optional cases available from EPSON). See page 7 for more
information about cases.
projector
remote control
batteries
power cord
computer cable A/V cable USB cable PS/2 mouse cable
6Welcome
Additional Components
Depending on how you plan to use the projector, you may need
additional components:
■To receive an S-Video signal, you need an S-Video cable. (One is
usually provided with your video device.)
■To receive a component video signal from a VCR or other video
device, you need a VGA-to-component video cable. You can
purchase this from EPSON; see page 7.
■To connect two computers to the projector at the same time, you
need a DVI/analog interface cable. You can purchase this from
EPSON; see page 7.
■Some older PowerBooks and Macintosh desktop models may
need the Macintosh adapter set shown on page 89 (available from
EPSON; see page 7). Older iMac systems may need a special
adapter to provide a VGA output port; see your computer dealer.
■Some systems may need an additional cable to use the remote
control as a wireless mouse. If your Macintosh doesn’t have a USB
port, you’ll need a Macintosh mouse cable. If your PC doesn’t
have a USB or PS/2 port, you’ll need a PC serial mouse cable. See
your projector dealer to obtain the correct cable.
■To take advantage of the projector’s Digital Visual Interface, you
need a DVI cable, and your computer must be capable of
producing video signals in DVI format (for details, see page 93).
You can purchase this cable from EPSON; see page 7.
■To receive an audio signal, you may need a stereo mini-jack cable,
available from most electronics dealers.
Welcome 7
Optional Accessories
To enhance your use of the projector, EPSON provides the following
optional accessories. You can purchase these accessories from your
dealer, by calling EPSON at (800) 873-7766, or by visiting the
EPSON StoreSM at www.epsonstore.com (U.S. sales only). In Canada,
please call (800) 463-7766 for dealer referral.
Product Product number
Replacement lamp and air filter V13H010L15
Customized carrying cases:
Samsonite® wheeled soft case
ATA molded hard shell case
ATA shipping case
Soft shoulder bag
ELPKS35
ELPKS40
ELPKS41
ELPKS13
Ceiling mount
Suspension adapter
False ceiling plate
ELPMB36
ELPMBAPL
ELPMBFCP
Kensington® security lock ELPSL01
Projection screens:
50-inch portable screen
60-inch Insta Theatre screen
80-inch Insta Theatre screen
ELPSC06
ELPSC07
ELPSC08
Wireless microphone and two satellite speakers ELPCVSII
Auxiliary audio system ELPPAS1
Remote control receiver (plugs into projector to
extend range of remote control)
ELPST02
Remote control receiver kit (includes standard
receiver and clip-on receiver for attachment directly
to remote control)
ELPST04
Macintosh adapter set (includes monitor adapter
and desktop adapter)
ELPAP01
Component video cable (VGA to component video) ELPKC19
Digital video cables:
DVI to DVI, 10 feet (3 meters)
DVI to DFP, 10 feet (3 meters)
DVI to analog video, 10 feet (3 meters)
ELPKC20
ELPKC21
V12H005C25
High resolution document imager
Motion presentation camera
High resolution document camera
ELPDC02
ELPDC03
V12H064020
8Welcome
1
Setting Up the Projector9
1
Setting Up the Projector
This chapter tells you how to set up the projector for a laptop
computer or video presentation. If you need to set up the projector for
a permanent installation or connect it to a desktop or workstation
computer, see Appendix A.
You’ll find instructions for the following in this chapter:
■Positioning the projector
■Connecting to a laptop computer
■Connecting to video sources
10 Setting Up the Projector
Positioning the Projector
Before connecting the projector, you need to decide where to place it.
The location you choose depends on the size of the room and what
you are projecting.
■Place the projector on a sturdy, level surface, approximately
2.85 to 41 feet from the screen.
■Make sure there is plenty of space for ventilation around and
under the projector.
■Make sure the projector is within 10 feet of a grounded electrical
outlet or extension cord, and within 5 feet of your computer
and/or video source.
■Place the projector directly in front of the center of the screen,
facing it toward the screen squarely.
Most presenters find it convenient to place the projector in front of
the audience, leaving as much space as possible between the projector
and the screen to get a good-sized image. This lets the presenter stand
in the front of the room, face the audience, and remain close enough
to the equipment to be able to control it.
Use the figure below as a guideline to help you determine how far
from the screen to place the projector. Image size generally increases
with distance, but may vary depending on how you position the zoom
ring and whether you have adjusted the image size with other settings.
note
It’s easier to position the
p
rojector when the screen is
directly in front of the room.
However, if you need to place
it off-center, you can use the
keystone correction feature to
maintain a square image. See
p
age 27 for more
information.
3 to 4 ft6 to 8 ft30 to 41 ft distance from screen
Setting Up the Projector11
If you place the projector below the level of the screen, you’ll have to
tilt it up by extending the feet as shown. Tilting the projector upward
causes the image to lose its square shape, but you can correct the
distortion by pressing the
Keystone button as described in the next
chapter.
If you place the projector level with the bottom of the screen, the
image will be square and you won’t have to adjust it. If you place the
projector higher than the bottom of the screen, the image will still be
square, but you won’t be able to fill the whole screen with the image.
ideal
height
note
A
fter positioning the
p
rojector, you may want to
connect a Kensington
M
icroSaver
® anti-theft
device to the lock port on the
p
rojector’s left side. You can
p
urchase this from EPSON;
see “Optional Accessories” on
p
age 7
.
12 Setting Up the Projector
Connecting to a Laptop Computer
You can connect the PowerLite projector to any computer that has a
standard video output (monitor) port, including PC notebook and
laptop computers, Macintosh PowerBooks and iBooks, and hand-held
devices.
Connecting the Computer Cable
Before you start, make sure your computer and the projector are
turned off.
1. Connect one end of the computer cable to the projector’s
Computer2/Component Video port.
2. Connect the other end of the computer cable to your laptop’s
video-out or monitor port.
If you’re using a PowerBook and you can’t connect the cable, you
may need to use the Macintosh desktop adapter as shown on
page 89 (available from EPSON; see page 7).
3. Tighten the screws on the connectors.
If you don’t need to make any other connections, you can plug in
your projector and turn it on. See page 20 for instructions.
note
To connect to desktops and
other computer systems, see
A
ppendix A. If you have
an iBook with an RCA
video-out port, follow the
instructions for connecting to
a video device on page 16.
Computer2/Component Video port
note
Laptop configurations vary.
See your computer manual
f
or the location of the ports
needed to connect your
p
rojector.
Setting Up the Projector13
Connecting the Cable for Remote Mouse
Control
Using the remote control as a wireless mouse lets you control your
computer and click through slideshow-style presentations, such as
PowerPoint, from up to 30 feet away (for details, see page 41). This
gives you more flexibility in delivering your presentation, since you
won’t need to stand near your computer.
The USB cable also provides audio support. If your presentation
includes sound, you can play it through the projector’s speakers by
connecting the USB cable.
1. Locate the cable you need, depending on whether your laptop has
a round PS/2 mouse port or a flat USB mouse port.
2. Connect one end of the cable to the projector’s USB or
Mouse port.
3. Connect the other end of the cable to the external mouse port or
USB port on your laptop.
4. If necessary, configure your laptop to work with an external
mouse.
If you don’t need to make any other connections, you can plug in
your projector and turn it on. See page 20 for instructions.
note
If you’re using a PowerBook
that has a round mouse port,
y
ou’ll need a Macintosh
mouse cable. If you have a
PC laptop with a serial
mouse port, you’ll need a
serial mouse cable. See your
p
rojector dealer to obtain the
correct cable.
On a PowerBook or iBook,
USB audio support is
available for Mac OS 9.0
and 9.1 only.
USB cable
USB port
14 Setting Up the Projector
Amplifying Computer Audio
Your laptop probably has its own sound system; however, it may not
be adequate for your presentation. If you need more volume or better
sound quality, you can connect a stereo, mini-jack audio cable (not
included).
1. Connect one end of the audio cable to the
Audio1 jack on the
projector.
2. Connect the other end of the audio cable to your laptop’s
headphone jack or audio-out jack. (Jack locations vary; see
your computer manual if you’re not sure which jack to use.)
If you don’t need to make any other connections, you can plug in
your projector and turn it on. See page 20 for instructions.
note
If you connected the USB
cable, you may not need a
separate audio cable to
amplify audio from your
computer.
audio cable
Audio1 jack
Setting Up the Projector15
Connecting to Video Sources
You can connect a DVD player, VCR, camcorder, laser disc player,
digital camera, or any other compatible video source to your projector.
The projector supports HDTV, NTSC, PAL, and SECAM, and
automatically detects the video format.
The projector can receive composite video, S-Video, and component
video. You can connect one or more of these video sources at the same
time.
The type of cable you use depends on whether you have composite
video, S-Video, or component video.
■For composite video, use the RCA A/V cable included with the
projector.
■For S-Video, use the S-Video cable supplied with your video
device or obtain one from your electronics dealer.
■For component video, you’ll need a VGA-to-component video
cable. You can purchase this from EPSON; see page 7.
Component video connectors are usually colored green, blue, and
red.
See the following illustration if you’re not sure which type of
connectors you have.
Follow the instructions below for your type of connection.
note
The projector does not
support TV antenna cable
F-connectors.
S-Video
4-pin, mini-DIN
composite video
RCA connector
16 Setting Up the Projector
Connecting the RCA A/V Cable
Before starting, make sure the projector and your DVD player or
other video source are turned off.
1. Connect the yellow plug on one end of the A/V cable to the
projector’s yellow
Video jack.
2. Connect the other yellow plug to the video-out jack on your video
source.
3. Connect the red and white plugs on the A/V cable to the
projector’s
Audio L (white) and
R (red) jacks.
4. Connect the red and white plugs on the other end of the cable to
the corresponding audio output jacks on your video source.
If your video source has a stereo mini-jack instead of RCA jacks,
you can use a stereo mini-jack cable (not included). Connect it to
the Audio 1 jack on the projector.
A/V cable
A/V cable
stereo mini-jack cable
Setting Up the Projector17
Connecting an S-Video Cable
If your video source has an S-Video jack, you can use it to project a
higher quality video image. However, you’ll need an S-Video cable,
which may be included with your video source, or can be purchased
separately.
Before starting, make sure the projector and your DVD player or
other video source are turned off.
1. Insert one end of an S-Video cable into the projector’s
S-Video
connector.
2. Insert the other end into the S-Video output port of your video
source.
3. If your video source has RCA audio, you can use the A/V cable to
connect to the projector’s
Audio L (white) and
R (red) jacks.
If your video source has a stereo mini-jack instead of RCA jacks,
you can use a stereo mini-jack cable (not included). Connect it to
the Audio 1 jack on the projector.
S-Video connector
A/V cable
S-Video cable
18 Setting Up the Projector
Connecting a Component Video Cable
If your video source has component (blue, green, and red) connectors,
you can use them to project a higher quality video image. However,
you’ll need a VGA-to-component video cable, which is available from
EPSON; see page 7.
Before starting, make sure the projector and your DVD player or
other video device are turned off.
1. Connect the VGA end of the cable to the projector’s
Computer 2/Component Video port.
2. Connect the red, green, and blue leads at the opposite end of the
cable to the corresponding connectors on your video source.
3. If your video source has RCA audio, you can use the A/V cable to
connect to the projector’s
Audio L (white) and
R (red) jacks.
If your video source has a stereo mini-jack instead of RCA jacks,
you can use a stereo mini-jack cable (not included). Connect it to
the Audio 1 jack on the projector.
4. If the image doesn’t display properly, you may need to change the
Comp2/YCbCr option in the projector’s Setting menu (see
page 56).
Computer 2/
Component Video port
VGA-to-component
video cable
A/V cable
2
Using the Projector 19
2
Using the Projector
Once you’ve connected the projector to your computer or other
equipment (as described in Chapter 1 or Appendix A), you’re ready to
turn on the projector, adjust the image, and give your presentation.
Although you can operate the projector without it, the remote control
lets you use additional features. See Chapter 3 for instructions on
using the remote. This chapter covers the following:
■Turning on the projector and other equipment
■Adjusting the image
■Controlling the projector
■Shutting down the projector
20 Using the Projector
Turning On Your Equipment
Make sure your projector and other equipment are set up and
connected correctly, as described in Chapter 1 or Appendix A. Then
turn on your projector, as described below, followed by any
equipment you’ve connected to it. You can turn on your computer
and video equipment in any order, but if you have more than one
computer or video source connected, you may have to switch to the
desired source as described on page 29.
Turning On the Projector
Follow these steps to plug in and turn on the projector:
1. If you’re projecting video, first plug in and turn on your VCR,
DVD player, or other video source. (If you’re projecting from a
computer, go to step 2.)

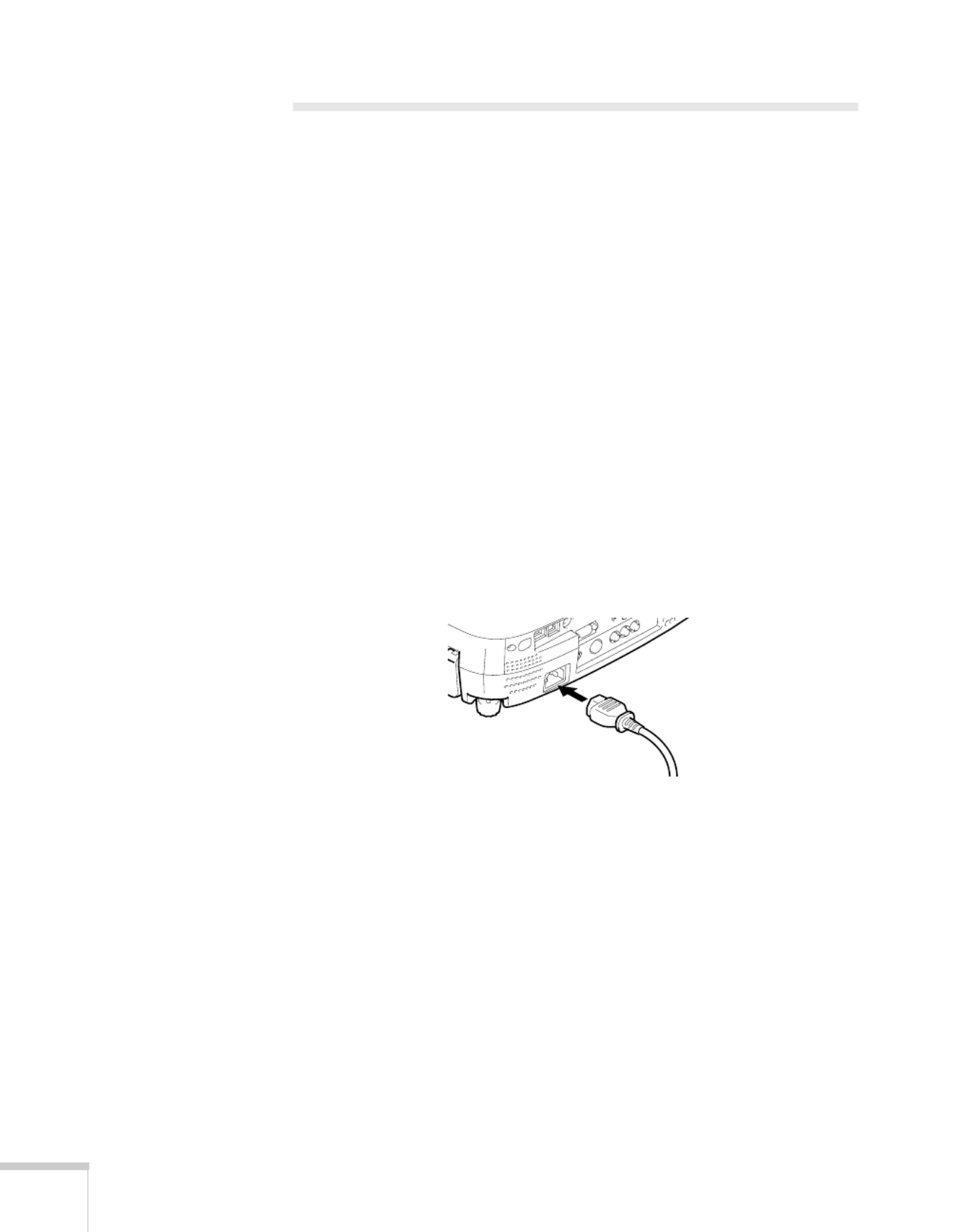

2. Connect one end of the power cord to the power inlet on the back
of the projector.
3. Connect the other end to a grounded electrical outlet.
The P power light on top of the projector turns orange,
indicating that the projector is receiving power but not yet
turned on.
4. Remove the lens cap.
Using the Projector 21
5. Press the red
Power button on top of the projector.
The power light flashes green as the projector warms up, and the
projection lamp comes on in about 30 seconds. The power light
stays green, and you may see a blue screen with the
No Signal
message displayed. This is normal.
6. Do one of the following:
■If you re projecting from a computer, turn on or restart your ’
computer. In a few moments, you should see your computer
display projected.
If you see a New Hardware Wizard message saying that it has
found a plug-and-play monitor, click
Cancel . If you see a
New Hardware Wizard message about USB audio, click
Next
and follow the instructions on the screen. (Windows only).
■If you’re projecting a video, press the
Play button on your
video source.
If a projected image fails to appear, see the next section for help.
Once you see your image, turn to page 24 for instructions on focusing
and making other image adjustments.
When you’re done with your presentation, shut down the projector as
described on page 30. Shutting down the projector correctly prevents
premature lamp failure and possible damage to the projector from
overheating.
Power button
power light
warning
N
ever look into the lens when
the lamp is on. This can
damage your eyes, and is
especially dangerous for
children.
22 Using the Projector
What To Do If You See a Blank Screen
If you see a blank screen or a blue screen with the
No Signal message
after turning on your computer or video source, try the following:
■Make sure the cables are connected correctly, as described on
page 12 (for laptops) or in Appendix A (for other systems).
■Make sure the power light is green and not flashing and the lens
cover is off.
■Try restarting your computer.
■If you’ve connected more than one computer and/or video source,
you may need to press the
Computer/YCbCr or Video button on
the projector’s control panel to select the correct source. (Allow a
few seconds for the projector to sync up after pressing the button.)
If you’re using a PC laptop:
■Press the function key that lets you display on an external
monitor. It’s often labelled with an icon such as but it may
also be labelled CRT/LCD. You may have to hold down the
Fn key
while pressing it. Check your laptop s manual or online help for ’
details.
On most systems, the key lets you toggle between the LCD
screen and the projector, or display on both at the same time.
Allow a few seconds for the projector to sync up after pressing it.
■Depending on your computer’s video card, you might need to use
the Display utility in the Control Panel to make sure that both the
LCD screen and external monitor port are enabled. See your
computer’s documentation or online help for details.
No Signal
Using the Projector 23
If you’re using a PowerBook or iBook with OS 9.x:
You may need to set up your system to display on the projector screen
as well as the LCD screen. Follow these steps:
1. From the Apple menu, select
Control Panels, then click
Monitors and Sound.
2. Click the Arrange icon.
3. Drag one monitor icon on top of the other.
If the Arrange option isn’t available, you may need to select one of the
Simulscan resolution settings:
1. Click the Monitor icon.
2. Select a Simulscan resolution as shown. (Allow a few seconds for
the projector to sync up after making the selection.)
click here
drag one monitor
icon on top of
the other
select a
Simulscan
resolution
click here
24 Using the Projector
If you're using Macintosh OS X:
You may need to set up your system to display on the projector screen
as well as the LCD screen. Follow these steps:
1. From the Apple menu, select
System Preferences, then select
Displays.
2. Make sure the VGA Display dialog box is selected.
3. Click the Arrange tab.
4. Make sure the Mirror Displays checkbox is selected.
Adjusting the Image
Once you see your image, you ll need to make certain adjustments: ’
■To focus or zoom your image, see below.
■If the image is too high or too low, you can reposition it. See
page 26.
■If the image isn’t square, see page 27.
■If only part of a computer image is displayed, you may need to
press the Resize button. See page 28 for more information.
■If the projected image is flickering or “ ”noisy, see page 28.
Select the
VGA Display
dialog box
Make sure
Mirror Displays
is checked
Using the Projector 25
Focusing and Zooming Your Image
Rotate the focus ring to sharpen the image.
Rotate the zoom ring to reduce or enlarge the image.
If the image still isn’t large enough, you may need to move the
projector farther away from the screen. You can also use the
E-Zoom
button on the remote control to zoom in on a portion of the image.
See page 37 for instructions.
focus ring
zoom ring
26 Using the Projector
Adjusting the Height of Your Image
If the image is too low, you can raise it by extending the projector’s
foot.
1. Stand behind the projector. Press the foot release button and lift
the front of the projector. This unlocks the foot.
2. Once the image is positioned where you want it, release the
button to lock the foot in position.
3. If you need to straighten the image, rotate the round adjustable
foot at the back of the projector.
If the image is no longer square after raising it, see the next section.
foot release
button
back
adjustable
foot
Using the Projector 27
Adjusting the Image Shape
If the projected image isn’t square or has a “ ”keystone shape, do one or
more of the following:
■If your image looks like or , you’ve placed the
projector off to one side of the screen, at an angle. Move it directly
in front of the center of the screen, facing the screen squarely. If
you still can’t get a square image, press the left or right
Keystone
button on the projector’s control panel:
■If your image looks like or , press the top or bottom
Keystone button to correct the shape of the image. After
correction, your image will be slightly smaller.
You can also perform electronic keystone correction using the
projector’s Setting menu. See page 55.
Sync+
Tracking - Tracking +
Sync-
Menu Esc
Keystone
Shift
Auto
Sync+
Tracking - Tracking +
Sync-
Menu Esc
Keystone
Shift
Auto
Sync+
Tracking - Tracking +
Sync-
Menu Esc
Keystone
Shift
Auto
Sync+
Tracking - Tracking +
Sync-
Menu Esc
Keystone
Shift
Auto
28 Using the Projector
Resizing the Image
Some computer images need to be resized to display in the projector’s
native resolution. If only part of your computer image is displayed,
you can correct it with the Resize button.
■Press the Resize button on the projector’s control panel (or on
the remote control). The screen image is automatically
compressed.
■Continue pressing the Resize button to pan around the screen in
the original resolution.
If you’re projecting from video equipment, pressing the
Resize
button switches the aspect ratio between 4:3 and 16:9. If you’ve
zoomed in on your image (using the
E-Zoom button on the remote),
you can press the Resize button to return it to the original display
size.
Adjusting the Tracking and Synchronization
If you re projecting from a computer and displaying an image that ’
contains a lot of detail (such as the text of a letter), you may notice one
or more vertical stripes or bands, or some of the characters may look
heavy or blurred. You can increase the clarity by pressing the
Auto
button on the projector’s control panel (or the
Auto button on the
remote control). This resets the projector’s tracking, sync, and
position settings.
If further adjustment is needed, you can correct the image manually
using the Tracking and Sync buttons as described on page 77.
Resize button
Auto button
incorrect tracking incorrect sync
Using the Projector 29
Controlling the Projector
While giving your presentation, you may want to switch between
picture sources, adjust the volume, or temporarily turn off the picture
and sound. Follow the instructions below to access theses features
from your projector’s control panel. You can also access these features,
plus many others, using the remote control as described in Chapter 3.
Switching Between Picture Sources
If your projector is connected to more than one computer and/or
video source, you can use the buttons on the control panel (or remote
control) to switch between the different sources.
On the projector’s control panel, press the
Computer/YCbCr button
to switch between computer sources and component video. Press the
Video button to switch between standard (composite) video and
S-Video.
After you select a source, the screen goes dark for a moment before the
image appears.
Adjusting the Volume
If your presentation includes sound, you can adjust the volume from
the projector’s control panel.
■To increase the volume, press on the right side of the
Volume
button.
■To reduce the volume, press on the left side of the
Volume
button.
Power
Sync+
Tracking - Tracking +
Menu Esc
Help
Computer/YCbCr
Video
Auto
Source
A/V Mute
button
30 Using the Projector
Turning Off the Picture and Sound
You can use the A/V Mute button on the control panel to darken your
screen and turn off the sound. This is useful if you want to
temporarily re-direct your audience’s attention without the distraction
of a bright screen.
■To turn off the picture and sound, press the
A/V Mute button.
The screen goes dark.
■To turn the picture and sound back on, press the button again.
Shutting Down the Projector
When you’ve finished using the projector, follow the recommended
procedure to shut it down. This extends the life of the lamp and
protects the projector from possible overheating.
1. If you’ve connected a computer or laptop and it’s displaying only
through the projector (the computer’s monitor is disconnected or
turned off), shut down the computer first; otherwise you may not
be able to see your computer’s display to shut it down properly.
2. To turn off the projector, press the red
Power button on the
projector or remote control.
You see a confirmation message. (If you don’t want to turn it off,
press any other button.)
note
You can also have an image,
such as a company logo,
display on the screen
whenever you press the
A/V Mute button. See
p
age 53 for instructions.
note
When the projector has not
received any input signals for
3
0 minutes, it automatically
turns off the projector lamp
and enters “sleep mode.” This
conserves electricity, cools the
p
rojector, and extends the life
of the lamp. If you are done
using the projector, unplug
the power cord. If you want
to start projecting again, press
the Power button.
Power button
power light
Using the Projector 31
3. Press the Power button again. The power light flashes orange for
about a minute and a half as the projector cools down. When the
projector has cooled, the orange light stays on and the exhaust fan
shuts off.
If you want to turn the projector on again, wait until the orange
light stops flashing. Then press the
Power button.
4. If you extended the front foot, press the foot adjust button to
retract it.
5. Replace the lens cap and unplug the power cord.
6. If you’re using a VCR or other video source, turn it off after you
turn off the projector.
7. Disconnect all equipment, and store the projector in a protective
case.
caution
To avoid damaging the
p
rojector or lamp, never
unplug the power cord when
the power light is green or
f
lashing orange.
32 Using the Projector
3
Using the Remote Control 33
3
Using the Remote Control
The remote control lets you access your projector’s features from
anywhere in the room—up to 30 feet away. You can use it to turn
the projector on and off, zoom in on a portion of your image, and
highlight your presentation.
If you’re using a computer and you’ve connected the mouse cable (as
described in Chapter 1 or Appendix A), you can use the remote
control as a wireless mouse.
This chapter covers the following information:
■Turning on and using the remote control
■Controlling the picture and sound
■Highlighting your presentation
■Using the remote control as a wireless mouse
34 Using the Remote Control
Turning On and Using the Remote
Control
Before using the remote control, you need to install its batteries and
turn it on as described below.
Installing Batteries
Follow these steps to install or replace the batteries:
1. Press the tab to release the
battery compartment cover.
2. Remove the cover and insert
the two AA batteries included
with the projector as shown.
3. Replace the battery
compartment cover.
Turning On the Remote Control
Make sure batteries are installed. Then push up the on/off switch on
the side of the remote control to turn it on.
Turn off the remote control before transporting it or storing it in a
projector case. This prevents the batteries from discharging if
something presses against one of the buttons.
caution
When replacing batteries,
take the following
p
recautions:
■Don’t mix old and new
batteries.
■Replace batteries as soon as
they run out. If the batteries
leak, wipe away battery fluid
with a soft cloth. If fluid gets
on your hands, wash them
immediately.
■Do not expose batteries to
heat or flame.
■Dispose of used batteries
according to local regulations.
■Remove batteries if you
won’t be using the projector
f
or a long period of time.
tab
Using the Remote Control35
Using the Remote Control
When using the remote control, stand within 30 feet of the projector.
Point the remote control either at the front or back of the projector or
at the screen (the projector’s front sensor can detect signals bounced
off the screen).
■Press the button for the function you want to use. See the
following pages for instructions.
■For some functions, you need to use the button like a mouse to
navigate on the screen. Press the edge of the button with your
thumb—or grasp it between your thumb and finger and tilt it in
the direction you want to move.
Controlling the Picture and Sound
You can use the remote control to select your source, adjust the
volume, temporarily turn off the picture and sound, freeze the action,
zoom in on the picture, or display a picture-in-picture video image.
Make sure you have set up your projector and connected any
equipment as described in Chapter 1 or Appendix A.
Switching Between Picture Sources
If you’ve connected your projector to a computer and/or video
sources, you can use the buttons on the remote control to switch
between the different sources.
■Press the
Comp2/YCbCr button to select a computer or video
source connected to the Computer 2/Component Video port on
the projector.
■Press the
Comp 1 button to select a computer connected to the
DVI Computer 1 port on the projector.
■Press the
Video button to select a composite video source.
■Press the
S-Video button to select an S-Video source.
After you select a source, the screen goes dark for a moment before the
image appears.
Menu
Comp1
Source
Video
Auto
PresetP in P
S-Video
Resize
Comp2/YCbCr
Help
36 Using the Remote Control
Adjusting the Volume
If you’ve connected an audio source to the projector, you can adjust
the sound that’s output through the projector s speakers. ’
■To increase the volume, press on the right side of the
Volume
button.
■To reduce the volume, press on the left side of the
Volume
button.
Turning Off the Picture and Sound
You can use the
A/V Mute button on the remote control to turn off
the image and sound and darken your screen. This is useful if you
want to temporarily re-direct your audience’s attention without the
distraction of a bright screen.
■To turn off the picture, press the
A/V Mute button. The screen
goes dark.
■To turn the image back on, press the button again.
You can also have an image, such as a company logo, display on the
screen whenever you press the
A/V Mute button. See page 53 for
instructions.
Stopping Action
You can use the remote control to stop the action in your video or
computer image.
■Press the
Freeze button to stop the action and keep the current
image on the screen. The sound will continue.
■Press the
Freeze button again to re-start it.
Power
A/V Mute Freeze
E-Zoom
Power
A/V Mute Freeze
E-Zoom
Using the Remote Control37
Zooming Your Image
You can zoom in on a portion of the image using the
E-Zoom button
on the remote control.
1. Press the E-Zoom button.
A crosshair indicating the center of the zoom-in area appears on
the screen.
2. Use the button to move the crosshair where you want it.
3. Press the right side of the E-Zoom button to enlarge the selected
area.
■Press the button repeatedly to enlarge it up to four times in
25 steps.
■Press and hold the button to zoom in to the size you want.
■You can use the button to scroll around the image.
4. Press the left side of the E-Zoom button to zoom out. You can
also press the Resize or Esc button to return to the original size.
Resizing the Image
Some computer images need to be resized to display in the projector’s
native format—1024 × 768 pixels. If only part of your computer
image is displayed, you can correct it with the
Resize button.
■Press the Resize button on the remote control (or on the
projector’s control panel). The screen image is automatically
compressed.
■Continue pressing the Resize button to pan around the screen in
the original resolution.
If you’re projecting from video equipment, pressing the
Resize
button switches the aspect ratio between 4:3 and 16:9. If you’ve
zoomed in on your image (using the
E-Zoom button on the remote),
you can press the Resize button to return it to the original display
size.
Power
A/V Mute Freeze
E-Zoom
38 Using the Remote Control
Displaying Picture-in-Picture Video
You can open a small video window on your computer image, and
view a video at the same time as your computer presentation. If you’re
using component video, you can display a second video (from a
composite or S-Video source) in the window.
First make sure you have connected your VCR or other video sources
as described in Chapter 1. If you’re using S-Video, you need to select
it in the P in P menu option as described on page 55.
1. Press the
P in P button on the remote control. The screen may go
dark for a moment, and then your video image appears in a small
window on the screen. A menu appears in the lower left corner of
the screen, describing how to move and resize the image.
2. Use the button to reposition the video window on the screen.
3. Press the
E-Zoom button to enlarge or reduce the video window.
4. When the window is located and sized the way you want, press
the button. The menu disappears, and your video plays on the
screen.
5. When you’re finished viewing the picture-in-picture, press the
P in P button again. The video window disappears.
note
You can use the Effects
buttons to switch between
sounds for the presentation
and video. Press Effect 1 for
the main screen; press
Effect 2 for the video.
video window
Using the Remote Control39
Highlighting Your Presentation
You can highlight areas on the screen using the numbered buttons on
the remote control. You can use these “special effects” features to
annotate your presentation slides or call attention to your most
important points. The following three highlighting tools are available:
■Pointer or cursor stamp (button
1)
■Spotlight (button 2)
■Bar (button 3)
You can customize the highlighting tools through the Effect menu.
See page 52 for instructions.
Using the Pointer
You can choose from three types of pointers and place them anywhere
on your screen.
1. To activate the pointer tool, press button
1 on the remote control.
A pointing hand appears in the center of the screen. To change it
to an arrow, press
1 again. Press
1 a third time to see a different
arrow.
2. Press the side of the button (or grasp it between your thumb
and finger) to move the arrow wherever you want it.
3. To “paste” the pointer on the screen, press down in the center of
the button. You can then continue to work with another
pointer, moving it around the screen or pasting it wherever you
want.
4. To erase the pointer(s) pasted on the screen and cancel the effect,
press
Esc .
Power
A/V Mute Freeze
E-Zoom
pointer
spot-
light
bar
note
You can use the projector’s
Effect menu to select different
p
ointers. See page 52.
40 Using the Remote Control
Spotlighting Your Image
With the Spotlight tool, you can highlight part of the screen.
1. To activate the spotlight tool, press button
2 on the remote
control. A square spotlight appears on the image.
You can continue pressing button
2 to switch between three
spotlight sizes.
2. Use the button to move the spotlight where you want it.
3. To remove the spotlight, press
Esc .
You can change the default size of the spotlight using the Effect menu;
see page 52.
Using Horizontal and Vertical Highlights
With the bar tool, you can draw bold horizontal or vertical lines on
the screen to underline or highlight your presentation points. You can
choose from three types of bars.
1. To activate the bar tool, press button
3 on the remote control. A
horizontal bar appears across the screen. If you want a vertical bar,
press
3 again. If you want to try another horizontal bar, press
3
again.
2. Use the button to move the bar up and down the screen (or left
and right if you are using the vertical bar).
3. To cancel the bar drawing feature, press
Esc .
note
You can change the color and
width of the bars using the
Effect menu. See page 52.
42 Using the Remote Control
■To double-click, press down twice on the left mouse button.
■To click and drag, press down on the left mouse button and then
tilt the button in the direction you want to drag.
You can use the up and down arrow buttons on the remote control to
move the cursor or move through a PowerPoint presentation. This
works only when you use the USB mouse cable.
■Press the down arrow to move forward through a presentation or
display the next slide.
■Press the up arrow to move backward or display the previous slide.
Power
A/V Mute Freeze
E-Zoom
Previous
Next
4
Fine-tuning the Projector 43
4
Fine-tuning the Projector
Y
ou can use the projector’s on-screen menus to adjust the image,
sound, and other features. You can also create your own startup
screen, customize the highlighting tools, and find out how long your
lamp has been in use. This chapter covers the following information:
■Using the menu system
■Adjusting the image
■Adjusting the sound
■Customizing the highlighting controls
■Creating your own startup screen
■Customizing projector features
■Viewing lamp usage and other information
■Restoring the default settings
Fine-tuning the Projector 45
Changing Menu Settings
You can use the buttons on the control panel or remote control to
access the menus and change settings. Follow these steps:
1. To display the menu screen, press the
Menu button on the
control panel or the remote control.
You see the menu screen:
The eight menus are listed on the left, and the options available
for the highlighted menu are shown on the right.
2. Press the
Sync+ or Sync– button on the control panel,
or press up or down on the button on the remote control, to
scroll through the menu list.
3. When the menu you want is highlighted, press the button on
the control panel or the remote control to select it. The highlight
moves to the first option for that menu.
Esc
Menu
Comp1
Source
Video S-Video
Comp2/YCbCr
Help
Sync+
Tracking - Tracking +
Menu Esc
Computer/YCbCr
Video
Auto
Source
control panel remote control
menus
menu opt
i
ons
Fine-tuning the Projector 47
Adjusting the Image
The Video menu lets you make adjustments to the projected image.
The options available in the menu depend on which source is
connected to the projector: standard computer video (analog RGB),
DVI computer video (digital RGB), composite or S-Video,
component video, or RGB video (standard TV).
Video menu for standard computer display
(Analog-RGB)
Video menu for DVI computer display
(Digital-RGB)
Video menu for composite video or S-Video
Video menu for component video Video menu for RGB-Video
48 Fine-tuning the Projector
Repositioning the Image
Follow these steps to move the image to a different position:
1. Press the
Menu button. You see the menu screen.
2. Press the button to select the Video menu.
3. Press to select the
Position option. You see a positioning
screen.
4. Use the Tracking and Sync buttons (control panel) or the
button (remote control) to move the image left, right, up, or
down.
5. When the image is positioned the way you want, press
Esc to exit.
Adjusting Image Appearance
Follow these steps to adjust the appearance of your image:
1. Press the
Menu button. You see the menu screen.
2. Press the button to select the Video menu.
3. Use the Tracking and Sync buttons (control panel) or the
button (remote control) to set the following options:
■Tracking (analog computer images only)
Removes unwanted vertical lines from a computer image by
matching the projector’s internal clock to the computer
display signal.
■Sync (analog computer images only)
Corrects fuzziness by synchronizing the projector with the
tracking signal sent from the computer.
■Brightness
Lightens or darkens the overall image.
■Contrast
Adjusts the difference between light and dark areas. When
Auto is selected (the default), the projector performs gain
adjustment periodically.
■Color (video only)
Adjusts the color depth or intensity of the image.
note
If you have repositioned the
image or adjusted the sync
setting, you can use the
button on the control panel
or the Auto button on the
remote control to restore the
default settings.
Fine-tuning the Projector 49
■Tint (NTSC video only)
Adjusts the balance of green to magenta in the image.
■Sharpness
Adjusts the sharpness of the image.
■Color Mode
Corrects the vividness of image color. You can select from the
following six settings, and save a different one for each
computer and/or video source:
sRGB : To use the sRGB standard for computer displays (the
default when projecting from a computer with analog video)
High Brightness: For presentations in bright rooms
Meeting: For projecting without color enhancement
Presentation: For presentations in dark rooms
Theater: For optimizing movie images with natural color
(the default for video or S-Video display)
Amusement: For optimizing games
■Resolution (analog computer images only)
Leave this setting at
Auto to allow the projector to detect the
video signal automatically. If the projector is unable to sync
up with the computer, select
Manual and choose one of the
settings.
■Video Signal (video only)
Leave this setting at
Auto unless you are using a 60-hertz PAL
system (select
PAL60 ).
■Noise Reduction (video only)
Reduces visual “ ”noise. This is especially useful when text and
video images are combined, as in movies with subtitles.
4. When the image is set correctly, press
Esc or Menu . Your settings
are automatically saved.
50 Fine-tuning the Projector
Saving and Recalling Computer Settings
When you are projecting from an analog computer source, you can
save and recall settings (resolution, tracking, sync signal, and position)
in up to five different combinations. This is useful if you use more
than one computer with the projector; you can save the settings for
each one and recall them when necessary. Follow these steps to save
the projector’s current settings:
1. Press the
Menu button to display the Main menu.
2. Press the button to select the Video menu.
3. Use the
Sync– button (control panel) or the button
(remote control) to move down to the
Preset option.
4. Press . You see the Preset Selection menu with the current
resolution setting displayed.
5. Use the
Sync– button (control panel) or the button
(remote control) to select the number to which you want to assign
the current settings.
6. Press . If you see an
Overwrite? prompt, select
Yes and
press .
7. Press
Esc or Menu to exit.
When you want to use a saved setting, press the
Preset button on the
remote control. You see the selected setting displayed on the screen.
To select another number, press the
Preset button again until the
setting number you want is displayed. The projector resets itself
according to the selected setting.
Fine-tuning the Projector 51
Adjusting the Sound
You can use the Audio menu to select the audio source or adjust the
sound volume or treble/bass balance.
1. Press the
Menu button. You see the menu screen.
2. Use the
Sync– button (control panel) or the button
(remote control) to highlight
Audio . You see the following:
3. Press to select the Audio menu.
4. Use the Tracking and Sync buttons (control panel) or
the button (remote control) to set the following options:
■Audio Input
Audio 1 is automatically selected for computer sound, and
Audio2 for video. Select
USB to amplify computer sound
through a USB cable connected to the projector.
■Volume
■Treble
■Bass
5. When you’re finished adjusting the sound, press
Esc or Menu .
52 Fine-tuning the Projector
Customizing the Highlighting Tools
The highlighting tools let you add pointers and other types of
annotations to your image, as described on pages 39 to 41. You can
use the Effect menu to customize these tools and set the pointer speed
for highlighting. The
Reset option lets you return all the highlighting
tools to their default settings.
1. Press the
Menu button. You see the main menu.
2. Use the
Sync– button (control panel) or the button
(remote control) to highlight
Effect . You see the Effect menu:
3. Press to select the Effect menu.
4. Use the Tracking and Sync buttons (control panel) or the
button (remote control) to customize the following:
■Pointer/Stamp
Lets you define the shape and size for three different pointers.
■Spotlight
Lets you choose a large, medium, or small spotlight.
■Bar
Lets you define three different bars. For each one, you can set
the color and width, and choose between vertical and
horizontal.
■Pointer speed
Lets you choose low, medium, or high speed.
5. When you’re finished customizing the highlighting tools, press
Esc or Menu . Your selections are saved.
Fine-tuning the Projector 53
Creating Your Own Startup Screen
You can transfer any image from your computer or video source to the
projector, and then use it as your startup screen. You can also use it as
the screen displayed when the projector is not receiving a signal or
when you press the
A/V Mute button. The image can be a company
logo, slogan, photograph, or any other image you want to use.
Capturing the Image
Start by displaying the image you want to use. It can be an image from
either a computer or video source such as a DVD player or digital
camera. Then follow these steps to capture the image and transfer it to
the projector:
1. Press the
Menu button on the control panel or remote control.
You see the menu screen.
2. Use the
Sync– button (control panel) or the button
(remote control) to highlight the
User’s Logo menu, then
press .
3. When you see the screen shown at right, select
Yes and press .
A selection box displays over the image.
4. Use the Tracking and Sync buttons (control panel) or the
button (remote control) to select the area of the image you want
to use. Then press .
54 Fine-tuning the Projector
5. When you see the message “Do you use this image?” select
Yes
and press .
You see the screen shown at the left.
6. Use the Tracking and Sync buttons (control panel) or
the button (remote control) to select a zoom rate (display
size), and then press .
7. When the message “Do you save the user appears, select ’s logo?”
Yes and press .
Saving the logo may take a few moments. Do not use your
projector or video source (computer, DVD player, etc.) while the
logo is being saved.
8. When you see the message “Saving the user’ ”s logo is completed,
press
Esc to return to the menu screen.
Choosing When to Display the Image
After your image is saved, you can set it up as the no-signal message
and/or the screen that’s displayed when you press
A/V Mute .
1. Press the
Menu button to display the menu screen (if not already
displayed).
2. Use the
Sync– button (control panel) or the button
(remote control) to highlight the
Setting menu.
3. Press the button to select the Setting menu.
4. Use the
Sync– button (control panel) or the button
(remote control) to highlight either
No-Signal Msg . or A/V
Mute , depending on when you want the image to display.
5. Use the Tracking+ button (control panel) or the button
(remote control) to select
Logo . This sets your image as the screen
to be displayed.
6. When you’re finished, press
Esc or Menu to exit.
note
You can also set up your
image as the startup screen
using the Advanced menu; see
p
age 57.
Fine-tuning the Projector 55
Customizing Projector Features
You can use the Setting menu to disable the projector’s sleep mode,
adjust the image shape, and customize several other features.
1. Press the
Menu button.
2. Use the
Sync– button (control panel) or the button
(remote control) to highlight
Setting . You see the options and
their settings on the right side:
3. Press to select the Setting menu.
4. Use the Tracking and Sync buttons (control panel) or
the button (remote control) to set the following options:
■V-Keystone or H-Keystone
Correct the shape of the image. Keystone correction makes
the image smaller, especially if you use both vertical
(V-Keystone ) and horizontal (
H-Keystone ) correction. If
you need to adjust the shape in both directions, adjust the
vertical first. If the image looks uneven after you adjust the
shape, decrease the Sharpness setting (see page 49).
■P in P
Selects the source used by the picture-in-picture display
(standard composite video or S-Video).
■No-Signal Msg.
Selects a screen color or image to display when the projector is
not receiving a signal. The logo setting displays an image that
you have transferred to the projector (see page 53).
56 Fine-tuning the Projector
■Prompt
Turns off the identifying text that appears briefly when you
switch picture sources. (It’s best to leave this on.)
■A/V Mute
Selects the screen color or image to display when you press
the A/V Mute button. The logo setting displays an image that
you have transferred to the projector (see page 53).
■Comp1 Input
Specifies the format for input to the
Computer1 port. Select
Digital-RGB/Analog-RGB , Analog-RGB , or RGB-Video.
■Comp2/YCbCr Input
Specifies the format for input to the
Computer 2/
Component Video port. If the source is a computer, select
Analog-RGB. If the source is a video device, select
YCbCr for
DVD images
or YPbPr for progressive scan DVD or HDTV
images.
■Sleep mode
When sleep mode is on, the projector turns off the lamp if it
has not received any input signals for 30 minutes. Turn sleep
mode off if you want the lamp to remain on all the time.
5. When you’re finished, press
Esc or Menu .
Fine-tuning the Projector 57
Setting Advanced Features
You can use the Advanced menu to configure the projector for rear
projection or ceiling mounting, and adjust several other features.
1. Press the
Menu button.
2. Use the
Sync– button (control panel) or the button
(remote control) to highlight
Advanced . You see the features and
their settings on the right side:
3. Press to select the Advanced menu.
4. Use the Tracking and Sync buttons (control panel) or
the button (remote control) to set the following options:
■Language
Select from 9 languages to be used for the projector menus.
■Startup Screen
Turn on to display your captured image or logo whenever the
projector starts. (See page 53 for more information.)
■Color Adjustment
Adjusts the color temperature of the projected image. Select
Color Temp. to set a temperature between 5000 and
10000 K. Select
RGB to adjust individual red, green, and
blue values, as shown. (Not available if
sRGB is selected as
the Color Mode setting in the Video menu. See page 49 for
more information.)
■Rear Proj.
Turn on to project from behind onto a transparent screen.
58 Fine-tuning the Projector
■Ceiling
Turn on when the projector is mounted upside-down from
the ceiling.
■COM Port
Switches between serial (
RS-232C ) and USB communication
for programming/projector control.
5. When you’re finished, press
Esc or Menu .
Viewing Lamp Usage and Other
Information
Use the About menu to view information about the display settings of
your computer and the number of hours the lamp has been used.
1. Press the
Menu button. You see the main menu.
2. Use the
Sync– button (control panel) or the button
(remote control) to highlight
About .
You see the lamp usage hours and computer display settings on
the right:
The life span of the lamp is about 1500 hours. If the number
shown is close to 1500, make sure you have a spare lamp handy.
After you change the lamp, you need to reset the lamp timer.
note
If you access the About menu
when the projector display is
set to video, you see only the
lamp life and the video signal
setting.
note
The lamp usage timer doesn’t
register until you’ve used the
lamp for at least 10 hours.
Fine-tuning the Projector 59
3. If you have changed the lamp, press to select
Reset Lamp
Timer. Press again, then select
Yes when you see the prompt.
Press to confirm the reset.
4. When you’re finished, press
Esc or Menu .
Restoring the Default Settings
The Reset All option lets you return all the projector settings to their
default values.
Select
Reset All and press the button on the control panel or
remote control to display the confirmation screen. Select
Yes to reset
all the default settings or
No to cancel.
60 Fine-tuning the Projector
