PowerLite®S11/X12/X15 User's Guide
Contents
Introduction to Your Projector ................................................................................................................... 9
Projector Features................................................................................................................................ 9
Product Box Contents.................................................................................................................... 10
Additional Components ................................................................................................................ 11
Optional Equipment and Replacement Parts................................................................................. 12
Warranty and Registration Information.......................................................................................... 13
Notations Used in the Documentation................................................................................................ 13
Where to Go for Additional Information .............................................................................................. 13
Projector Part Locations ..................................................................................................................... 14
Projector Parts - Front/Top ............................................................................................................ 14
Projector Parts - Rear.................................................................................................................... 15
Projector Parts - Base.................................................................................................................... 19
Projector Parts - Control Panel ...................................................................................................... 19
Projector Parts - Remote Control................................................................................................... 22
Setting Up the Projector ........................................................................................................................... 24
Projector Placement........................................................................................................................... 24
Projector Setup and Installation Options ....................................................................................... 24
Projection Distance........................................................................................................................ 26
Projector Connections........................................................................................................................ 27
Connecting to Computer Sources.................................................................................................. 28
Connecting to a Computer for USB Video and Audio................................................................ 28
Connecting to a Computer for VGA Video................................................................................. 29
Connecting to a Computer for HDMI Video and Audio.............................................................. 30
Connecting to a Computer for USB Mouse Control................................................................... 31
Connecting to a Computer for Sound........................................................................................ 32
Connecting to Video Sources ........................................................................................................ 33
Connecting to an HDMI Video Source ...................................................................................... 33
Connecting to a Component-to-VGA Video Source.................................................................. 34
Connecting to a Composite Video Source ................................................................................ 35
Connecting to an S-Video Video Source................................................................................... 36
3
Changing the Color Mode.............................................................................................................. 64
Available Color Modes................................................................................................................... 65
Turning On Auto Iris....................................................................................................................... 66
Controlling the Volume with the Volume Buttons................................................................................ 66
Projecting a Slide Show ..................................................................................................................... 67
Supported Slideshow File Types ................................................................................................... 67
Starting a Slide Show .................................................................................................................... 68
Slideshow Display Options ....................................................................................................... 70
Adjusting Projector Features ................................................................................................................... 72
Shutting Off the Picture and Sound Temporarily ................................................................................ 72
Stopping Video Action Temporarily .................................................................................................... 73
Zooming Into and Out of Images ........................................................................................................ 73
Projector Security Features................................................................................................................ 74
Password Security Types .............................................................................................................. 74
Setting a Password ................................................................................................................... 74
Selecting Password Security Types.......................................................................................... 76
Entering a Password to Use the Projector................................................................................. 76
Saving a User's Logo Image to Display..................................................................................... 78
Locking the Projector's Buttons ..................................................................................................... 79
Unlocking the Projector's Buttons ............................................................................................. 80
Installing a Security Cable ............................................................................................................. 80
Adjusting the Menu Settings .................................................................................................................... 82
Using the Projector's Menus............................................................................................................... 82
Image Quality Settings - Image Menu ................................................................................................ 83
Input Signal Settings - Signal Menu.................................................................................................... 85
Projector Feature Settings - Settings Menu........................................................................................ 87
Projector Setup Settings - Extended Menu......................................................................................... 90
Projector Information Display - Info Menu .......................................................................................... 92
Projector Reset Options - Reset Menu............................................................................................... 93
Maintaining and Transporting the Projector ........................................................................................... 95
Projector Maintenance ....................................................................................................................... 95
Cleaning the Lens.......................................................................................................................... 95
Cleaning the Projector Case.......................................................................................................... 96
5
Optional Equipment and Replacement Parts
You can purchase screens, other optional accessories, and replacement parts from an Epson authorized
reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766). Or you can purchase online
at (U.S. sales) or (Canadian sales).www.epsonstore.com www.epson.ca
Epson offers the following optional accessories and replacement parts for your projector:
Option or part Part number
Genuine EPSON Replacement lamp (ELPLP67) V13H010L67
Air filter replacement set (2 filters; ELPAF32) V13H134A32
EPSON DC-06 document camera (ELPDC06) V12H321005
EPSON DC-11 document camera V12H377020
BrightLink Solo interactive module (IU-01) V12H415020
AP-60 Projector Sound Solution V12H329020
PixiePlus Control System ELPSP10
Accolade Duet portable projector screen ELPSC80
ES1000 Ultra Portable Tabletop Projection screen V12H002S4Y
ES3000 Ultra Portable Tabletop Projection screen V12H002S3Y
Universal projector ceiling mount ELPMBPJF
Adjustable suspended ceiling channel kit ELPMBP01
False ceiling plate kit ELPMBP02
Structural Round ceiling plate ELPMBP03
Adjustable Extension Column (pipe) 8" - 11" (20 to 28 cm) ELPMBC01
Component-to-VGA video cable (ELPKC19) V12H005C19
VGA video cable 1.8 m length ELPKC02
VGA video cable 3.0 m length ELPKC09
VGA video cable 20 m length ELPKC10
Kensington security lock ELPSL01
2-Year Extended Service Program - Exchange Service EPPEXPA1
12
Parent topic: Projector Features
Warranty and Registration Information
Your projector comes with a basic warranty that lets you project with confidence. For details, see the
warranty that came with your projector.
In addition, Epson offers free Extra Care Road Service. In the unlikely event of an equipment failure, you
won’t have to wait for your unit to be repaired. Instead, Epson will ship you a replacement unit anywhere
in the United States, Canada, or Puerto Rico. See the Extra Care Road Service brochure for details.
Register your product online using the projector CD or at this site: www.epson.com/webreg
Registering also lets you receive special updates on new accessories, products, and services.
Parent topic: Projector Features
Notations Used in the Documentation
Follow the guidelines in these notations as you read your documentation:
• must be followed carefully to avoid bodily injury.Warnings
• must be observed to avoid damage to your equipment.Cautions
• contain important information about your projector.Notes
• contain additional projection information.Tips
Parent topic: Introduction to Your Projector
Where to Go for Additional Information
Need quick help on using your projector during a presentation? Here's where to look for help:
• Built-in help system
Press the button on the remote control or projector to get quick solutions to common problems.Help
• (U.S) or (Canada)www.epson.com/support www.epson.ca/support
View FAQs (frequently asked questions) and e-mail your questions to Epson technical support 24
hours a day.
• If you still need help after checking this manual and the sources listed above, you can use the Epson
PrivateLine Support service to get help fast. For details, see "Where to Get Help".
Parent topic: Introduction to Your Projector
13
Related references
Where to Get Help
Projector Part Locations
Check the projector part illustrations to learn about the parts on your projector.
Projector Parts - Front/Top
Projector Parts - Rear
Projector Parts - Base
Projector Parts - Control Panel
Projector Parts - Remote Control
Parent topic: Introduction to Your Projector
Projector Parts - Front/Top
14

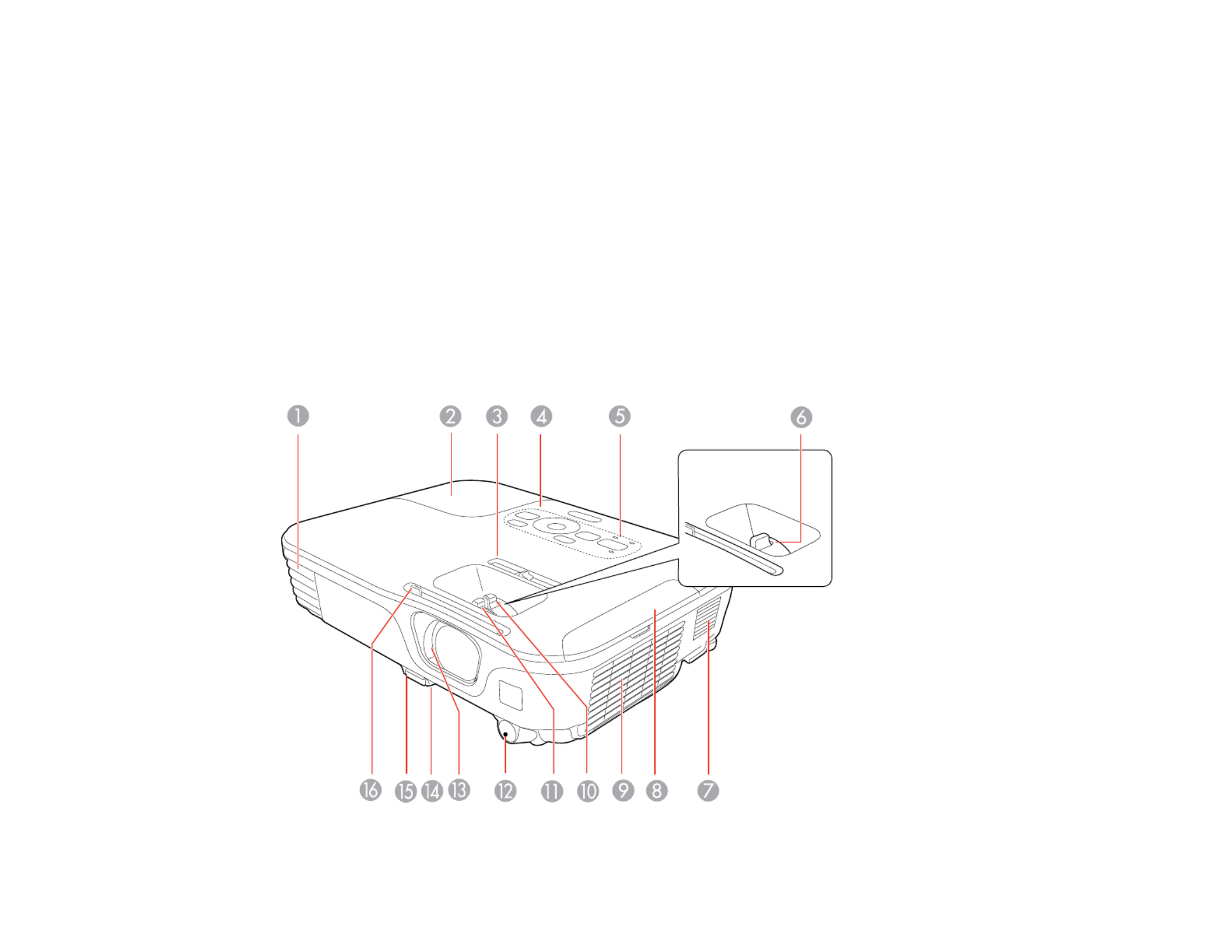

1 Exhaust vent
2 Lamp cover
3 Horizontal keystone slider (PowerLite X12/X15)
4 Control panel
5 Projector status lights
6 Focus ring (PowerLite S11)
7 Speaker
8 Air filter cover
9 Intake vent
10 Zoom ring (PowerLite X12/X15)
11 Focus ring (PowerLite X12/X15)
12 Remote receiver
13 A/V Mute slide
14 Front adjustable foot
15 Foot release lever
16 A/V Mute slide lever
Parent topic: Projector Part Locations
Projector Parts - Rear
PowerLite S11
15

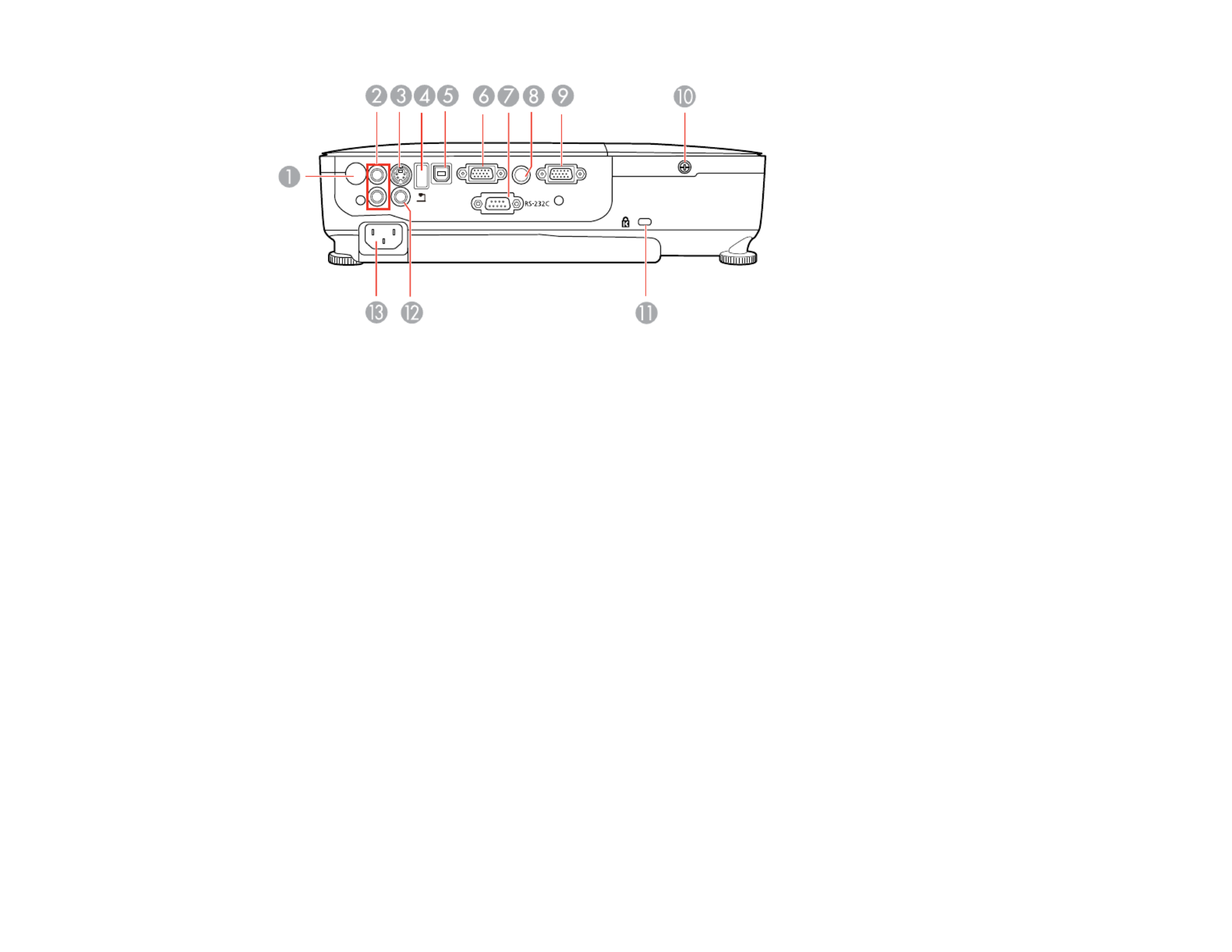

1 Remote control receiver
2 portsAudio
3 portS-Video
4 USB /document camera portTypeA
5 USB portTypeB
6 portComputer
7 portRS-232C
8 portAudio Out
9 portMonitor Out
10 Lamp cover screw
11 Security lock port
12 portVideo
13 AC input port

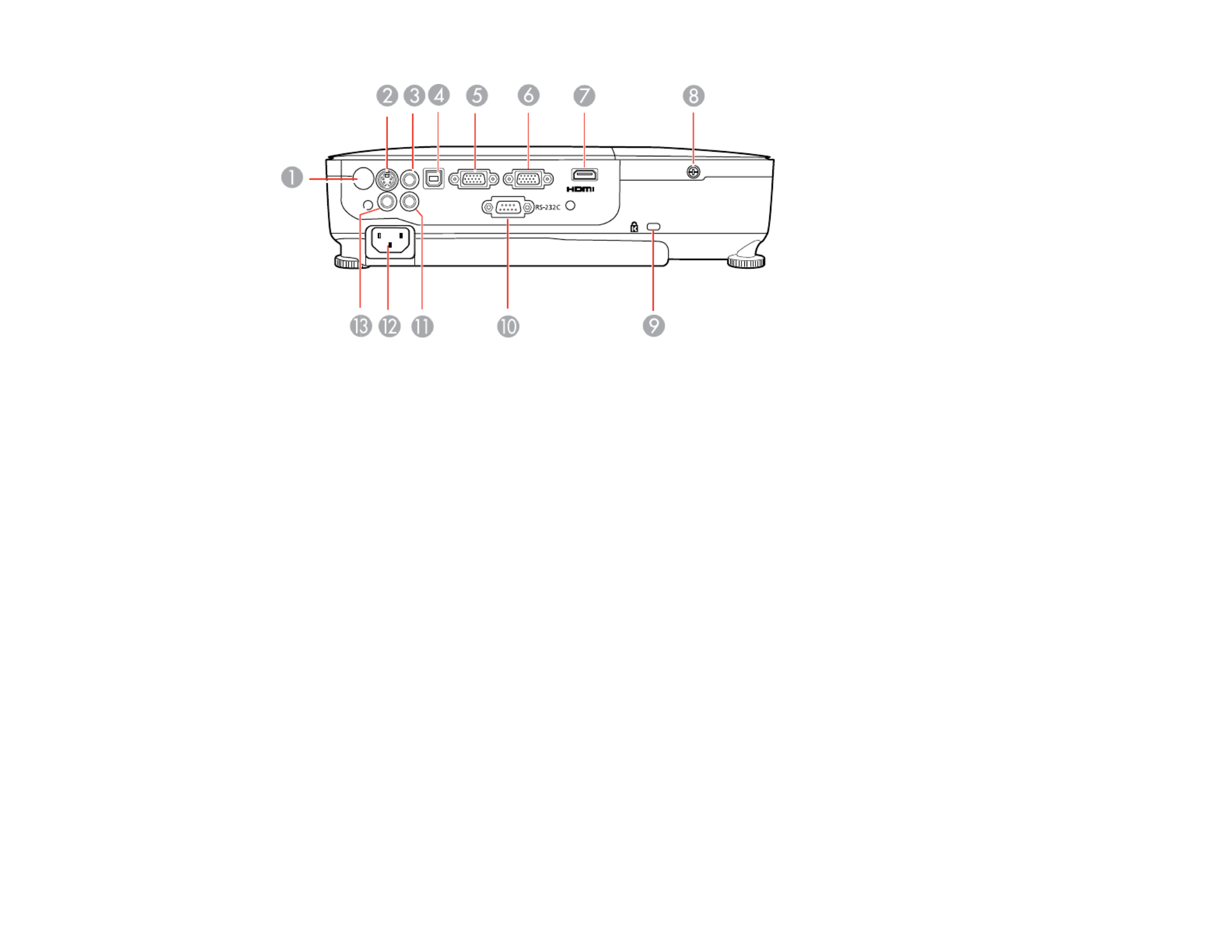

PowerLite X12
16
1 Remote control receiver
2 portS-Video
3 portAudio Out
4 USB portTypeB
5 portComputer1
6 portComputer2
7 portHDMI
8 Lamp cover screw
9 Security lock port
10 serial portRS-232C
11 portAudio
12 AC input port
13 portVideo
Parent topic: Projector Part Locations
18
2 button (cycles through connected computer sources)Computer
3 button (cycles through connected video sources)Video
4 Numeric buttons (enter numbers)
5 button (automatically adjusts position, tracking, and sync settings)Auto
6 button (selects the image aspect ratio)Aspect
7 button (when held down, switches numeric buttons to number function)Num
8 button (accesses projector menu system)Menu
9 Arrow buttons (move through on-screen options and control wireless mouse functions)
10 Enter button (selects options and controls wireless mouse functions)
11 button (customizable for different functions)User
12 up/down buttons (control presentation slides)Page
13 / buttons (zoom into and out of the image)E-Zoom + –
14 button (turns off picture and sound)A/V Mute
15 button (accesses projector help information)Help
16 button (stops video action)Freeze
17 up/down buttons (adjust speaker volume)Volume
18 button (activates on-screen pointer)Pointer
19 button (cancels/exits functions and controls wireless mouse functions)Esc
20 button (selects display modes)Color Mode
21 button (button is not functional)LAN
22 button (cycles through connected USB sources)USB
23 button (searches for connected sources)Source Search
Parent topic: Projector Part Locations
23
Related references
Projector Setup Settings - Extended Menu
Projection Distance

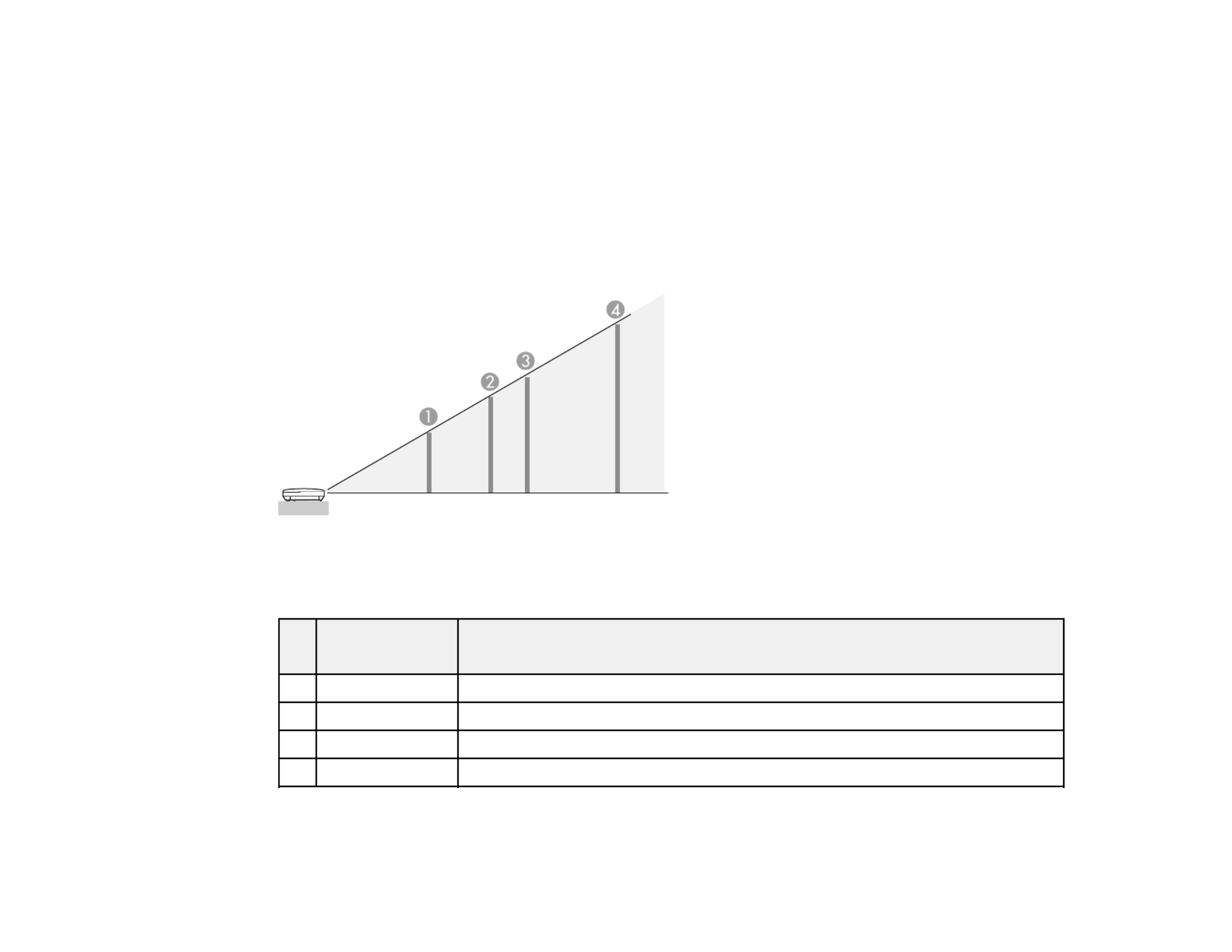

The distance at which you place the projector from the screen determines the approximate size of the
image. The image size increases the farther the projector is from the screen, but can vary depending on
the zoom factor, aspect ratio, and other settings.
Use the tables here to determine approximately how far to place the projector from the screen based on
the size of the projected image. (Conversion figures may have been rounded up or down.)
PowerLite S11
4:3 Aspect Ratio Image or Screen
Screen or Projection distance
image size Wide to Tele
1 50 inches 58 to 79 inches (147 to 200 cm)
2 80 inches 93 to 126 inches (237 to 321 cm)
3 100 inches 117 to 158 inches (297 to 401 cm)
4 150 inches 176 to 237 inches (446 to 603 cm)
PowerLite X12/X15
4:3 Aspect Ratio Image or Screen
26
Screen or Projection distance
image size Wide to Tele
1 50 inches 59 to 71 inches (150 to 180 cm)
2 80 inches 95 to 114 inches (241 to 290 cm)
3 100 inches 119 to 143 inches (302 to 363 cm)
4 150 inches 179 to 215 inches (454 to 546 cm)
Parent topic: Projector Placement
Projector Connections
You can connect the projector to a variety of computer, video, and audio sources to display
presentations, movies, or other images, with or without sound.
• Connect any type of computer that has a USB port, standard video output (monitor) port, or HDMI port
(PowerLite X12/X15).
• For video projection, connect devices such as DVD players, gaming consoles, digital cameras, and
camera phones with compatible video output ports.
• If your presentation or video includes sound, you can connect audio input cables, if necessary.
• For slide shows without a computer (PowerLite S11/X12), you can connect USB devices (such as a
flash drive or camera) or an optional Epson document camera.
Caution: High Altitude ModeIf you will use the projector at altitudes above 4921 feet (1500 m), turn on
to ensure the projector's internal temperature is regulated properly.
Connecting to Computer Sources
Connecting to Video Sources
Connecting to an External Computer Monitor
Connecting to External Speakers
Connecting to External USB Devices
Connecting to a Document Camera
Parent topic: Setting Up the Projector
Related references
Projector Setup Settings - Extended Menu
27
3. Connect the other end to any available USB port on your computer.
4. Do one of the following:
• : Select in the dialog box that appears to installWindows 7/Windows Vista Run EMP_UDSe.exe
the Epson USB Display software.
• : Wait as messages appear on your computer screen and the projector installs theWindows XP
Epson USB Display software on your computer.
• : Select , , and to install the EpsonWindows 2000 Computer EPSON_PJ_UD EMP_UDSe.EXE
USB Display software.
• : The USB Display setup folder appears on your screen. SelectMac OS X USB Display Installer
and follow the on-screen instructions to install the Epson USB Display software.
Follow any on-screen instructions. You need to install this software only the first time you connect
the projector to the computer.
The projector displays the image from your computer's desktop and outputs sound, if your presentation
contains audio.
Parent topic: Connecting to Computer Sources
Related references
Projector Setup Settings - Extended Menu
USB Display System Requirements
Connecting to a Computer for VGA Video
You can connect the projector to your computer using a VGA computer cable.
Note: To connect a Mac that includes only a Mini DisplayPort or Mini-DVI port for video output, you need
to obtain an adapter that allows you to connect to the projector's VGA video port. Contact Apple for
compatible adapter options.
29

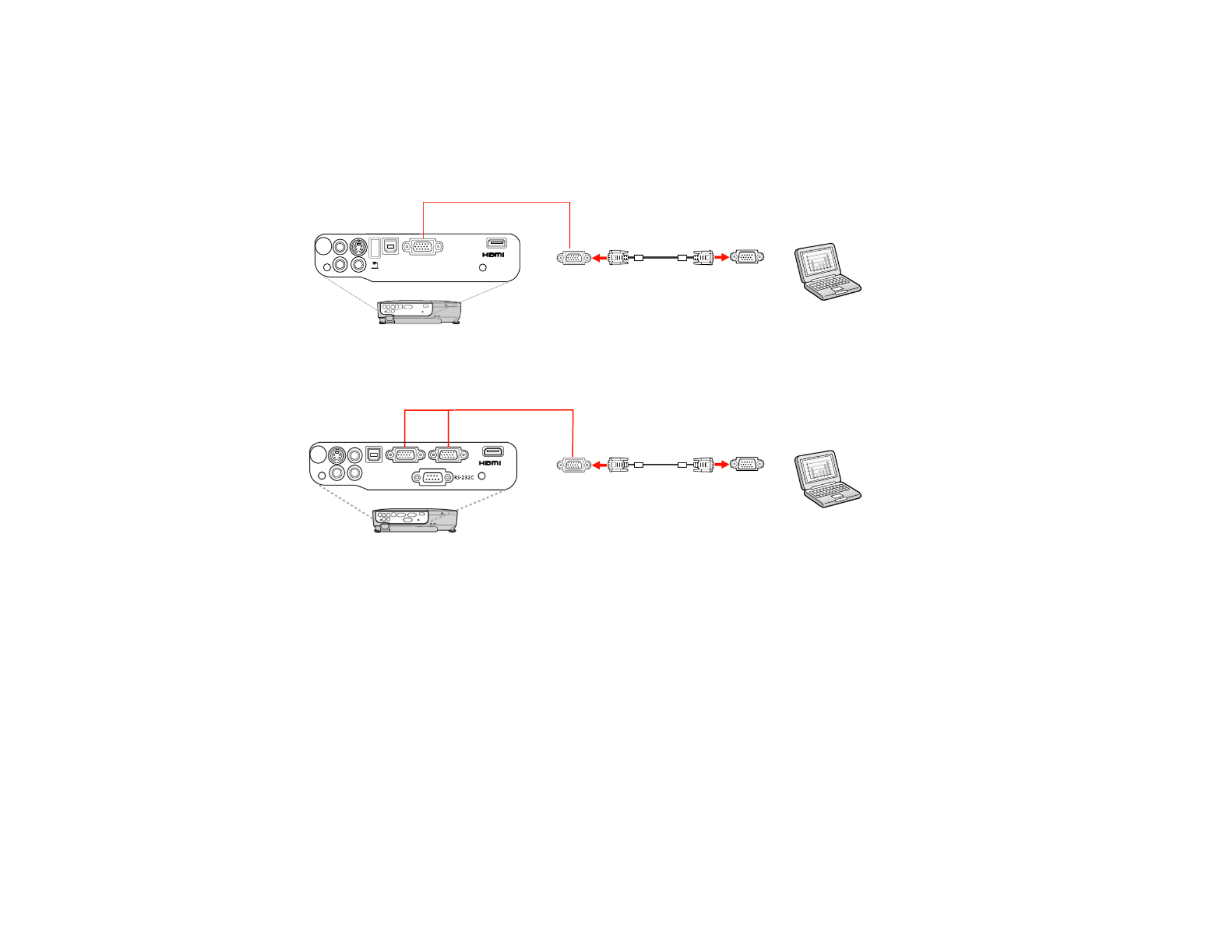

1. If necessary, disconnect your computer's monitor cable.
2. Connect the VGA computer cable to your computer's monitor port.
3. Connect the other end to a port on the projector.Computer
PowerLite S11/X12
PowerLite X15
4. Tighten the screws on the VGA connectors.
Parent topic: Connecting to Computer Sources
Connecting to a Computer for HDMI Video and Audio
If your computer has an HDMI port, you can connect it to the projector using an optional HDMI cable
(PowerLite X12/X15).
Note: To connect a Mac that includes only a Mini DisplayPort or Mini-DVI port for video output, you need
to obtain an adapter that allows you to connect to the projector's port. Contact Apple forHDMI
compatible adapter options. Older Mac computers (2009 and earlier) may not support audio through the
HDMI port.
1. Connect the HDMI cable to your computer's HDMI output port.
30

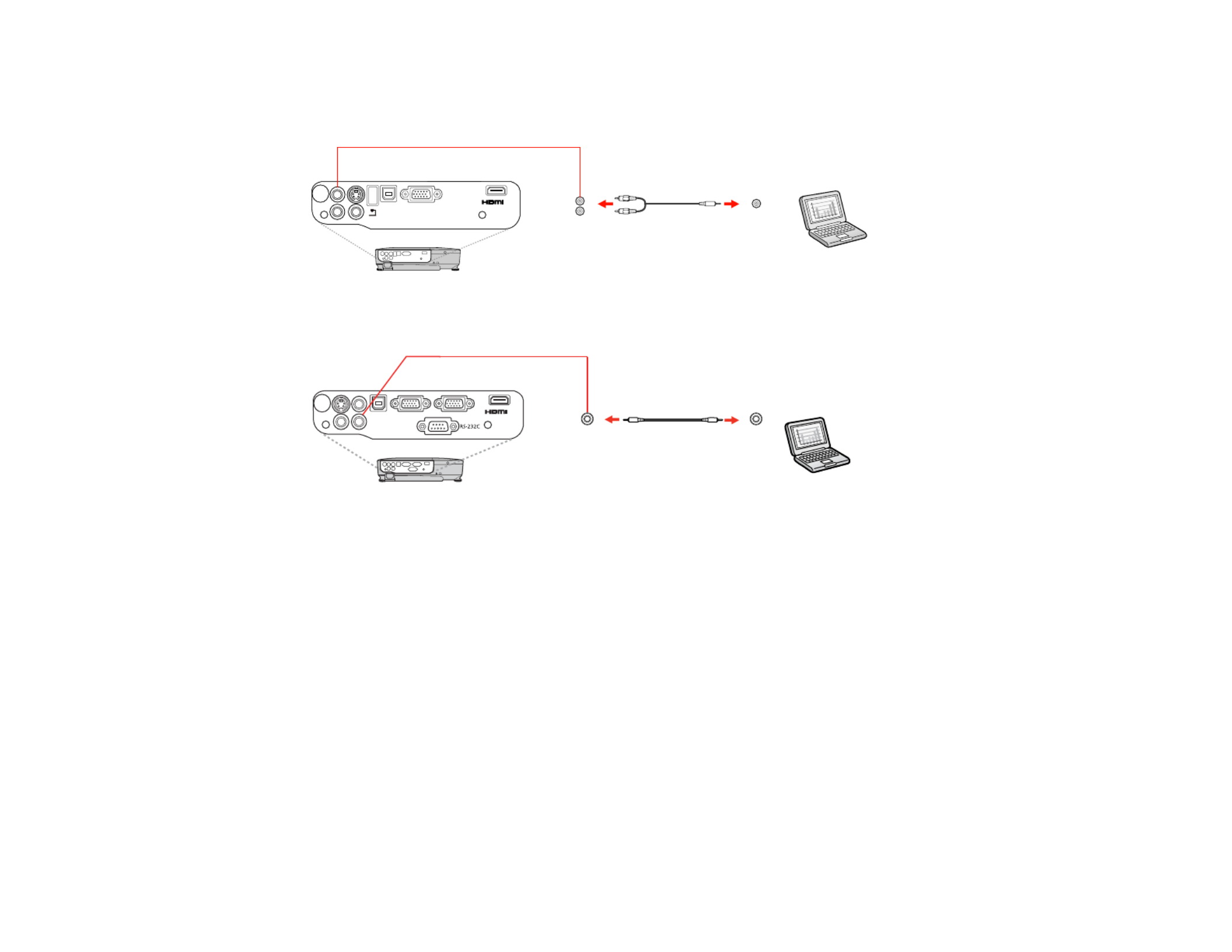

2. Connect the other end to the projector's ports.Audio
PowerLite S11/X12
PowerLite X15
Parent topic: Connecting to Computer Sources
Connecting to Video Sources
Follow the instructions in these sections to connect video devices to the projector.
Connecting to an HDMI Video Source
Connecting to a Component-to-VGA Video Source
Connecting to a Composite Video Source
Connecting to an S-Video Video Source
Connecting to a Video Source for Sound
Parent topic: Projector Connections
Connecting to an HDMI Video Source
If your video source has an HDMI port, you can connect it to the projector using an optional HDMI cable
(PowerLite X12/X15). The HDMI connection provides the best image quality.
33
PowerLite X15
If your image colors appear incorrect, you may need to change the setting in the projector'sInput Signal
Signal menu.
Parent topic: Connecting to Video Sources
Related references
Input Signal Settings - Signal Menu
Connecting to a Composite Video Source
If your video source has a composite video port, you can connect it to the projector using an optional
RCA-style video or A/V cable.

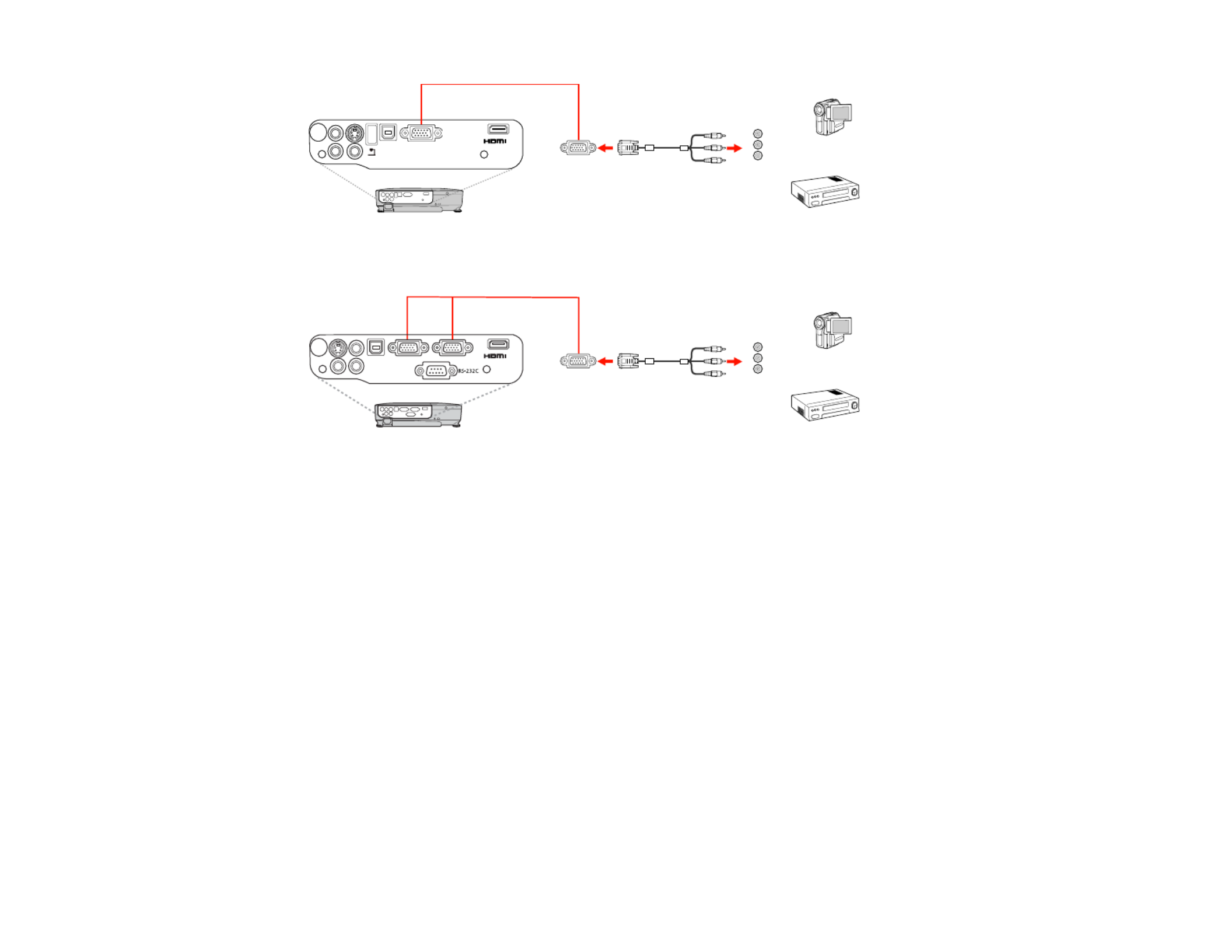

1. Connect the cable with the yellow connector to your video source's yellow video output port.
2. Connect the other end to the projector's port.Video
PowerLite S11/X12
35
Note: The projector's built-in speaker system is disabled when you connect external speakers.
1. Make sure your computer or video source is connected to the projector with both audio and video
cables as necessary.
2. Locate the appropriate cable to connect your external speakers, such as a stereo mini-jack-to-pin-
jack cable, or another type of cable or adapter.
3. Connect one end of the cable to your external speakers as necessary.

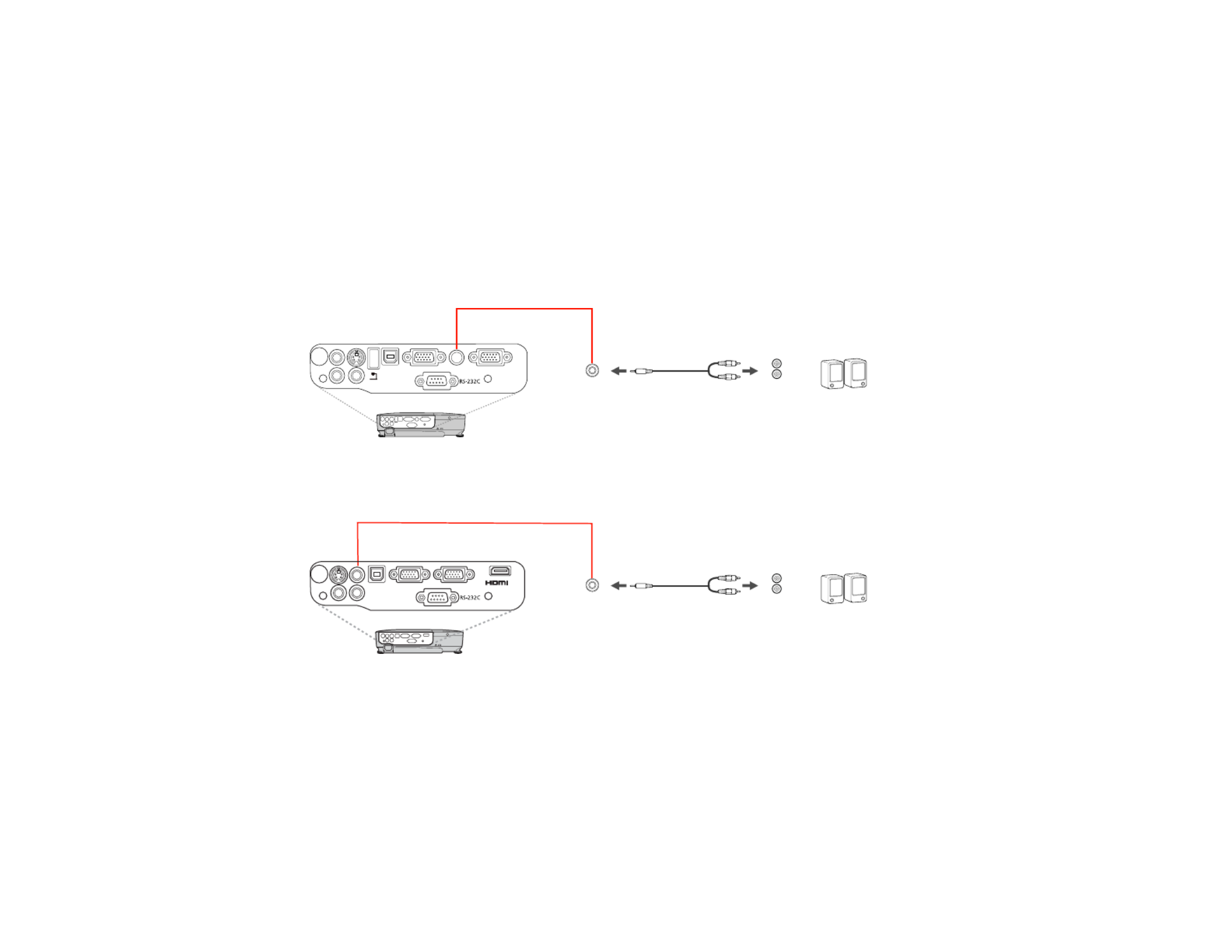

4. Connect the stereo mini-jack end of the cable to your projector's port.Audio Out
PowerLite S11
PowerLite X15
Parent topic: Projector Connections
Connecting to External USB Devices
Follow the instructions in these sections to connect external USB devices to the projector (PowerLite
S11/X12).
USB Device Projection
Connecting a USB Device or Camera to the Projector
39

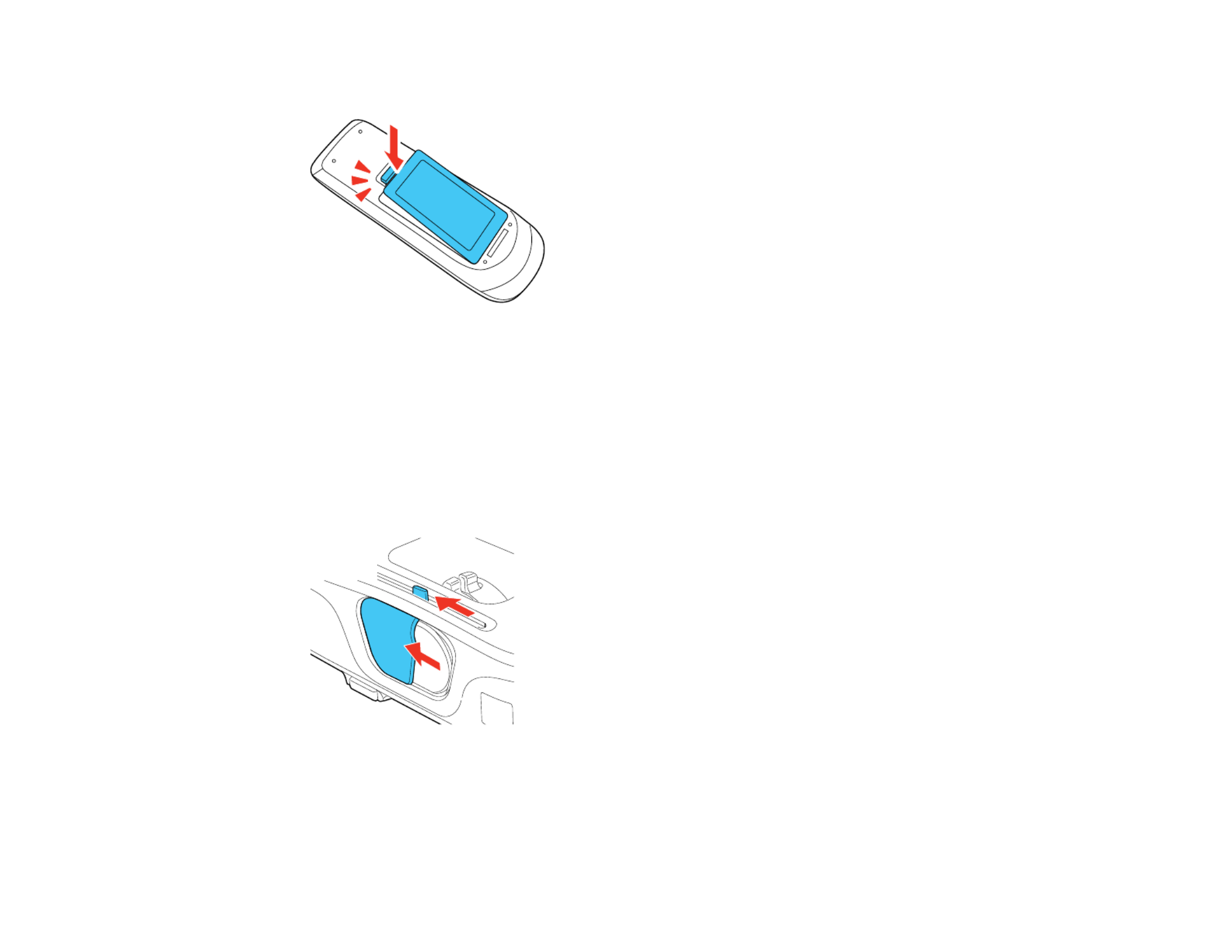

3. Close the battery cover and press it down until it clicks into place.
Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat
or flame. Keep batteries out of the reach of children; they are choking hazards and are very
dangerous if swallowed.
Parent topic: Setting Up the Projector
Opening the Lens Cover
1. To open the projector's lens cover, slide the slide lever.A/V Mute
2. To cover the lens or temporarily turn off the projected picture and sound, slide the slideA/V Mute
cover closed.
Parent topic: Setting Up the Projector
44

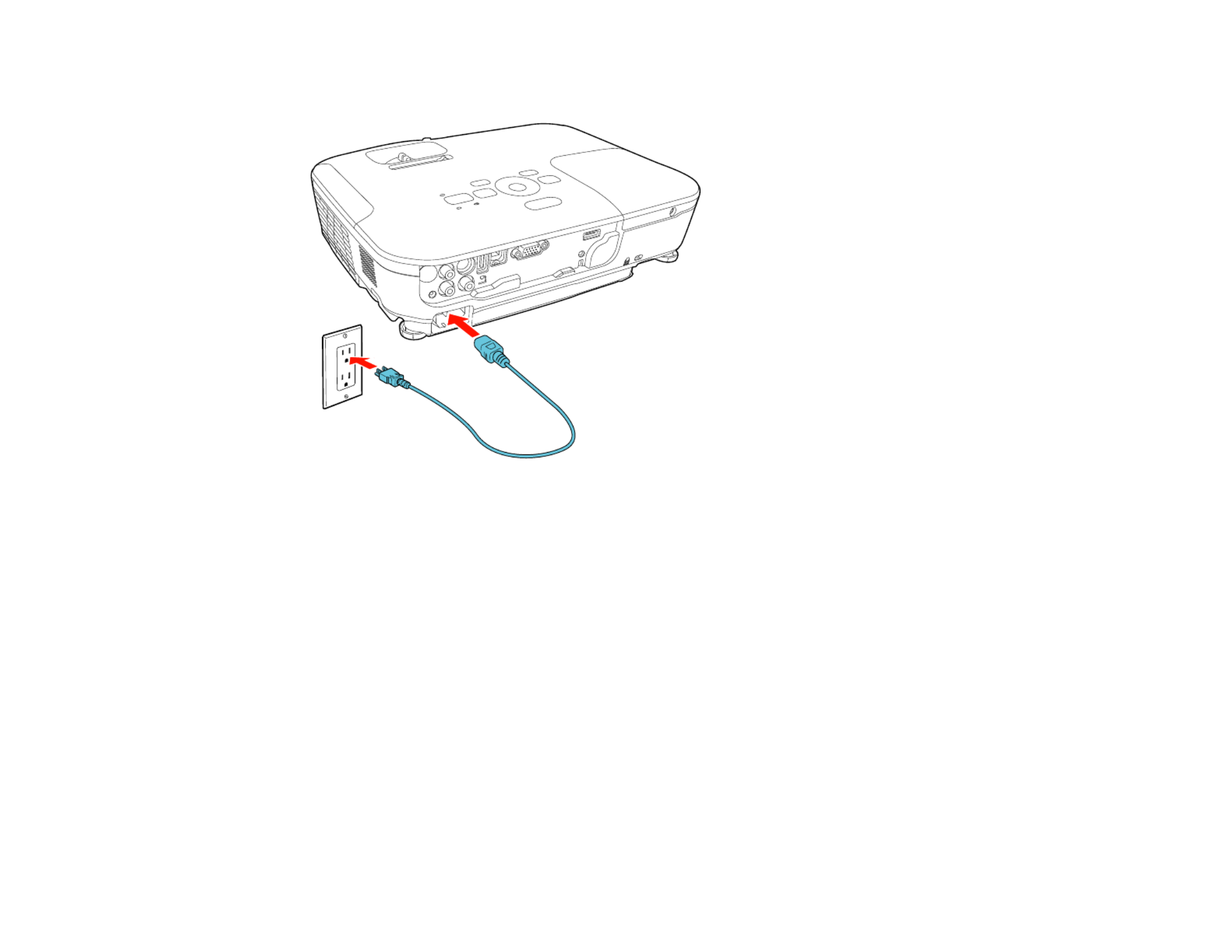

2. Connect the power cord to the projector's power inlet.
3. Plug the power cord into an electrical outlet.
The projector's power light turns orange. This indicates that the projector is receiving power, but is
not yet turned on (it is in standby mode).
Note: Direct Power OnWith turned on, the projector turns on as soon as you plug it in.
4. Press the power button on the projector or the remote control to turn on the projector.
The projector beeps and the power light flashes green as the projector warms up. After about five
seconds, the power light stops flashing and turns green.
Warning: Never look into the projector lens when the lamp is on. This can damage your eyes and is
especially dangerous for children.
If you do not see a projected image right away, try the following:
• Turn on the connected computer or video device.
• Insert a DVD or other video media, and press the play button (if necessary).
46
• Press the button on the projector or remote control to detect the video source.Source Search
Parent topic: Using Basic Projector Features
Related references
Projector Setup Settings - Extended Menu
Turning Off the Projector
Before turning off the projector, shut down any computer connected to it so you can see the computer
display during shutdown.
Note: Turn off this product when not in use to prolong the life of the projector. Lamp life will vary
depending upon mode selected, environmental conditions, and usage. Brightness decreases over time.
1. Press the power button on the projector or the remote control.

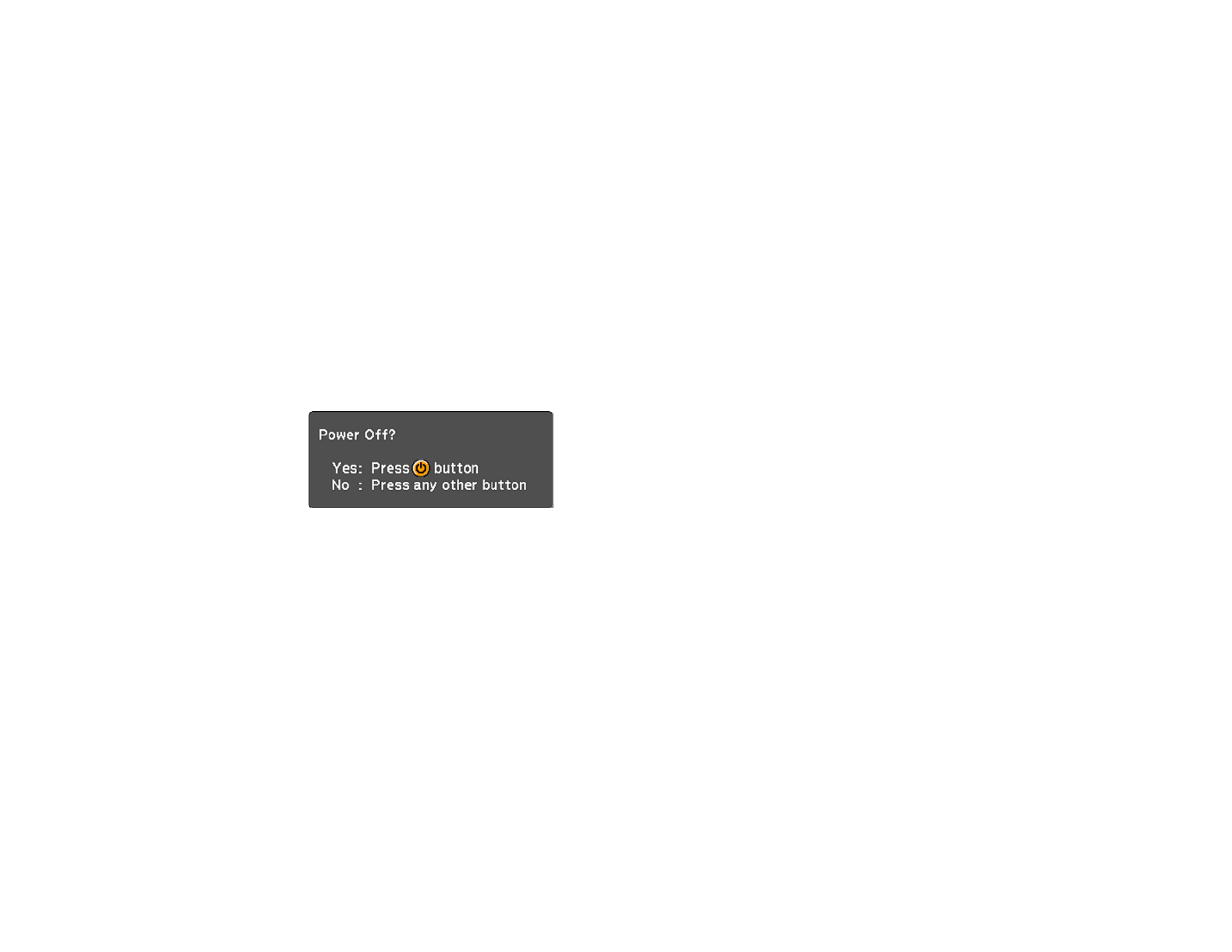

The projector displays a shutdown confirmation screen.
2. Press the power button again. (To leave it on, press any other button.)
The projector beeps twice, the lamp turns off, and the power light turns orange.
Note: With Epson's Instant Off technology, there is no cool-down period so you can pack up the
projector for transport right away (if necessary).
47
Produktspecifikationer
| Varumärke: | Epson |
| Kategori: | Beamer |
| Modell: | PowerLite X15 |
Behöver du hjälp?
Om du behöver hjälp med Epson PowerLite X15 ställ en fråga nedan och andra användare kommer att svara dig
Beamer Epson Manualer
1 Mars 2025
8 Januari 2025
5 Januari 2025
5 Januari 2025
5 Januari 2025
4 Januari 2025
4 Januari 2025
4 Januari 2025
4 Januari 2025
25 December 2024
Beamer Manualer
- Leica
- Speaka
- InFocus
- Hama
- AOpen
- Naxa
- Sanyo
- Touchjet
- Smartwares
- Vankyo
- Lenovo
- Miroir
- AAXA Technologies
- ZTE
- Beghelli
Nyaste Beamer Manualer
9 April 2025
9 April 2025
2 April 2025
5 Mars 2025
5 Mars 2025
3 Mars 2025
26 Februari 2025
20 Februari 2025
20 Februari 2025
20 Februari 2025
