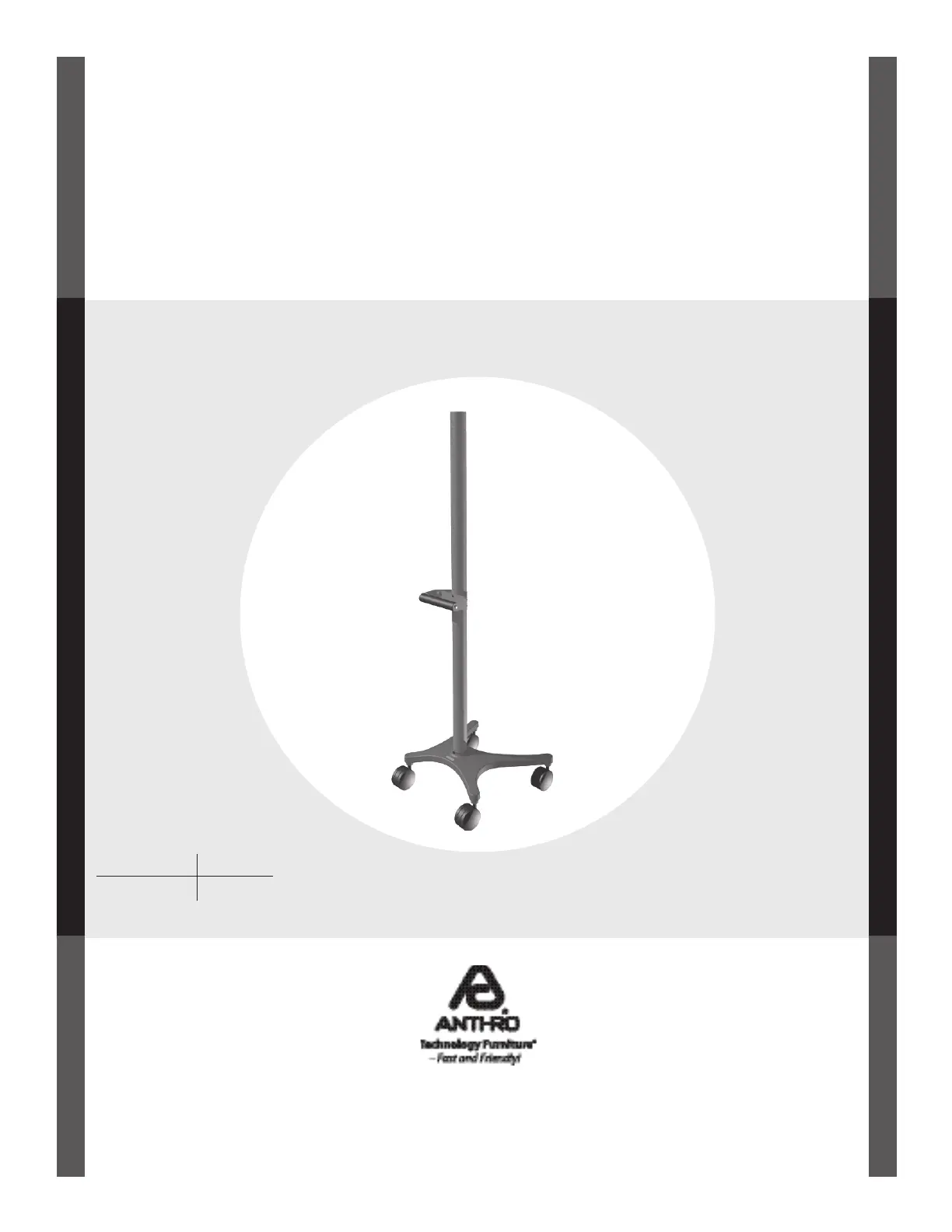

ASSEMBLY INSTRUCTIONS

Anthro Corporation

| 10450 SW Manhasset Dr. | Tualatin, OR 97062

Toll-free: 800.325.3841 | Fax: 800.325.0045 | email: sales@anthro.com | anthro.com

Outside the U.S. | Tel: 503.691.2556 | Fax: 503.691.2409

Zido

8" Handle

Rev A, August 2010

Product Part#

Zido Handle 8" ZHHSB

NOTE: Shown on a Zido Pole Cart, sold separately.

WELCOME

Thank you for purchasing the

Zido 8" Handle. If you have any

questions or if we can help you

in any way, please contact us at

800.325.3841.

TOOLS

A 1/8" Hex Key is provided for this

assembly. You'll also use the 5/32"

hex Anthro driver which came with

your Zido cart.

A 3/8" socket, nut driver, or wrench

is required but not provided.

PARTS LIST

Before beginning assembly of your Zido 8" Handle, please

review the parts list to verify that your shipment is complete.

The fastener quantities listed here are the minimum required

for your assembly. You may receive a few extras.

Product Quantity Part Number

01 Zido 8" Handle Bracket 1 225-2986-00

02 Zido 8" Handle Support 1 225-2985-00

03 Zido 8" Handle Tube 1 125-5337-00

04 Zido 8" Handle Wrap 1 175-5275-00

(Not shown; installed on the tube at the factory.)

05 1/2" Self-threading Screws 3 325-5464-00

06 1/2" Flat-head Screws 4 325-5193-00

07 2" Button-head Screws 2 325-5034-00

08 10-24 Nylock Nut 4 325-5186-00

09 1/8" Hex Key 1 375-5015-00

(Not shown.)

Produktspecifikationer

Varumärke:	Ergotron
Kategori:	multimedia cart
Modell:	ZHHCG
Vikt:	1800 g
Ursprungsland:	USA
Material:	Stål
Produktens färg:	Grå
Produktstorlek (BxDxH):	305 x 230 x 100 mm
Material, hölje:	Stål
