300-5418-00 rev. R • 10/19
Zido Adjustable, NO LIP Part#
Adjustable, Heavy Load, 25" w ZAH25CG/CG4
Adjustable, Light Load, 22" w ZAL22CG/CG4
Adjustable, Light Load, 25" w ZAL25CG/CG4
www.ergotron.com | USA: 1-800-888-8458
For the latest User Installation Guide please visit:

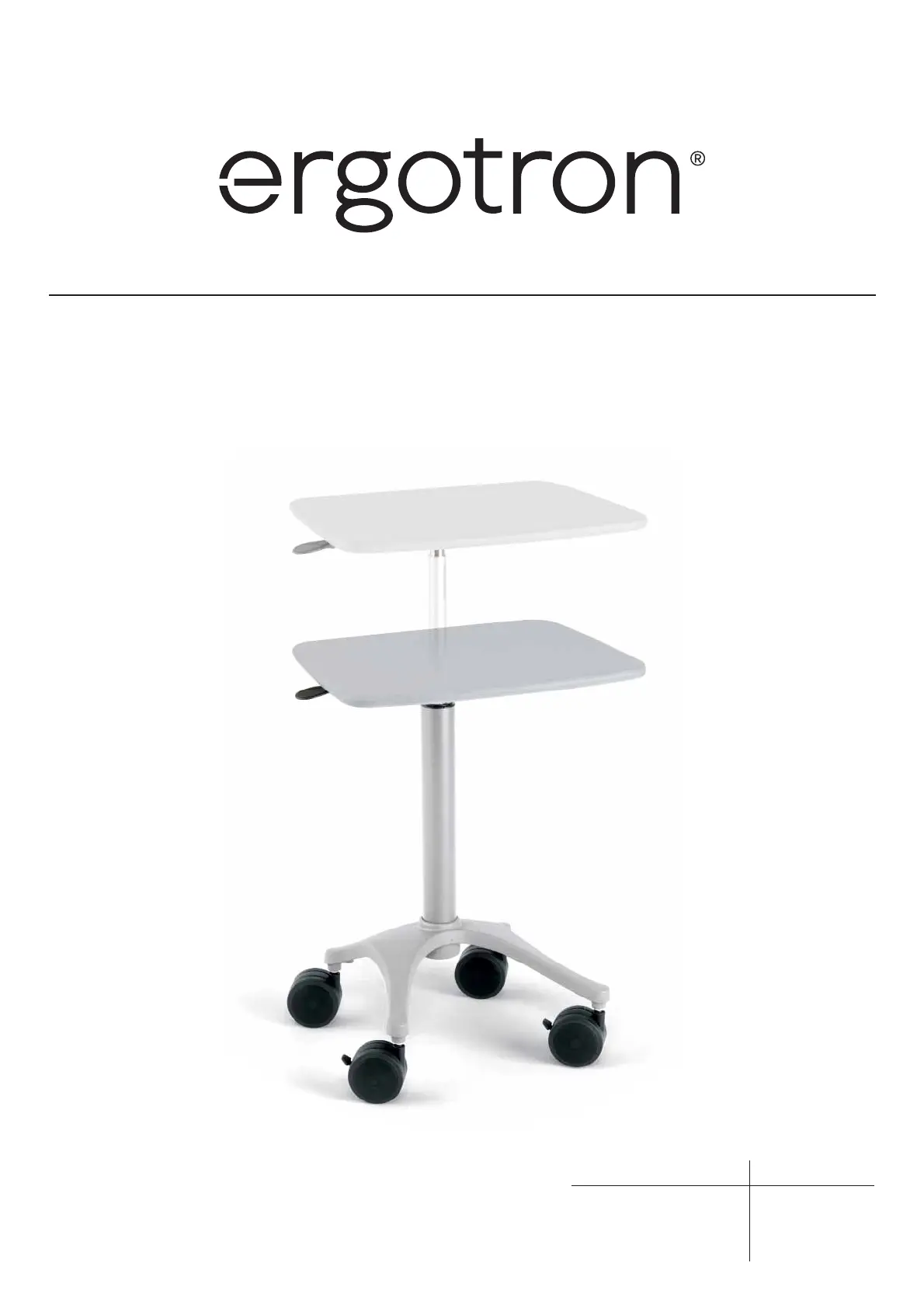

Zido® Adjustable-Height Cart
User Guide
2 of 4
300-5418-00 rev. R • 10/19
09
10
11
01
02
03
04
06
05
07
08
Product Quantity
01 Cap Shelf 1
For small cart, no lip
For small cart, with lip
For large cart, no lip
For large cart, with lip
02 Cap Shelf Bracket 1
03 Base
For Small Cart 1
For Large Cart 1
04 Column
For Light Load Cart 1
For Heavy Load Cart 1
05 4" Non-locking Caster 2
06 4" Locking Caster 2
07 Release Lever and Paddle 1
08 5/16-18 Nylock Nut 4
09 5/16-18 Button Head Screw 4
10 1/4-20 UNC Flat Head Screw 2
11 3/4" Wood Screws 8
12 3/16" Hex Key (not shown) 1
13 5/32" Hex Driver (not shown) 1
PA R T S L I S T
Before beginning assembly of your Zido Height-adjust-
able Cart, please review the parts list to verify that your
shipment is complete.
3 of 4
300-5418-00 rev. R • 10/19
1/4-20 UNC Flat Head Screw
STE P 2
Connect the Base with the Tube
Holding the column from the center (don't push
from the top) slide the tube into the base so
that the tube goes all the way to the bottom of
the base.
Align the upper hole on the base with a
threaded hole in the column. (For the large
cart, you'll use the top hole; for the small cart,
you'll use the second hole.) Loosely attach the
column to the base with two 1/4-20 UNC Flat
Head Screws.
STE P 1
Insert the Casters into the Base
Place the base upside down. Use a
rubber mallet to tap the locking casters
into the front receivers of the base.
Tap the non-locking casters into the
receivers of the base.
ASSE MBLY SEQUEN CE
Plan out the assembly sequence to make your installation easier.
1. Pre-drill the top for accessories (Mouse Holder, Side Bin, Gel Cup/Probe Holder, Extension Tube).
2. Assemble the cart.
3. Base Storage Shelf.
4. Drawer, Keyboard Caddy, Standard Handle.
5. Additional Shelves, Equipment Shelves, Metal Bin.
6. Cable Bin, Glove Box Holder.
7. Mouse Holder, Side Bin, Gel Cup & Probe Holder, Extension Tube.
8. 8" Handle, Flat Panel Mounts.
