THANK YOU FOR PURCHASING

ERICA SYNTHS BLACK SERIES

MODULE!

Erica Black Series includes

high‑end, unique functionality and

superior quality modules. Only the

best, highest quality components

are used, all inputs and outputs

are protected against undesired

overvoltage. When designing

Black Series, we put design and

usability superior. Big knobs are

assigned to key functions of the

module, which makes Black Series

ideal for live performances. Enjoy!

Erica Black Mixer/Splitter is

advanced replacement for

stackable patchcables.

We give you four independent

buered input mixer and buered

output signal splitter in one

module!

TECHNICAL SPECIFICATIONS:

Max input level..............‑10V – +10V

Power consumption ...+25mA, ‑25mA

Module width .............................4HP

Module depth ........................25mm

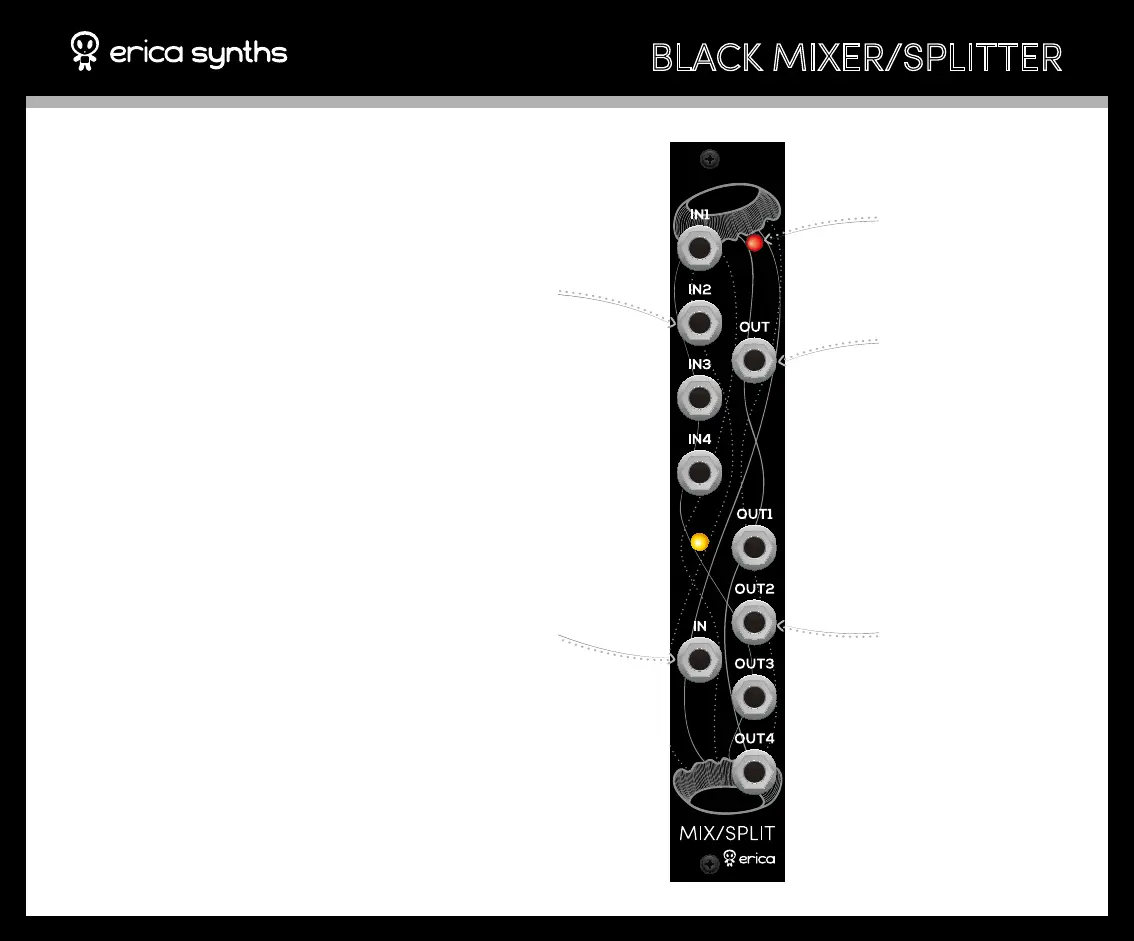

Here you have output of the

mixer – all signals from inputs are

mixed together. Mixer has gain 1

On outputs you get 4 identical

independent signals – exact

copies of input signal

Apply signal, you wish to mix

here! Inputs are DC coupled,

so you can use it for mixing

CV or audio signals. Remove

jumpers on the PCB and you

get AC coupled mixer and

splitter for better audio quality!

Apply signal, you wish to split

here! Input is DC coupled, so

you can use it for splitting CV,

clock or audio signals.

Status LED gives you visual

indication on input/output signal

amplitude. Especially useful for

clock and CV signals

Black Mixer/Splitter
