THANK YOU FOR PURCHASING THIS

ERICA SYNTHS BLACK SERIES

MODULE! These are high-end modules

with unique functionality. Only the

highest quality components are used

and all inputs and outputs are

protected against undesired

overvoltage. When designing the Black

Series, we did not economise on the

module width, we put design and

usability first. Big knobs are assigned to

functions that make dierence in sound.

The Erica Black series are a range of

modules that together make an entire

synthesizer. Enjoy!

THE Erica Black Output Module is a

high quality output mixer and stereo

panner with balanced outputs and

headphone amplifier for monitoring

your modular masterpieces. All inputs

are buered, we use stereo

potentiometers (found in high quality

studio mixers) for panning, IN3 has a

CV controlled autopan function. You will

find 6.3mm jacks for balanced outputs

and headphones.

SPECS:

Input level………………….............-10V - +10V

Pan CV input level……......………-10V - +10V

Phone amp out power ..................100mW

Power consumption…..... +65mA, -45mA

Module width………...............……………14HP

Module depth……….........……………..30mm

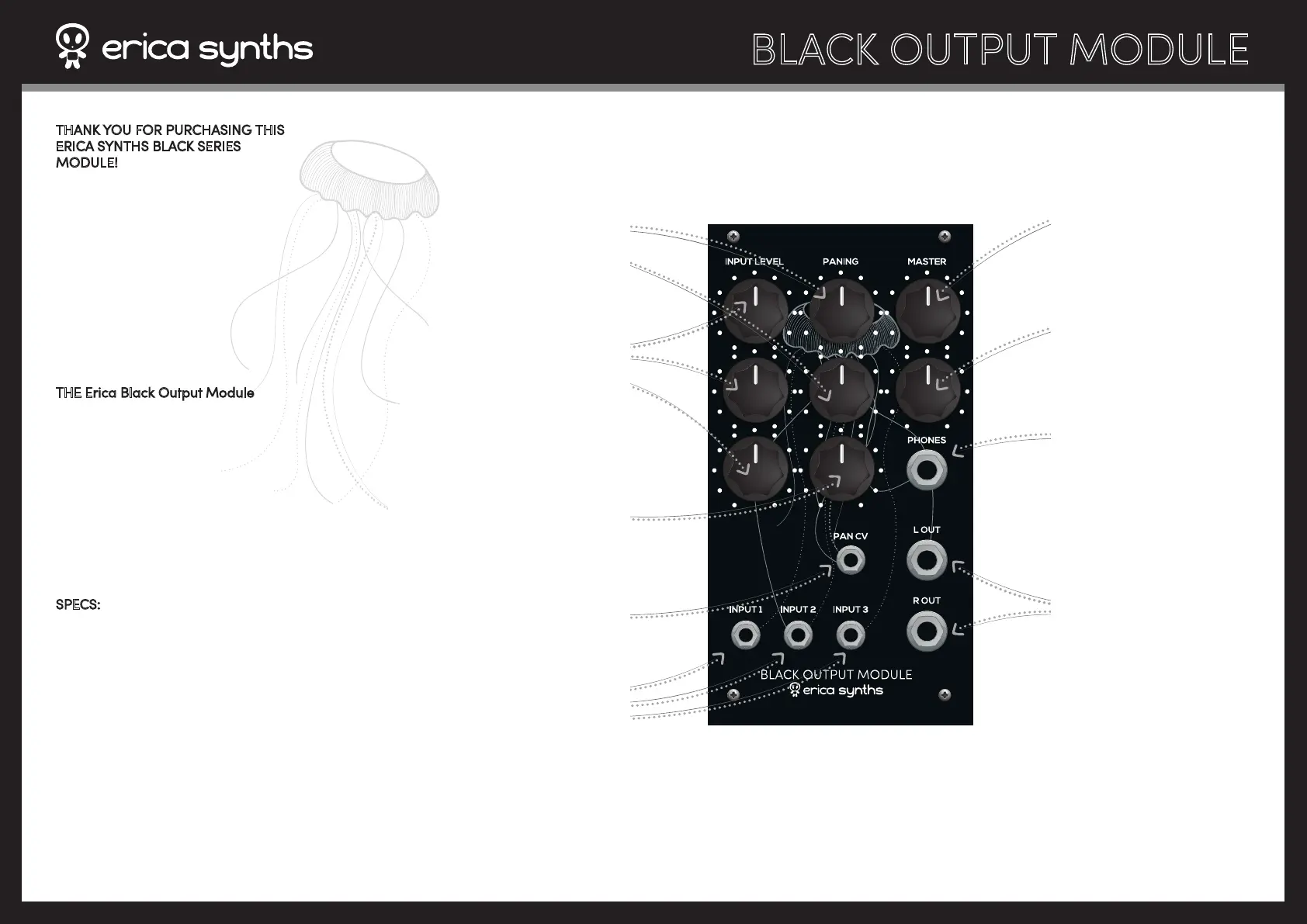

BLACK OUTPUT MODULE

These knobs are for manual

stereo panning for INPUT1

and INPUT2

These knobs adjust input

signal level

Patch audio signals form

three dierent sources

here!

Apply INPUT3 panning

CV here!

INPUT3 has CV controlled

autopan option, and this

knobs attenuates panning

CV level

Adjust master output

level

Adjust phones volume

independently from

master level

Plug monitor

headphones with

6.3mm jack here!

These are balanced

outputs for Left and

Right stereo channels
